Polar Stainless Steel Counter Refrigerators Freezers Instruction Manual

POLAR Stainless Steel Counter Refrigerators Freezers Instruction Manual

Safety Tips

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.
• Consult Local and National Standards to comply with the following: – Health and Safety at Work Legislation – Fire Precautions – Wiring Regulations – Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT stand or support yourself on the base, drawers or doors.
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• POLAR recommend that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a
  flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

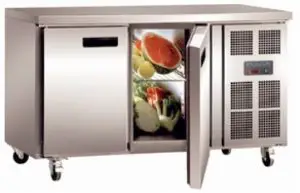

Product Description

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

• POLAR Refrigerator or Freezer
• Shelf guide (2 per door)
• Shelf (1 per door)
• Instruction manual
• Spacer (x2)

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces
2. To optimize performance and longevity, ensure a minimum clearance of 2.5cm is maintained between the unit and walls and other objects, with a minimum 5cm clearance on the top. NEVER LOCATE NEXT TO A HEAT SOURCE.
   Note: To avoid being pushed tight against the wall accidentally and ensure good ventilation, 2 spaces are supplied for mounting on the rear.

3. Set the brakes on the castors to keep the appliance in position.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water

Fitting the Shelves & Floor Guards

1. Place one set of shelf guides on either side of the cabinet at the desired height.
2. Slide the shelf into place.
3. Repeat for the remaining shelves.
4. Place the floor guards on the floor of the cabinet, ensuring the flat side is clear of the floor

Note: This is vital for ensuring correct drainage of condensation.

Operation

Storing Food:
To get the best results from your POLAR appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.
• Do not place uncovered hot food or liquid inside the appliance.
  • Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods of time.

Turn On:

1. Ensure the power switch is set to [O] and turn on at the socket.
2. Switch on the Power [I]. The current temperature within the appliance is displayed.

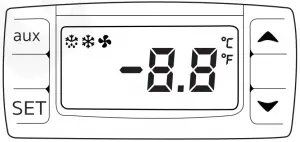

Control Panel:

Set the Operating Temperature:

1. Hold the SET button for 3 seconds. The value of the current set point will be displayed.
2.  Press the or buttons to display the required temperature.
3. Press the SET button to store the temperature.

Manual Defrost:

• The appliance will automatically run a defrost cycle every six hours.
• To manually defrost the appliance: Press and hold the defrost button “aux” for 2 seconds to begin a manual defrost. The defrost light illuminates.

Cleaning, Care & Maintenance

Defrost appliance at least every 3 months, more often if required. Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with warm soapy water.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• Take care when cleaning the rear of the appliance. Sharp edges can cut.
• A POLAR agent or qualified technician must carry out repairs if required.

Stainless Steel Care:
To maintain the stainless steel exterior of your Polar item, please consider the following information:

Never

• Use abrasive Scourers or scrubbing pads, etc.
• Use Chlorinated or acidic detergents
• Allow anything e.g. food, dirt, cleaning chemicals to remain on the surface for longer than necessary, clean them off right away.
• Allow the surface to remain wet.

Do

• Clean often.
• Use soft Cloths or plastic Scourers.
• Rub with the grain of the metal, rather than across it. Use detergents and
• polish designed for cleaning Stainless Steel.
• Ensure that the cleaning products are washed off fully and that the steel is left dry.

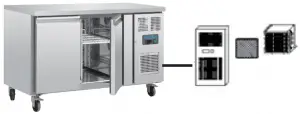

Routine Maintenance

Condenser Cleaning:

• The condenser is part of the refrigeration system. The condenser requires monthly cleaning.
• Always disconnect power supply before carrying out Routine Maintenance.
• Failure to clean the condenser will reduce the performance and life of your Polar unit and may invalidate your warranty
• The condenser is located behind the service door on the right-hand side of the refrigeration cabinet.
• These models have a removable filter which can be cleaned with a vacuum cleaner.


Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer

Telephone Helpline: 1300225960

Technical Specifications

Electrical Wiring

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
•  Earth wire (coloured green/yellow) to terminal marked E

The appliances must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.
POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR. Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

DECLARATION OF CONFORMITY

The undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s)

Date	18th November 2020
Signature
Full Name	Ashley Hooper	Eoghan Donnellan	Josie Holt
Position	Technical & Quality Manage	Commercial Manager/ Importer	Commercial Manager/ Responsible Supplier
Producer Address	Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point Business Park New Mallow Road Cork Ireland	15 Bagdally Road, Campbelltown NSW 2560
