Polar Cd080-a Refrigerators/freezers Instruction Manual

600 – 400 – 150 litre series Refrigerators-Freezers Instruction manual

Model
CD080-A/CD081-A/CD082-A/CD083-A/CD084-A/CD085-A/CD610-A/CD611-A/
CD612-A/CD613-A/CD614-A/CD615-A/CD086-A/CD087-A/CD088-A

Safety Tips

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.
• Consult Local and National Standards to comply with the following:
  – Health and Safety at Work Legislation
  – Fire Precautions
  – Wiring Regulations
  – Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the uni before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• POLAR recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.
• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

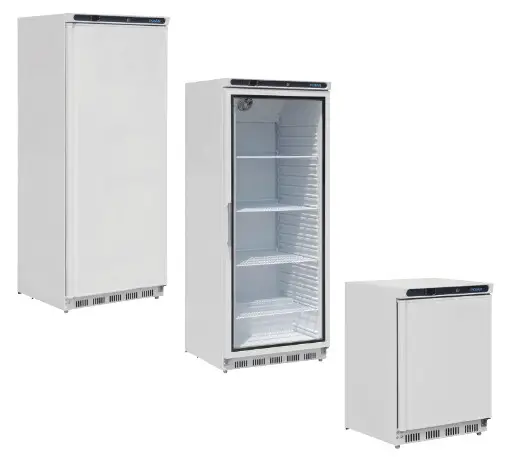

• Product Description
• CD080-A – 150-litre Refrigerator
• CD081-A – 140-litre Freezer
• CD082-A – 400-litre Refrigerator
• CD083-A – 365-litre Freezer
• CD084-A – 600-litre Refrigerator
• CD085-A – 600-litre Freezer
• CD086-A – 150-litre Glass-Door Refrigerator
• CD087-A – 400-litre Glass-Door Refrigerator
• CD088-A – 600-litre Glass-Door Refrigerator
• CD613-A – 365-litre Freezer
• CD614-A – 600-litre Refrigerator
• CD615-A – 600-litre Freezer
• CD610-A – 150-litre Refrigerator
• CD611-A – 140-litre Freezer
• CD612-A – 400 litre Refrigerator

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

• POLAR Refrigerator / Freezer
• Shelves – Refrigerator only CD610-A/ CD080-A x 3/ CD086 x 3 CD612-A/ CD082-A x 4 / CD087 x 4 CD614-A x 4 / CD084-A / CD088 x 4
• Keys x 2
• Spacers x 2
• Instruction Manual

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before the operation. If in doubt allow standing.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation.
NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.

Note: Before using the appliance for the first time, clean the shelves and interior
with soapy water. The appliance is supplied with feet by default. However, castors can be supplied
as an option from serial number range: 8128595-AU onwards.

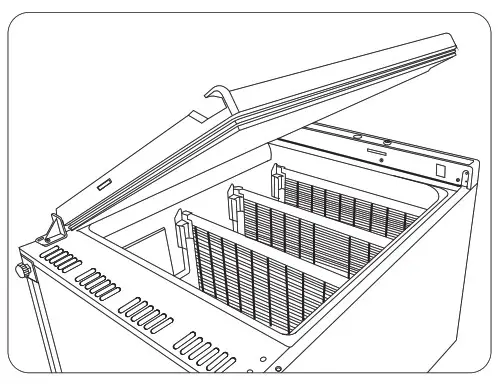

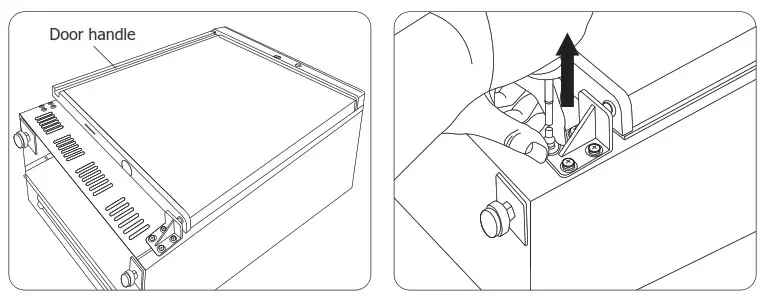

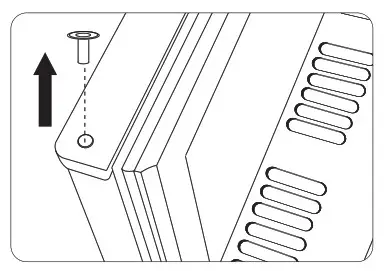

Reversing the door
Depending on the location of the appliance, it may be necessary to change the direction the door opens by changing the side of the door handle. To reverse the door handle:

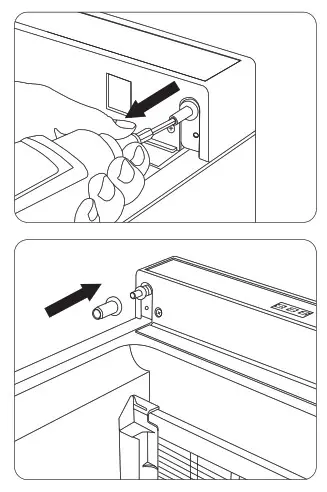

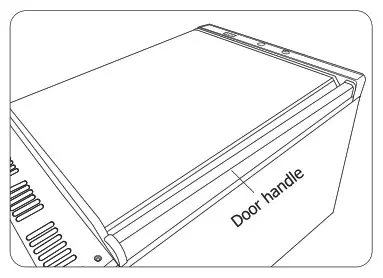

1. The door handle is on the left side. Disassemble the right lower hinge.

2. Remove the door from the right upper hinge. Then remove the hinge sleeve from the door top.

3. Remove the right upper hinge and install it on the left side. Afterward, install the hinge sleeve onto the hinge.

4. Reverse the door and hang it onto the left upper hinge.

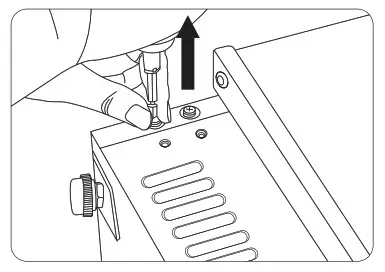

5. Remove the pre-mounted screws on the left lower side.

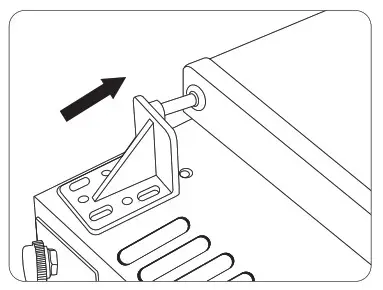

6. Install the previously removed right lower hinge on the left side.

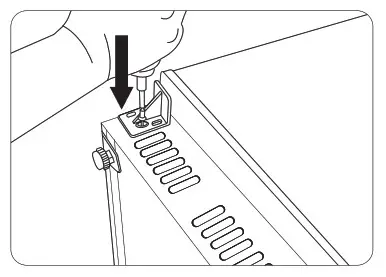

7. Secure the hinge in place using the previously removed screws.

8. Now the door handle is installed on the right side.

Operation

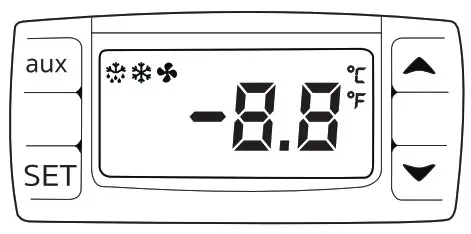

Control Panel

The control panel is located on the front of the appliance.

Turn On

1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.

Set the Operating Temperature
1. Press the SET button for 3 seconds. The display will flash.
2. Press the or buttons to display the required temperature.

3. Press the SET button to store the temperature.

Manual Defrost
Press and hold the defrost button “aux” for 2 seconds to begin a manual defrost. The defrost light illuminates.

Storing Food
To get the best results from your POLAR appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.
• Do not place uncovered hot food or liquid inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods of time.

Cleaning, Care & Maintenance

Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with warm soapy water.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• Take care when cleaning the rear of the appliance. Sharp edges can cut.
•  A POLAR agent or qualified technician must carry out repairs if required.
  Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance.POLAR recommends that a POLAR agent or qualified technician should clean the condenser.

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Telephone Helpline: 1300225960

Technical Specifications

Electrical Wiring

The plug is to be connected to a suitable mains socket. POLAR appliances are wired as follows:

• Live wire (colored brown) to the terminal marked L
• Neutral wire (colored blue) to the terminal marked N
• Earth wire (colored green/yellow) to terminal marked E This appliance must be earthed. If in doubt consult a qualified electrician. Electrical isolation points must be kept clear of any obstructions.

In the event of any emergency disconnection being required, they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.
POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
POLAR products have been approved to carry the following symbol:

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of POLAR. Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserves the right to change specifications without notice.

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

• Conformiteitsverklaring • Declaration de conformity • Konformitatserklarung • Dichiarazione di conformity •
• Declaracion de conformidad • Declaracio de conformidade

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s), and Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande Richtlijn(en) en Standaard(en). Je soussigné, confirme la conformité de l’équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und Norm(en) entspricht. Il sottoscritto dichiara che l’apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati. El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y estándar(es) arriba mencionadas. Eu, o abaixo-assinado, declaro que o equipamento anteriormente especificado está em conformidade com a(s) anterior(es) Directiva(s) e Norma(s)

Date • Data • Date • Datum • Data • Fecha • Data Signature • Handtekening • Signature • Unterschrift Firma • Firma • Assinatura
Full Name • Volledige naam • Nom et prenom • Vollstandiger Name • Nome completo • Nombre complete Nome por extenso
Position • Functie • Fonction • Position • Qualifica • Posici6n • Funcao Producer Address • Adres fabrikant • Adresse du producteur • Anschrift des Herstellers • Indirizzo del produttore • Direcci6n del fabricante Morada do fabricante

3rd December 2020

Ashley Hooper	Eoghan Donnellan	Josie Holt
Technical & Quality Manager	Commercial Manager/ Importer	Commercial Manager/ Responsible Supplier
Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point 15 Bagdally Road, Business Park Campbelltown New Mallow Road NSW 2560 Cork Ireland	15 Bagdally Road, Campbelltown NSW 2560

http://www.polar-refrigerator.com

15 Bagdally Road, Campbelltown NSW 2560
