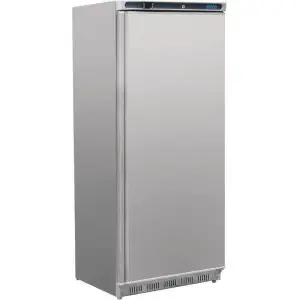

Polar Refrigerators / Freezers Instruction Manual

POLAR Refrigerators / Freezers Instruction Manual

Safety Instructions

• Position on a flat, stable surface
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.
• Consult Local and National Standards to comply with the following:
  • Health and Safety at Work Legislation
  • Fire Precautions
  • Wiring Regulations
  • Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• POLAR recommend that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity an Functional Testing.

     Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

Warning: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

• CD080-A – 150 litre Refrigerator
• CD081-A – 140 litre Freezer
• CD082-A – 400 litre Refrigerator
• CD083-A – 365 litre Freezer
• CD084-A – 600 litre Refrigerator
• CD085-A – 600 litre Freezer
• CD086-A – 150 litre Glass-Door Refrigerator
• CD087-A – 400 litre Glass-Door Refrigerator
• CD088-A – 600 litre Glass-Door Refrigerator
• CD613-A – 365 litre Freezer
• CD614-A – 600 litre Refrigerator
• CD615-A – 600 litre Freezer
• CD610-A – 150 litre Refrigerator
• CD611-A – 140 litre Freezer
• CD612-A – 400 litre Refrigerator
• CB921-A – 365 litre Glass-Door Freezer
• GL185-A – 522 litre Bakery Refrigerator

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

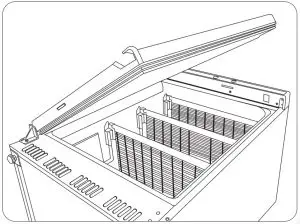

Pack Contents

The following is included:

• POLAR Refrigerator / Freezer
• Shelves – Refrigerator only
  CD610-A/ CD080-A x 3/ CD086-A x 3
  CD612-A/ CD082-A x 4 / CD087-A x 4
  CD614-A x 4 / CD084-A / CD088-A x 4
• Tray Guides – Bakery refrigerator only GL185-A x 12
• Keys x 2
• Spacers x 2
• Instruction Manual

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are msupplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

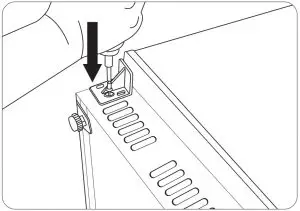

Note: A bracket is used to support the door during transportation. On receipt please remove the bracket.

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. To optimize performance and longevity, ensure a minimum clearance of 2.5cm is maintained between the unit and walls and other objects, with a minimum 5cm clearance on the top. NEVER LOCATE NEXT TO A HEAT SOURCE.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.
The appliance is supplied with feet by default. However, castors can be supplied as an option from serial number range: 8128595-AU onwards.

Reversing the door (Excluding model CB921-A/CD086-A/CD087-A/
CD088-A)

Depending on the location of the appliance, it may be necessary to change the direction the door opens by changing the side of the door handle.
To reverse the door handle:

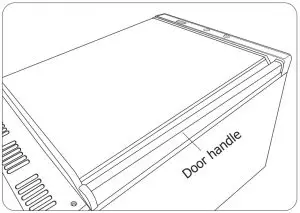

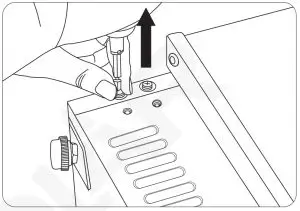

1. The door handle is on the left side. Disassemble the right lower hinge.

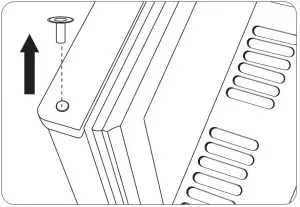

2. . Remove the door from the right upper hinge. Then remove the hinge sleeve from the door top.

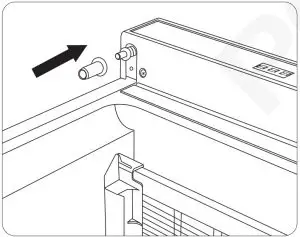

3. Remove the right upper hinge and install it on the left side. Afterwards, install the hinge sleeve onto the hinge.


4. Reverse the door and hang it onto the left upper hinge.

5. Remove the pre-mounted screws on the left lower side.

6. Install the previously removed right lower hinge on the left side.

7. Secure the hinge in place using the previously removed screws.

8. Now the door handle is installed on the right side.


Operation

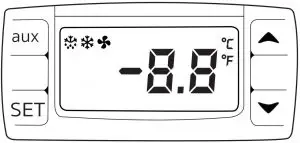

Control Panel

The control panel is located on the front of the appliance.

Turn On

1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.

Set the Operating Temperature

1. Press the SET button for 3 seconds. The display will flash.
2. Press the  or   buttons to display the required temperature.
3. Press the SET button to store the temperature.

Manual Defrost

Press and hold the defrost button “aux” for 2 seconds to begin a manual defrost. The defrost light illuminates.

Storing Food

To get the best results from your POLAR appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.
• Do not place uncovered hot food or liquid inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods of time.

Lock/Unlock the Doors

• A lock is fitted to the doors to ensure foodstuffs are kept secure within your POLAR appliance.
• Use the keys provided to lock/unlock the door.

Cleaning, Care & Maintenance

Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with warm soapy water.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• Take care when cleaning the rear of the appliance. Sharp edges can cut.
• A POLAR agent or qualified technician must carry out repairs if required.

Cleaning the Condenser
Periodically cleaning the condenser can extend the life of the appliance.
POLAR recommend that a POLAR agent or qualified technician should clean the condenser

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

FaultProbable CauseThe appliance is leaking waterMovement of water to the drain is obstructedThe appliance is unusually loudLoose nut/screwThe lamp does not illuminateLamp needing replacing

Technical Specifications

Electrical Wiring

The plug is to be connected to a suitable mains socket

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.
If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.
POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.
Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

DECLARATION OF CONFORMITY

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).
