Arctica Md143 Refrigerator Instruction Manual

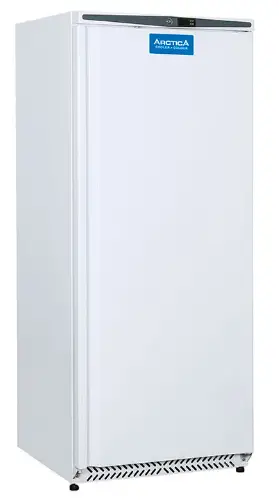

ARCTICA MD143 Refrigerator

• U/C White Refrigerator/Freezer
• U/C SS Refrigerator/Freezer
• 400LTR White Refrigerator/Freezer
• 400LTR SS Refrigerator/Freezer
• 600LTR White Refrigerator/Freezer
• 600LTR SS Refrigerator/Freezer
• MD143 LTR U/C GLASS DOOR REFRIG
• MD 356 LTR U/R GLASS DOOR REFRIG
• MD 580 LTR U/R GLASS DOOR REFRIG

Please read the manual before you use this product This manual contains Important Safety Instructions which must be strictly followed when using this equipment.

Safety Tips

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.
•  Consult Local and National Standards to comply with The following:
  * Health and Safety at Work Legislation
  * BS EN Codes of Pratice
  * IEE Wiring Regulations
  * Building Regulations
•  DO NOT use jet/pressure washers to clean the appliance
•  DO NOT use the appliance outside.
•  DO NOT use electrical appliances inside the appliance(e.g. heaters, ice-cream makers etc.)
•  DO NOT stand or support yourselves on the base, drawers or doors.
•  DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
•  DO NOT place more than 30 kg load on each shelf.

WARNING:

Keep ventilation openings, in the appliance enclosure or In the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
•  Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit before cleaning.
•  Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
•  If the power cord is damaged, it must be replaced by an agent or a recommended qualified technician in order to avoid a hazard.
•  Do not store explosive substances such as aerosol can switch a flammable propellant in this appliance.
•  This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concern inguse of the appliance in a safe way and understand the hazards Involved, children shall not play with the appliance, cleaning and user maintenance shall not be made by children without supervision The instructions concerning persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge and children playing with the appliance are not required. Sound pressure level at workstation is far below 70dB.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your product.

Pack Contents
The following is included:

* Refrigerator or Freezer
* Shelves：

•  Door Key
•  Instruction manual
• Shelf spacer and hook
• Waste water tray

We pride ourselves on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your dealer immediately.

Installation

Note: If the appliance has not been stored or move in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow the appliance to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. Increase this distance if the obstacle is a heat source.
   Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.
3. Set the brakes on the castors to keep the appliance in position OR Level the appliance by adjusting the screw feet.

Removable Gaskets

The door gasket keeps in the cold. For cleaning, it is easy to remove without the use of tools—simple and hygienic.

 Lock/Unlock the Doors

A lock is fitted to the doors to ensure foodstuffs are kept secure within your appliance. Use the keys provided to lock/unlock the door
All COMPACT models are equipped with a door lock, ensuring that  stocks are safe after closing.  The R600a and R290 refrigerant used by this refrigerator

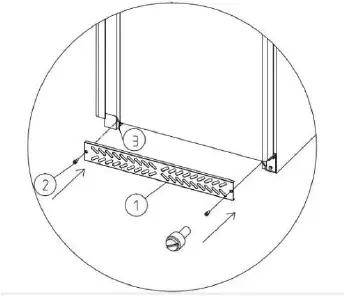

Install bottom front panel

Bottom front panel is placed in interior box in when packing product,  install bottom front panel with screws before using the product.

Fitting the Shelves

1. Place one set of shelf guides on either side of the cabinet at the desired height.
2. Slide the shelf into place.
3. Repeat for the remaining shelves.
   Note: This is vital for ensuring correct drainage of condensation.

Operation

Storing Food

To get the best results from your appliance, follow these instructions:
*Only store foodstuffs in the appliance when it has reached the correct operating temperature.

• Do not place uncovered hot food or liquid inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods of time.

Turn On

1. Close the door(s) of the appliance.
2. Ensure the power switch is set to {0} and turn on at the socket.
3. Switch on the Power{1}.The current temperature within the appliance is displayed.

Automatic Defrost
Refrigerant or freezer has forced air system in evaporator, which will automatically run a defrost cycle. Note: The cycle starts from the time the appliance is initially powered up.

To manually defrost the appliance:

• Press and hold the DEFROST Button for 5 seconds.
• The defrost cycle will start immediately and the Defrost LED illuminates. The defrost will last a maximum of 30minutes.
  Note: Starting a manual defrost also resets the automatic defrost timer. The next automatic defrost will start six hours after the manual defrost has finished.
• Waste water is collected in the waste water tray.

Cleaning, Care& Maintenance

• Switch off and disconnect from the power supply before cleaning.
• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with water only.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• Take care when cleaning the rear of the appliance. Sharp edges can cut.
• An agent or qualified technician must carry out repairs if required.

Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance.
We recommend that our agent or qualified technician clean the condenser.

Troubleshooting

If your appliance develops a fault, please check the following table before making a call to your retailer.

Technical Specifications

WARNING:

IN CASE THE SUPPLY CABLE IS DAMAGED. THE MANUFACTURER OR THE AFTER-SALES SERVICE. OR QUALIFIED TECHNICIAN SHALL REPLACE IT .IN ORDER TO PREVENT ANY POSSIBLE RISK.

THE ELECTRIC PARTS REPAIR AND REPLACEMENT SHALL BE CARRIED OUT BY QUALIFIED TECHNICIANS. WITH POWER SUPPLY DISCONNECTED.
ONLY QUALIFIED TECHNICIANS SHALL CARRY OUT THE EXTRAORDINARY MAINTENANCE INTERVENTIONS.

Electrical Wiring

Appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket. Appliances are wired as follows:
Live wire (colored brown) to terminal marked L
Neutral wire (colored blue) to terminal marked N
Earth wire (colored green/yellow) to terminal marked E
All appliances must be earthed, using a dedicated earthing circuit.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal
EU regulations require refrigeration product to be disposed of by specialist companies who remove
or recycle all gasses, metal and plastic components.
Consult your local waste collection authority regarding disposal of your appliance. Local authorities
are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Compliance

Parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
Products have been approved to carry the following symbol:

Disposal of packaging
All packaging materials should be disposed of in an environmentally friendly way.
The cardboard may be used as scrap paper. The protective foil and the foam cushions are CFC-free.4 Do not allow children to play with the packaging and destroy plastic bags safely.
You can break or cut the cardboard into smaller pieces and give to a waste paper disposal service.

Environmental protection
Discarded electric appliances are recyclable and should not be discarded in the domestic waste! Please actively support us in conserving resources and protecting the environment by returning this appliance to the collection centers (if available).

Spare Parts List
