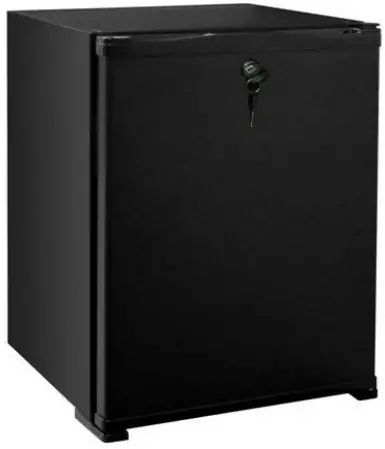

Polar Hotel Refrigerator Instruction Manual

Hotel Refrigerator
Instruction Manual

Safety Tips

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.
• Consult Local and National Standards to comply with the following:
  −Health and Safety at Work Legislation
  −BS EN Codes of Practice
  −Fire Precautions
  −IEE Wiring Regulations
  −Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the medical supplies.
• POLAR Hotel Refrigerators are designed for drink chilling and storage and are not recommended for the storing of foodstuffs.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit before Cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their Safety.
• Polar recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity (Class I equipment), Insulation Continuity, and Functional test.

Caution Risk of fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

• POLAR Hotel Refrigerator
• Shelf
• Keys x 2
• Instruction Manual

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before the operation. If in doubt allow standing.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. NEVER LOCATE

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Reverse the Door

1. Disconnect the appliance from the power supply.
2. Tip the appliance back slightly to gain access to the lower hinge.
3. Unscrew the lower hinge and pivot pin. Remove from the Door.
4. Carefully lower the door and remove it from the appliance.
5. Unscrew the upper pivot pin located underneath the protective covers from the appliance and slot the reversed pin into the opposite Secure with the two screws.
6. Slot the door back onto the upper pivot pin.
7. Slot the lower hinge and pivot pin back into the bottom of the
8. Screw the lower hinge back on the appliance with the two screws.

Note: The fixings must use the holes on the other side of the hinge when switching sides [Fig. 1

Operation

Thermostat
The thermostat is located at the rear of the cabinet [Fig. 2].

Turn On

1. Set the temperature to the desired setting: 1 (8°C) to 6 (2°C).

Note: Setting the switch to *0’ turns off the appliance.

1. Close the door of the
2. Connect the appliance to a mains power

Lock/Unlock the Doors

1. Close the door of the
2. Connect the appliance to a mains power

Cleaning, Care & Maintenance

• Switch off and disconnect from the power supply before
• Clean the interior of the appliance as often as
• Do not use abrasive cleaning These can leave harmful residues.
• Clean the door seal with water
• Always wipe dry after
• A POLAR agent or qualified technician must carry out repairs if
• If left unused for any length of time, store the appliance with the door

Auto Defrost

Periodically the appliance will run an automatic defrost cycle to prevent any ice build-up.

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Technical Specifications

Electrical Wiring

POLAR appliances are supplied with a 3 pin, molded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket. POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
  This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required, they must be readily accessible.

Disposal

EU regulations require refrigeration products to be disposed of by specialist companies who remove or recycle all gasses, metal, and plastic components.

Consult your local waste collection authority regarding the disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively, call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

 Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserves the right to change specifications without notice.

http://www.polar-refrigerator.com/

CE322_ML_v9_20190702
