Polar G609-a Stainless Steel Counter Top Servery/ Prep Refrigerators Instruction Manual

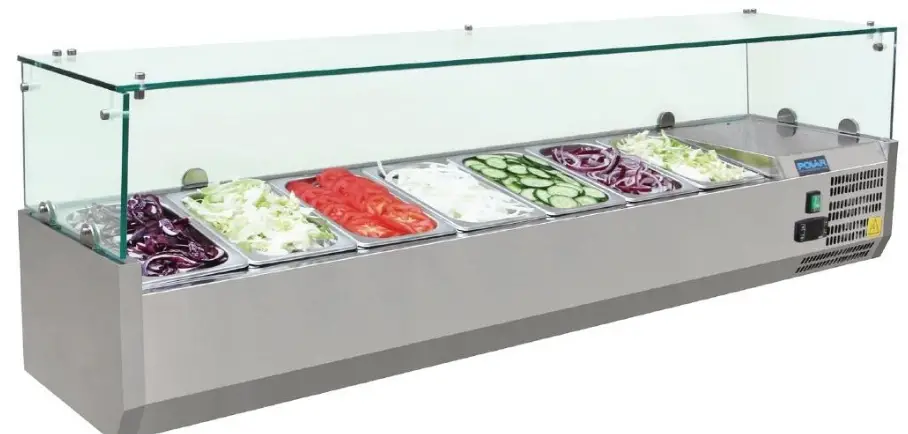

POLAR G609-A Stainless Steel Counter Top Servery/ Prep Refrigerators

Safety Tips

•  Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.
•  Consult Local and National Standards to comply with the following:
  •  Health and Safety at Work Legislation
  •  Fire Precautions
  •  Wiring Regulations
  •  Building Regulations
•  DO NOT use jet/pressure washers to clean the appliance.
•  DO NOT use the appliance outside.
•  DO NOT use this appliance to store medical supplies.
•  Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
•  Always switch off and disconnect the power supply to the unit before cleaning.
•  Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
•  If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
•  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Polar recommend that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

•  Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.•
• Warning: Do not damage the refrigerant circuit.
•  Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

• G608-A – POLAR 5 x 1/4 GN Container Refrigerated Counter Top/Servery Prep
• G609-A – POLAR 7 x 1/4 GN Container Refrigerated Counter Top/Servery Prep
• G610-A – POLAR 8 x 1/4 GN Container Refrigerated Counter Top/Servery Prep
• G611-A – POLAR 10 x 1/4 GN Container Refrigerated Counter Top/Servery Prep
• GD875-A – POLAR 3 x 1/3 + 1 x 1/2 GN Container Refrigerated Counter Top/Servery Prep
• GD876-A – POLAR 5 x 1/3 + 1 x 1/2 GN Container Refrigerated Counter Top/Servery Prep
• GD877-A – POLAR 8 x 1/3 GN Container Refrigerated Counter Top/Servery Prep
• GD878-A – POLAR 9 x 1/3 GN Container Refrigerated Counter Top/Servery Prep

Pack Contents

The following is included:

•  POLAR Refrigerator
• Top glass panel
•  Rear glass panel
•  Side glass panels x 2
• Instruction manual
•  Collars x 6
•  Brackets x 7
•  Grub screws x 7
•  Screws x 12
•  Plugs x 14
•  Gastronorm spacer bar
•  Adjustable feet x 4

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before the operation. If in doubt allow standing.

1.  Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2.  To optimize performance and longevity, ensure a minimum clearance of 2.5cm is maintained between the unit and walls and other objects, with a minimum 5cm clearance on the top. NEVER LOCATE NEXT TO A HEAT SOURCE.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Level the appliance by adjusting the screw feet.

Fit Glass Panels

1. Screw the collars to the rim of the appliance.
   Note: Ensure the hole in the collar for the grub screw faces inwards.
2. Slot the two side panels into the collars, with the holes in the glass at the top.
   Note: Ensure the screw hole furthest from the edge of the panel goes to the back of the appliance.
3. Screw a grub screw into each collar to secure the panels.
   Note: Ensure the soft end of the grub screw is the end making contact with the glass. Do not over-tighten the grub screws as it will result in the glass breaking.
4. Slot the rear panel into the collars, with the holes in the glass at the top.
5.  Screw a grub screw into each collar to secure the panel.
6.  Slot the plastic plugs into each of the holes.

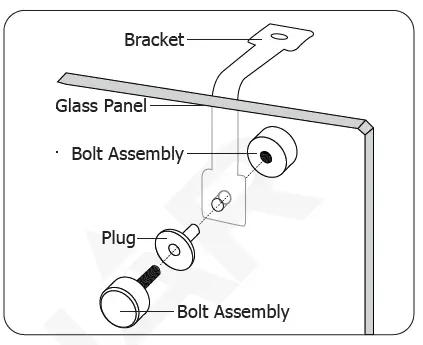

7.  Screw the brackets to the inside of each pane using the bolt assemblies.
   Note: Ensure the short end of the bolt assembly is on the outside of the panels.
8.  Place the top panel onto the brackets, ensuring all holes line up.
9.  Insert the plugs and attach the top panel to the brackets with the bolt assembly.

Operation

Storing Food
To get the best results from your POLAR appliance, follow these instructions:

•  Only store foodstuffs in the appliance when it has reached the correct operating temperature.
•  Ensure bays are full at all times, even if the gastronomy are unused or empty. Empty bays will greatly reduce the efficiency of the appliance.
• Do not obstruct the fans inside the appliance.
• Use the spacer bars provided to fill any gaps (they are not required to support each GN pans).
• Always cover the pan with lid when not in use.
• Do not place hot food or liquid inside the appliance.

Note: The appliance is not intended for the long term storage of food.

Turn On

1.  Ensure the power switch is set to [O] and turn on at the socket.
2.  Switch on the power switch [I]. The current temperature within the appliance is displayed.

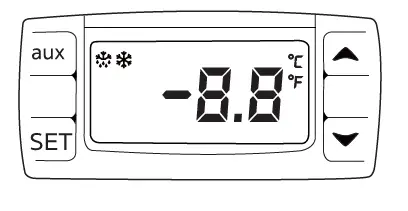

Set the Operating Temperature

1. Press the SET button for 3 seconds. The display will flash.
2. Press the or buttons to display the required temperature.
3. Press the SET button to store the temperature.

Manual Defrost
Press and hold the defrost button “aux” for 2 seconds to begin a manual defrost. The defrost light illuminates.

Cleaning, Care & Maintenance

•  Switch off and disconnect from the power supply before cleaning.
•  Clean the interior of the appliance as often as possible.
•  Do not use abrasive cleaning agents. These can leave harmful residues.
•  Clean the door seal with warm soapy water.
•  Always wipe dry after cleaning.
•  Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
•  Take care when cleaning the rear of the appliance. Sharp edges can cut.
•  A POLAR agent or qualified technician must carry out repairs if required.

Cleaning the Condenser Filter

•  The condenser is part of the refrigeration system. The condenser filter requires monthly cleaning.
•  Always disconnect power supply before carrying out Routine Maintenance.
•  Failure to clean the condenser filter will reduce the performance and life of your Polar unit and may invalidate your warranty.
•  These models have a removable filter which can be cleaned with a vacuum cleaner

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Technical Specifications

Electrical Wiring
The plug is to be connected to a suitable mains socket. POLAR appliances are wired as follows:

•  Live wire (coloured brown) to terminal marked L
•  Neutral wire (coloured blue) to the terminal marked N
•  Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed. If in doubt consult a qualified electrician. Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required, they must be readily accessible.

Compliance
The product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities. POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR. Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

DECLARATION OF CONFORMITY

the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).

• Date
• Signature
• Full Name
• Producer Address
