RAS Series Set Free Mini Heat Pump System
Instruction Manual
SET FREE MINI
HEAT PUMP SYSTEM
HEAT RECOVERY SYSTEM
MODELS
RAS-(4-6)FS(V)NME
RAS-(8-12)FSXNME
RAS Series Set Free Mini Heat Pump System
Specifications in this manual are subject to change without notice in order that Hitachi may bring the latest innovations to their customers.Whilst every effort is made to ensure that all specifications are correct, printing errors are beyond Hitachi’s control; Hitachi cannot be held responsible for these errors.
CAUTION
This product shall not be mixed with general house waste at the end of its life and it shall be retired according to the appropriated local or national regulations in a environmentally correct way. Due to the refrigerant, oil and other components contained in Air Conditioner, its dismantling must be done by a professional installer according to the applicable regulations.
Contact to the corresponding authorities for more information.
Following Regulation EU No. 517/2014 on Certain Fluorinated Greenhouse gases, it is mandatory to fill in the label attached to the unit with the total amount of refrigerant charged on the installation.
Do not vent R410A into the atmosphere: R410A are fluorinated greenhouse gases covered by the Kyoto protocol global warming potential (GWP) R410A = 2088.
Tn of CO2 equivalent of fluorinated greenhouse gases contained is calculated by indicated GWP * Total Charge (in kg) indicated in the product label and divided by 1000.

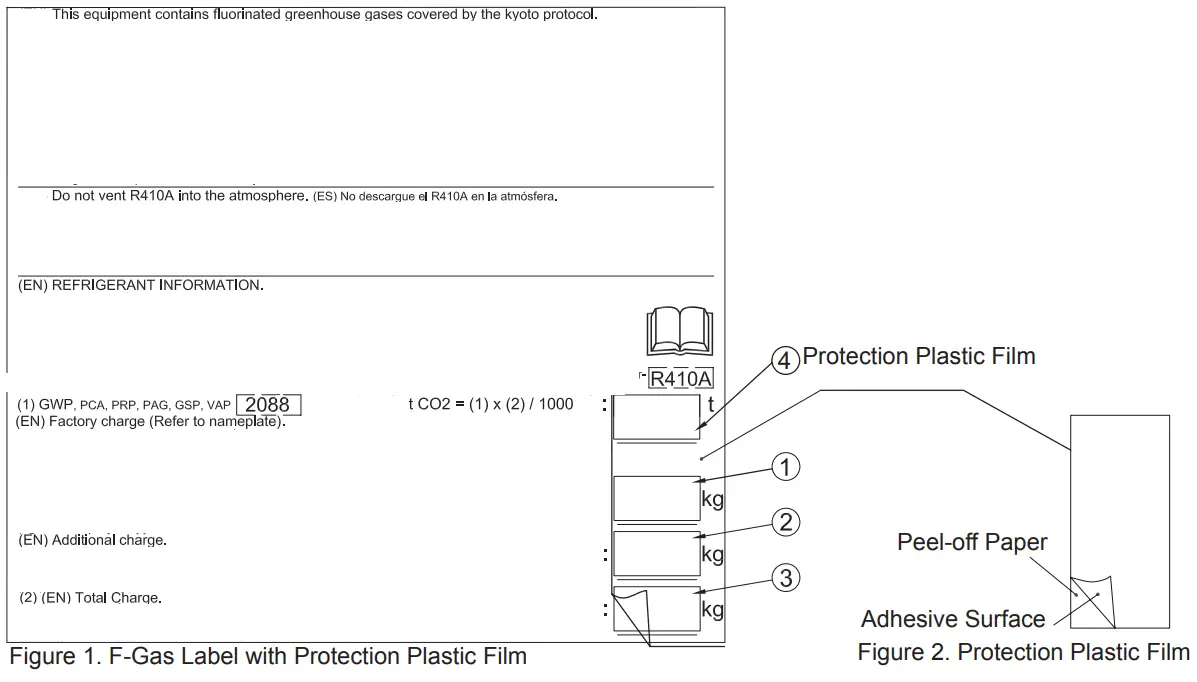

Instructions to fill in the “F-Gas Label”:
- Fill in the Label with indelible ink the refrigerant amounts: 1 – Factory Charge, 2 – Additional Charge, 3 – Total Charge & 4 t CO2
- Stick the Protection Plastic Film on the F-Gas Label (delivered in a plastic bag with the Manual). To see Figure nº 2.
MODELS CODIFICATION
Important note: Please, check, according to the model name, which is your air conditioner type, how it is abbreviated and referred to in this instruction manual. This Installation and Operation Manual is only related to the RAS units FS(V)(X)NME combined with the Hitachi indoor units System Free.
| OUTDOOR UNIT | |
 | |
| 1N~230V 50Hz / 3N~ 400V 50Hz | 3N~ 400V 50Hz |
| RAS-(4-6)FS(V)NME | RAS-(8-12)FSXNME |
 |  |
RAS-(4-6)FSVNME
RAS-(4-6)FSNME

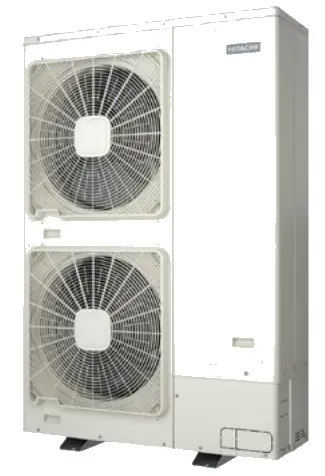

RAS-(8-12)FSXNME
