BLAUBERG Ventilation EH Freshbox Electric Heate

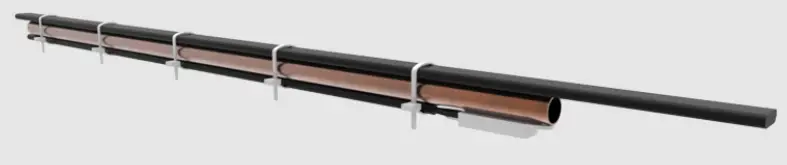

The electric heater maintains above-zero temperature of the condensate drain pipe of the air handling unit. The heater is equipped with a temperature sensor for automatic activation and de-activation. The device is powered via a plug-in cable which connects it to the control unit of the air handling unit.

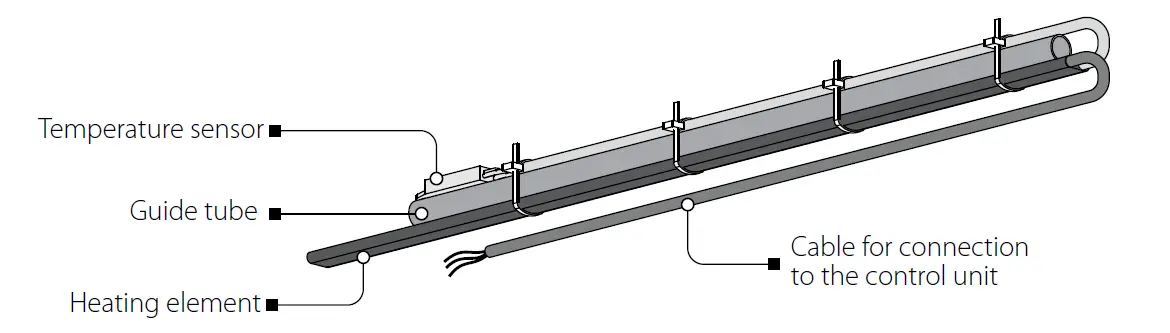

Parts
Adjustment

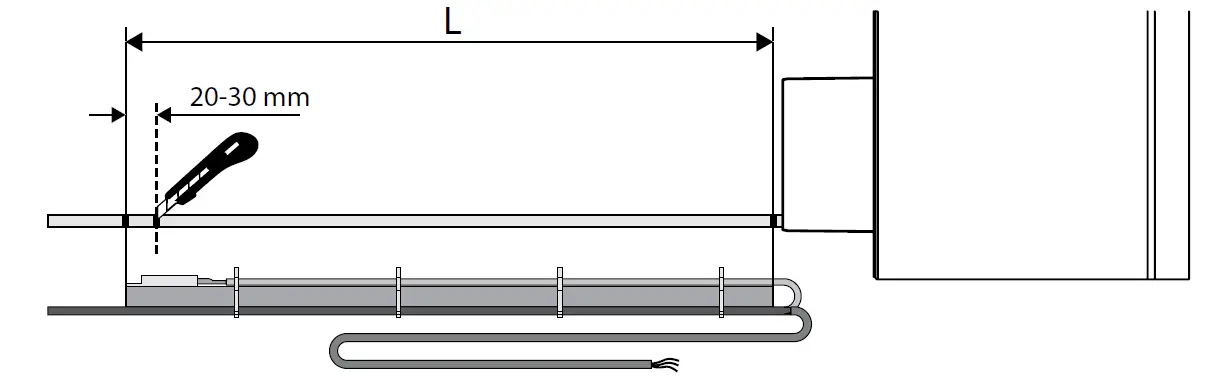

- Adjust the heater length L in consideration of the air duct length and the vent hood dimensions.

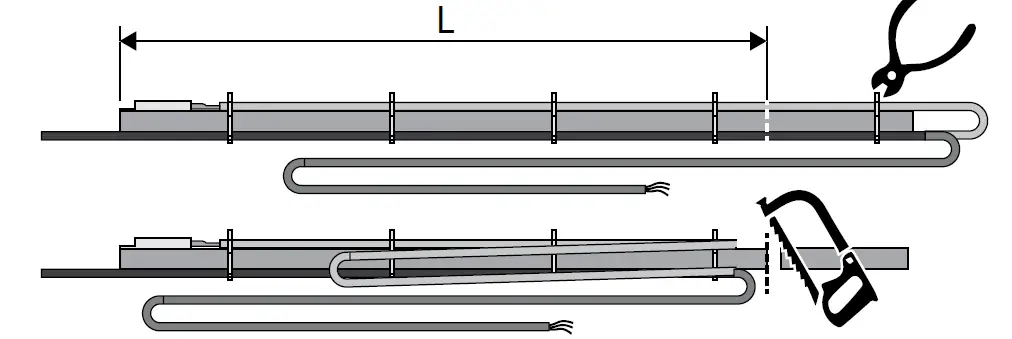

Mark the necessary length of the heater L on the guide tube, cut off the extra cable ties with wire cutters, move the cable away to the side and saw off the redundant part of the tube.
- Trim the drain tube.

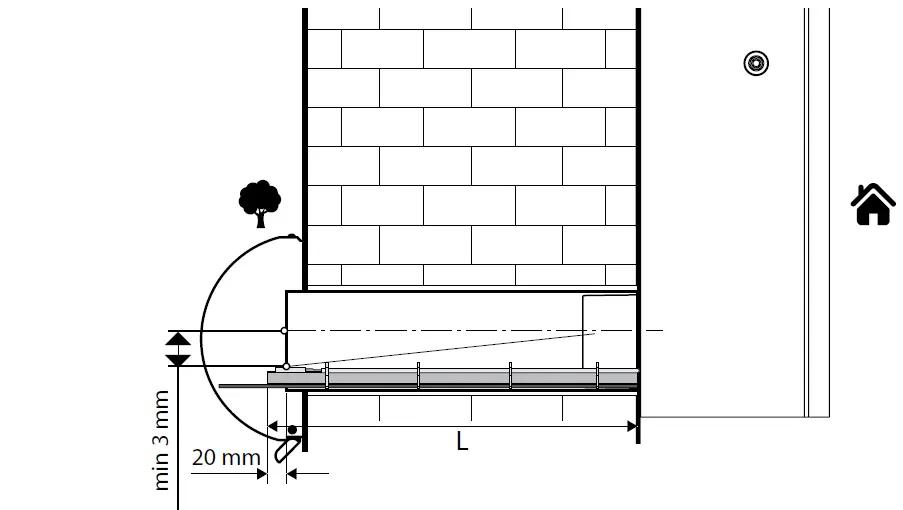

The distance between the ends of the drain tube and the guide tube on the temperature sensor side shall be 20 – 30 mm.
- Install the electric heater prior to the air handling unit installation or remove the air handling unit if already installed.
Insert the drain tube into the guide tube.
Route the heater cable through the connection pipe.
Place the electric heater inside the air duct and suspend the air handling unit back in place.

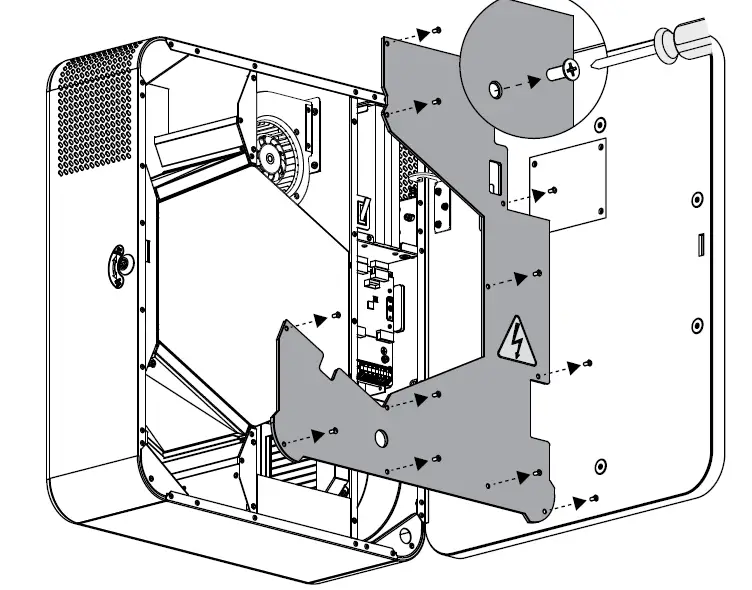

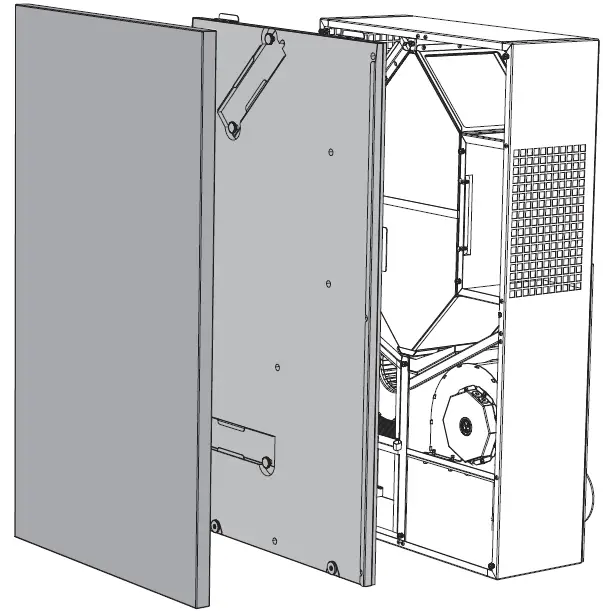

- To access the control unit, open the air handling unit and remove the shielding plate by undoing the attachment screws.
- Fresh box 110
- Fresh box 100
- Fresh box 110

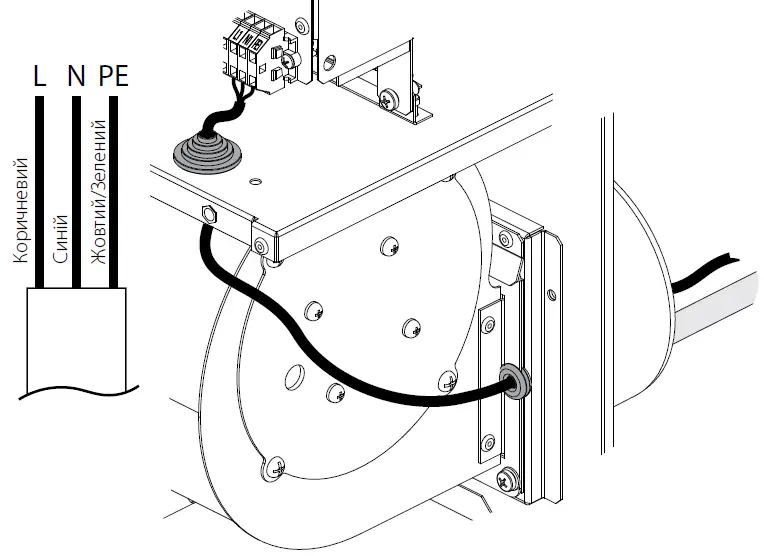

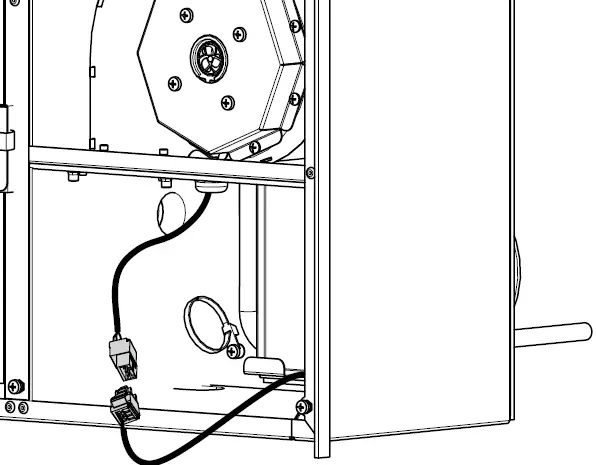

- Connect the heater to the control unit in accordance with the wiring diagram.
- Fresh box 110
- Fresh box 100
- Fresh box 110
Mark the necessary length of the heater L on the guide tube, cut off the extra cable ties with wire cutters, move the cable away to the side and saw off the redundant part of the tube.
Blauberg Ventilatoren GmbH
