QNAP QSW-1108-8T Network to 2.5GbE Connectivity

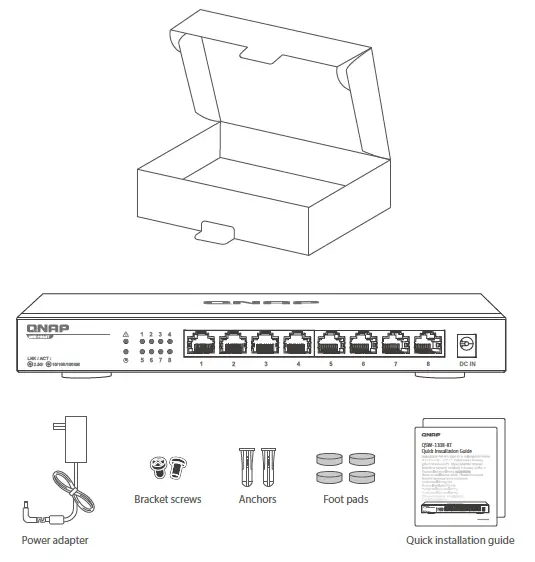

WHAT’S IN THE BOX

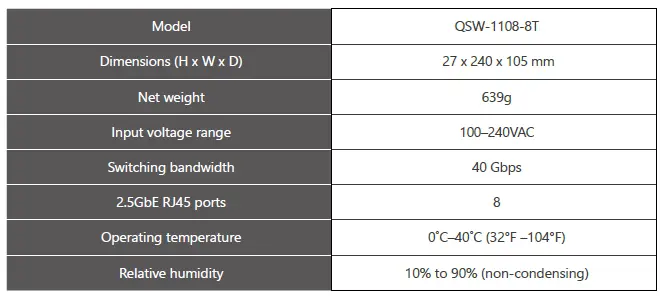

Specifications

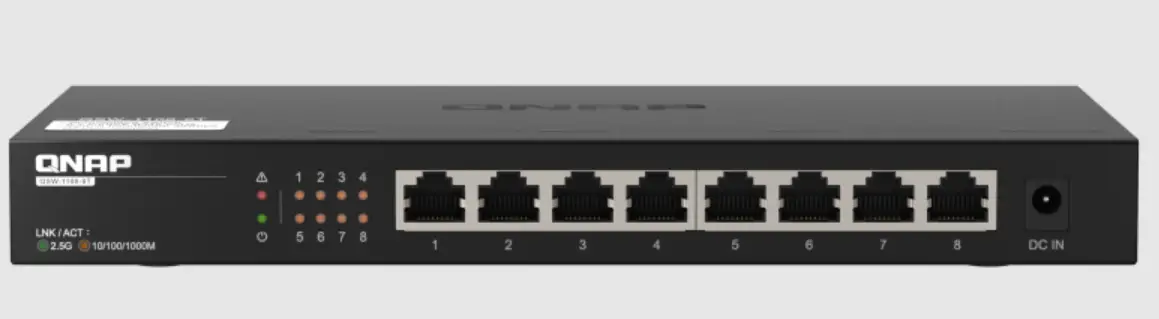

| 1. Loop indicator | 4. 2.5GbE RJ45 ports |
| 2. Power LED | 5. Power input |
| 3. 2.5GbE ports status |
LED Behavior
| LED | Status | Description |
| Power | Green | Device is on |
| Off | Device is off | |
| Loop indicator | Off | No loop |
| Red and flashing with looping ports | Loop occurs | |
|
2.5GbE ports status | Green | Link is operating at 2.5 Gbps Flashing: link up and data transfer Off: no link Flashing with loop indicator: port loop and blocked by loop protection |
| Amber | Link is operating at 1G/100M/10M bps Flashing: link up and data transfer Off no link Flashing with loop indicator: port loop and blocked by loop protection |

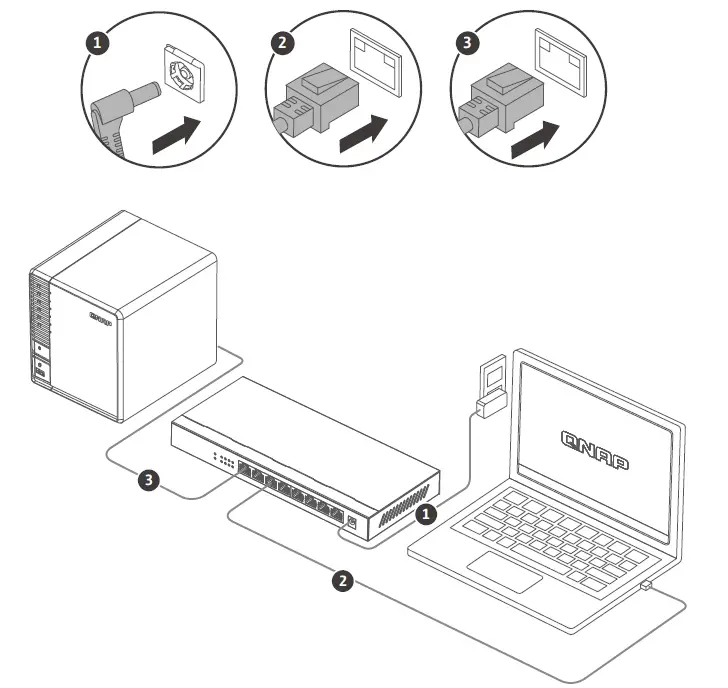

CONNECTIONS
FCC STATMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
FCC Class B Notice:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.
Modifications:
Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
This QNAP device complies with CE Compliance Class B. According to the requirement of the WEEE legislation, the following user information is provided to customers for all branded QNAP products subject to the WEEE directive. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
