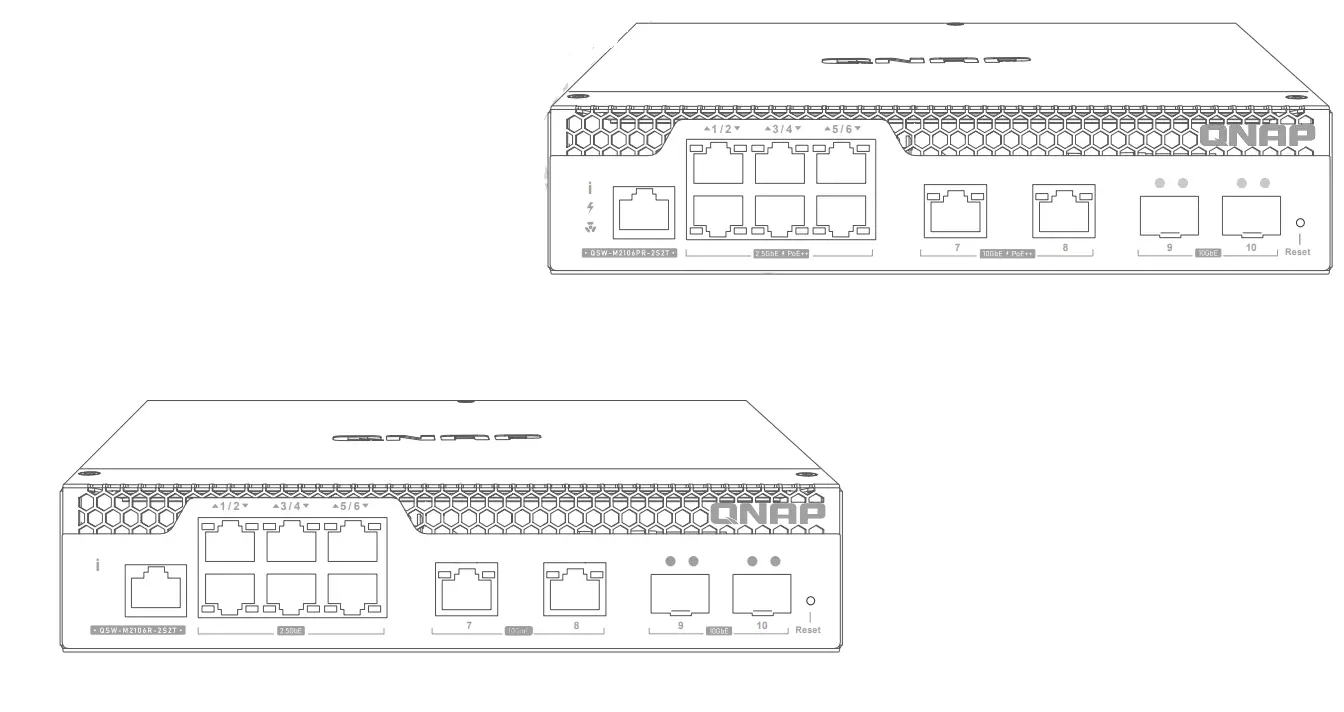

QNAP QSW-M2100R Desktop 2.5G Smart Switch

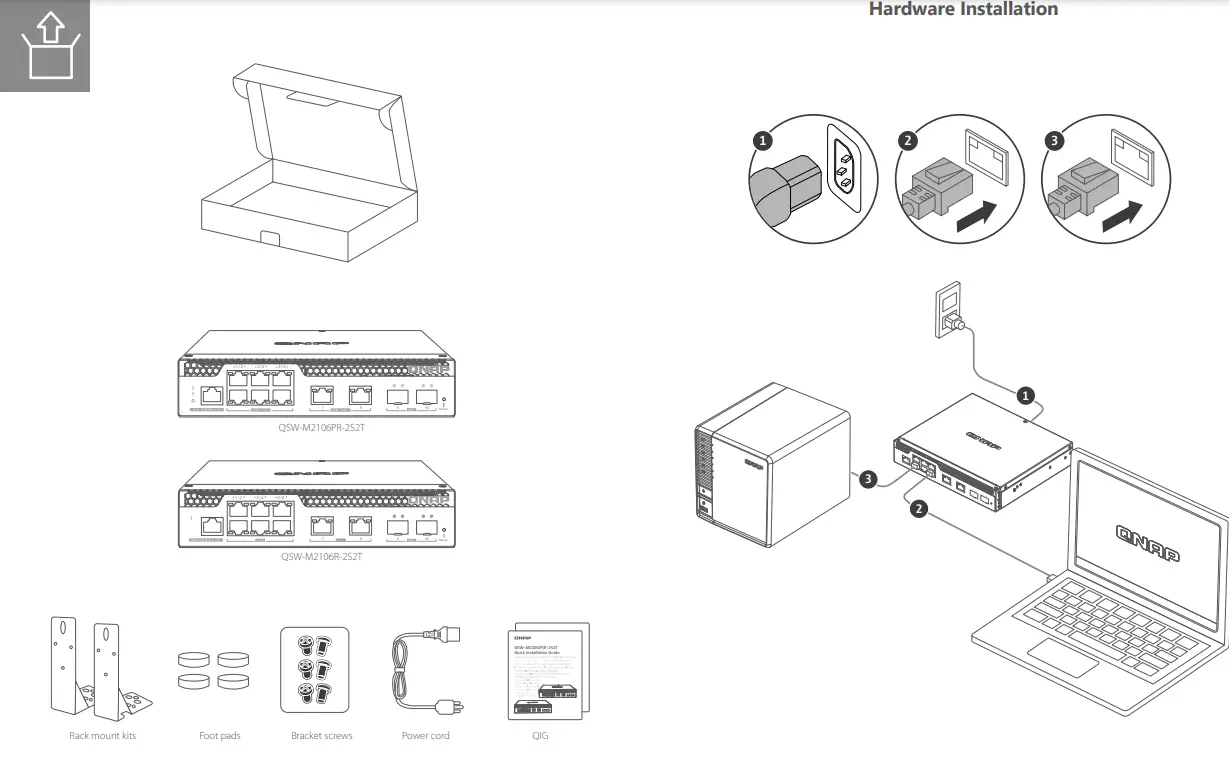

Hardware Installation
Accessing the Web User Interface

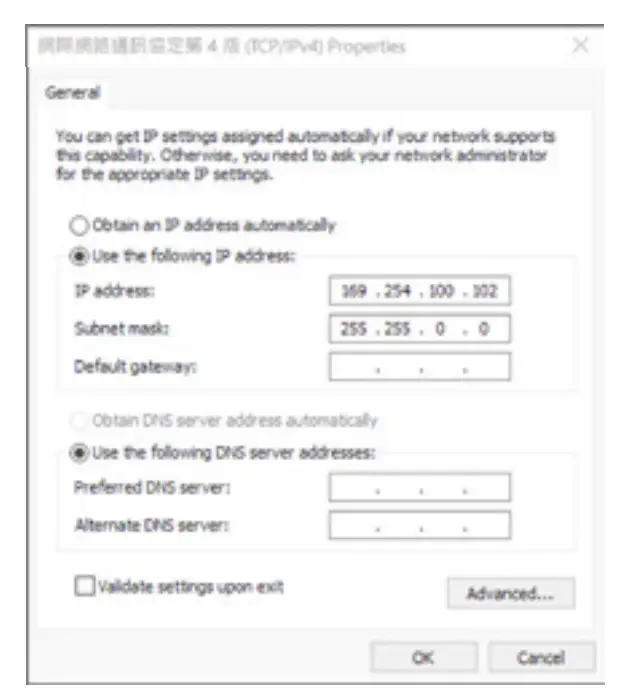

If the device is unable to connect to a DHCP server to obtain an IP address, you can access the web user interface by changing the IP address of the computer to 169.254.100.102.
Note : Ensure that you change the IP address of the computer to its previous setting after configuring the switch. The default IP address of the QSW-M2106PR/R-2S2T is 169.254.100.101.
Logging into the Web User Interface
Default username : admin
Default password : The default password is the MAC address in uppercase letters without special characters. For example, if the first MAC address is 00-08-9B-F6-15-75, then the admin password will be 00089BF61575.
Hardware Components

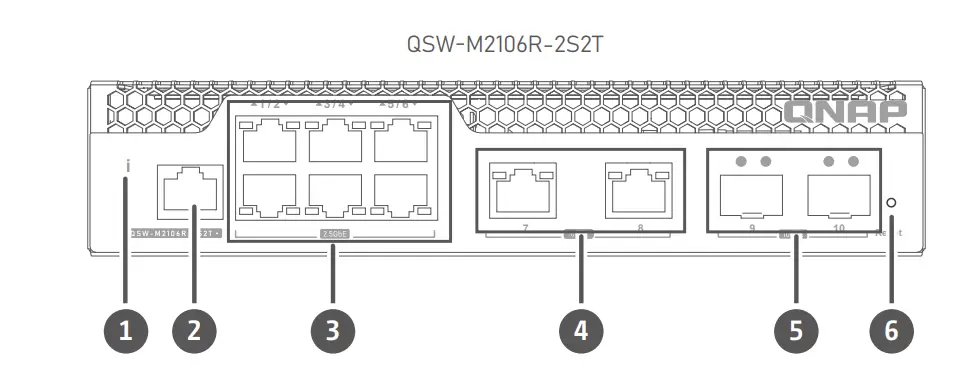

Front Panel Ports
- Status LED
- 1 × RJ45 console port
- 6 x 2.5GbE RJ45 ports
- 2 × 10GbE RJ45 ports
- 2 × 10GbE SFP+ ports
- Reset button

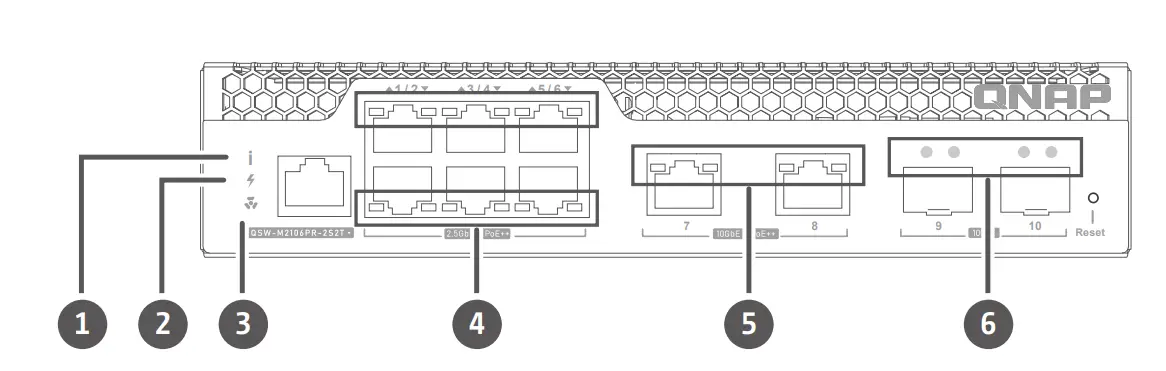

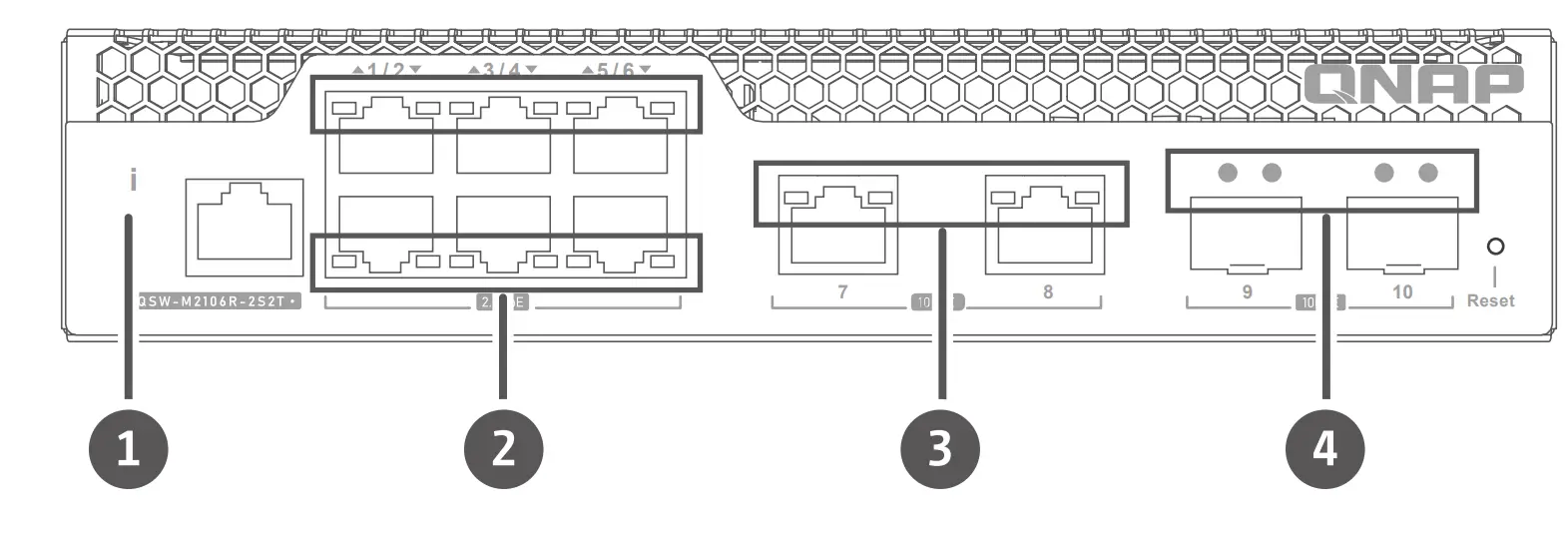

LED Behavior
QSW-M2106PR-2S2T
| LED Status Description | ||
| ① System Status | Green | The device is ready. |
| Flashes green |
| |
| Flashes red | A fatal device error occurred. | |
| Off | The device is powered off. | |
| ② PoE Status | Green | The PoE status is normal. |
| Flashes red | A fatal PoE error occurred. | |
| Off | There is no PoE connection. | |
| ③ Fan Status | Green | The system fan status is normal. |
| Flashes red | A fatal system fan error occurred. | |
| ④ 2.5GbE RJ45 (Left) | Green | The link speed is operating at 2.5 Gbps. |
| Flashes green | Data is being transmitted. | |
| Amber | The link speed is operating at 1 Gbps or 100Mbps. | |
| Flashes Amber | Data is being transmitted. | |
| Off | There is no network connection. | |
| ④ 2.5GbE RJ45 (Right) | Green | The PoE status is normal. |
| Flashes Amber | A fatal PoE error occurred. | |
| Off | There is no PoE connection. | |
| ⑤10GbE RJ45 (Left) | Green | The link speed is operating at 10 Gbps. |
| Flashes green | Data is being transmitted. | |
| Amber | The link speed is operating at 5 Gbps, 2.5 Gbps, 1 Gbps, or 100Mbps. | |
| Flashes Amber | Data is being transmitted. | |
| Off | There is no network connection. | |
| ⑤ 10GbE RJ45 (Right) | Green | The PoE status is normal. |
| Flashes Amber | A fatal PoE error occurred. | |
| Off | There is no PoE connection. | |
| ⑥ 10GbE SFP+ (Left) | Green | The link speed is operating at 10 Gbps. |
| Flashes green | Data is being transmitted. | |
| Off | There is no network connection. | |
| ⑥ 10GbE SFP+ (Right) | Amber | The link speed is operating at 1Gbps. |
| Flashes Amber | Data is being transmitted. | |
| Off | There is no network connection. | |
QSW-M2106R-2S2T
| LED | Status | Description |
| ① System Status | Green | The device is ready. |
| Flashes green |
| |
| Red | A fatal device error occurred. | |
| Off | The device is powered off. | |
| ② 2.5GbE RJ45 (Left) | Green | The link speed is operating at 2.5 Gbps. |
| Flashes green | Data is being transmitted. | |
| Off | There is no network connection. | |
| ② 2.5GbE RJ45 (Right) | Amber | The link speed is operating at 1 Gbps or 100 Mbps. |
| Flashes amber | Data is being transmitted. | |
| Off | There is no network connection. | |
| ③ 10GbE RJ45 (Left) | Green | The link speed is operating at 10 Gbps. |
| Flashes green | Data is being transmitted. | |
| Off | There is no network connection. | |
| ③ 10GbE RJ45 (Right) | Amber | The link speed is operating at 5 Gbps, 2.5 Gbps, 1Gbps, or 100Mbps. |
| Flashes amber | Data is being transmitted. | |
| Off | There is no network connection. | |
| ④ 10GbE SFP+ (Left) | Green | The link speed is operating at 10 Gbps. |
| Flashes green | Data is being transmitted. | |
| Off | There is no network connection. | |
| ④ 10GbE SFP+ (Right) | Amber | The link speed is operating at 1 Gbps. |
| Flashes amber | Data is being transmitted. | |
| Off | There is no network connection. |
