Intrigue 42 Fireplaces
GAS COLLECTION
Installation Guide
Intrigue 42 Fireplaces
| BTU | EFFICIENCY | VENTING | GLASS | ||||||||
| Max NG | Max PG | Min NG | Min PG | Energuide | Steady State | Type | Max. Height | In & Out Diameter | Type | Dimensions | Area sq in |
| 39,500 | 39,500 | 18,500 | 18,500 | 70.90% | 75.50% | Direct | 50 pieds | 5” & 8” | Pure vision Robax | 26” x 35” | 910 |

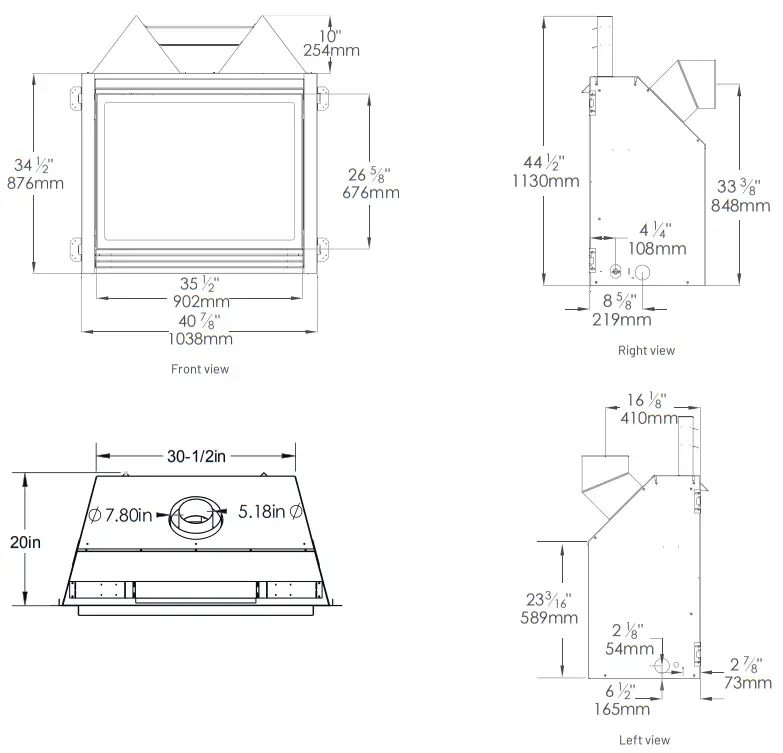

| DIMENSIONS | MINIMUM FRAMING DIMENSIONS | BLOWING | MANTEL SHELF CLEARANCES | |||||||
| Height | Depth | Width | Height | Depth | Width | Type | PCM | 9-inch shelf | ||
| 34.5” | 20” | 40.875” | 44.5” | 20” | 41.875” | Variable speed | 150 | 12.5’’ | ||

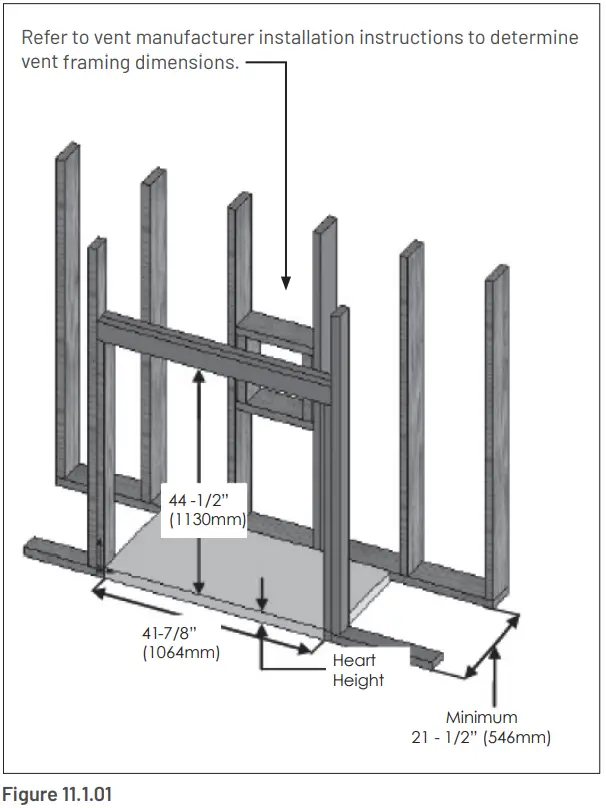

Framing and Clearances
| CLEARANCES | |
| Top of unit face to header (cement board may be used in this area). | 10’’ (254mm) |
| From unit left & right sides and back | 1/2’’ (13mm) |
| To flooring | 0’’ (0mm) |
| Unit top to ceiling | 31’’ (787mm) |
| Side of unit face to adjacent sidewall | 3’’ (76mm) |
| Mantel 9’’ (229mm) deep from top of fireplace | 12-1/2’’ (318mm) |
| Top of fireplace to 1’’ (25 mm) trim | 10’’ (254mm) |
Mantel Requirements
WARNING
TOP STAND-OFF BRACKETS MUST BE ASSEMBLED AND ATTACHED TO FIREPLACE. DO NOT REMOVE. STAND-OFF BRACKETS ARE NOT LOAD BEARING

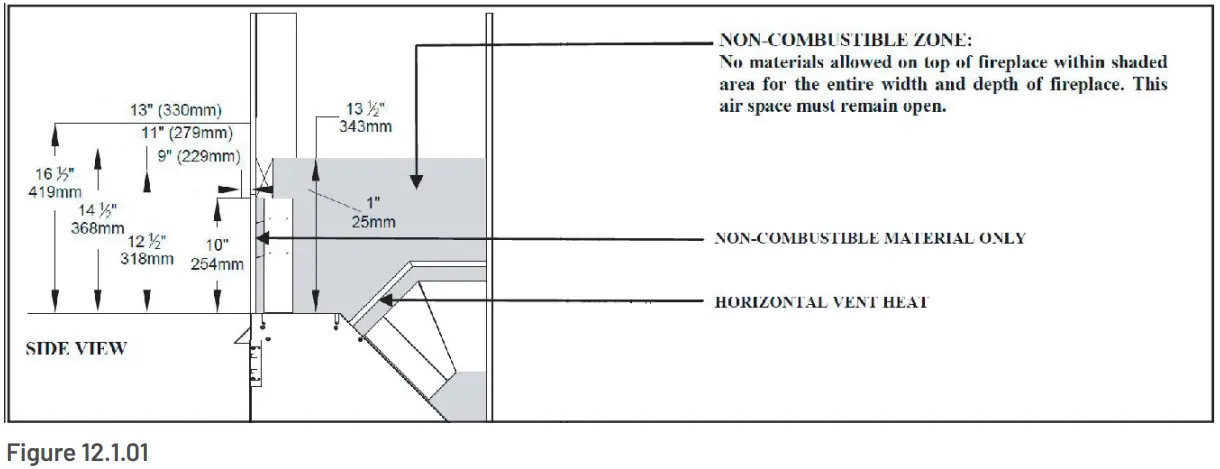

Non-Combustible Zone:
Rigid Pipe: 1’’ (25 mm) above elbow for entire width and depth (behind header) of fireplace.
Flexible Venting: 1’’ (25 mm) above elbow for entire width and depth (behind header) of fireplace.
| CLEARANCES | |
| Top of unit face to header (cement board may be used in this area). | 10’’ (254mm) |
| From unit left & right sides and back | 1/2’’ (13mm) |
| To flooring | 0’’ (0mm) |
| Unit top to ceiling | 31’’ (787mm) |
| Side of unit face to adjacent sidewall | 3’’ (76mm) |
| Mantel 9’’ (229mm) deep from top of fireplace | 12-1/2’’ (318mm) |
| Top of fireplace to 1’’ (25 mm) trim | 10’’ (254mm) |
Typical Installation Options
IMPORTANT
The horizontal heat shield included with this fireplace must be installed when incorporating minimum horizontal venting. This applies to Nat. and LP minimum horizontal venting configurations.
Horizontal vent heat shield not shown in illustrations below for clarity purposes only.

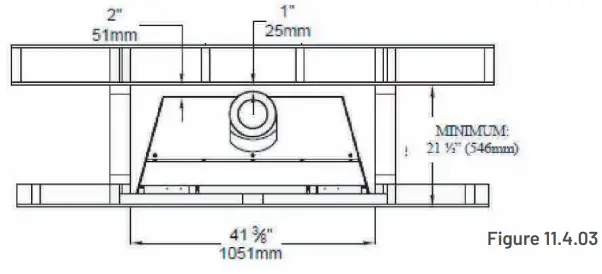

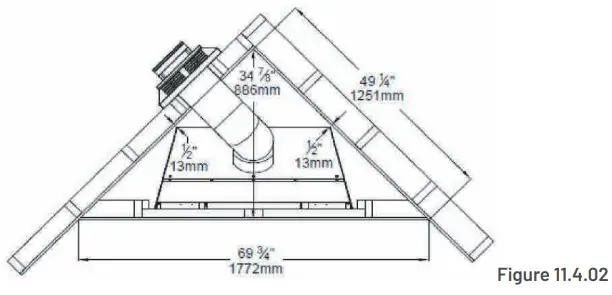

| Typical Horizontal Installation | Typical Corner Installation | Typical Vertical Installation |
 |  |  |
