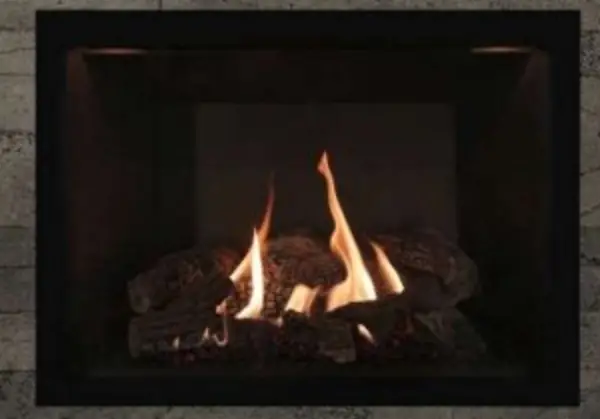

AMBIANCE FIREPLACES Intrigue 36 Gas Collection

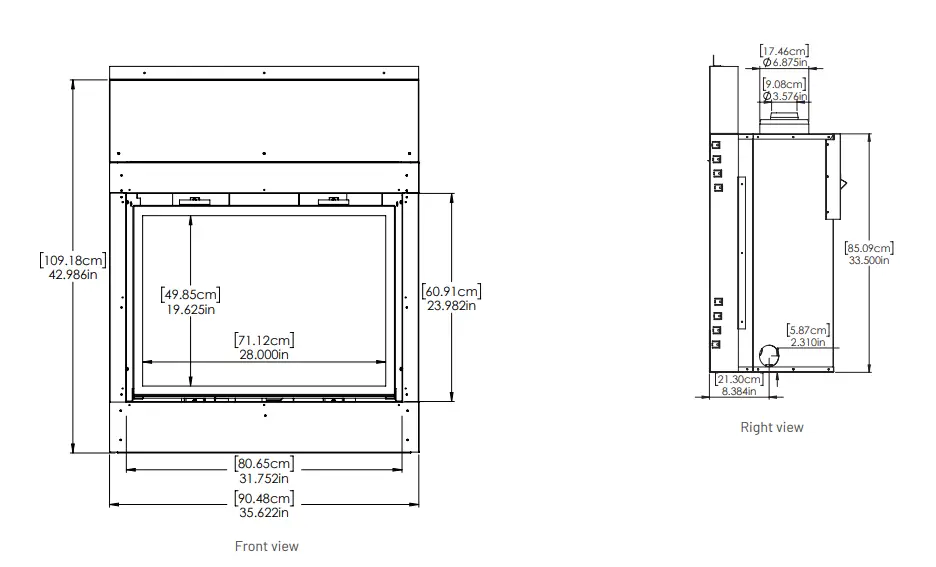

DIMENSION
| BTU EFFICIENCY VENTING | GLASS | ||||||||
| Max NG 27,000 | Max LP 27,000 | Min NG 19,000 | Min LP 21,000 | Energuide Steady State 71.13% 75.73% | Type Direct | Max. Height 35 feet | In & Out Diameter 4” & 7” | Type Pure vision Robax | Dimensions Area sq in 28” x 19.63” 550 |
| DIMENSIONS FRAMING DIMENSIONS | BLOWING | MANTEL SHELF CLEARANCES | |||||||
| Height 33.5” | Depth 19.3” | Width 35.6” | Height 43.25” | Depth 18.5” | Width 35.63” | Type Variable speed | CFM 150 | 6-inch shelf 18.25’’ | |

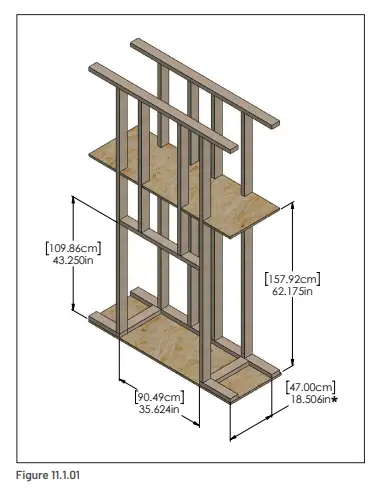

Framing and Clearances
| CLEARANCES | |
| Top of unit face to header (cement board may be used in this area). | 10’’ (254mm) |
| From unit left & right sides and back | 1/2’’ (13mm) |
| To flooring | 0’’ (0mm) |
| Unit top to ceiling | 31’’ (787mm) |
| Side of unit face to adjacent sidewall | 3’’ (76mm) |
| Mantel 9’’ (229mm) deep from top of fireplace | 12-1/2’’ (318mm) |
| Top of fireplace to 1’’ (25 mm) trim | 10’’ (254mm) |

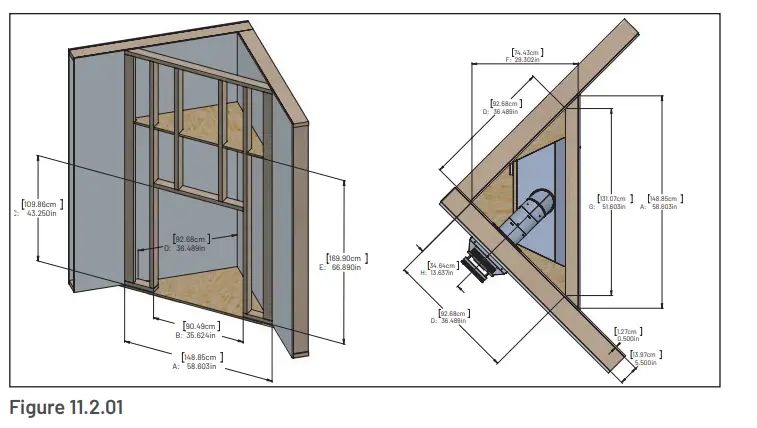

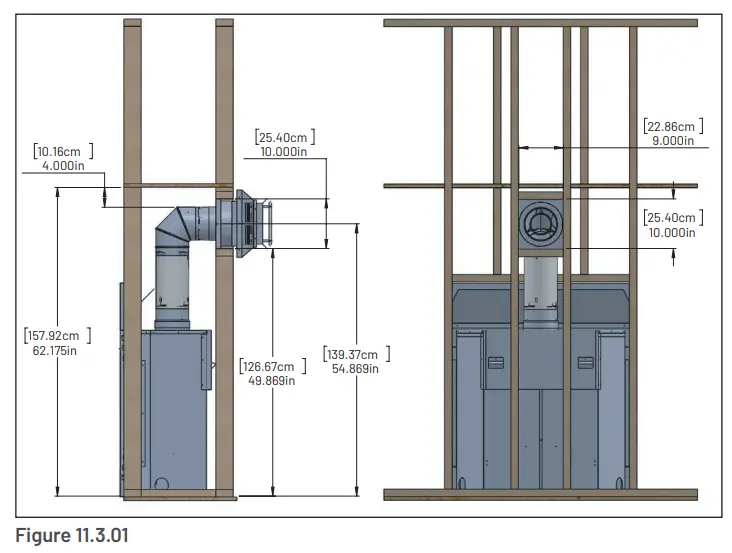

Ventilation Framing
Ventilation framing dimensions are based on Duravent venting components.
If other third party venting components are used, refer to the installation instructions from the third party manufacturer for installation information. The following critical dimensions must be maintained regardless of venting manufacturer:
| Item | Critical Dimensions |
| Distance from ceiling to horizontal pipe | 4’’ (10.16 cm) |
| Thimble framing dimensions | 9’’ (22.86 cm) W x 10’’ (25.4 cm) H |
IMPORTANT
Vent cap location must be in compliance with guidelines in Section 10.4 of this manual.
WARNING
DO NOT RECESS VENT CAP INTO WALL OR SIDING.
Clearances to Combustibles
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury or loss of life.
WARNING: TOP NAILING FLANGE EXTENSION MUST BE ASSEMBLED AND ATTACHED TO FIREPLACE. DO NOT REMOVE. TOP NAILING FLANGE EXTENSION IS NOT LOAD BEARING

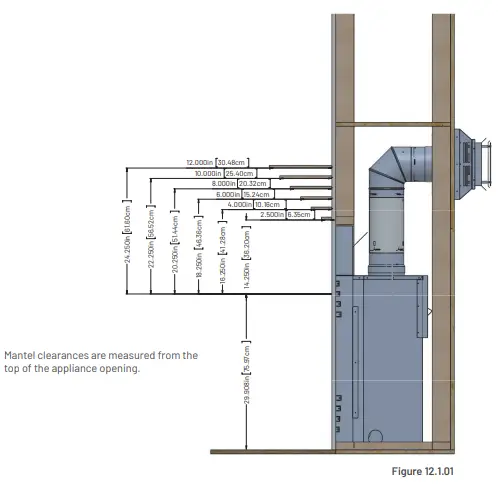

Mantel Clearances

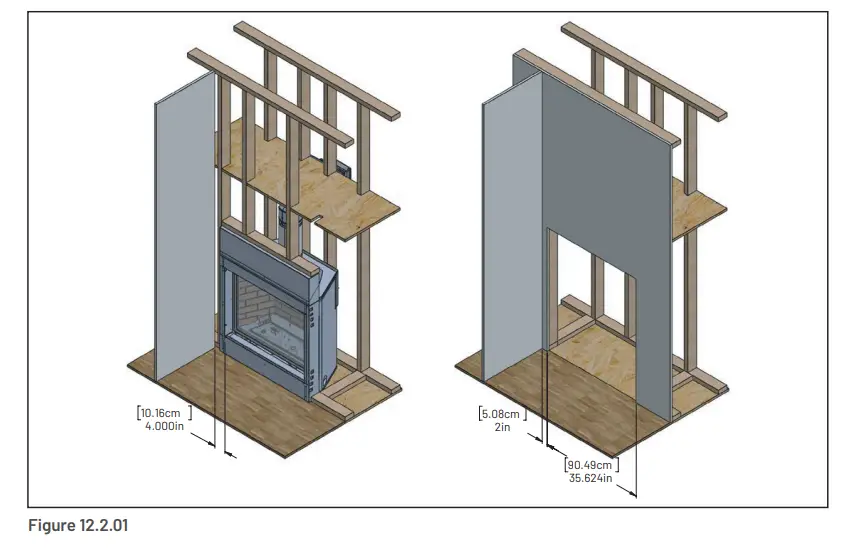

Sidewall Clearances
Maintain a minimum of 4’’ (10.16 mm) clearance from the side of the glass door to sidewalls or mantel supports.

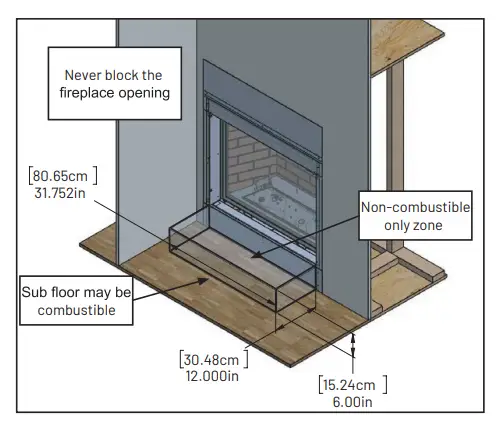

Optional Hearth Installation
Any hearth extending 12» or less from the front fireplace must be constructed of non-combustible material. A hearth is not required for installation.
