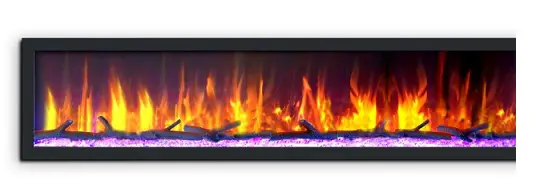

DYNASTY FirePlaces DY-BTX52 Smart Control Electric Fireplace Installation Guide
8. Flame LED Bar Removal and Installation
8 – 1 Remove the back panel of the fireplace by removing the screws surrounding the backplate.

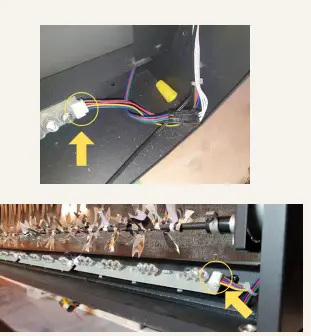

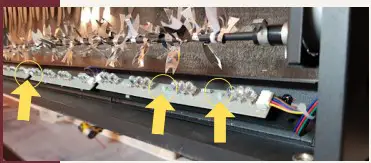

8 – 2 Unplug the white connecter along the LED bar
8 – 3 Squeeze the with pin and carefully pull the light bar up (Please do it one by one)
Flame LED Bar Installation
- Attach all the new LED lights together if its not connected
- Connect the white connector (Please check the 8 – 2 Photo)
- Make sure every white pin get into the LED bar ( Double-check with the 8-3 photo)
THANK YOU!!
