Dynasty Electric Fireplace Removal And Installation Guide

DYNASTY Electric Fireplace Removal and Installation

Main Control Board Removal and Installation

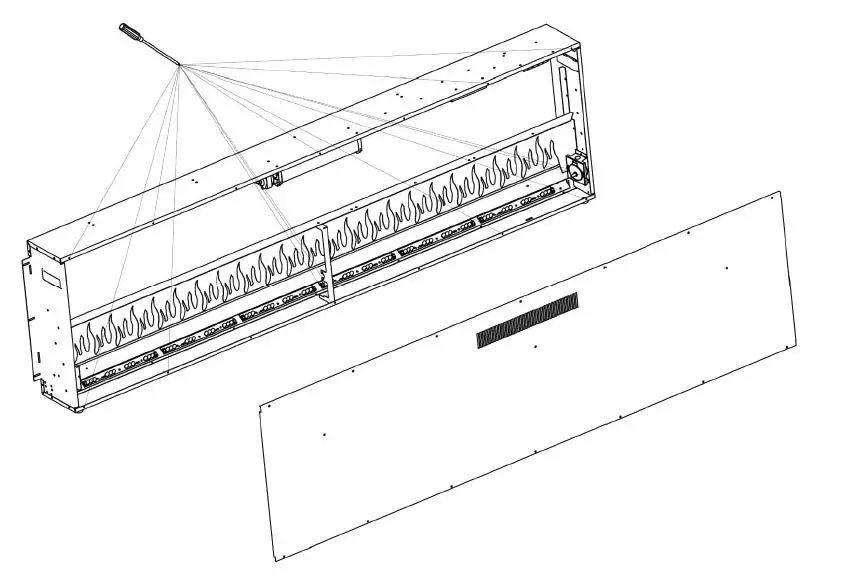

1. Ensure the fireplace is powered off. Remove the back panel of the fireplace by removing the screws surrounding the backplate.

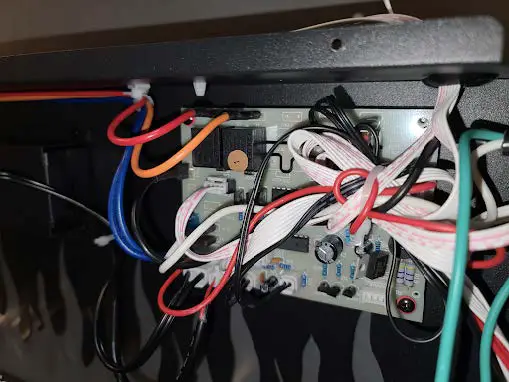

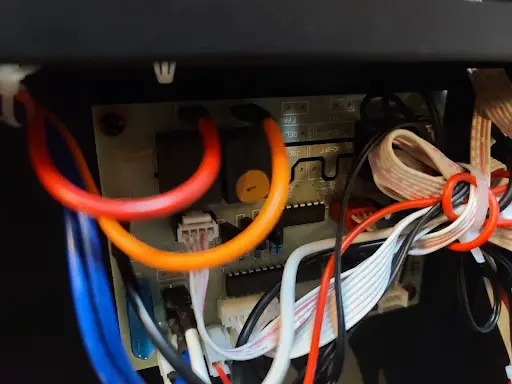

2. Locate the main control board on the right side of the fireplace.
3. Remove the 4 screws at each corner of the circuit board and set aside. The circuit board will become loose and only supported by the pins.

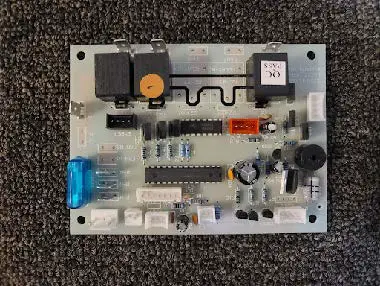

4. Prepare the new circuit board to be installed. During the installation, the new circuit board can be placed next to the old circuit board for easier wiring access.

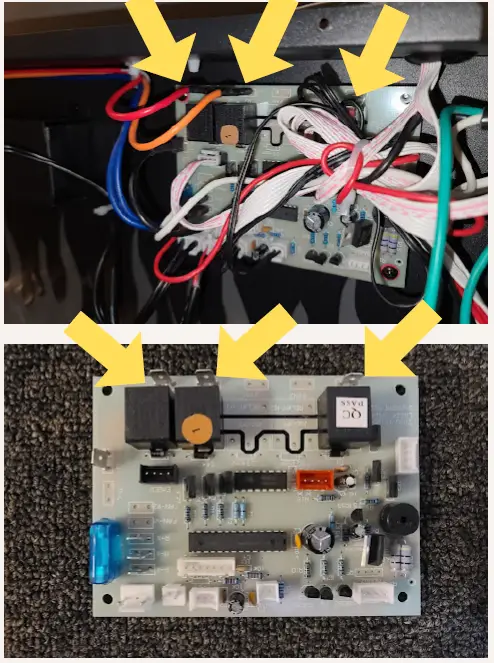

5. Unplug the three pins on the top of the circuit, and connect to the new circuit.

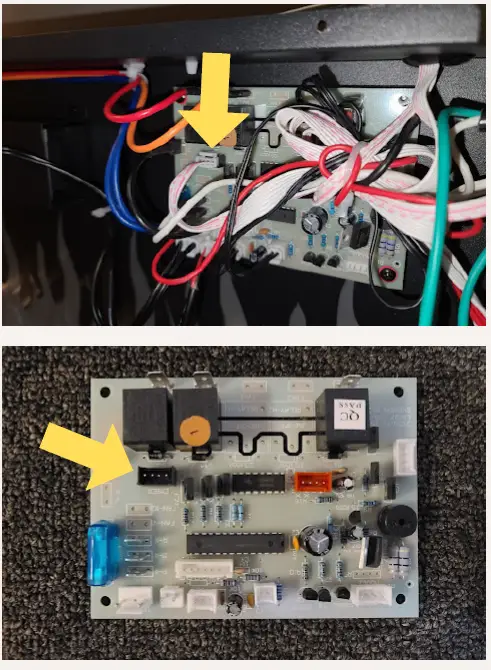

6. Unplug the 4-pin black bus connector, and connect it to the new circuit.

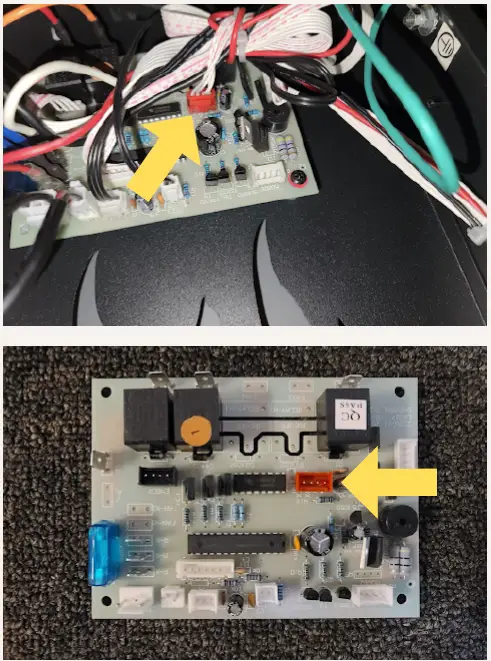

7. Unplug the 4-pin red bus connector and connect it to the new circuit.

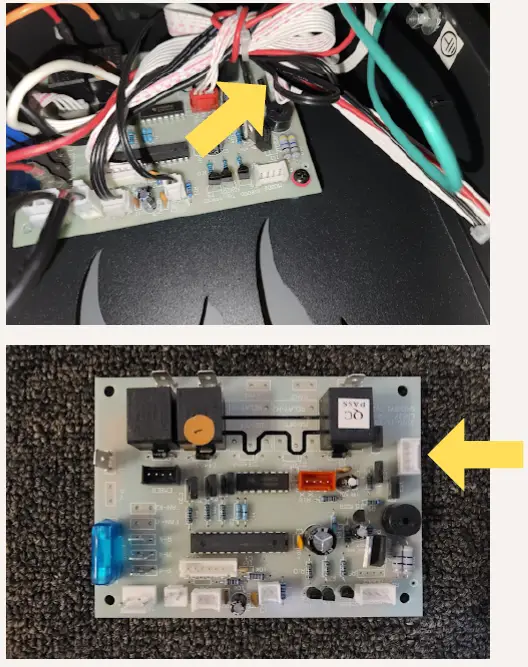

8. Unplug the 4-pin white bus connector and connect it to the new circuit.

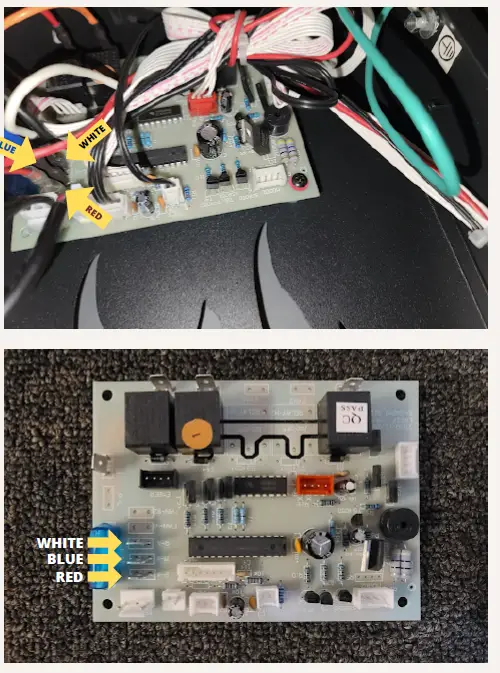

9. Unplug the 3 pins next to the blue fuse and connect to the new circuit. From the top to bottom, the wires are coordinated in white, blue, and red.

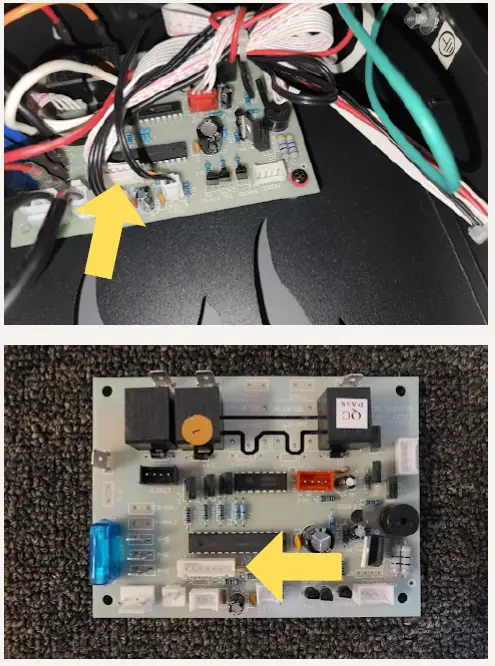

10. Unplug the 7-pin bus connector and connect it to the new circuit.

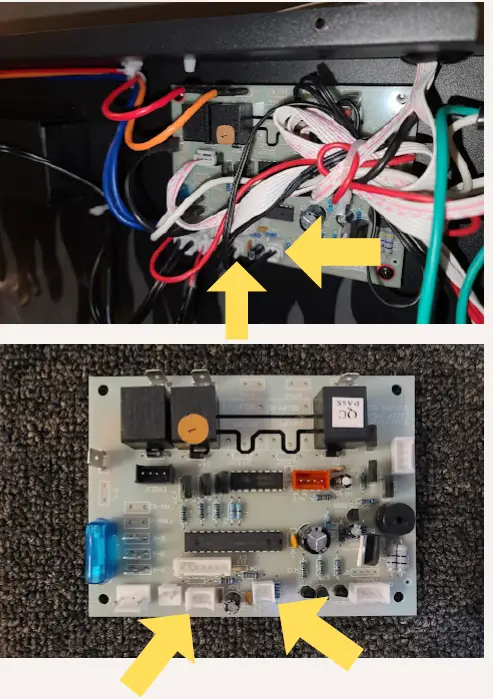

11. Unplug the 2-pin black and 2-pin red bus connectors and connect them to the new circuit.

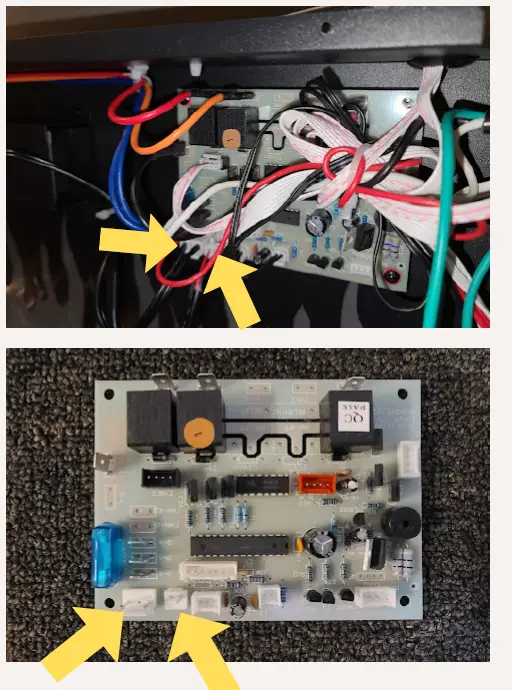

    1. Unplug the 3-pin black and 2-pin black bus connectors and connect them to the new circuit
12. Move the new circuit into place – Please ensure all wires are routed from the from of the circuit board, and there are no wires running through the back of the circuit board.
13. After the new circuit has been connected, reinstall the circuit back into place by securing the four screws at the edges of the circuit.
