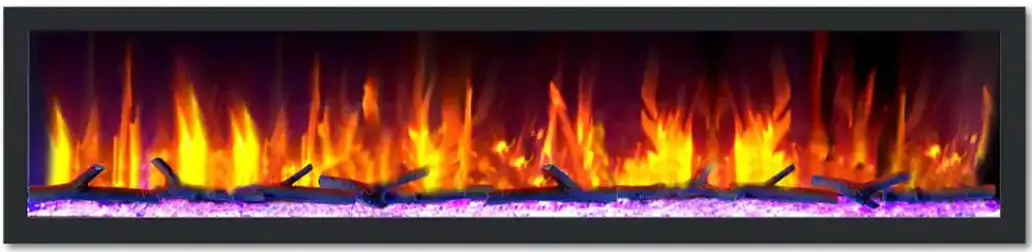

DYNASTY FirePlace DY-BTX Series 82 Inch Recessed Linear Electric Fireplace
Flicker Rod Removal and Installation

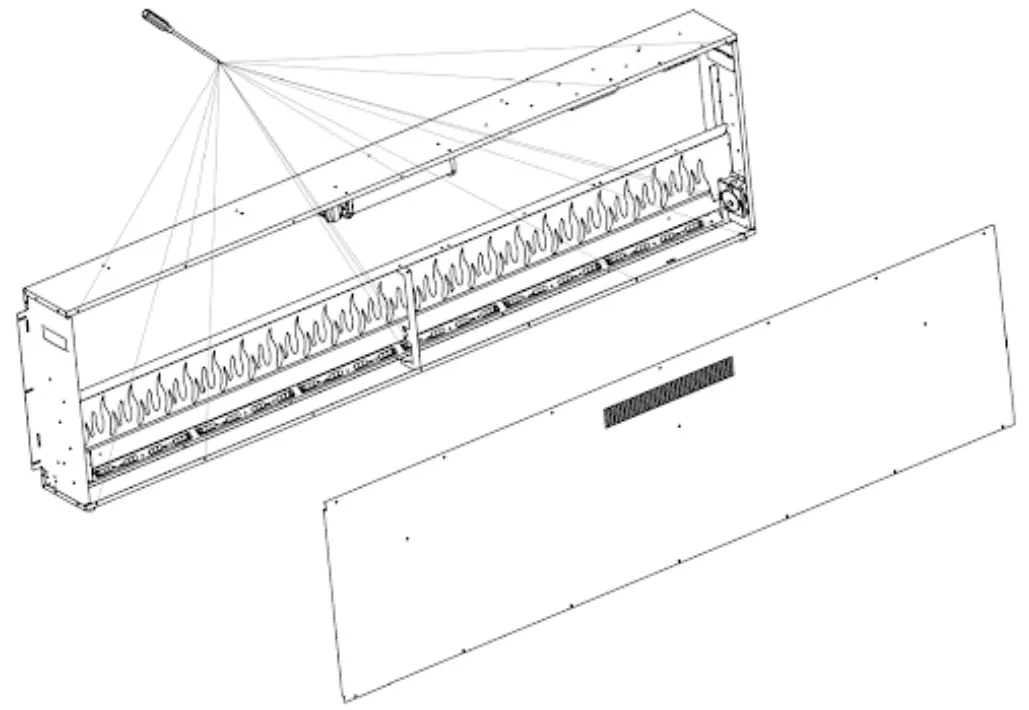

Remove back panel of the fireplace by removing the screws surrounding the backplate.

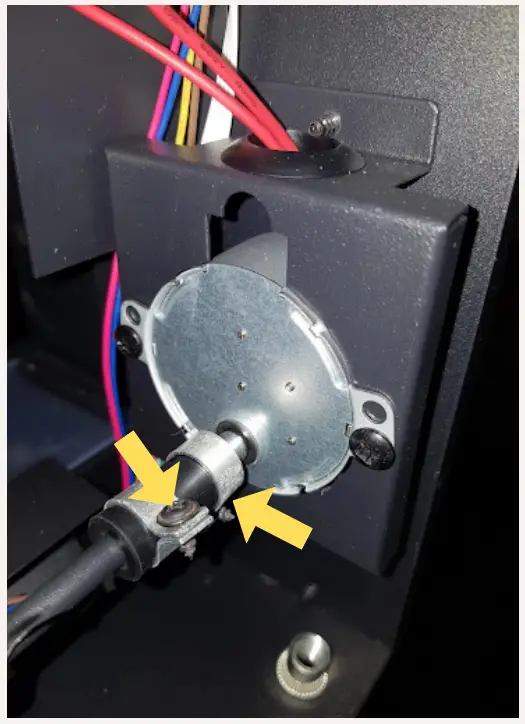

Loosen the screws to release the metal ring between the reflective flicker rod shaft

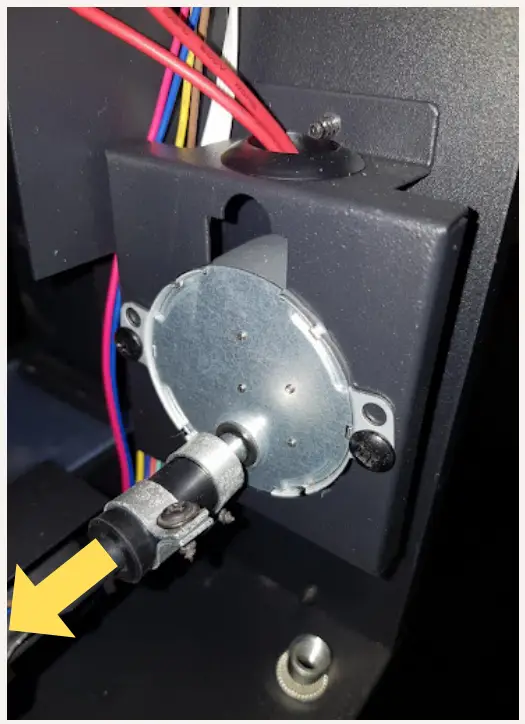

Pull it out
(It could be hard, but still, try to be gentle)
Pull the other side.
Flicker rod installation

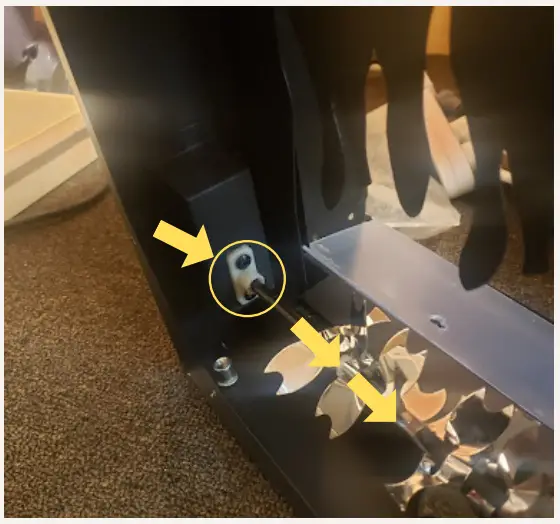

- Place a new flicker rod on one side first ( Check the 6- 4 Photo where the red circle)
- Insert the other side of the flicker rod into the motor
- Screws on the two flicker rod metal rings
- Place the bake panel and screws on
