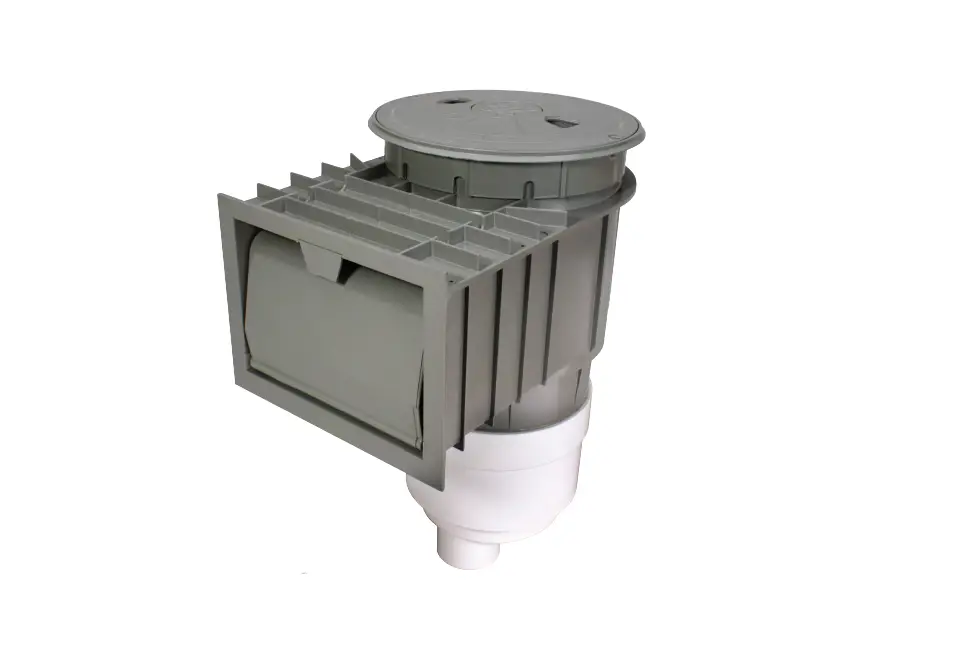

waterway Renegade Gunite Skimmer User Guide
Introduction

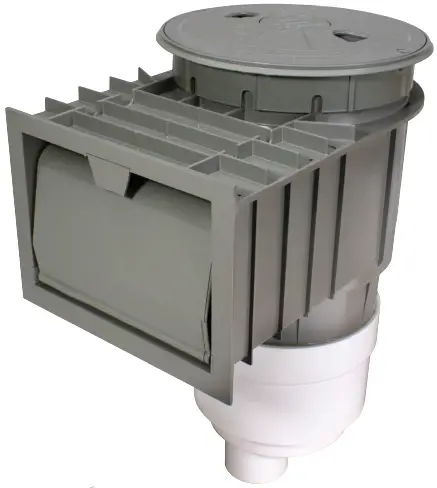

The Renegade Gunite Skimmer from Waterway is designed for easier installation while maximizing flow, with a NSF approved flow rate of up to 75 gallons per minute.
Features
- NSF Approved with flow rate of 75 GPM
- PVC sockets for better glue joints
- 2″ socket is 2 1/2″ spigot for more flow
- 1 1/2″ socket is 2″ spigot for easier plumbing
- 1″ socket for over flow hose
- Large locking skimmer basket
- Easy access spring-loaded weir door simplifies replacement
- Optional float valve
- Optional skimmer test kits
Description
| Renegade Gunite Skimmers – 2-Port – Round Lid | ||
| Part No. | Description | Color |

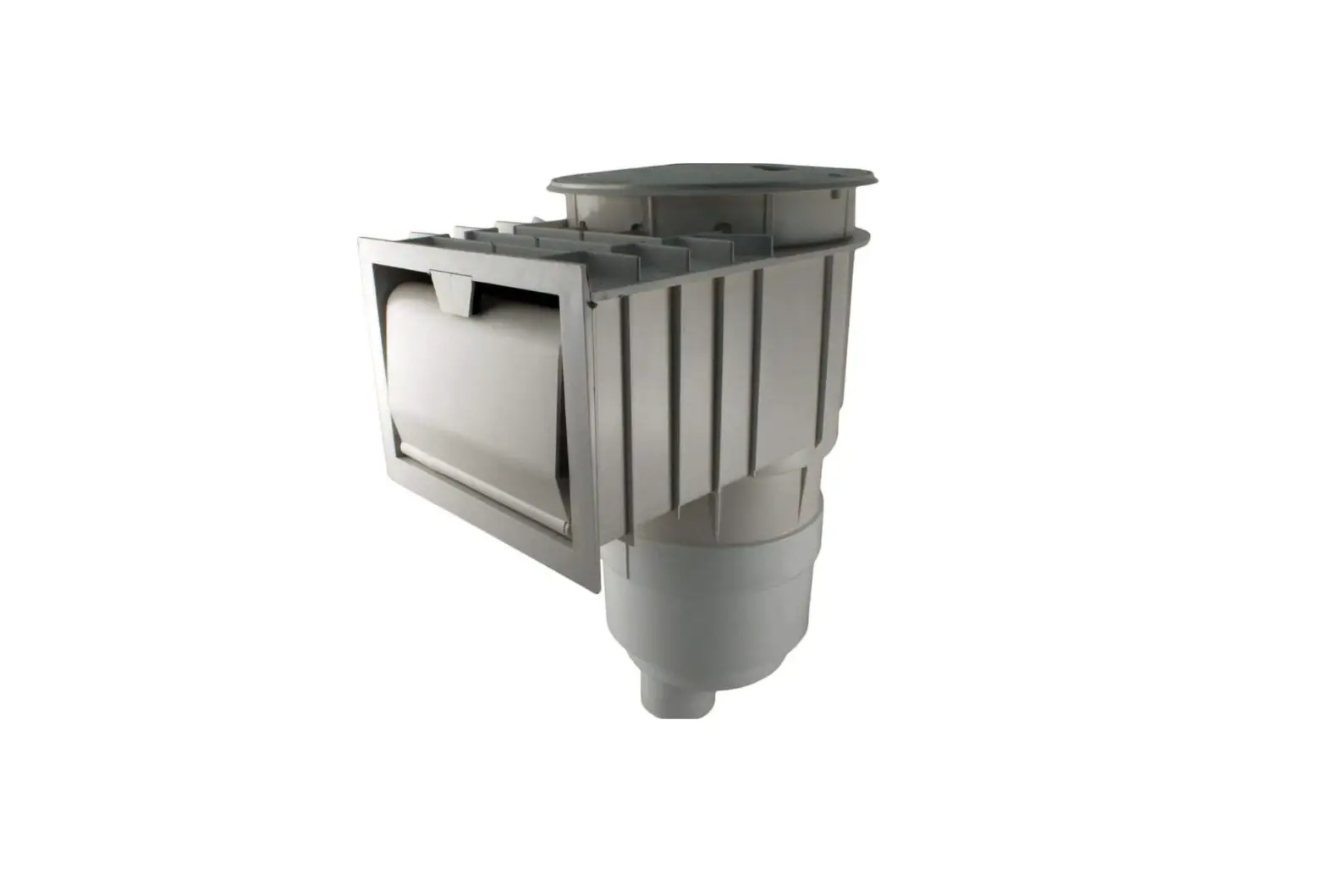

| 540-6410 | 2.5″Spg x 2″ S x 2″ NPT Assy | White |
| 540-6410-9B | 2.5″Spg x 2″ S x 2″ NPT Beige Lid | White/Beige |
| 540-6411 | 2.5″Spg x 2″ S x 2″ NPT Assy | Black |
| 540-6417 | 2.5″Spg x 2″ S x 2″ NPT Assy | Gray |
| 540-6417-9B | 2.5″Spg x 2″ S x 2″ NPT Gry/Beige Lid | Gray/Beige Lid |
| 540-6419-BEI | 2.5″Spg x 2″ S x 2″ NPT Assy | Beige |
| 540-6419-DKG | 2.5″ Spg x 2″ NPT Assy Drk Gray | Dark Gray |
| 540-6430 | 2″ Spg x 1.5″ S x 1.5″ | White |
| 540-6610 | 2.5″ Spg x 2″ S x 2″ NPT w/Float Valve | White |
| 540-6617 | 2.5″ Spg x 2″ S x 2″ NPT w/Float Valve | Gray |
| 540-6617-9B | 2.5″ Spg x 2″ S Gray/Beige Lid w/Float Valve | Gray/Beige Lid |
| 540-6619-BEI | 2.5″ Spg x 2″ S X 2″ NPT w/Float Valve | Beige |
Accessories | ||
| Part No. | Description | Color |
| 540-6010 | Equalizer Valve | White |
| 542-6200 | Float Valve | White |
| 519-6480-R1 | Gunite Vacuum Plate (New Snap-In) | White |
| 540-6500 | Skimmer Test Loop Kit | White |
| 519-6560 | Mounting Extension Ring | White |
| 519-6567 | Mounting Extension Ring | Gray |
Renegade Gunite Skimmers – Single Port – Square Lid | ||
| Part No. | Description | Color |
| 540-6510S | 2″ Socket (2 1/2″ Spigot) | White |
Renegade Gunite Skimmers – 2-Port – Square Lid | ||
| Part No. | Description | Color |
| 540-6410-S | 2″ S Square Lid | White |
| 540-6417-S | 2″ Socket (2 1/2″ Spigot) | Gray |
Renegade Gunite Skimmers – Single Port – Round Lid | ||
| Part No. | Description | Color |
| 540-6510 | 2″ Socket (2 1/2″ Spigot) | White |
| 540-6510-9B | 2″ Socket (2 1/2″ Spigot) | White/Beige Lid |
| 540-6517 | 2″ Socket (2 1/2″ Spigot) | Gray |
Commercial Renegade Gunite In-Ground Skimmers | ||
| Part No. | Description | Color |
| 540-6200 | 0 2.5″ Spg x 2″ S x 2″ NPT w/Equalizer Valve | White |
CUSTOMER SUPPORT
004501 ©2021 Waterway Plastics
Designed, Engineered &
Manufactured in the USA.
807-0078.122
www.waterwayplastics.com
