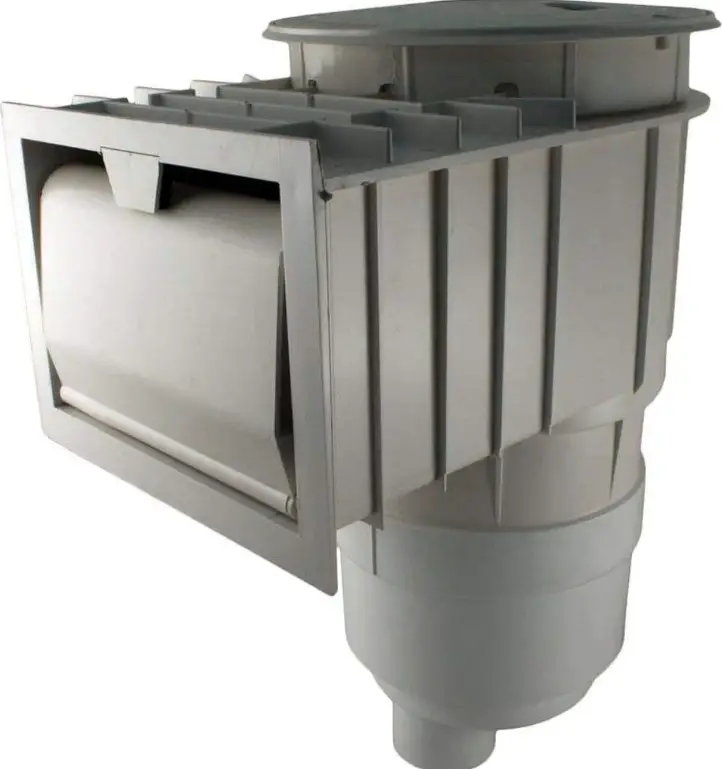

waterway 540-6410 Renegade Gunite Skimmer
INTRODUCTION
The Renegade Gunite Skimmer from Waterway is designed for easier installation while maximizing flow, with an NSF approved flow rate of up to 75 gallons per minute.
Features
- NSF Approved with flow rate of 75 GPM
- PVC sockets for better glue joints
- 2″ socket is 2 1/2″ spigot for more flow
- 1 1/2″ socket is 2″ spigot for easier plumbing
- 1″ socket for over flow hose
- Large locking skimmer basket
- Easy access spring-loaded weir door simplifies replacement
- Optional float valve
- Optional skimmer test kits
- All skimmers excluding the skimmers for commercial grade fiberglass pools now come standard with the reversible lid both round and square are available
Renegade Gunite Skimmers – 2-Port – Round Lid
| Renegade Gunite Skimmers – 2-Port – Round Lid | ||
| Part No. | Description | Color |
| 540-6410 | 2.5″Spg x 2″ S x 2″ NPT Assy | White |
| 540-6410-9B | 2.5″Spg x 2″ S x 2″ NPT Beige Lid | White/Beige |
| 540-6411 | 2.5″Spg x 2″ S x 2″ NPT Assy | Black |
| 540-6417 | 2.5″Spg x 2″ S x 2″ NPT Assy | Gray |
| 540-6417-9B | 2.5″Spg x 2″ S x 2″ NPT Gray/Beige Lid | Gray/Beige Lid |
| 540-6419-BEI | 2.5″Spg x 2″ S x 2″ NPT Assy | Beige |
| 540-6419-DKG | 2.5″ Spg x 2″ NPT Assy Dark Gray | Dark Gray |
| 540-6430 | 2″ Spg x 1.5″ S x 1.5″ | White |
| 540-6610 | 2.5″ Spg x 2″ S x 2″ NPT w/Float Valve | White |
| 540-6617 | 2.5″ Spg x 2″ S x 2″ NPT w/Float Valve | Gray |
| 540-6617-9B | 2.5″ Spg x 2″ S Gray/Beige Lid w/Float Valve | Gray/Beige Lid |
| 540-6619-BEI | 2.5″ Spg x 2″ S X 2″ NPT w/Float Valve | Beige |
Accessories
| Part No. | Description | Color |
| 540-6010 | Equalizer Valve | White |
| 542-6200 | Float Valve | White |
| 519-6480-R1 | Gunite Vacuum Plate (New Snap-In) | White |
| 540-6500 | Skimmer Test Loop Kit | White |
| 519-6560 | Mounting Extension Ring | White |
| 519-6567 | Mounting Extension Ring | Gray |
Designed, Engineered & Manufactured in the USA.
