Wiltec Skimmer Csp-40 Standing Pond Skimmer Leaf Collector Instruction Manual

Operation Manual
Skimmer CSP-40
51191

Illustration similar, may vary depending on model

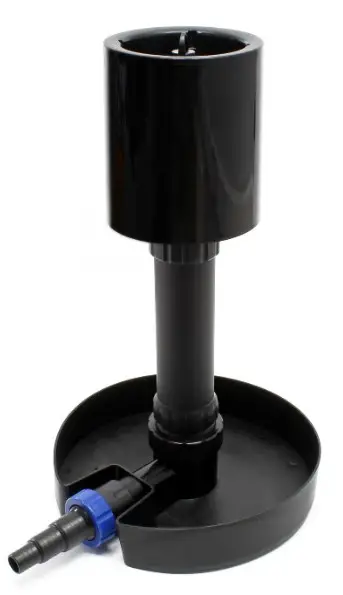

Skimmer CSP-40 Standing Pond Skimmer Leaf Collector

Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

Introduction

Thank you for purchasing this quality product. To minimise the risk of injury we urge that our clients take some basic safety precautions when using this device. Please read the operation instructions carefully and make sure you have understood its content. Keep these operation instructions safe.

Safety instructions

ATTENTION: The device is not intended for use by persons (including children) with impaired or limited physical, sensory, and mental abilities or lack of experience and/or real knowledge, unless they are supervised by a person responsible for their safety or you follow the instructions made by this person how to use the device correctly. Children should be supervised to make sure they do not play with the device
ATTENTION:

• Run a visual inspection of the device before every use. Do not use the device if the safety installations are damaged or worn out. Never override safety regulations.
• Use the device exclusively according to the intended purpose stated in the instructions for use.
• You are responsible for the safety of the working environment.
• The device cannot be installed in the drinking water circuit.
• Apply/mount the hoses and hose clamps.
  WARNING: Carefully read all the safety guidelines and the instructions. Keep the instructions and the safety guidelines in a safe place in case you need them in the future.

Wear resistance

• The temperature of the liquid pumped should not exceed +35 ℃ in permanent operation.
• The filter is exclusively designed and intended for filtering garden ponds.
• The filter is not suitable for filtrating water whose temperature exceeds 40 ℃ or falls below 8 ℃.
• The filter is not frost-resistant! Therefore, it is recommended not to use the filter in winter!

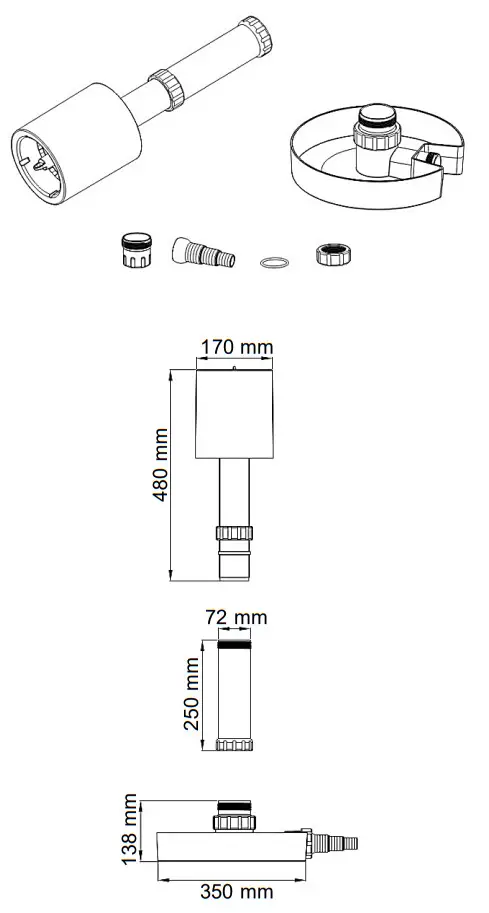

Technical specifications

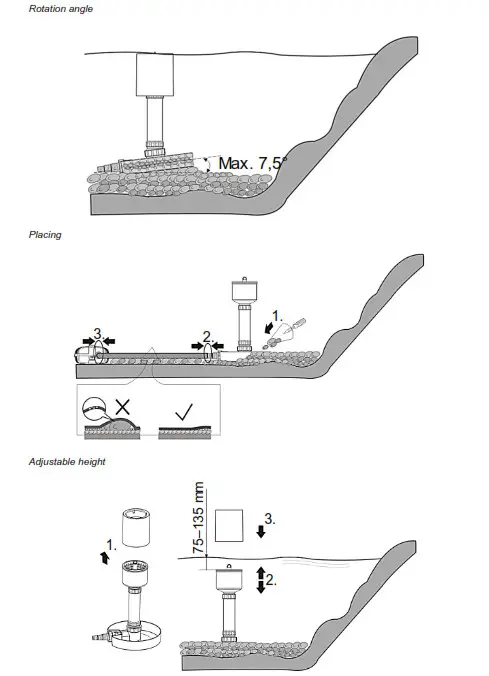

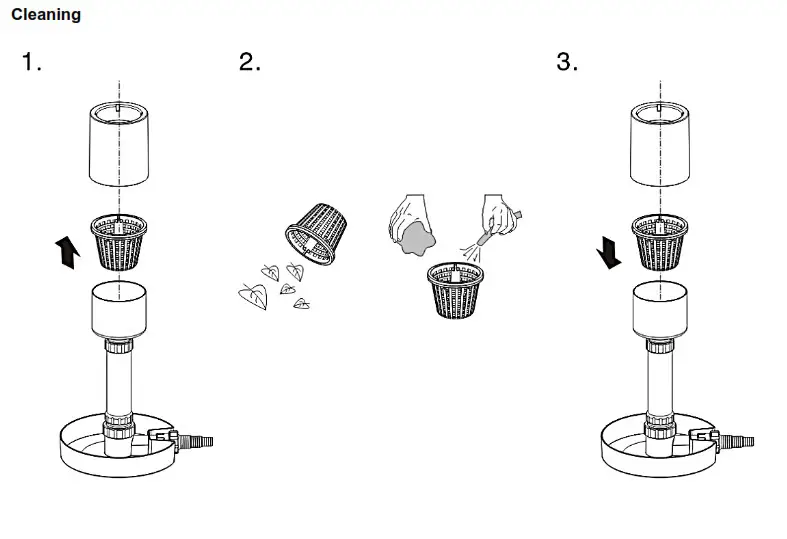

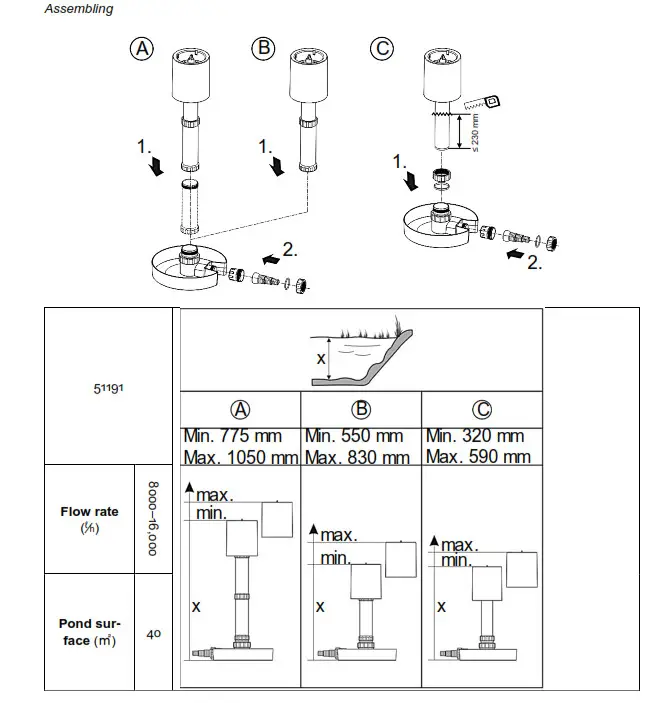

Drawings concerning use

Opening

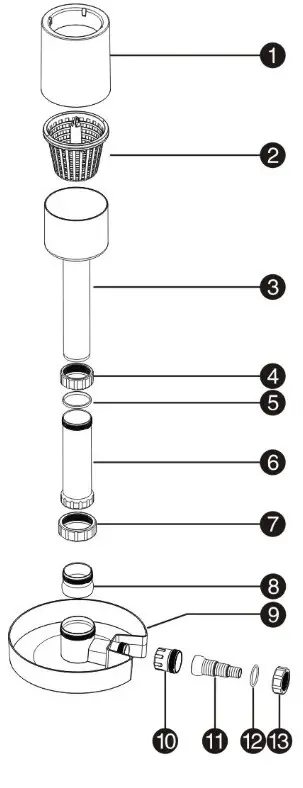

Parts list and exploded view

Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH
Item 51191
The information contained in this document may alter at any time without previous notice. It is prohibited to copy or spread any parts of this document in any way without prior written allowance. All rights reserved.
The Wilted Wild anger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
Even though, the Wilted Wild anger Technik GmbH has undergone biggest possible efforts to ensure that the operating manual is complete, faultless, and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing from you.
Send an e-mail to: [email protected] or use our contact form: https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via: https://www.wiltec.de/docsearch
Our postal address is: WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
To return orders for exchange, repair, or other purposes, please use the following address. Attention!
To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH

Königsbenden 28
52249 Eschweiler
E-mail: [email protected]
Tel: +49 2403 55592–0
Fax: +49 2403 55592–15
http://www.WilTec.de
http://www.aoyue.eu
10 2022-1
http://www.teichtip.de
