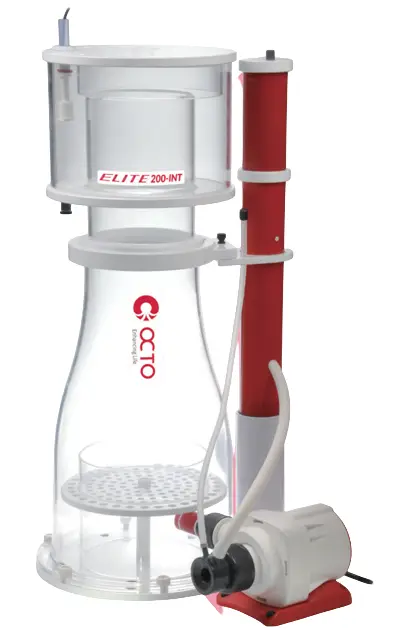

OCTO Elite 150-INT 6 Inch Super Cone Protein Skimmer
Dear Customer
Thank you for choosing OCTO, a quality product manufactured by HONYA CO., LTD. In order for you to safely use our product for maximum results, please read the instruction prior to use. We would strongly suggest that you retain this Instruction for future reference.
Product specification
| Item No. | Product | Wet/ Dry | Pump Power | Cup Diameter | Neck Diameter | Footprint | Height | Output Size | Tank Volume | |||||||
| w | mm | inch | mm | inch | mm | inch | mm | inch | L | US Gal | ||||||
| 120304 | Elite 150-INT | Wet | 25 | 150 | 5.9 | 80 | 3.2 | 290 | 265 | 11.41 | 0.4 | 525 | 20.7 | CIJ 40 mm (1-1/4″) | 800 | 211 |
| 120305 | Elite 200-INT | Wet | 40 | 200 | 7.9 | 120 | 4.7 | 380 | 285 | 15.0 | 11.2 | 590 | 23.2 | CIJ 50 mm (1-1/2″) | 1500 | 396 |
| 120306 | Elite 220-INT | Wet | 70 | 220 | 8.7 | 120 | 4.7 | 420 | 310 | 16.5 | 12.2 | 630 | 24.8 | ()J 50 mm (1-1/2″) | 2000 | 528 |

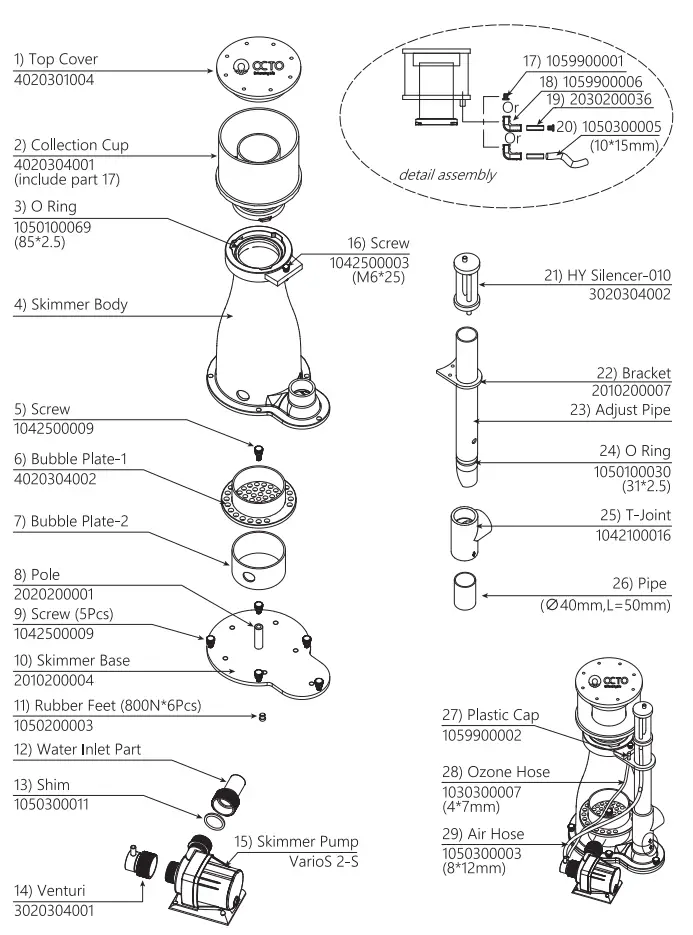

Explosion Chart for Elite 15O-INT

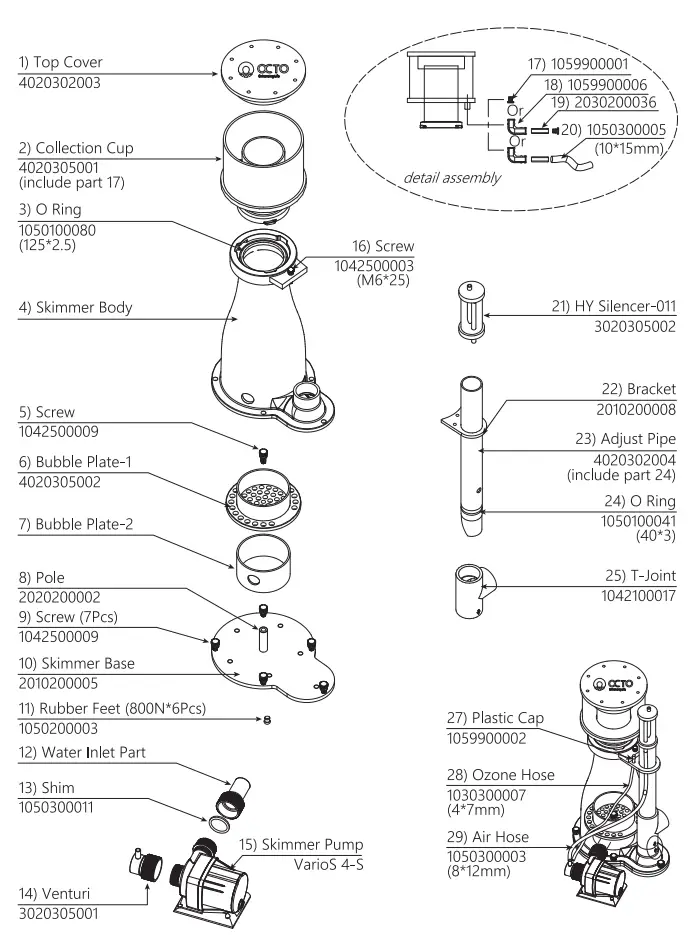

Explosion Chart for Elite 200-INT

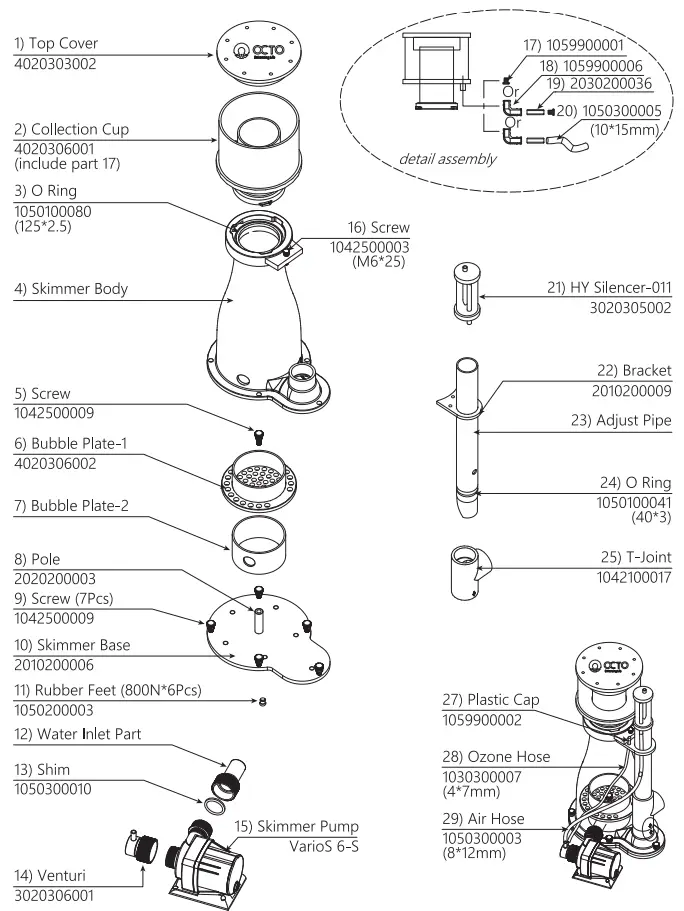

Explosion Chart for Elite 220-INT
Installation
- Remove the skimmer body and all the assembly parts. Please refer to the checklist.
- Install the product as shown.
- Put the skimmer in sump, power on. Turning the adjust pipe to adjust the water level.
- Recommended sump water level:
At 180-200mm(7-7.9″) for Elite 150-INT (VarioS 2-S)
At 200-220mm(7.9-8.7″) for Elite 200-INT (VarioS 4-S)
At 200-220mm(7.9-8.7″) for Elite 220-INT (VarioS 6-S)
Watch our unboxing video https://youtu.be/ilaeWluzoll or scan
Maintenance
- Collection Cup: Collection Cup should be cleaned at least once every 7-10 days, depending on the organic waste collected.
- Skimmer body: It is recommended that you clean the Skimmer Body once every 3-6 months. Clean and rinse off with fresh water only.
- Silencer: It is recommended to clean the silencer once every 2-3 months to prevent blockage.
- Pump: It is recommended to clean the Pump once every 3-6 months. Check and Clean the Impeller and pump chamber. If necessary, soak the Pump and Impeller in White Vinegar to dissolve stubborn calcium deposits.
Safety Tips
- Always unplug the pump before maintenance.
- Never run the pump dry.
- Do not touch the Socket with wet hands.
- Do not clean the Skimmer with any cleaning agents.
Warranty
Please refer to the below URL:
https://reefoctopus.com/services/warranty
HONYA CO., LTD is committed to continuous product development, we hereby reserve
the right to revise the product specifications or designs without prior notice.
