522EBTKD3048D Stainless Steel Base Table
Installation Guide
TECHNICAL SPECIFICATIONS
Contents
4 – 34” Stainless steel legs
1 – Stainless steel Table Top
2 – Sides: left and right
1 – Back
1 – Stainless steel undershelf with aluminum die cast clamp
2 – Sliding doors
36 – Set screws
Item Number
522EBTKD3048D
522EBTBKD3072D
522EBTKD3036D
522EBTBKD3048D
522EBTBKD3036D
522EBTKD3072D
522EBTBKD3060D
522EBTKD3060D
NSF Installations require all set screws must be filled with an approved silicone sealer. Silicone not included.
INSTALLATION

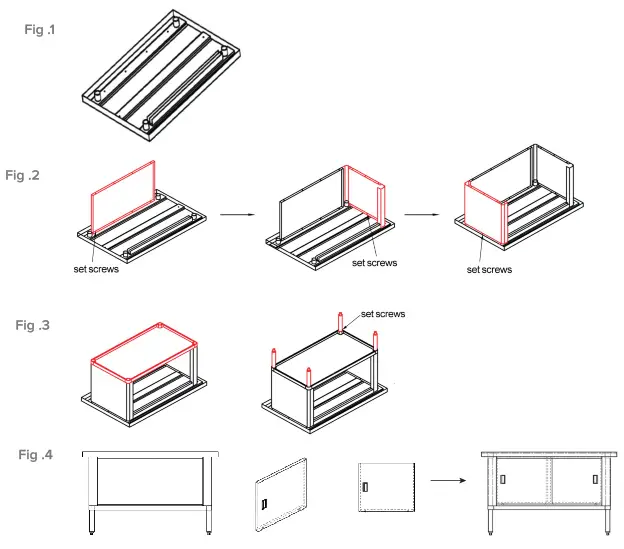

- Lay the top shelf flat on the box to protect the finish during assembly. If the table includes a back splash, support the top with (4) 4” wood blocks to each corner (Figure 1).
- Install the back and sides on the Table Top, then insert set screws and tighten the screws (Figure 2).
- Line the undershelf up with the holes and inserts the legs into the gussets. Tighten set screws (Figure 3). Tighten set screws.
- Turn table upright and install the sliding doors on the slide rails (Insert top rail first) (Figure 4). Remove protective plastic film. Final Assembly.
