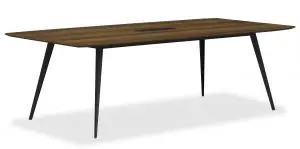

LORELL Conference Table Top Metal Base
Assembly Instructions
|
|
|
|
|
|
|
|
|
|
|
Frame connector 4 Pcs
Desktop connector 4 Pcs
Screw M8*45 4 Pcs
Screw M6*12 24 + 4 extra Pcs
Screw M8*12 8 + 2 extra Pcs
Adjustable Glide 4 Pcs

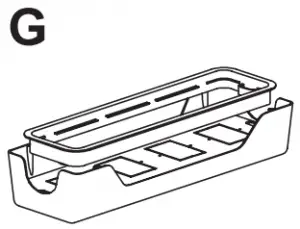

Black Wirebox 400*140*120 1 Pc
Screw ST4*18 4 Pcs

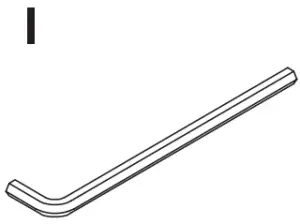

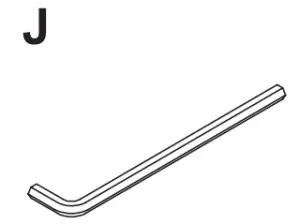

6#Allen Key 6mm 1 Pc
5#Allen Key 5mm 1 Pc
4#Allen Key 4mm 1 PcSTEP 1

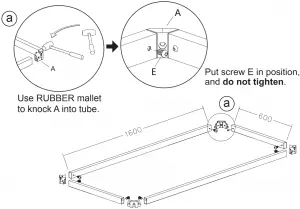

STEP 2

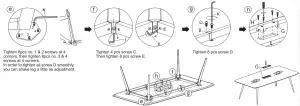

STEP 3-I
For Laminate top
(LLR59583/59584/59688/18232)

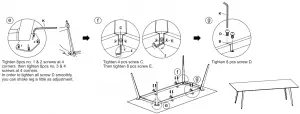

STEP 3- II
For Glass top LLR59628
IMPORTANT NOTE
Place all laminated parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.- Check to make sure that you have all parts and hardware.
- Remove all wrapping materials, including staples and packaging straps before you start to assemble.
- Do not tighten all screws/bolts until pieces are completely assembled.
- Keep all hardware parts out of children’s reach.
- It is recommended for 2 persons to complete this assembly.
Place all laminated parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
