TDK B74121G0050M060 TVS Diodes for Excellent ESD Protection

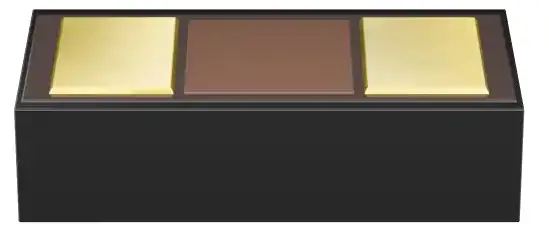

TDK B74121G0050M060-TVS-Diodes-for-Excellent-ESD-Protection-PRODUCT

General Purpose and Ultra-Low Clamping and Capacitance TVS.

  • The micro packaged TVS diodes with low clamping and capacitance are designed to protect voltage-sensitive components from ESD for general purpose and high-speed applications.
  • Excellent clamping voltage, low leakage and fast response time provide a state-of-the-art protection to ESD. The ultra-slim package size is the perfect fit for applications with tight space requirements

Footprint

FootprintSizes (mm) PackageThicknessVWMVBRVC

@lpp =8A, TLP

Dynamic ResistanceLeakage current @ 3.3 VCapacitance
B74121G0050M060

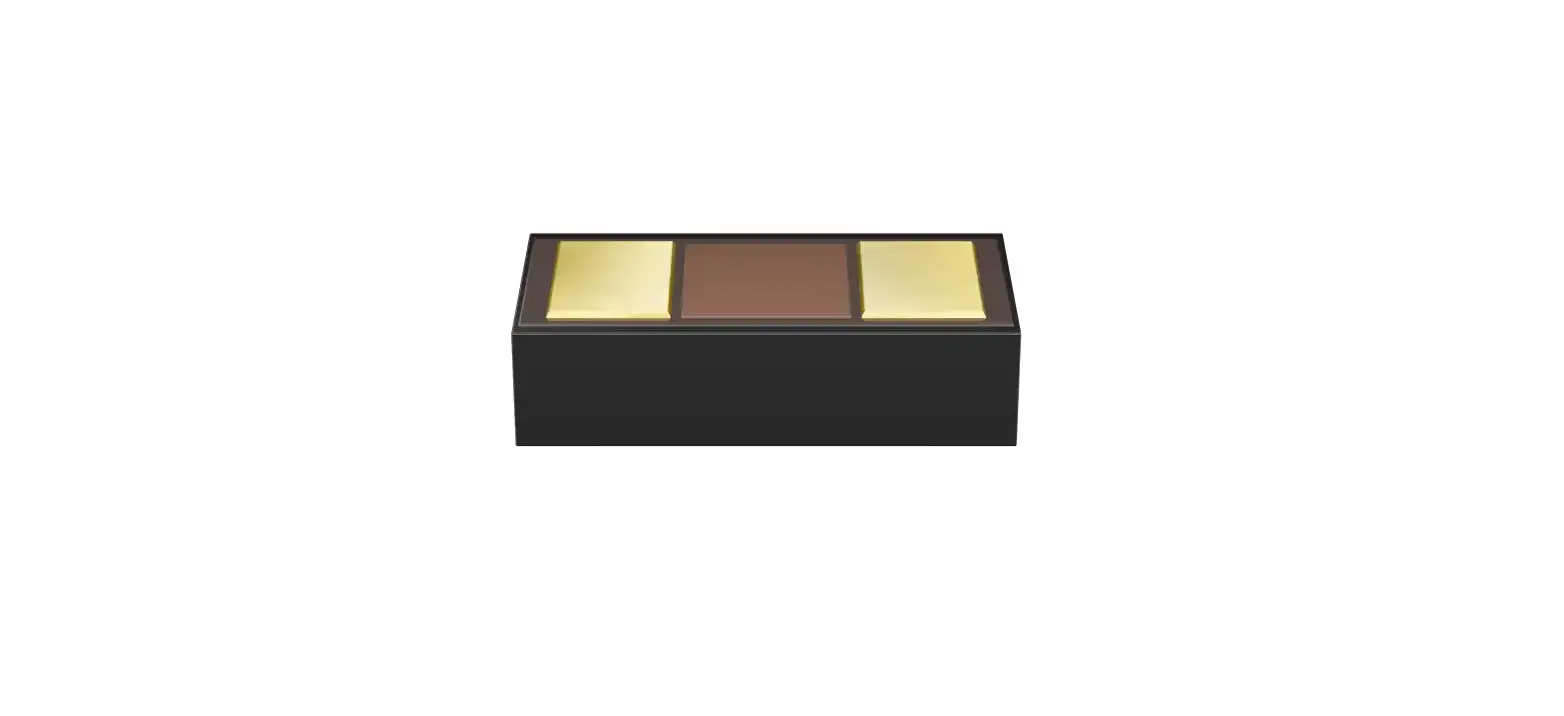

TDK B74121G0050M060-TVS-Diodes-for-Excellent-ESD-Protection-FIG- (1)600 µm x 300 µm WL-CSP0201SL150 µm5 V6.8 V7.2 V0.1 W2 nA12 pF
B74111G0050M060
TDK B74121G0050M060-TVS-Diodes-for-Excellent-ESD-Protection-FIG- (1)400 µm x 200 µm WL-CSP01005SL100 µm5 V6.8 V7.6 V0.16 W2 nA5 pF
B74121U0033M060
TDK B74121G0050M060-TVS-Diodes-for-Excellent-ESD-Protection-FIG- (1)600 µm x 300 µm WL-CSP0201SL150 µm3.3 V6.3 V3.9 V0.16 W1 nA0.65 pF
B74111U0033M060
TDK B74121G0050M060-TVS-Diodes-for-Excellent-ESD-Protection-FIG- (1)400 µm x 200 µm WL-CSP01005SL100 µm3.3 V6.3 V3.8 V0.15 W1 nA0.48 pF

ApplicationsTDK B74121G0050M060-TVS-Diodes-for-Excellent-ESD-Protection-FIG- (2)

  • Hearing Aids
  • True Wireless Stereo (TWS)
  • Machine-to-Machine (M2M)
  • Wearbables and portable devices
  • Smartphones and Tablets
  • Network Communication devices
  • High Speed Interfaces (USB3.2, HDMI 2.0, etc.)

Please be informed that the series status of above products is in production

FeaturesTDK B74121G0050M060-TVS-Diodes-for-Excellent-ESD-Protection-FIG- (3)

  • Ultra-small package
  • High ESD resistivity
  • Low clamping voltage
  • Low leakage current
  • Very low capacitance

Samples and Production quantities are available at TTI Europe now.
To view TTI‘s full line of products, go to www.ttieurope.com
