RG-EG210G-E 10-Port Gigabit Cloud Managed User Guide
Before You Begin
Package Contents
Packing List
| Item | Name | Quantity | Unit | Remark |
| 1 | RG-EG210G-E host | 1 | Set | |
| 2 | Mounting bracket | 2 | Piece | |
| 3 | Foot pad | 4 | Piece | |
| 4 | M4x8 countersunk flat head screws (common head style) with cross recess | 6 | Piece | |
| 5 | Power cord | 1 | Piece | |
| 6 | Power cord retention clip | 1 | Piece | |
| 7 | Quick Start Guide | 1 | Copy | |
| 8 | Warranty card | 1 | Copy |
You can retrieve product supporting documents at https://www.ruijienetworks.com. Click Support > Technical Documents, and download the documents you need.
Installation and Networking
The RG-EG210G-E router meets the EIA standards and can be installed in 19-inch rack. The steps of Installation are as follows:

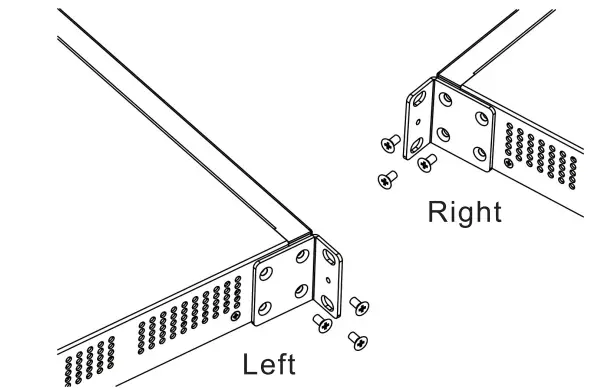

- Take out two L-shape mounting brackets and six M4x8 FMO countersunk head screws.
- Attach the mounting brackets to both sides of the router closely and fix it with three M4x8 FMO countersunk head screws.

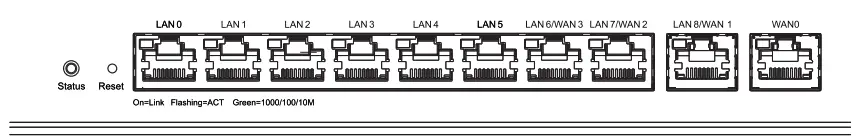

- Connect the device with cables properly. WAN ports: Connect to the Internet LAN ports: Connect to switches, APs or other devices
Networking
Method 1: App-based Configuration (Recommended) Scan the QR-code on the manual or device to download the Ruijie Cloud App. Follow the guide on App to set up and configure the network.
Method 2: Web-based Configuration Connect the cable to the device port and visit http://192.168.110.1 to perform configuration.

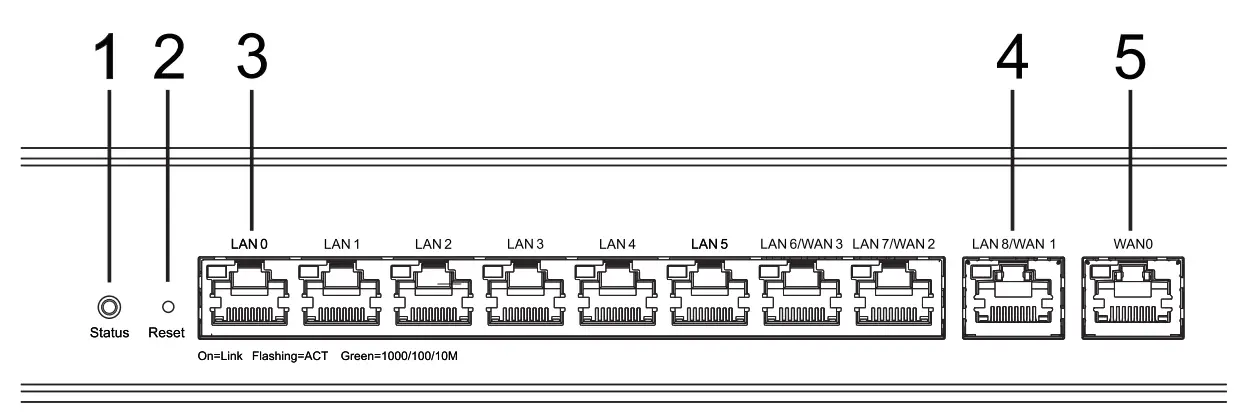

Port Information
Note:
- System status LED
- Reset button
- LAN ports
- LAN/WAN ports
- WAN port
Specifications
| Specification | RG-EG210G-E | |
| Port | 1010/100/1000M Base-T ports, at most 4 WAN ports (defaults: 1 WAN port, 9 LAN ports, ports LAN6/7/8 can be switched to WAN ports) | |
| Dimensions (W x D x H)) | 440mmx201.5mmx43.6mm | |
| Operating Environment | Temperature | 0 °C – 40 °C |
| Humidity | 10% – 90% RH, non-condensing | |
| Storage Environment | Temperature | -40 °C – 70 °C |
| Humidity | 5% – 95% RH, non-condensing | |
CE Warning: Operation of this equipment in a residential environment could cause radio interference.
