REYEE NBS3100-8GT2SFP 10-Port Gigabit Layer
Before You Begin

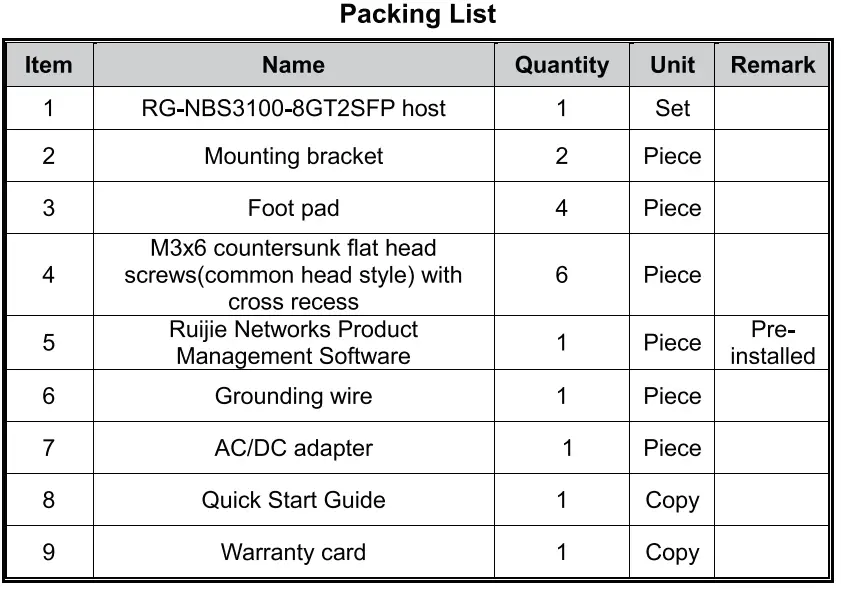

Package Contents
You can retrieve product supporting documents at https://www.ruijienetworks.com. Click Support > Technical Documents, and download the documents you need.
Installation and Networking
The RG-NBS3100-8GT2SFP switches follow the EIA standard dimensions and can be installed in 19-inch rack.
The steps of Installation are as follows:

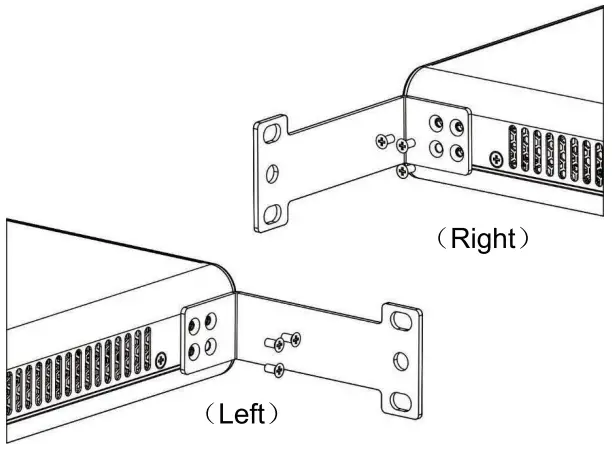

- Take out two L-shape mounting brackets and six M3x6 FMO countersunk head screws
- Attach the mounting brackets to both sides of the switch closely and fix it with three M3x6 FMO countersunk head screws
Networking
- Method 1 (recommended)
Scan the QR-code on the manual or device to download Ruijie Cloud App. Follow the guide on App to set up and configure the network.
- Method 2
Connect the cable to the device port and access http://10.44.77.200 to perform configuration.

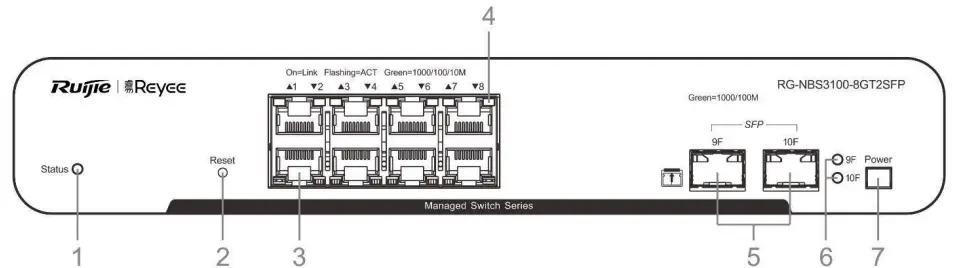

Port Information
- System status LED
- Reset button
- 10/100/1000 Base-T Ethernet port
- Copper port status LED
- 1000 Base-X SFP port
- SFP port status LED
- DC power port
Specifications
| Specifications I RG-NBS3100-8GT2SFP | ||
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.32 | |
| Interface | 8*10/100/1000Mbps Ethernet ports | |
| 2*100/1000 Mbps SFP ports | ||
| Switching Capacity | 20 Gbps | |
| Power Consumption | The overall maximum output power is 8W. | |
| Dimensions (W x D x H)) | 260mm x 120mm x 43.6mm | |
| Operating Environment | Temperature | 0 °C – 50 °C |
| Humidity | 10% – 90% RH, non-condensing | |
| Storage Environment | Temperature | -40 °C – 70 °C |
| Humidity | 5% – 95% RH, non-condensing | |
CE Warming:
Operation of this equipment in a residential environment could cause radio interference.
