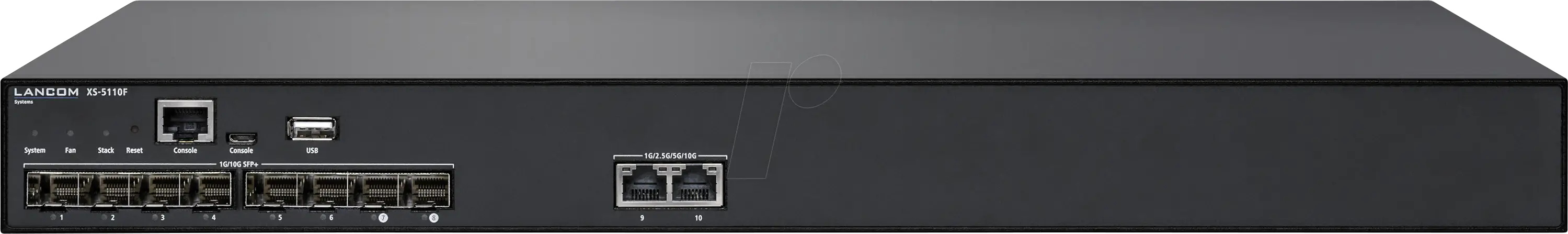

LANCOM XS-5110F 10-port 10 Gigabit Ethernet Switch
OVERVIEW

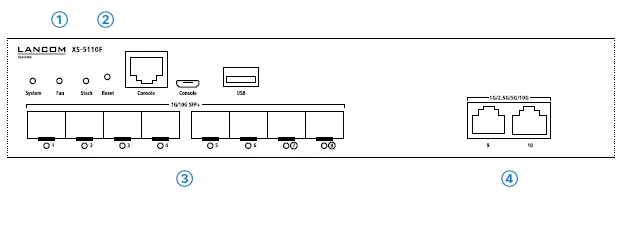

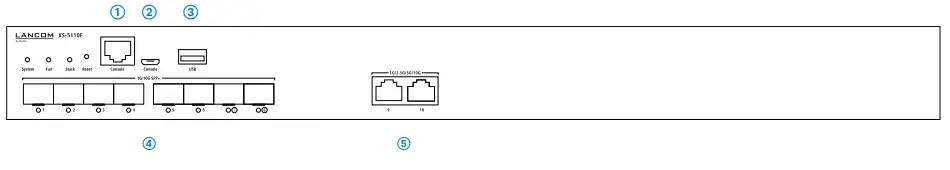

- Configuration interfaces RJ-45 & micro USB (Console)

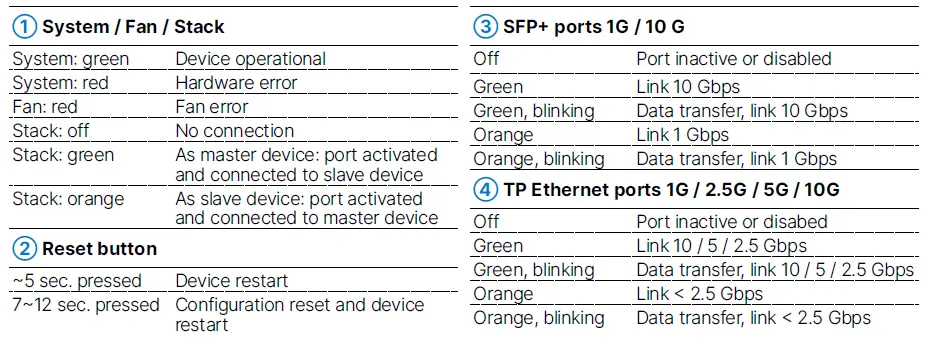

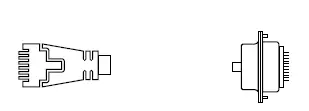

Connect the configuration interface ➀ via the included serial configuration cable to the serial interface of the device you want to use for configuring/ monitoring the switch.
- Alternatively use the interface ➁ with the included micro USB cable.
- USB interface
Connect a USB stick to the USB interface to store general configuration scripts or debug data.
You can also use this interface to upload new firmware.
- SFP+ interfaces 1G/10G
Insert suitable LANCOM SFP+ modules into the SFP+ interfaces 1 to 8. Choose cables which are compatible with the SFP+ modules and connect them as described in the SFP modules mounting instructions
www.lancom-systems.com/SFP-module-MI.
- TP Ethernet interfaces 1G/2.5G/5G/10G (combo ports)1
Connect the interfaces 9 to 10 via high quality CAT.6 Ethernet cables to your PC or a LAN switch

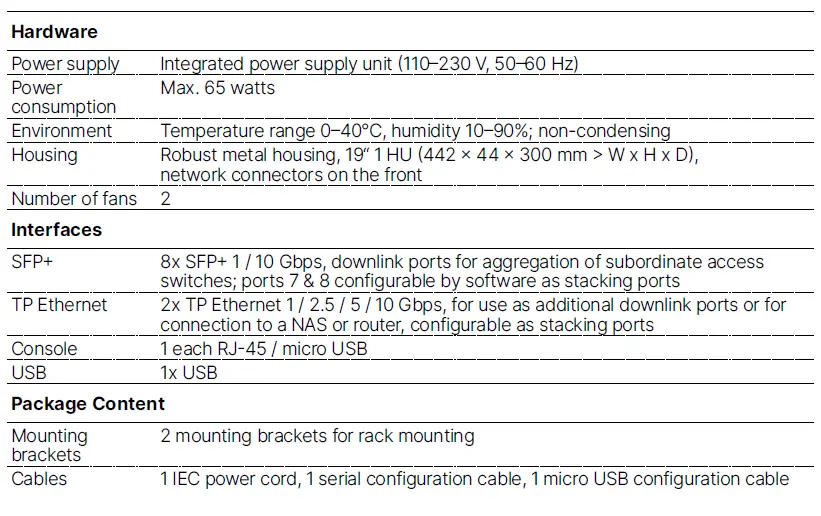

setting up the device
Please observe the following when setting up the device
- The mains plug of the device must be freely accessible.
- Do not rest any objects on top of the device and do not stack multiple devices.
- Keep the ventilation slots on the side of the device clear of obstruction.
- Mount the device into a 19” unit in a server cabinet using the provided screws and mounting brackets.
- Please note that support for third-party accessories (SFP and DAC) is not provided.
Before initial startup, please make sure to take notice of the information regarding the intended use in the enclosed installation guide! Operate the device only with a professionally installed power supply at a nearby power socket that is freely accessible at all times.
