LANCOM GS-3510XP
Hardware Quick Reference
LANCOM GS-3510XP Multi-Gigabit Ethernet Access Switch
- Configuration interface (Console)
Connect the configuration interface via the included serial configuration cable to the serial interface of the device you want to use for configuring/monitoring the switch.
- TP Ethernet interfaces 10M/100M/1G
Use Ethernet cables to connect interfaces 1 to 4 to further network devices.
- TP Ethernet interfaces 100M/1G/2.5G
Use Ethernet cables to connect the interfaces 5 to 8 to further network devices. - SFP+ interfaces 10G
Insert suitable LANCOM SFP modules into the SFP+ interfaces 9 to 10. Choose cables that are compatible with the SFP+ modules and connect them as described in the SFP+ module’s documentation.

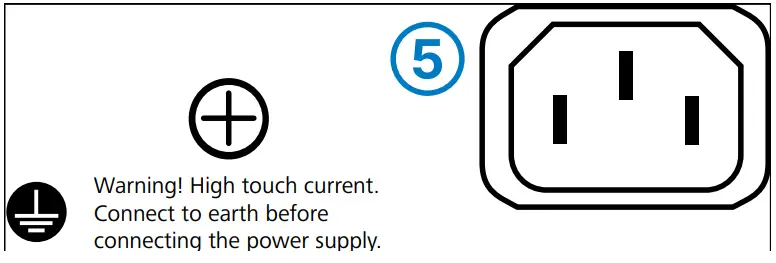

- Power connector (device back side)
Supply power to the device via the power connector. Please use the IEC power cable supplied or a country-specific LANCOM Power Cord.
Before initial startup, please make sure to take notice of the information regarding the intended use in the enclosed installation guide!
Operate the device only with a professionally installed power supply at a nearby power socket that is freely accessible at all times.
Please observe the following when setting up the device
→The power plug of the device must be freely accessible.
→ For devices to be operated on the desktop, please attach the adhesive rubber footpads
→Do not rest any objects on top of the device
→Keep all ventilation slots on the side of the device clear of obstruction
→Mount the device into a 19” unit in a server cabinet using the provided screws and mounting brackets.
→Please note that support service for third-party accessories is excluded.

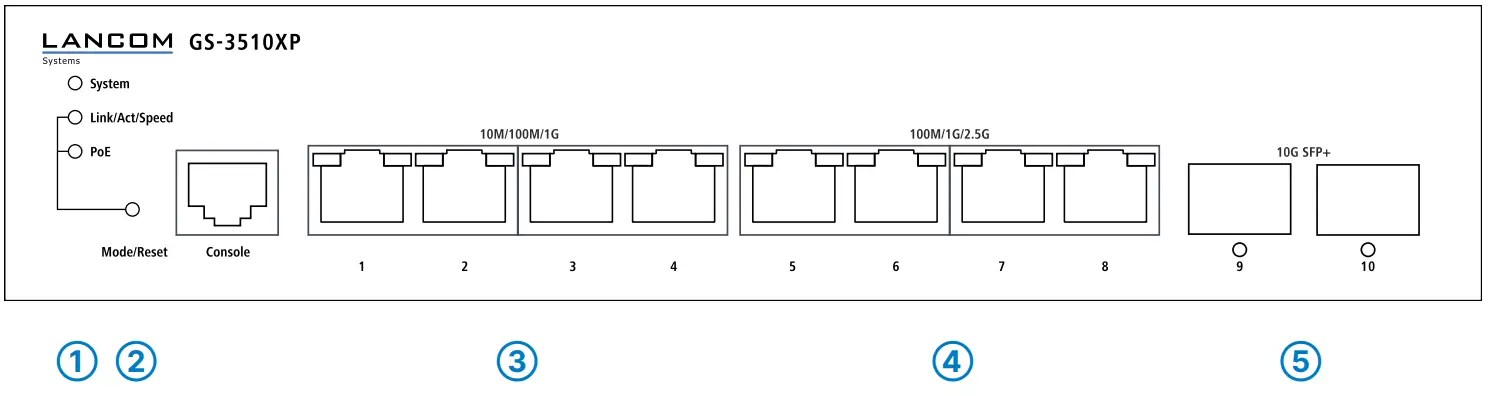

Mounting & connecting
| ➀ System / Link/Act/Speed / PoE | |
| System: off | Device switched off |
| System: green | Device operational |
| System: red | Hardware error |
| Link/Act/Speed: green | Port LEDs show link/activity status or port speed |
| PoE: green | Port LEDs show PoE status |
| ➁ Mode/Reset button | |
| Short press | Port LED mode switch |
| ~5 sec. pressed | Device restart |
| 7~12 sec. pressed | Configuration reset and device restart |
| ➂ TP Ethernet ports 10M/100M/1G | |
| LEDs switched to Link/Act/Speed mode | |
| Off | Port inactive or disabled |
| Green | Link 1 Gbps |
| Green, blinking | Data transfer, link 1 Gbps |
| Orange | Link < 1 Gbps |
| Orange, blinking | Data transfer, link < 1 Gbps |
| LEDs switched to PoE mode | |
| Off | Port inactive or disabled |
| Green | Port enabled, power supply to connected device |
| Orange | Hardware error |
| ➃ TP Ethernet ports 100M/1G/2.5G | |
| LEDs switched to Link/Act/Speed mode | |
| Off | Port inactive or disabled |
| Orange | Link 100 Mbps |
| Orange, blinking | Data transfer, link 100 Mbps |
| Green | Link 1 Gbps / 2.5 Gbps |
| Green, blinking | Data transfer, link 1 Gbps / 2.5 Gbps |
| LEDs switched to PoE mode | |
| Off | Port inactive or disabled |
| Green | Port enabled, power supply to connected device |
| Orange | Hardware error |
| Orange blinked | PoE-Überlastung |
| ➄ SFP+ ports 10G | |
| LEDs switched to Link/Act/Speed mode | |
| Off | Port inactive or disabled |
| Green | Link 1 Gbps |
| Green, blinking | Data transfer, link 1 Gbps |
| Blue | Link 10 Gbps |
| Blue, blinking | Data transfer, link 10 Gbps |
Hardware
| Power supply | Internal power supply unit (110–230 V, 50–60 Hz) |
| Power consumption | Max. 165 W (thereof 130 W PoE budget) |
| Environment | Temperature range 0–40°C; short-term temperature range 0–50°C; humidity 10–90%, non-condensing |
| Housing | Robust metal housing, 220 x 44 x 242 mm (W x H x D), network connectors on the front |
| Number of fans | Fanless |
Interfaces
ETH
4 TP Ethernet ports 10 / 100 / 1000 Mbps
4 TP Ethernet ports 10 / 100 / 2500 Mbps
2 SFP+ ports 10 Gbps
10 concurrent Ethernet ports in total
Package Content
| Documentation | Quick Reference Guide (DE/EN), Installation Guide (DE/EN) |
| Mounting brackets | Two 19” brackets for rack mounting |
| Cable | 1 IEC power cord, 1 serial configuration cable 1.5 m |
Hereby, LANCOM Systems GmbH | Adenauerstrasse 20/B2 | D-52146 Wuerselen, declares that this device is in compliance
with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU, and Regulation (EC) No. 1907/2006. The full text of the EU Declaration of
Conformity is available at the following Internet address: www.lancom-systems.com/doc
DoC - LANCOM Systems GmbH
