RG-ES205GC-P 5-Port Gigabit Smart Cloud Managed
User Guide
Before You Begin
Packing List
| Item | Name | Quanti | Unit | Remar |
| 1 | RG-ES205GC-P host | 1 | Set | |
| 2 | Power Adapter | 1 | Piece | |
| 3 | Power Cord | 1 | Piece | |
| 4 | Quick Start Guide | 1 | Copy | |
| 5 | Warranty Card | 1 | Copy |
You can retrieve product supporting documents at https://www.ruiiienetworks.com.
Click Support > Technical Documents, and download the documents you need.
Installation and Networking

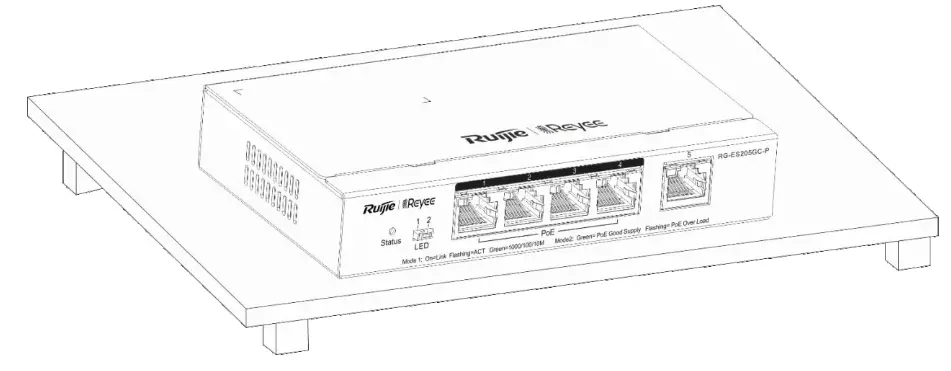

Mount the switch on the table, and reserve enough space for air circulation.
Networking

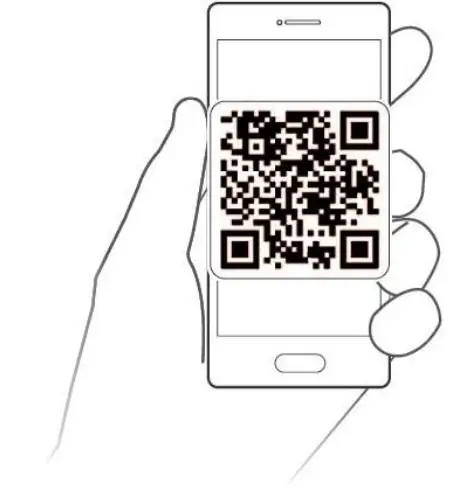

Method 1 (Recommended) Scan the QR-code on the manual or device to download the App. Follow the guide on App to set up and configure the network.
Method 2 Connect the cable to the device port and visit http://10.44.77.200 to perform configuration
Port Information
Note:
- System status LED
- Port Mode LED Switch-Over Button
- 10/100/1000Base-T auto-sensing Ethernet port
- Copper port status LED
- Copper port status LED
- 10/100/1000Base-Tauto-sensing Ethernet port
Specifications
| Specification | RG-ES205GC-P | |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z,IEEE 802.3af, IEEE 802.3at | |
| Port | 4*10/100/1000Mbps PoE/PoE+ ports | |
| 1*10/100/1000 Mbps uplink port | ||
| Switching Capacity | 10 Gbps | |
| Power Consumption | The overall maximum output power of PoE/PoE+ is 54W. The overall maximum output power is 60W. | |
| Dimensions (W x D x H) | 148 mm x 78 mm x 26 mm | |
| Operating Environment | Temperature | 0 °C – 40 °C |
| Humidity | 10% – 90% RH, non-condensing | |
| Storage Environment | Temperature | -40 °C – 70 °C |
| Humidity | 5% – 95% RH, non-condensing | |
CE Warming: Operation of this equipment in a residential environment could cause radio interference.
