Before You Begin
Before You Begin Package Contents
Packing List
| Item | Name | Quantity | Unit | Remark |
| 1 | RG-ES218GC-P host | 1 | Set | |
| 2 | Mounting bracket | 2 | Piece | |
| 3 | Foot pad | 4 | Piece | |
| 4 | M3x6 countersunk flat head screws(common head style) with cross recess | 8 | Piece | |
| 5 | Power cord | 1 | Piece | |
| 6 | Quick Start Guide | 1 | Copy | |
| 7 | Warranty card | 1 | Copy |
You can retrieve product supporting documents at https://www.ruiiienetworks.com. Click Support > Technical Documents, and download the documents you need.
Installation and Networking

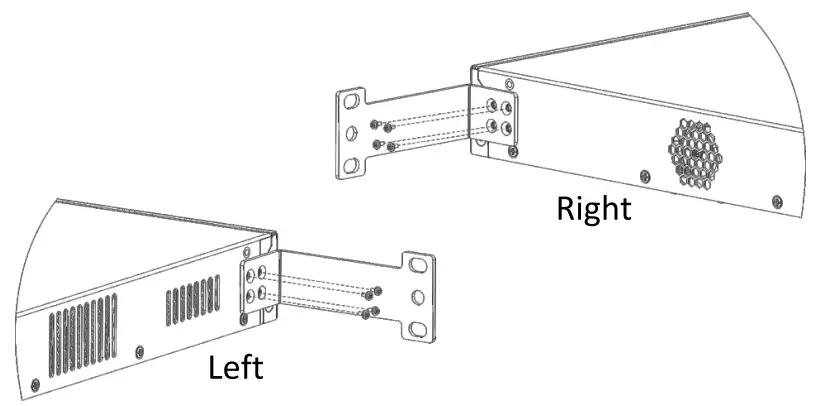

The RG-ES218GC-P switch meets the EIA standard and can be installed in 19-inch rack. The steps of Installation are as follows:
- Take out two L-shape mounting brackets and eight M3x6 FMO countersunk head screws.
- Attach the mounting brackets to both sides of the switch closely and fix it with four M3x6 FMO countersunk head screws.
Networking Method 1
(Recommended) Scan the QR-code on the manual or device to download the App. Follow the guide on App to set up and configure the network.
Method 2 Connect the cable to the device port and visit http://10.44.77.200 to perform configuration.

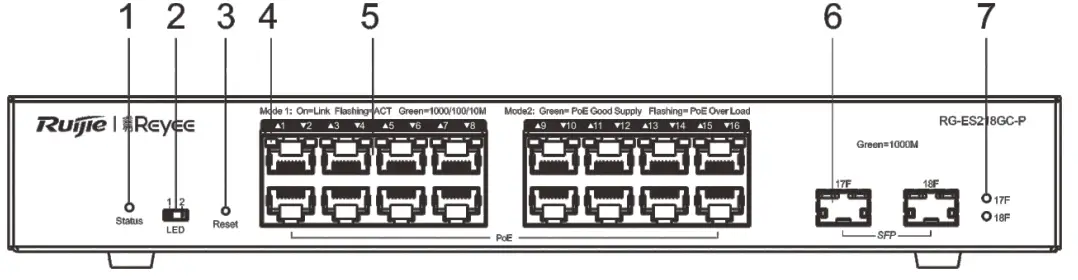

Port Information
Note:
- System status LED
- Port mode LED Switch-Over button
- Reset button
- Copper port status LED
- 10/100/1000Base-T auto-sensing Ethernet port
- SFP port
- SFP port status LED
Specifications
| Specification | RG-ES218GC-P | |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at | |
| Interface | 16*10/100/1000Mbps PoE/PoE+ Ports | |
| 2*100/1000 Mbps SFP Ports | ||
| Switching Capacity | 36 Gbps | |
| Power Consumption | The overall maximum output power of PoE/PoE+ is 240W. The overall maximum output power is 280W. | |
| Dimensions (W x D x H)) | 300mm x 230mm x 43.6mm | |
| Operating Environment | Temperature | 0 °C – 40 °C |
| Humidity | 10% – 90% RH, non-condensing | |
| Storage Environment | Temperature | -40 °C – 70 °C |
| Humidity | 5% – 95% RH, non-condensing | |
CE Warming: Operation of this equipment in a residential environment could cause radio interference.
