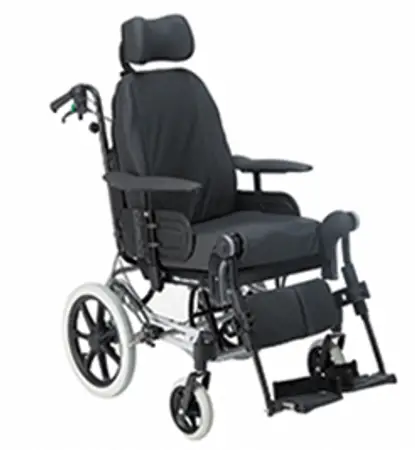

Rea Azalea Transit
Standard Features
- Max User Weight 135KG/21 Stone
- Crash Tested ISO 7176-Part 19
- 16″ Transit Propulsion with Attendant Hub Brake and Solid Black Tyres
- Choice of Seat Widths 390mm, 440mm or 490mm (+50mm or +100mm Width Adj)
- Choice of 2 Seat Heights 400mm or 450mm
- Depth Adjustable Seat 430mm-500mm
- Without Seat Cushion, Supplied with Seat Board
- Flex 3 Backrest Plate, Width and Height Adjustable
- Passed 2 Backrest Cushion with Multi-stretch Black PU coated fabric Cover and Push Handles Connected
- Assistant Operated Gas Piston Seat Tilt +1° – +25°
- Backrest Recline 30° with Tilt Lock
- Angle Adjustable Legrests with Calf Support, Height and Depth Adjustable Footplates
- Height Adjustable Wide Pad Armrests with Autolock
- Pearl Silver Frame Colour, Solid Black Front Castors
- User Manoeuvred Tyre Brakes
- Pelvic Belt, Adjustable on both sides
- Anti Tippers
- Front Transportation Brackets
Standard Base price: £2,273
Manual Retail Prescription Form
JULY 2022 Customer Ref:
Please make your selection with a cross in the box
Customer weight = KG
| BASE PRODUCT* | ||||
| BNE9002 | Rea Azalea Transit | £2,273 | ||
| BNE8000 | SPECIAL REQUEST | POA | ||
| PROPULSION* | ||||
| BNE0020 | Transit 16″ wheels with hub brakes |  | ||
| SEAT WIDTH* | ||||
| BNE0040 | 390 mm/15″ (Small chassis) |  | ||
| BNE0050 | 440 mm/17″ (Medium chassis) | | ||
| BNE0060 | 490 mm/19″ (Large chassis) | (NC 0206) | | |
| SEAT WIDTH EXTENSION* | ||||
| BNE0065 | + 50 mm pre-adjustment on armrests and leg rests | | ||
| BNE0075 | + 100 mm pre-adjustment on armrests and leg rests | (NC 0110) | | |
| BNE0085 | Without seat width extension, set at 0mm adjustment but can be adjusted wider if required | (NC 0206) | | |
| SEAT DEPTH* | ||||
| BNE0100 | 430-500 mm / 17″ – 20″ | | ||
| SEAT HEIGHT* | ||||
| BNE0110 | 400 mm / 16″ Seat Height | (NC 0370, 1015, 1025) | | |
| BNE0120 | 450 mm / 18″ Seat Height | | ||
| SEAT ANGLE* | ||||
| BNE0127 | Negative Seat Angle -1 To +23° | (NC 0360) | | |
| BNE0000 | Standard Seat Angle +1° to +25° | | ||
| SEAT TYPE* | ||||
| BNE0130 | Depth Adjustable | | ||
| SEAT CUSHION* | ||||
| BNE0165 | Cushion Floshape seat upholstery | (NC 1111) | £54 | |
| BNE0167 | Cushion Vicair Adjuster O2 10cm (Black) | (NC 0201, 0202) | £521 | |
| SWO0190 | Cushion Floshape seat upholstery Shorter depth 450mm deep. Only use with seat depth in the shortest position | (NC 0202, 1111) | £54 | |
| BNE0180 | Without a Seat Cushion, a Seat Plate only | (NC 0201, 0202) | | |
| SEAT UPHOLSTERY* | ||||
| BNE0201 | Multi-stretch Black PU coated fabric | | ||
| BNE0202 | Black Spacer TR36 | | ||
| BNE1111 | No upholstery, select with options 0167 Vicair Adjuster O2 or 0180 Without seat cushion | | ||
| BACKREST WIDTH EXTENSION* | ||||
| BNE0205 | + 50 mm Backrest width pre-adjustment, set at +50mm but can be adjusted if required | | ||
| BNE0206 | + 100 mm Backrest width pre-adjustment, set at +100mm but can be adjusted if required | (NC 0220) | | |
| BNE0207 | Without Backrest width pre-adjustment, set at 0mm but can be adjusted if required | | ||
| BACKREST* | ||||
| BNE0210 | Flex 3 Backrest, Fixed Plate (Width Adjustable) | (NC 0240, 0343) | | |
| BNE0220 | Flex 3 Backrest Tension (Width Adjustable) | (NC 0343) | £97 | |
| BNE0230 | Backrest Tubes Without Backrest | (NC 0240, 0250, 0260, 0270, 0305, 0321, 0322, 0335, 0345, 0740, 0800, 0810, 0820, 0830, 0880, 0890, 0895, 0896, 0900, 0920) | | |
| BACKREST CUSHION* | ||||
| BNE0240 | Cover for tension adjustable upholstery | (NC 2222) | | |
| BNE0250 | Cushion, Laguna (Lateral Support) | (NC 2222) | | |
| BNE0260 | Cushion, Mistral 2 (Waist Support) | (NC 0322, 2222) | £137 | |
| BNE0270 | Cushion, Passed 2 (Shoulder Support) | (NC 2222) | | |
| BNE0300 | Without Backrest Cover/ Cushion | (NC 0305, 0321, 0322) | | |
| WIDER BACKREST COVER | ||||
| PUSH HANDLES* | ||||

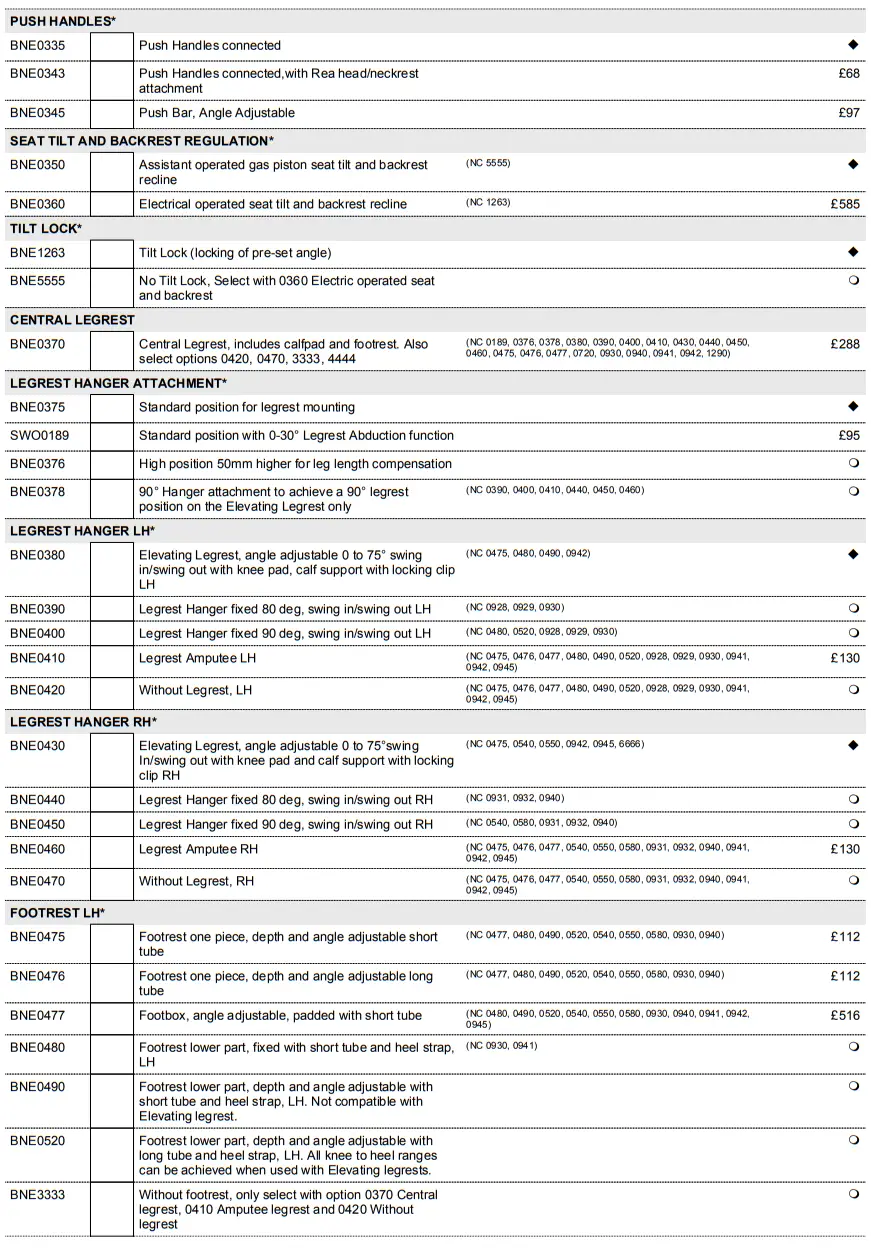

| BNE0335 | Push Handles connected | | ||
| BNE0343 | Push Handles connected, with Rea head/neck rest attachment | £68 | ||
| BNE0345 | Push Bar, Angle Adjustable | £97 | ||
| SEAT TILT AND BACKREST REGULATION* | ||||
| BNE0350 | Assistant operated gas piston seat tilt and backrest recline | (NC 5555) | | |
| BNE0360 | Electrical operated seat tilt and backrest recline | (NC 1263) | £585 | |
| TILT LOCK* | ||||
| BNE1263 | Tilt Lock (locking of pre-set angle) | | ||
| BNE5555 | No Tilt Lock, Select with 0360 Electric operated seat and backrest | | ||
| CENTRAL LEGREST | ||||
| FOOTREST RH* | ||||
| BNE0540 | Footrest lower part, fixed with short tube and heel strap, RH | (NC 0940, 0941) | | |
| BNE0550 | Footrest lower part, depth and angle adjustable with short tube and heel strap, RH. Not compatible with Elevating legrest. | | ||
| BNE0580 | Footrest lower part, depth and angle adjustable with long tube and heel strap, RH. All knee to heel ranges can be achieved when used with Elevating legrests. | | ||
| BNE4444 | Without footrest, only select with options 0370 Central legrest, 0460 Amputee legrest, 0470 Without legrest, 0475 and 0476 One piece footrests or 0477 Footbox | | ||
| ARMREST LH* | ||||
| BNE0600 | Armrest Ducktail Pad LH, height adjustable with auto lock | (NC 1232) | | |
| BNE0605 | Armrest Wide Pad LH, height adjustable with auto lock. Compatible with 16″ wheels only | (NC 1232) | | |
| BNE0607 | Armrests Reinforced Wide Pad, LH, height adjustable with auto lock | (NC 1230, 1231, 1232, 1250, 1260) | £85 | |
| BNE0610 | Armrest Padded LH, height adjustable with auto lock | (NC 1230, 1231, 1232, 1250, 1260) | £61 | |
| BNE0615 | Armrest Hemiplegic LH, height adjustable with auto lock | (NC 0695, 1230, 1231, 1232, 1250, 1260) | £170 | |
| BNE0620 | Without Armrest LH Select when choosing BNE1232 Half Tray LH, Narrow Armrest is included | (NC 0695, 1230, 1231, 1250, 1260) | | |
| ARMREST RH* | ||||
| BNE0630 | Armrest Ducktail Pad RH, height adjustable with auto lock | (NC 1233) | | |
| BNE0635 | Armrest Wide Pad RH, height adjustable with auto lock. Compatible with 16″ wheels only | (NC 1233) | | |
| BNE0637 | Armrest Reinforced Wide Pad, RH, height adjustable with auto lock | (NC 1230, 1231, 1233, 1250, 1260) | £85 | |
| BNE0640 | Armrest Padded RH, height adjustable with auto lock. | (NC 1230, 1231, 1233, 1250, 1260) | £61 | |
| BNE0645 | Armrest Hemiplegic, RH, height adjustable with auto lock | (NC 0695, 1230, 1231, 1233, 1240, 1245, 1250, 1260) | £170 | |
| BNE0650 | Without Armrest RH Select when choosing BNE1233 Half Tray RH, Narrow Armrest is included | (NC 0695, 1230, 1231, 1240, 1245, 1250, 1260) | | |
| ARMREST OPTIONS. Side support cover 0680, must be selected if 0690 Foam for side support is required | ||||
| BNE0680 | Side Support Cover, removable with tools (Wipeable cover for the side guard) | (NC 0695) | £48 | |
| BNE0690 | Foam for side support cover (Internal cushioned pad, which is only possible in combination with 0680) | (NC 0695) | | |
| BNE0695 | Pad for safeguard, removable with hook and loop fastening | £48 | ||
| SEAT OPTIONS | ||||
| BNE0710 | Incontinence Cover | £38 | ||
| BNE0720 | Pommel Abduction Cushion | (NC 0722) | £112 | |
| BNE0722 | 2 cm Increased seat height plate | £61 | ||
| BNE0725 | Tilt Scale for seat tilt | £42 | ||
| BACKREST OPTIONS | ||||
| BNE0730 | Headrest, Sideway Adjustable | (NC 0750, 0770) | | |
| BNE0750 | Headrest with cheek support, sideways adjustable | (NC 0740, 0770) | £102 | |
| BNE0740 | Cover for headrest | £29 | ||
| BNE0770 | Neckrest | | ||
| BNE0782 | Alternative headrest/neck rest mounting bracket | £22 | ||
| BNE0790 | Handles Clinic Kit for Head/Neckrest (Levers which replace screws for easy adjustment) | | ||
| BNE0900 | Trunk Support Attachment to mount laterals later. If trunk supports are chosen, the attachment bracket is already included | | ||
| BNE0915 | Tilt Scale for backrest recline | £42 | ||
| BNE0920 | Wedges (One Pair) | £10 | ||
| TRUNK SUPPORT LH | ||||
| BNE0800 | Trunk Support Multi Adjustable with standard arm LH | (NC 0900) | | |
| BNE0820 | Trunk Support Multi Adjustable with extended height arm LH | (NC 0900) | | |
| BNE0880 | Trunk Support Swingaway LH | (NC 0900) | £100 | |
| BNE0895 | Trunk Support Multi Adjustable Swingaway LH | (NC 0900) | £107 | |
| TRUNK SUPPORT RH | ||||
| BNE0810 | Trunk Support Multi Adjustable with standard arm RH | (NC 0900) | | |
| BNE0830 | Trunk Support Multi Adjustable with extended height arm RH | (NC 0900) | | |
| BNE0890 | Trunk Support Swingaway RH | (NC 0900) | £100 | |
| BNE0896 | Trunk Support Multi Adjustable Swingaway RH | (NC 0900) | £107 | |
| ELEVATING LEGREST OPTIONS | ||||
| BNE0928 | Calf pad, for LH elevating legrest | | ||
| BNE0929 | Knee pad for LH elevating legrest | | ||
| BNE0931 | Calf pad, for RH elevating legrest | | ||
| BNE0932 | Knee pad for RH elevating legrest | | ||
| BNE6666 | Without Elevating Legrest Options (Select with Fixed leg rests, Amputee leg rests and Without legrests only) | | ||
| LEGREST OPTIONS | ||||
| BNE0930 | Footplate Extender LH | (NC 0941) | £32 | |
| BNE0940 | Footplate Extender RH | (NC 0941) | £32 | |
| BNE0941 | Cover Footplate, Black Plush Fabric | £51 | ||
| BNE0942 | Calf Strap Padded | £69 | ||
| BNE0945 | Calf Strap (for One piece footrest) | | ||
| CHASSIS COLOUR* | ||||
| BNE0944 | Silver Pearl | | ||
| BNE0946 | Azurite (Dark Blue) | | ||
| BNE0947 | Sand (Beige) | | ||
| BNE0948 | Electric Green | | ||
| BNE0949 | Happy Red | | ||
| CHASSIS SAFETY | ||||
| BNE0110 | 400 mm / 16″ Seat Height |
| BNE0201 | Multi-stretch Black PU coated fabric |
| BNE0202 | Black Spacer TR36 |
| BNE1111 | No upholstery, select with options 0167 Vicair Adjuster O2 or 0180 Without seat cushion |
| BNE0206 | + 100 mm Backrest width pre-adjustment, set at +100mm but can be adjusted if required |
| BNE0220 | Flex 3 Backrest Tension (Width Adjustable) |
| BNE0240 | Cover for tension adjustable upholstery |
| BNE0250 | Cushion, Laguna (Lateral Support) |
| BNE0260 | Cushion, Mistral 2 (Waist Support) |
| BNE0270 | Cushion, Passad 2 (Shoulder Support) |
| BNE0305 | Extra large backrest cover or cushion. One size wider backrest cushion or tension cover fitted if selected |
| BNE0321 | Multi-stretch Black PU coated fabric |
| BNE0322 | Black Spacer TR36 |
| BNE2222 | No upholstery, select with Matrx, and Without backrest options |
| BNE0335 | Push Handles connected |
| BNE0343 | Push Handles connected,with Rea head/neckrest attachment |
| BNE0345 | Push Bar, Angle Adjustable |
| BNE0360 | Electrical operated seat tilt and backrest recline |
| BNE1263 | Tilt Lock (locking of pre-set angle) |
| BNE5555 | No Tilt Lock, Select with 0360 Electric operated seat and backrest |
| BNE0370 | Central Legrest, includes calfpad and footrest. Also select options 0420, 0470, 3333, 4444 |
| SWO0189 | Standard position with 0-30° Legrest Abduction function |
| BNE0376 | High position 50mm higher for leg length compensation |
| BNE0378 | 90° Hanger attachment to achieve a 90° legrest position on the Elevating Legrest only |
| BNE0380 | Elevating Legrest, angle adjustable 0 to 75° swing in/swing out with knee pad, calf support with locking clip LH |
| BNE0390 | Legrest Hanger fixed 80 deg, swing in/swing out LH |
| BNE0400 | Legrest Hanger fixed 90 deg, swing in/swing out LH |
| BNE0410 | Legrest Amputee LH |
| BNE0430 | Elevating Legrest, angle adjustable 0 to 75°swing In/swing out with knee pad and calf support with locking clip RH |
| BNE0440 | Legrest Hanger fixed 80 deg, swing in/swing out RH |
| BNE0450 | Legrest Hanger fixed 90 deg, swing in/swing out RH |
| BNE0460 | Legrest Amputee RH |
| BNE0475 | Footrest one piece, depth and angle adjustable short tube |
| BNE0476 | Footrest one piece, depth and angle adjustable long tube |
| BNE0477 | Footbox, angle adjustable, padded with short tube |
| BNE0480 | Footrest lower part, fixed with short tube and heel strap, LH |
| BNE0490 | Footrest lower part, depth and angle adjustable with short tube and heel strap, LH. Not compatible with Elevating leg rest. |
| BNE0520 | Footrest lower part, depth and angle adjustable with long tube and heel strap, LH. All knee to heel ranges can be achieved when used with Elevating leg rests. |
| BNE0540 | Footrest lower part, fixed with short tube and heel strap, RH |
| BNE0550 | Footrest lower part, depth and angle adjustable with short tube and heel strap, RH. Not compatible with Elevating leg rest. |
| BNE0580 | Footrest lower part, depth and angle adjustable with long tube and heel strap, RH. All knee to heel ranges can be achieved when used with Elevating leg rests. |
| BNE0695 | Pad for side guard, removable with hook and loop fastening |
| BNE0720 | Pommel Abduction Cushion |
| BNE0722 | 2 cm Increased seat height plate |
| BNE0750 | Headrest with cheek support, sideways adjustable |
| BNE0740 | Cover for headrest |
| BNE0770 | Neckrest |
| BNE0900 | Trunk Support Attachment to mount laterals later. If trunk supports are chosen, the attachment bracket is already included |
| BNE0920 | Wedges (One Pair) |
| BNE0800 | Trunk Support Multi Adjustable with standard arm LH |
| BNE0820 | Trunk Support Multi Adjustable with extended height arm LH |
| BNE0880 | Trunk Support Swingaway LH |
| BNE0895 | Trunk Support Multi Adjustable Swingaway LH |
| BNE0810 | Trunk Support Multi Adjustable with standard arm RH |
| BNE0830 | Trunk Support Multi Adjustable with extended height arm RH |
| BNE0890 | Trunk Support Swingaway RH |
| BNE0896 | Trunk Support Multi Adjustable Swingaway RH |
| BNE0928 | Calf pad, for LH elevating legrest |
| BNE0929 | Knee pad for LH elevating legrest |
| BNE0931 | Calf pad, for RH elevating legrest |
| BNE0932 | Knee pad for RH elevating legrest |
| BNE6666 | Without Elevating Legrest Options (Select with Fixed leg rests, Amputee’s leg rests and Without legrests only) |
| BNE0930 | Footplate Extender LH |
| BNE0940 | Footplate Extender RH |
| BNE0941 | Cover Footplate, Black Plush Fabric |
| BNE0942 | Calf Strap Padded |
| BNE0945 | Calf Strap (for One piece footrest) |
| BNE1015 | 200×32 mm (8″ x 1 1/4″) Black Solid Tyre |
| BNE1025 | 200×45 mm (8″ X 1 3/4″) Black Solid tyre |
| BNE1230 | Fixed Table Tray without elbow pads includes a mounting kit |
| BNE1231 | Fixed Table Tray with elbow Pads includes a mounting kit |
| BNE1232 | Half table tray, clear plastic, flip up, depth adjustable, left side (armrest with straight narrow pad included) |
| BNE1233 | Half table tray, clear, plastic, flip up, depth adjustable, right side (armrest with straight narrow pad included) |
| BNE1240 | Swing away table without elbow pads |
| BNE1245 | Swing away table with elbow pads |
| BNE1235 | Table tray padded cushion (To be ordered in combination with the fixed & swing away table tray) |
| BNE1237 | Half table tray padded cushion |
| BNE1250 | Locking device for table tray |
| BNE1260 | Mounting kit for a table (if ordered separately) |
| BNE1290 | Handles Clinic Kit for backrest, armrest, leg rest and seat frame (Levers which replace screws for easy adjustment) |
Customer Ref:………………
Order Number:………………………
Rea Azalea Transit ………..
Subject to Invacares standard terms and conditions. Invacare reserve the right to alter product specification without prior notice
Special Instructions
Please supply the following information:
Name:……………………..
Email…………………….
Phone:………………………..
Fax:……………………
Description of special request (please include relevant option code or part number):
For a more complex customer requirement please refer to our Invacare Unique special order form. email [email protected] or Fax: 01656 776220
Customer Ref:
Order Number:
Subject to Invacares standard terms and conditions. Invacare reserve the right to alter product specification without prior notice
| Invacare GB
