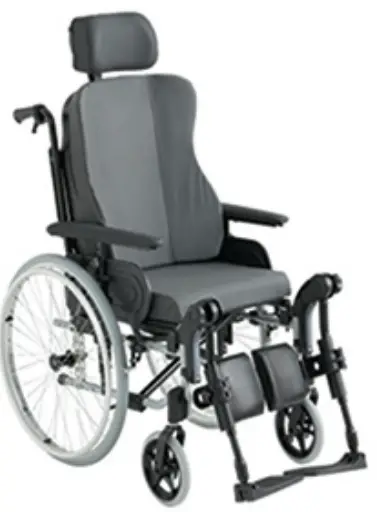

Action 3NG Comfort

Contents hide

1 Standard Features

2 BASE PRODUCT*

3 LEGREST HANGER RH*

4 OTHER SEATING OPTIONS

5 CHASSIS OPTION

6 Non-Conforming Options:

7 Documents / Resources

7.1 References

8 Related Posts

Standard Features

Max user weight 125kg (19.7 stone)
Crash tested IS0 7176-Part 19
Self Propulsion or Attendant Propulsion
Choice of 4 seat widths (16″ – 20″) 405mm to 505mm
Choice of 2 seat depths (16″ or 18″) 400mm or 450mm
Choice of 3 seat height (16″ – 18″) 410mm to 460mm
Black nylon seat upholstery
Reclining (Ratchet) backrest 0° – 30° with Laguna shell 20° (510mm)
Comfort Black multi stretch PU coated fabric Passed 2 backrests
Elevating leg rest hangers 0° to 75° including calf pad
Flip-up, angle, and depth adjustable footplates
Removable, height and depth adjustable comfort armrests
Black multi-stretch PU coated fabric trunk supports and headrest
Choice of 8 colors (with 7 special color options)
Push or Pull to lock brakes (configuration dependant)
Comfort transportation kit and buckle belt (adjustable on both sides)
Adjustable heel straps
User tool kit

Standard Base price: £1,044

Please make your selection with a cross in the box Ο Free of charge ♦ standard feature POA special request

Customer weight = KG

Code ………Description

BASE PRODUCT*

CEG0005	ACTION 3NG COMFORT	Ο
CEGSPEC	SPECIAL	POA

PROPULSION*

CEG0100	SELF PROPULSION	(NC 1062, 1074)	£1,044
CEG0110	TRANSIT PROPULSION	(NC 0290, 0300, 1068, 1150, 1180, 1260, 1275, 1390)	£1,044

SEAT WIDTH*

CEG0190	16″ / 405 MM SEAT WIDTH	Ο
CEG0200	17″ / 430 MM SEAT WIDTH	♦
CEG0210	18″ / 455 MM SEAT WIDTH	Ο
CEG0230	20″ / 505 MM SEAT WIDTH	Ο

SEAT DEPTH*

CEG0240	16″ / 400 MM SEAT DEPTH	Ο
CEG0250	18″ / 450 MM SEAT DEPTH	♦

SEAT HEIGHT*

CEG0280	18″ / 460 MM SEAT HEIGHT		♦
CEG0290	17″ / 435 MM SEAT HEIGHT	(NC 1010, 1062)	Ο
CEG0300	16″ / 410 MM SEAT HEIGHT	(NC 1010, 1062, 1370, 1440, 1441)	Ο

SEAT UPHOLSTERY*

CEG0340	NYLON WITH HOOK AND LOOP STRIPS	♦
CEG0345	TENSION ADJUSTABLE SEAT UPHOLSTERY & DEPTH ADJUSTABLE -50MM	Ο
CEG0372	CUSHION COMFORT MISTRAL 2 LAYER (INCLUDING SEAT UPHOLSTERY 3 VELCROS)	Ο

BACKREST*

CEG0441

RECLINING (RATCHET) 0/30° LAGUNA SHELL 20″

♦

BACKREST UPHOLSTERY*

CEG0490	COMFORT BACKREST LAGUNA BLACK MULTI STRETCH PU COATED 20″ / 510 MM HEIGHT	Ο
CEG0491	COMFORT BACKREST PASSED 2 BLACK MULTI STRETCH PU COATED 20″ / 510 MM HEIGHT	♦

LEGREST HANGER RH*

CEG0520	ELEVATING LEGREST RH SWING IN/SWING OUT	(NC 66666)	♦
CEG0545	AMPUTEE LEGREST RH	(NC 0610, 1111)	£124

LEGREST HANGER LH*

CEG0570	ELEVATING LEGREST LH SWING IN/SWING OUT	(NC 55555)	♦
CEG0595	AMPUTEE LEGREST LH	(NC 0630, 2222)	£124

FOOTREST RH*

CEG0610	FLIP UP DEPTH AND ANGLE ADJ RH		♦
SWO1111	FLIP-UP DEPTH AND ANGLE ADJUSTABLE RH FOOTPLATE – NB: COMPATIBLE WITH ANKLE HUGGERS (FOR ELEVATING LEGRESTS ONLY)	(NC 0545)	♦
CEE66666	NO FOOTREST		Ο

FOOTREST LH*

CEG0630	FLIP UP DEPTH AND ANGLE ADJ LH		♦
SWO2222	FLIP UP DEPTH AND ANGLE ADJUSTABLE RH FOOTPLATE – NB: COMPATIBLE WITH ANKLE HUGGERS (FOR ELEVATING LEGRESTS ONLY)	(NC 0595)	♦
CEE55555	NO FOOTREST		Ο

ARMREST RH*

CEG0691	REMOVABLE RH (N°4) COMFORT ARM		♦
CEG0732	REMOVABLE RH (N°4) HEMI ARM	(NC 1481)	£55

ARMREST LH*

CEG0791	REMOVABLE LH (N°4) COMFORT ARM		♦
CEG0832	REMOVABLE LH N°4 HEMI ARM	(NC 1481)	£55

OTHER SEATING OPTIONS

CEG0881	TRUNK SUPPORT COMFORT BLACK MULTI STRETCH PU COATED FABRIC (PAIR) ONLY FOR LAGUNA SHELL	♦
CEG0906	HEADREST BLACK MULTI STRETCH PU COATED FABRIC	♦
CEG0937	BODYPOINT ANKLE HUGGERS (PAIR) SIZE M UNMOUNTED	£109
CEG0938	BODYPOINT ANKLE HUGGERS (PAIR) SIZE L UNMOUNTED	£109

COLOUR*

CEG0961	SLATE GREY (RAL7024 FINE TEXTURE)	Ο
CEG0964	PEARL WHITE	Ο
CEG0965	ELECTRIC GREEN	Ο
CEG0966	MATT BLACK	Ο
CEG0967	BLUE POP	Ο
CEG0968	HYPNOTIC PURPLE	Ο
CEG0969	RED MATT	Ο
CEG0972	WATER BLUE	Ο
CEG0980	ANTHRACITE BLACK	Ο
CEG0991	SPECIAL COLOUR ON DEMAND ONLY	£161
SWO3333	DARK RED – SPECIAL	£161
SWO4444	PEARL GREY – SPECIAL	£161
SWO5555	INTENSE YELLOW	£161
SWO6666	VIBRANT ORANGE	£161
SWO7777	POLAR BLUE	£161
SWO8888	CANDY PINK	£161

CASTOR HOUSING*

CEG0995	STANDARD	♦
CEG0996	LIGHTWEIGHT	£28

FRONT CASTORS*

CEG1010	8″ X 1.1/4″ BLACK SOLID TYRE	♦
CEG1050	6″ X 1.1/4″ BLACK SOLID TYRE	Ο

REAR WHEEL SIZE*

CEG1062	12″	(NC 1071, 1072, 1084, 1088, 1140, 1150, 1180, 1260, 1390)	Ο
CEG1068	24″		♦

REAR WHEELS*

CEG1071	STANDARD (BASIC) (BLACK HUB, COLORLESS RIM AND ZINC PLATTED SPOKES )	(NC 1280)	♦
CEG1072	SELF-PROPEL REINFORCED REAR WHEEL	(NC 1280)	£22
CEG1073	DRUM BRAKE SELF-PROPEL 22 AND 24″ or TRANSIT 12″	(NC 1201, 1270, 1275)	Ο
CEG1074	TRANSIT BLACK	(NC 1088, 1260, 1280)	Ο

TYRES*

CEG1082	SOLID BLACK	♦
CEG1084	PNEUMATIC PROFILE BLACK	£20
CEG1088	PNEUMATIC LOW-PROFILE BLACK	Ο

HANDRAIL

CEG1140	ALUMINIUM PRE-ANODIZED HANDRAIL	♦
CEG1150	HANDRIM COATED IN BLACK ANTI-SLIP PLASTIC	£31

REAR WHEEL AXLE*

CEG1170	FIXED AXLE	Ο
CEG1180	Q/R AXLE	♦

REAR WHEEL POSITION*

CEG1200	PASSIVE REAR WHEELS POSITION		♦
CEG1201	DUAL AMPUTEE REAR WHEEL POSITION	(NC 1275, 1280)	£69

PUMP

CEG1230

PUMP AND SUPPORT

£6

CHASSIS OPTION

CEG1241	FRONT WHEELS EXTENSION	£21
CEG1260	SPOKE GUARDS PAIR 24″ BLK	£73

BRAKES*

CEG1270	PUSH TO LOCK	♦
CEG1275	PULL TO LOCK BRAKES	Ο
CEG1280	ATTENDANT HUB BRAKES	£220

COMFORT TRANSPORTATION KIT*

CEG1346

COMFORT TRANSPORTATION KIT

♦

SAFETY OPTIONS

CEG1361	BODYPOINT 2-PT POSTURE BELT M	(NC 1362)	£76
CEG1362	BODYPOINT 2-PT POSTURE BELT L		£76
CEG1370	REAR ANTI-TIPPERS PAIR	(NC 1375, 1440, 1441)	Ο
CEG1375	REAR ANTI-TIPPERS PAIR WITH TIPPING AID	(NC 1440, 1441)	£67
CEG1390	BRAKE EXTENSION PAIR		£14

OTHER OPTIONS

CEG1430	CANE HOLDER	£22
CEG1440	TIPPING AID RH	£14
CEG1441	TIPPING AID LH	£14
CEG1481	COMFORT ACRYLIC TRAY	£97
SWO10001	ABDUCTED LEG RESTS (PR) 0° TO 30° – INTERNAL REFERENCE DE259618	£102

Non-Conforming Options:

CEG0290	17″ / 435 MM SEAT HEIGHT
CEG0300	16″ / 410 MM SEAT HEIGHT
CEG0545	AMPUTEE LEGREST RH
CEG0595	AMPUTEE LEGREST LH
CEG0610	FLIP UP DEPTH AND ANGLE ADJ RH
SWO1111	FLIP-UP DEPTH AND ANGLE ADJUSTABLE RH FOOTPLATE – NB: COMPATIBLE WITH ANKLE HUGGERS (FOR ELEVATING LEGRESTS ONLY)
CEE66666	NO FOOTREST
CEG0630	FLIP UP DEPTH AND ANGLE ADJ LH
SWO2222	FLIP UP DEPTH AND ANGLE ADJUSTABLE RH FOOTPLATE – NB: COMPATIBLE WITH ANKLE HUGGERS (FOR ELEVATING LEG RESTS ONLY)
CEE55555	NO FOOTREST
CEG1010	8″ X 1.1/4″ BLACK SOLID TYRE
CEG1062	12″
CEG1068	24″
CEG1071	STANDARD (BASIC) (BLACK HUB, COLORLESS RIM AND ZINC PLATTED SPOKES )
CEG1072	SELF-PROPEL REINFORCED REAR WHEEL
CEG1074	TRANSIT BLACK
CEG1084	PNEUMATIC PROFILE BLACK
CEG1088	PNEUMATIC LOW-PROFILE BLACK
CEG1140	ALUMINIUM PRE-ANODIZED HANDRAIL
CEG1150	HANDRIM COATED IN BLACK ANTI-SLIP PLASTIC
CEG1180	Q/R AXLE
CEG1201	DUAL AMPUTEE REAR WHEEL POSITION
CEG1260	SPOKE GUARDS PAIR 24″ BLK
CEG1270	PUSH TO LOCK
CEG1275	PULL TO LOCK BRAKES
CEG1280	ATTENDANT HUB BRAKES
CEG1362	BODYPOINT 2-PT POSTURE BELT L
CEG1370	REAR ANTI-TIPPERS PAIR
CEG1375	REAR ANTI-TIPPERS PAIR WITH TIPPING AID
CEG1390	BRAKE EXTENSION PAIR
CEG1440	TIPPING AID RH
CEG1441	TIPPING AID LH
CEG1481	COMFORT ACRYLIC TRAY

Special Instructions
Please supply the following information:

Name:
Email:
Phone:
Fax:
Description of special request (please include relevant option code or part number):
For a more complex customer requirement please refer to our Invacare Unique special order form. email [email protected] or Fax: 01656 776220

Tel: 01656 776222 Fax: 01656 776220
Email: [email protected]
Online Spares available at: www.invacare.co.uk
