INVACARE DHA0031 Wheelchair
Kuschall Champion 2.0 Standard Features
- Max User Weight 120kg 19 Stone
- Lightweight Folding Fully Hydroformed Aluminium Wheelchair
- Multiple adjustments, Front, Rear Seat Heights and Centre of Gravity
- Aluminium Front Frame with 75° or 90° Front Frame Angles
- 24 Self Propel Q/R Wheels with Grey Aluminum Handrims and Pneumatic Tyres
- Choice of 7 Seat Widths 360mm to 480mm (14 – 19)
- Choice of 8 Seat Depths 340mm to 480mm (13- 19)
- Choice of 5 Standard Frame Colours
- Range of Front Seat Heights 450mm to 540mm (17 -21)
- Range of Rear Seat Heights 390mm to 480mm (15 -19)
- Folding Backrest, Angle Adjustable and Soft Lock Feature.
- Black Nylon Light Upholstery.
- Angle and Height Adjustable Rigid Footrest, with Calf Strap.
- Without Push Handles, Flip up Carbon Clothes guards.
- Unfolding Help Cord. Black Comfort Front Castor.
- Standard Brake Lever Bent.
- Tool Kit.
Please make your selection with a cross in the box
- Free of charge
- Standard feature
- POA special request
- Customer weight =KG
| BASE PRODUCT | ||||
| DHA0031 | Küschall Champion 2.0 | 0 | ||
| DHA0000 | MYKÜSCHALL Special Request – Please include quotation reference in special description at the end of the form where applicable | 0 | ||
| FRAME | ||||
| DHA1150 | Frame Angle 75° Aluminium | (NC 1350) | £2,549 | |
| DHA1160 | Frame Angle 90° Aluminium | (NC 1350) | £2,549 | |
| DHA1170 | Frame Angle 75° Aluminium Tapered Front Frame | (NC 1320, 1325, 7010) | £2,549 | |
| DHA1180 | Frame Angle 90° Aluminium Tapered Front Frame | (NC 1320, 1325, 7010) | £2,549 | |
| SEAT WIDTH | ||||
| DHA1320 | 360 mm | NC 7000 | 0 | |
| DHA1325 | 380 mm | NC 7000 | 0 | |
| DHA1330 | 400 mm | 0 | ||
| DHA1335 | 420 mm | 0 | ||
| DHA1340 | 440 mm | 0 | ||
| DHA1345 | 460 mm | 0 | ||
| DHA1350 | 480 mm | 0 | ||
| SEAT DEPTH | ||||
| DHA1405 | 340 mm | (NC 2720, 2730, 2750) | 0 | |
| DHA1415 | 360 mm | (NC 2720, 2730) | 0 | |
| DHA1425 | 380 mm | (NC 2720, 2730) | 0 | |
| DHA1435 | 400 mm | 0 | ||
| DHA1445 | 420 mm | 0 | ||
| DHA1460 | 440 mm | 0 | ||
| DHA1470 | 460 mm | 0 | ||
| DHA1480 | 480 mm | 0 | ||
| BACK HEIGHT | ||||
| DHA1600 | Back Height for 3rd party backrest. Final height depends on the height of the positioning backrest, select if Matrx/Fixed backrest is required. | (NC 2200, 2220, 2230) | 0 | |
| DHA1615 | 300 mm | NC 2200, 2240, 2400 | 0 | |
| DHA1620 | 315 mm | NC 2200, 2240, 2400 | 0 | |
| DHA1625 | 330 mm | NC 2240 | 0 | |
| DHA1630 | 345 mm | NC 2240 | 0 | |
| DHA1635 | 360 mm | NC 2240 | 0 | |
| DHA1640 | 375 mm | NC 2240 | 0 | |
| DHA1645 | 390 mm | NC 2240 | 0 | |
| DHA1650 | 405 mm | NC 2240 | 0 | |
| DHA1655 | 420 mm | NC 2240 | 0 | |
| DHA1660 | 435 mm | NC 2240 | 0 | |
| DHA1665 | 450 mm | NC 2240 | 0 | |
| DHA1670 | 465 mm | NC 2240 | 0 | |
| FRONT SEAT HEIGHT | ||||
| DHA1740 | 450 mm | NC 1946, 1948, 1950, 1952, 1954, 1956, 1958, 1960 | 0 | |
| DHA1745 | 460 mm | NC 1948, 1950, 1952, 1954, 1956, 1958, 1960 | 0 | |
| DHA1750 | 470 mm | NC 1950, 1952, 1954, 1956, 1958, 1960 | 0 | |
| DHA1755 | 480 mm | NC 1952, 1954, 1956, 1958, 1960 | 0 | |
| DHA1760 | 490 mm | NC 1954, 1956, 1958, 1960 | 0 | |
| DHA1765 | 500 mm | NC 1956, 1958, 1960 | 0 | |
| DHA1770 | 510 mm | NC 1958, 1960 | 0 | |
| DHA1775 | 520 mm | NC 1960 | 0 | |
| DHA1780 | 530 mm | NC 5000 | 0 | |
| DHA1785 | 540 mm | NC 5000, 5050, 5100, 5150, 5200, 5250 | 0 | |
| REAR SEAT HEIGHT. On 75° frame, Rear Seat Height can be 0mm – 70mm lower then front seat height and 90° can be 30mm to 100mm lower | ||||
| DHA1815 | 390 mm | NC 6420, 6430 | 0 | |
| DHA1820 | 400 mm | NC 6420, 6430 | 0 | |
| DHA1825 | 410 mm | NC 6430 | 0 | |
| DHA1830 | 420 mm | NC 6430 | 0 | |
| DHA1835 | 430 mm | 0 | ||
| DHA1840 | 440 mm | 0 | ||
| DHA1845 | 450 mm | 0 | ||
| DHA1850 | 460 mm | 0 | ||
| DHA1855 | 470 mm | NC 6410 | 0 | |
| DHA1860 | 480 mm | NC 6410 | 0 | |
| LOWER LEG LENGTH Cushion height must be deducted | ||||
| DHA1924 | 320 mm | 0 | ||
| DHA1926 | 330 mm | 0 | ||
| DHA1928 | 340 mm | 0 | ||
| DHA1930 | 350 mm | 0 | ||
| DHA1932 | 360 mm | 0 | ||
| DHA1934 | 370 mm | 0 | ||
| DHA1936 | 380 mm | 0 | ||
| DHA1938 | 390 mm | 0 | ||
| DHA1940 | 400 mm | 0 | ||
| DHA1942 | 410 mm | 0 | ||
| DHA1944 | 420 mm | 0 | ||
| DHA1946 | 430 mm | 0 | ||
| DHA1948 | 440 mm | 0 | ||
| DHA1950 | 450 mm | 0 | ||
| DHA1952 | 460 mm | 0 | ||
| DHA1954 | 470 mm | 0 | ||
| DHA1956 | 480 mm | 0 | ||
| DHA1958 | 490 mm | 0 | ||
| DHA1960 | 500 mm | 0 | ||
| BACKREST | ||||
| DHA2140 | Angle Adustable, Forward Folding with Soft Lock. Backrest remains locked for transportation | |||
| BACKREST UPHOLSTERY | ||||
| DHA2200 | Black Standard Light Upholstery, without Tension Adjustment | NC 2430 | ||
| DHA2220 | Tension Adjustable Backrest, with Premium Black Nylon and Reflective Trim Upholstery Cover, Back Pocket/hook and loop fastener | £130 | ||
| DHA2230 | Tension Adjustable Backrest, with Black Aero, Breathable Spacer Upholstery Cover, Back Pocket/hook and loop fastener | £212 | ||
| DHA2240 | Without Backrest Upholstery Select if fitting a Matrx/Fixed backrest, no upholstery required | NC 2430 | ||
| PUSH HANDLES | ||||
| DHA2400 | Without Push Handles | |||
| DHA2410 | Push Handles Fixed Short/Mini Grip | £126 | ||
| DHA2420 | Push Handles Fixed Long Grip | 0 | ||
| DHA2430 | Push Handles Height Adjustable, Rear Set | NC 3480 | £241 | |
| DHA2440 | Push Handles Height Adjustable, Integrated in backrest | £208 | ||
| DHA2450 | Push Handles Foldable | £188 | ||
| BACKREST ANGLE | ||||
| DHA2510 | 76° angle from the seat | 0 | ||
| DHA2530 | 80.5° angle from the seat | 0 | ||
| DHA2550 | 85° angle from the seat | |||
| DHA2570 | 89.5° angle from the seat | 0 | ||
| DHA2590 | 94° angle from the seat | 0 | ||
| SEAT UPHOLSTERY | ||||
| DHA2600 | Standard Seat Upholstery | |||
| SEAT CUSHION | ||||
| DHA2700 | Standard Seat Cushion, 60 mm Double Foam with Visco Top Layer | £63 | ||
| DHA2720 | Matrx Libra Cushion, Black Smooth Cover – Very High Risk | £379 | ||
| DHA2730 | Matrx Vi Cushion, Black Smooth Cover – High Risk | £351 | ||
| DCA2750 | Vicair Active O2 lightweight cushion 6cm deep | £495 | ||
| SEAT BAG | ||||
| DHA2800 | Seat Bag, Click in and removable, includes the fixation clips | £70 | ||
| FOOTREST | ||||
| DHA3240 | Rigid, Plastic Footplate, Set to front, Height and Angle Adjustable. Note: This does not flip up for transfer, but folds easy for transport and storage | |||
| DHA3250 | Rigid, Plastic Footplate, Set to rear, Height and Angle Adjustable. Note: This does not flip up for transfer, but folds easy for transport and storage | 0 | ||
| CALF STRAP* | ||||
| DHA3320 | Calf Strap Mounted on Supporter | |||
| DHA3330 | Calf Strap Mounted on Frame | 0 | ||
| CLOTHESGUARDS/MUDGUARDS | ||||
| DHA3420 | Carbon Clothes guards, Flip Up | |||
| DHA3430 | Carbon Mudguards, Fixed | (NC 3490) | £235 | |
| DHA3440 | Carbon Mudguards, Removable | (NC 3490) | £292 | |
| ARMREST | ||||
| DHA3480 | Tubular Armrest. Height Adjustable, Removable, Non- locking, Swing-away and Comfort Padded, no Clothes guard included | £229 | ||
| DHA3490 | Armrest, Height Adjustable, Short Arm pad T-Arm, Non-locking, no Clothes guard included | £101 | ||
| FRAME COLOUR | ||||
| DHA4000 | Space Black Standard | 0 | ||
| DHA4010 | Anthracite Grey Standard | 0 | ||
| DHA4020 | Pure White Standard | NC 4220 | 0 | |
| DHA4030 | Carmine Red Standard | 0 | ||
| DHA4040 | Azure Blue Standard | 0 | ||
| DHA4060 | Flashy Yellow Additional 10 day lead time | £29 | ||
| DHA4070 | Atomic Violet Additional 10 day lead time | £29 | ||
| DHA4100 | Black Glossy Additional 10 day lead time | £29 | ||
| DHA4130 | Silver Grey Additional 10 day lead time | £29 | ||
| DHA4140 | Royal Blue Additional 10 day lead time | £29 | ||
| DHA4150 | Ruby Red Additional 10 day lead time | £29 | ||
| DHA4170 | Dynamite Orange (Additional 10 day lead time) | £29 | ||
| DHA4180 | Forest Green Additional 10 day lead time | £29 | ||
| DHA4050 | Personal frame colour. Provide standard RAL colour code of your choice | £295 | ||
| FRAME DECAL TYPE | ||||
| DHA4190 | Bold Decal (Full coloured transfer on frame) | NC 4300, 4310, 1111 | £29 | |
| DHA4195 | Tag Small Küschall brand transfer on front of frame | (NC 4200, 4210, 4220, 4230, 4240, 4250, 2222 | ||
| DHA4197 | Without Tag Kuschall branding only | NC 4200, 4210, 4220, 4230, 4240, 4250, 4300, 4310 | 0 | |
| BOLD DECAL COLOUR | ||||
| DHA4200 | Black | 0 | ||
| DHA4210 | Dark Grey | 0 | ||
| DHA4220 | Light Grey | 0 | ||
| DHA4230 | Red | 0 | ||
| DHA4240 | Blue | 0 | ||
| DHA4250 | Gold | 0 | ||
| DHA1111 | No bold colour, select only with Option DHA4195 Tag or DHA4197 Without Tag | NC 4190 | 0 | |
| TAG COLOUR* | ||||
| DHA4300 | Black | 0 | ||
| DHA4310 | Red | 0 | ||
| DHA2222 | No tag colour, select only with Option DHA4190 Bold Decal or DHA4197 Without Tag | NC 4195 | 0 | |
| FRONT CASTORS | ||||
| DHA5000 | 75mm x 25mm 3 x 1 Supersport | 0 | ||
| DHA5050 | 100mm x 30mm 4 x 1.2 Everyday Black hub and tyre | 0 | ||
| DHA5100 | 100mm x 30mm 4 x 1.2 Comfort Black hub and tyre | 0 | ||
| DHA5150 | 100mm x 25mm 4 x 1 Starec Black hub and tyre | £79 | ||
| DHA5200 | 100mm x 36mm 4 x 1.4 Aluminium Softroll Black hub and tyre Frog Legs | £88 | ||
| DHA5250 | 100mm x 36mm (4″ x 1.4″) Aluminium Softroll Silver hub, Black tyre Frog Legs | £88 | ||
| DHA5300 | 125mm x 30mm 5 x 1.2 Everyday Black hub and tyre | 0 | ||
| DHA5350 | 125mm x 30mm 5 x 1.2 Comfort Black hub and tyre | |||
| DHA5400 | 125mm x 25mm 5 x 1 Starec Black hub and tyre | £79 | ||
| DHA5450 | 125mm x 36mm 5 x 1.4 Aluminium Softroll Black hub and tyre Frog Legs | £88 | ||
| DHA5500 | 125mm x 36mm 5 x 1.4 Aluminium Softroll Silver hub, Black tyre Frog Legs | £88 | ||
| REAR WHEEL POSITION (CENTRE OF GRAVITY | ||||
| DHA6100 | 1st from front Most Active Position | 0 | ||
| DHA6110 | 2nd from front | 0 | ||
| DHA6120 | 3rd from front | 0 | ||
| DHA6130 | 4th from front | 0 | ||
| DHA6140 | 5th from front | |||
| DHA6150 | 6th from front | 0 | ||
| DHA6160 | 7th from front | 0 | ||
| DHA6170 | 8th from front | 0 | ||
| DHA6180 | 9th from front | 0 | ||
| QUAD QUICK RELEASE AXLE | ||||
| DHA6300 | Quad Quick Release/Tetra Clip | (NC 6550) | £81 | |
| REAR WHEEL SIZE | ||||
| DHA6410 | 24″ | |||
| DHA6420 | 25″ | (NC 6510, 6600, 6625, 6630, 6660, 6700, 6710, 6720, 6760, 6770, 6900) | 0 | |
| DHA6430 | 26″ | (NC 6520, 6550, 6600, 6625, 6630, 6660, 6720, 6740, 6750, 6760, 6770) | 0 | |
| REAR WHEEL TYPE | ||||

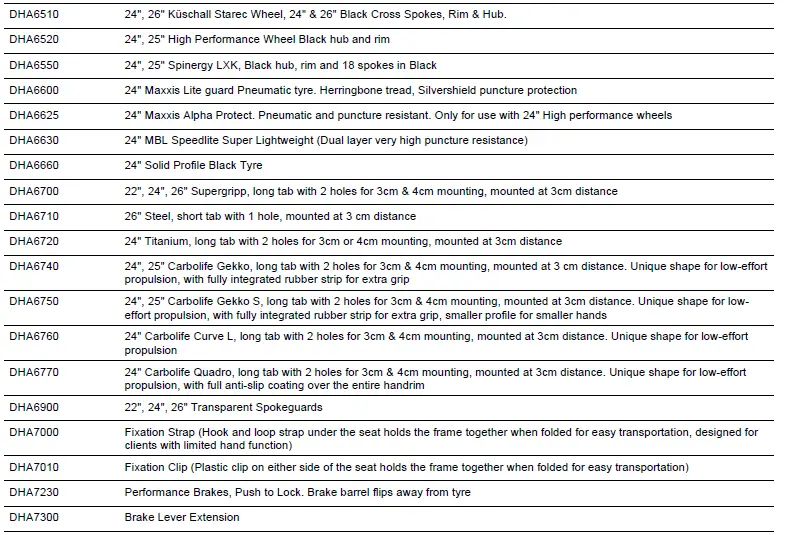

| DHA6510 | 24, 26 Küschall Starec Wheel, 24 & 26 Black Cross Spokes, Rim & Hub. | NC 6625 | ||
| DHA6520 | 24, 25 High Performance Wheel Black hub and rim | NC 6660 | £173 | |
| DHA6550 | 24, 25 Spinergy LXK, Black hub, rim and 18 spokes in Black | NC 6625, 6660 | £580 | |
| SWO0907 | 24, 25′ Spinergy SPOX, Chrome hub and 18 spokes in (NC 6625, 6660 £462 Black. Coloured spokes are available via MyKüschall | |||
| SWO0909 | 24, 25′ Spinergy LX, Chrome hub and 12 spokes in Black. Coloured spokes are available via MyKüschall | (NC 6625, 6660) | £698 | |
| DHA6600 | 24 Maxxis Lite guard Pneumatic tyre. Herringbone tread, Silvershield puncture protection | |||
| DHA6620 | 24, 25, 26 Primo Sentinel tyre. Pneumatic and puncture resistant | £95 | ||
| DHA6625 | 24 Maxxis Alpha Protect. Pneumatic and puncture resistant. Only for use with 24 High performance wheels | £95 | ||
| DHA6630 | 24 MBL Speedlite Super Lightweight (Dual layer very high puncture resistance | £92 | ||
| DHA6660 | 24 Solid Profile Black Tyre | NC 7230 | £63 | |
| HANDRIM | ||||
| DHA6700 | 22, 24, 26 Supergripp, long tab with 2 holes for 3cm & 4cm mounting, mounted at 3cm distance | £212 | ||
| DHA6710 | 26 Steel, short tab with 1 hole, mounted at 3 cm distance | £59 | ||
| DHA6720 | 24 Titanium, long tab with 2 holes for 3cm or 4cm mounting, mounted at 3cm distance | £182 | ||
| DHA6740 | 24, 25 Carbolife Gekko, long tab with 2 holes for 3cm & 4cm mounting, mounted at 3 cm distance. Unique shape for low-effort propulsion, with fully integrated rubber strip for extra grip | £304 | ||
| DHA6750 | 24, 25 Carbolife Gekko S, long tab with 2 holes for 3cm & 4cm mounting, mounted at 3cm distance. Unique shape for low-effort propulsion, with fully integrated rubber strip for extra grip, smaller profile for smaller hands | £304 | ||
| DHA6760 | 24 Carbolife Curve L, long tab with 2 holes for 3cm & 4cm mounting, mounted at 3cm distance. Unique shape for low-effort propulsion | £270 | ||
| DHA6770 | 24″ Carbolife Quadro, long tab with 2 holes for 3cm & 4cm mounting, mounted at 3cm distance. Unique shape for low effort propulsion, with full anti slip coating over the entire handrim | £338 | ||
| DHA6780 | 24, 25, 26 Light Aluminium Grey, long tab with 2 holes for 3cm or 4cm mounting, mounted at 3cm distance | |||
| DHA6790 | 24″, 25″, 26″ Light Aluminium Black, long tab with 2 holes for 3cm or 4cm mounting, mounted at 3 cm distance | £40 | ||
| REAR WHEEL CAMBER* | ||||
| DHA6820 | 0° Camber | |||
| DHA6830 | 1° Camber | 0 | ||
| DHA6840 | 3° Camber | (NC 7230) | 0 | |
| SPOKEGUARD | ||||
| DHA6900 | 22″, 24″, 26″ Transparent Spokeguards | £120 | ||
| FIXATION CLIP* | ||||
| DHA7000 | Fixation Strap (Hook and loop strap under the seat holds the frame together when folded for easy transportation, designed for clients with limited hand function) | 0 | ||
| DHA7010 | Fixation Clip (Plastic clip on either side of the seat holds the frame together when folded for easy transportation) | |||
| DHA3333 | No fixation clip, select with Tapered frame options 1170, 1180 | 0 | ||
| UNFOLDING HELP | ||||
| DHA7100 | Unfolding Help Cord to help open the folding mechanism from the front of the chair | |||
| BRAKES | ||||
| DHA7200 | Pull Brakes | £74 | ||
| DHA7210 | Standard Push to Lock Brakes, Lever Bent | |||
| DHA7220 | Standard Push to Lock Brakes, Lever Straight | 0 | ||
| DHA7230 | Performance Brakes, Push to Lock. Brake barrel flips away from tyre | (NC 7300) | £74 | |
| DHA7240 | Active/Scissor Brakes | (NC 7300) | £74 | |
| DHA7250 | Light/Compact Active, Aluminium Brakes | (NC 7300) | £129 | |
| BRAKE LEVER EXTENSION | ||||
| DHA7300 | Brake Lever Extension | £47 | ||
| SAFETY OPTIONS | ||||
| DHA7500 | Anti-Tipper Right | £116 | ||
| DHA7510 | Anti-Tipper Left | £116 | ||
| DHA7520 | Anti-Tipper Both sides | £232 | ||
| DHA7800 | Standard Pelvic belt | £70 | ||
| OTHER OPTIONS | ||||
| DHA8010 | Front Frame Protectors | £35 | ||
| DHA8100 | Tipper-Aid, Mounted Right Side Max. 2 adaptions per side (Adaptations = Anti tipper, Tipper aid and Cane holder) | £44 | ||
| DHA8200 | Cane Holder, Mounted Right Side Max. 2 adaptions per side (Adaptations = Anti tipper, Tipper aid and cane holder) | £71 | ||
| DHA8500 | Air Pump | £12 | ||
| DHA8550 | Tool Kit | |||
| DHA8680 | 24″ Mountain Bike Wheels with bag. Fitted with Specific Black Tyres, Grey Aluminium Handrims; Quick Release Axles Included | £304 | ||
| DHA8700 | Travel bag for Champion, Wheels can remain on the wheelchair | £241 | ||
Non Conforming Options:
| DHA1320 | 360 mm |
| DHA1325 | 380 mm |
| DHA1350 | 480 mm |
| DHA1946 | 430 mm |
| DHA1948 | 440 mm |
| DHA1950 | 450 mm |
| DHA1952 | 460 mm |
| DHA1954 | 470 mm |
| DHA1956 | 480 mm |
| DHA1958 | 490 mm |
| DHA1960 | 500 mm |
| DHA2200 | Black Standard Light Upholstery, without Tension Adjustment |
| DHA2220 | Tension Adjustable Backrest, with Premium Black Nylon and Reflective Trim Upholstery Cover, Back Pocket/hook and loop fastener |
| DHA2230 | Tension Adjustable Backrest, with Black Aero, Breathable Spacer Upholstery Cover, Back Pocket/hook and loop fastener |
| DHA2240 | Without Backrest Upholstery Select if fitting a Matrx/Fixed backrest, no upholstery required |
| DHA2400 | Without Push Handles |
| DHA2430 | Push Handles Height Adjustable, Rear Set |
| DHA2720 | Matrx Libra Cushion, Black Smooth Cover Very High Risk |
| DHA2730 | Matrx Vi Cushion, Black Smooth Cover High Risk |
| DCA2750 | Vicair Active O2 lightweight cushion 6cm deep |
| DHA3480 | Tubular Armrest. Height Adjustable, Removable, Non-locking, Swing-away and Comfort Padded, no Clothes guard included |
| DHA3490 | Armrest, Height Adjustable, Short Armpad T Arm, Non-locking, no Clothes guard included |
| DHA4190 | Bold Decal Full coloured transfer on frame |
| DHA4195 | Tag Small Kuschall brand transfer on front of frame |
| DHA4200 | Black |
| DHA4210 | Dark Grey |
| DHA4220 | Light Grey |
| DHA4230 | Red |
| DHA4240 | Blue |
| DHA4250 | Gold |
| DHA1111 | No bold colour, select only with Option DHA4195 Tag or DHA4197 Without Tag |
| DHA4300 | Black |
| DHA4310 | Red |
| DHA2222 | No tag colour, select only with Option DHA4190 Bold Decal or DHA4197 Without Tag |
| DHA5000 | 75mm x 25mm 3 x 1 Supersport |
| DHA5050 | 100mm x 30mm 4 x 1.2 Everyday Black hub and tyre |
| DHA5100 | 100mm x 30mm 4x 1.2 Comfort Black hub and tyre |
| DHA5150 | 100mm x 25mm 4x 1Starec Black hub and tyre |
| DHA5200 | 100mm x 36mm 4x 1.4 Aluminium Softroll Black hub and tyre Frog Legs |
| DHA5250 | 100mm x 36mm 4x 1.4 Aluminium Softroll Silver hub, Black tyre Frog Legs |
| DHA6410 | 24 |
| DHA6420 | 25 |
| DHA6430 | 26 |
Special Instructions
Please supply the following information
- Name: Email
- Phone: Fax
For a more complex customer requirement please refer to our Invacare Unique special order form email [email protected] or Fax: 01656 776220
| Invacare GB
