R82 30301 Kudu Wheelchair
Product Information
| Serial Number | 9996097095 |
|---|---|
| Manufacturer | R82 A/S |
| Model | Unknown |
| Website | etac.com |
Product Usage Instructions
Before using the product, please follow these instructions:

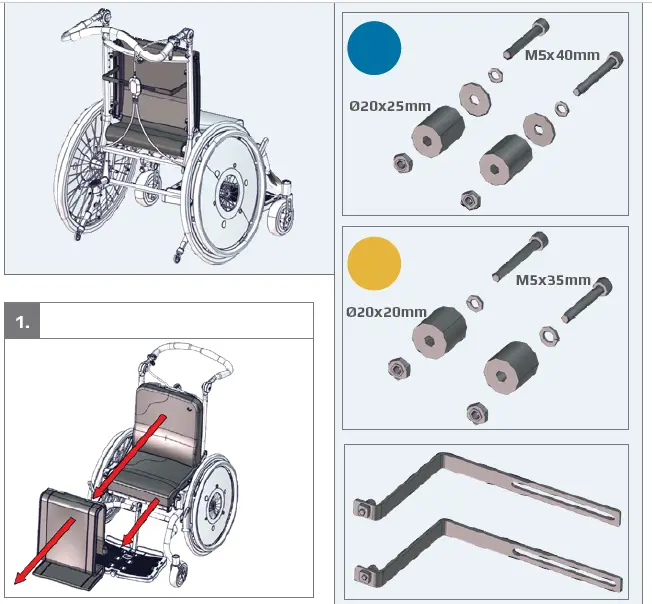

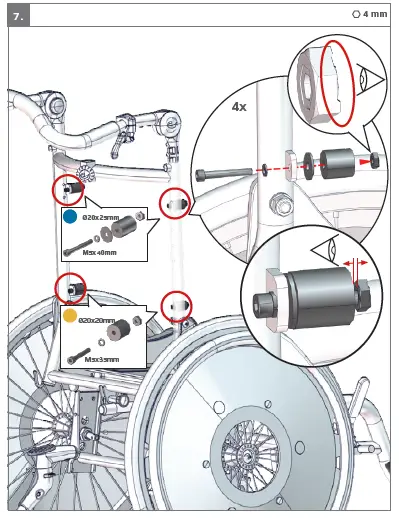

- Tighten the screws using the provided screwdriver. Two screws are M5x40mm and two screws are M5x35mm.
- Fit the specified parts together as shown in the diagram. Use one 5mm spacer and one 3mm spacer.
- Attach the components using four 4mm screws.

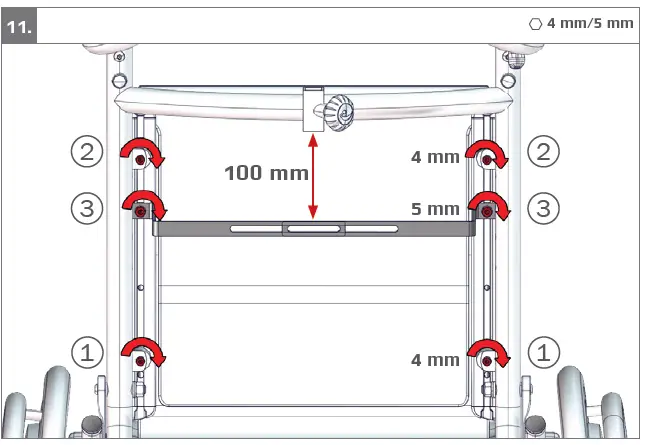

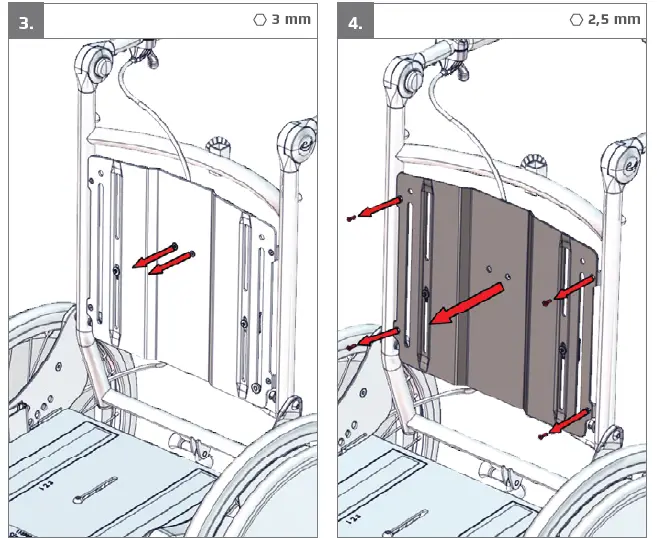

- Adjust the position of the product using a 2.5mm Allen key.
- Secure the product in place with four additional 4mm screws.
- Ensure all connections are secure and there are no loose parts.
If you have any further questions or concerns, please refer to the user manual or contact the manufacturer directly.

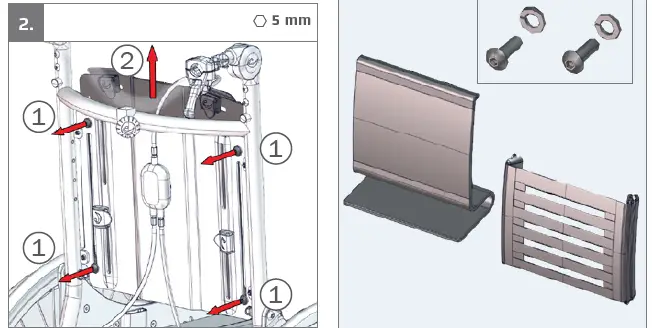

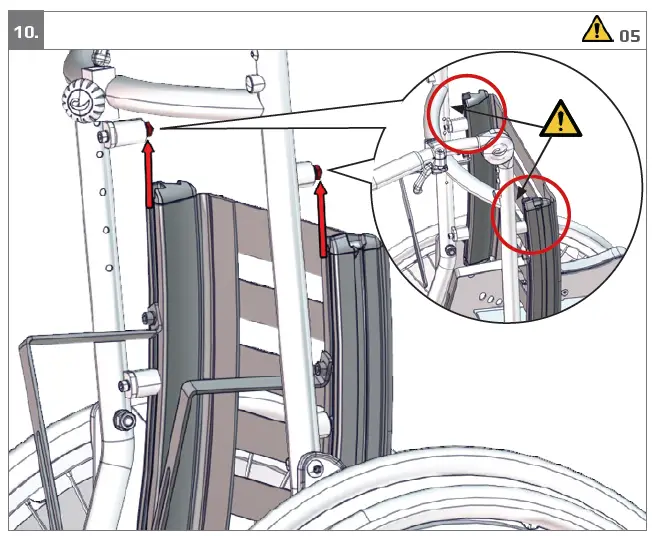

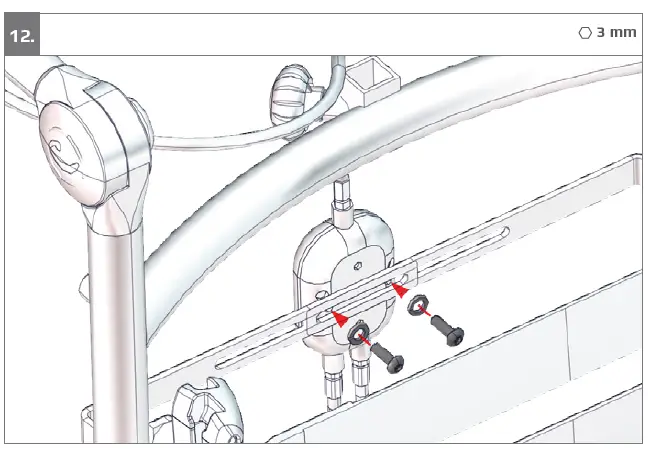

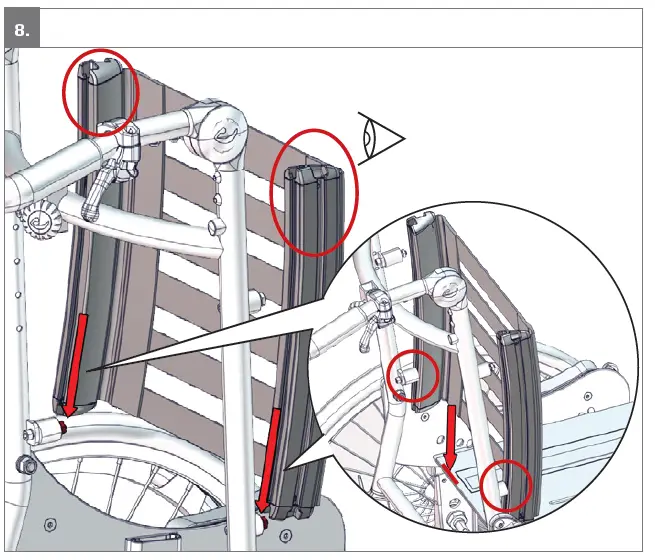

Assembly Procedure
2022-05- Rev.1.0 R82 A/S Parallelvej 3 DK – 8751 Gedved
