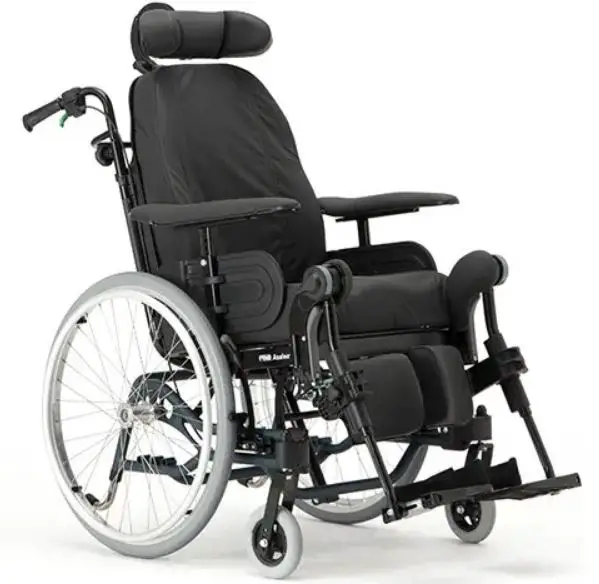

INVACARE BNF9003 Rea Azalea Self Propel Tall

Standard Features

Max User Weight 135KG/21 Stone
Crash Tested ISO 7176-Part 19
24″ Self Propulsion with User Manoeuvred Tyre Brakes and Solid Black Tyres
Choice of Seat Widths 390mm, 440mm or 490mm (+50mm Width Adjustment)
Seat Height 500mm
Depth Adjustable Seat 480mm-550mm
Without Seat Cushion, Supplied with Seat Board
Flex 3 Backrest Plate, Width and Height Adjustable
Passad 2 Backrest Cushion with Multi-stretch Black PU coated fabric Cover and Push Handles Connected
Assistant Operated Gas Piston Seat Tilt +1° – +25°
Backrest Recline 30° with Tilt Lock
Angle Adjustable Legrests with Calf Support, Height and Depth Adjustable Footplates
Height Adjustable Ducktail Pad Armrests with Autolock
Pearl Silver Frame Colour
Chassis Extender with Solid Black Front Castors
Quick Release Self Propel Wheels, Solid Tyres and Aluminium Handrims
Pelvic Belt, Adjustable both sides
Anti Tippers

Please make your selection with a cross in the box

Customer weight KG

BASE PRODUCT*
BNF9003	Rea Azalea Self Propel Tall		£2,423
BNF8000	SPECIAL REQUEST – PLEASE INCLUDE QUOTATION REFERENCE IN SPECIAL DESCRIPTION AT THE END OF THE FORM WHERE APPLICABLE		POA
PROPULSION*
BNF0025	Self Propel 24″ wheels with user brakes	(NC 1076)	♦
BNF0030	Self Propel 24″ wheels with assistant hub brakes	(NC 1074)	£133
SEAT DIMENSIONS*
BNF0036	Tall (+ 50 mm In seat height, depth and chassis length)		♦

SEAT WIDTH*
BNF0040	390 mm/15″ (Small chassis)		0
BNF0050	440 mm/17″ (Medium chassis)		0
BNF0060	490 mm/19″ (Large chassis)		0
SEAT WIDTH EXTENSION*
BNF0065	+ 50 mm seat width pre-adjustment on armrests and legrests		0
BNF0085	Without seat width extension, set at 0mm adjustment but can be adjusted wider if required		0
SEAT DEPTH*
BNF0105	480-550 mm / 19″ -22″ (Azalea Tall – Incl Chassis Extension)		♦
SEAT HEIGHT*
BNF0125	500 mm / 20″ (Azalea Tall)		♦
SEAT ANGLE*
BNF0000	Standard Seat Angle +1° to +25°		♦
BNF0127	Negative Seat Angle -1 To +23°	(NC 0360)	0
SEAT TYPE*
BNF0130	Depth Adjustable		♦
SEAT CUSHION*
BNF0165	Cushion Floshape seat upholstery	(NC 1111)	£54
BNF0167	Cushion Vicair Adjuster O2 10cm (Black)	(NC 0201, 0202)	£521
BNF0180	Without Seat Cushion, Seat Plate only	(NC 0201, 0202)	0
SEAT UPHOLSTERY*
BNF0201	Multi-stretch Black PU coated fabric		♦
BNF0202	Black Spacer TR36		0
BNF1111	No upholstery, select with options 0167 Vicair Adjuster O2 or 0180 Without seat cushion		0
BACKREST WIDTH EXTENSION*
BNF0205	+ 50 mm Backrest width pre-adjustment, set at +50mm but can be adjusted if required		0
BNF0207	Without Backrest width pre-adjustment, set at 0mm but can be adjusted if required		0
BACKREST*
BNF0210	Flex 3 Backrest, Fixed Plate (Width Adjustable)	(NC 0240, 0343)	♦
BNF0220	Flex 3 Backrest Tension (Width Adjustable)	(NC 0343)	£97
BNF0230	Backrest Tubes Without Backrest	(NC 0240, 0250, 0260, 0270, 0305, 0321, 0322, 0335, 0345, 0740, 0800, 0810, 0820, 0830, 0880, 0890, 0895, 0896, 0900, 0920)	0
BACKREST CUSHION*
BNF0240	Cover for tension adjustable upholstery	(NC 2222)	0
BNF0250	Cushion, Laguna (Lateral Support)	(NC 2222)	0
BNF0260	Cushion, Mistral 2 (Waist Support)	(NC 0322, 2222)	£137
BNF0270	Cushion, Passad 2 (Shoulder Support)	(NC 2222)	♦
BNF0300	Without Backrest Cover/ Cushion	(NC 0305, 0321, 0322)	0
WIDER BACKREST COVER
BNF0305	Extra large backrest cover or cushion. One size wider backrest cushion or tension cover fitted if selected		0
BACKREST UPHOLSTERY*
BNF0321	Multi-stretch Black PU coated fabric		♦
BNF0322	Black Spacer TR36		0
BNF2222	No upholstery, select with Matrx, and Without backrest options		0

PUSH HANDLES*
BNF0335	Push Handles connected		♦
BNF0343	Push Handles connected,with Rea head/neckrest attachment		£68
BNF0345	Push Bar, angle adjustable		£97
SEAT TILT AND BACKREST REGULATION*
BNF0350	Assistant operated gas piston seat tilt and backrest recline	(NC 5555)	♦
BNF0360	Electrical operated seat tilt and backrest recline	(NC 1263)	£585
TILT LOCK*
BNF1263	Tilt Lock (locking of pre-set angle)		♦
BNF5555	No Tilt Lock, Select with 0360 Electric operated seat and backrest		0
CENTRAL LEGREST
BNF0370	Central Legrest, includes calfpad and footrest. Also select options 0420, 0470, 3333, 4444	(NC 0189, 0376, 0378, 0380, 0390, 0410, 0430, 0440, 0460, 0475, 0476, 0477, 0720, 0930, 0940, 0941, 0942, 1290)	£288
LEGREST HANGER ATTACHMENT*
BNF0375	Standard position for legrest mounting		♦
SWO0189	Standard position with 0-30° Legrest Abduction function		£95
BNF0376	High position 50mm higher for leg length compensation		0
BNF0378	90° Hanger attachment to achieve a 90° legrest position on the Elevating Legrest	(NC 0390, 0410, 0440, 0460)	0
LEGREST HANGER LH*
BNF0380	Elevating Legrest, angle adjustable 0 to 75° swing in/swing out with knee pad, calf support with locking clip LH	(NC 0475, 0480, 0490, 0942, 0945, 6666)	♦
BNF0390	Legrest Hanger fixed 80 deg, swing in/swing out LH	(NC 0928, 0929, 0930)	0
BNF0410	Legrest Amputee LH	(NC 0475, 0476, 0477, 0480, 0490, 0510, 0520, 0928, 0929, 0930, 0941, 0942, 0945)	£130
BNF0420	Without Legrest, LH	(NC 0475, 0476, 0477, 0480, 0490, 0510, 0520, 0928, 0929, 0930, 0941, 0942, 0945)	0
LEGREST HANGER RH*
BNF0430	Elevating Legrest, angle adjustable 0 to 75°swing In/swing out with knee pad and calf support with locking clip RH	(NC 0475, 0540, 0550, 0942, 0945, 6666)	♦
BNF0440	Legrest Hanger fixed 80 deg, swing in/swing out RH	(NC 0931, 0932, 0940)	0
BNF0460	Legrest Amputee RH	(NC 0475, 0476, 0477, 0540, 0550, 0570, 0580, 0931, 0932, 0940, 0941, 0942, 0945)	£130
BNF0470	Without Legrest, RH	(NC 0475, 0476, 0477, 0540, 0550, 0570, 0580, 0931, 0932, 0940, 0941, 0942, 0945)	0
FOOTREST LH*
BNF0475	Footrest one piece, depth and angle adjustable short tube	(NC 0477, 0480, 0490, 0510, 0520, 0540, 0550, 0570, 0580, 0930, 0940)	£112
BNF0476	Footrest one piece, depth and angle adjustable long tube	(NC 0477, 0480, 0490, 0510, 0520, 0540, 0550, 0570, 0580, 0930, 0940)	£112
BNF0477	Footbox, angle adjustable, padded with short tube	(NC 0480, 0490, 0510, 0520, 0540, 0550, 0570, 0580, 0930, 0940, 0941, 0942, 0945)	£516
BNF0480	Footrest lower part, fixed with short tube and heel strap, LH	(NC 0930, 0941)	0
BNF0490	Footrest lower part, depth and angle adjustable with short tube and heel strap, LH. Not compatible with Elevating legrest.		0
BNF0510	Footrest lower part, fixed with long tube and heel strap, LH.	(NC 0930, 0941)	0
BNF0520	Footrest lower part, depth and angle adjustable with long tube and heel strap, LH. All knee to heel ranges can be achieved when used with Elevating legrests.		0
BNF3333	Without footrest, only select with option 0370 Central legrest, 0410 Amputee legrest and 0420 Without legrest		0

FOOTREST RH*
BNF0540	Footrest lower part, fixed with short tube and heel strap, RH	(NC 0940, 0941)	0
BNF0550	Footrest lower part, depth and angle adjustable with short tube and heel strap, RH. Not compatible with Elevating legrest.		0
BNF0570	Footrest lower part, fixed with long tube and heel strap, RH	(NC 0940, 0941)	0
BNF0580	Footrest lower part, depth and angle adjustable with long tube and heel strap, RH. All knee to heel ranges can be achieved when used with Elevating legrests.		0
BNF4444	Without footrest, only select with options 0370 Central legrest, 0460 Amputee legrest, 0470 Without legrest, 0475 and 0476 One piece footrests or 0477 Footbox		0
ARMREST LH*
BNF0600	Armrest Ducktail Pad LH, height adjustable with autolock	(NC 1232)	♦
BNF0607	Armrest Reinforced Wide Pad, LH, height adjustable with autolock	(NC 1230, 1231, 1232, 1250, 1260)	£85
BNF0610	Armrest Padded LH, height adjustable with autolock	(NC 1230, 1231, 1232, 1250, 1260)	£61
BNF0615	Armrest Hemiplegic LH, height adjustable with autolock	(NC 0695, 1230, 1231, 1232, 1250, 1260)	£170
BNF0620	Without Armrest LH Select when choosing BNA1232 Half Tray LH, Narrow Armrest is included	(NC 0695, 1230, 1231, 1250, 1260)	0
ARMREST RH*
BNF0630	Armrest Ducktail Pad RH, height adjustable with autolock	(NC 1233)	♦
BNF0637	Armrest Reinforced Wide Pad, RH, height adjustable with autolock	(NC 1230, 1231, 1233, 1250, 1260)	£85
BNF0640	Armrest Padded RH, height adjustable with autolock.	(NC 1230, 1231, 1233, 1250, 1260)	£61
BNF0645	Armrest Hemiplegic, RH, height adjustable with autolock	(NC 0695, 1230, 1231, 1233, 1240, 1245, 1250, 1260)	£170
BNF0650	Without Armrest RH Select when choosing BNF1233 Half Tray RH, Narrow Armrest is included	(NC 0695, 1230, 1231, 1240, 1245, 1250, 1260)	0
ARMREST OPTIONS. Side support cover 0680, must be selected if 0690 Foam for side support is required
BNF0680	Side Support Cover, removable with tools (wipeable cover for the sideguard)	(NC 0695)	£48
BNF0690	Foam for side support cover (Internal cushioned pad, which is only possible in combination with 0680)	(NC 0695)	0
BNF0695	Pad for sideguard, removable with hook and loop fastening		£48
SEAT OPTIONS
BNF0710	Incontinence Cover		£38
BNF0720	Pommel Abduction Cushion	(NC 0722)	£112
BNF0722	2 cm Increased seat height plate		£61
BNF0725	Tilt Scale for seat tilt		£42

BACKREST OPTIONS
BNF0730	Headrest, Sideway Adjustable	(NC 0750,	0770)	♦
BNF0750	Headrest with cheek support, sideway adjustable	(NC 0740,	0770)	£102
BNF0740	Cover for headrest		£29
BNF0770	Neckrest		0
BNF0782	Alternative headrest/neckrest mounting bracket		£22
BNF0790	Handles Clinic Kit for Head-/Neckrest (Levers which replace screws for easy adjustment)		0
BNF0900	Trunk Support Attachment to mount laterals later. If trunk supports are chosen, the attachment bracket is already included		0
BNF0915	Tilt Scale for backrest recline		£42
BNF0920	Wedges (One Pair)		£10
TRUNK SUPPORT LH
BNF0800	Trunk Support Multi Adjustable with standard arm LH	(NC 0900)	0
BNF0820	Trunk Support Multi Adjustable with extended height arm LH	(NC 0900)	0
BNF0880	Trunk Support Swingaway LH	(NC 0900)	£100
BNF0895	Trunk Support Multi Adjustable Swingaway LH	(NC 0900)	£107
TRUNK SUPPORT RH
BNF0810	Trunk Support Multi Adjustable with standard arm RH	(NC 0900)	0
BNF0830	Trunk Support Multi Adjustable with extended height arm RH	(NC 0900)	0
BNF0890	Trunk Support Swingaway RH	(NC 0900)	£100
BNF0896	Trunk Support Multi Adjustable Swingaway RH	(NC 0900)	£107
ELEVATING LEGREST OPTIONS
BNF0928	Calf pad, for LH elevating legrest		0
BNF0929	Knee pad for LH elevating legrest		♦
BNF0931	Calf pad, for RH elevating legrest		0
BNF0932	Knee pad for RH elevating legrest		♦
BNF6666	Without Elevating Legrest Options (Select with Fixed legrests, Amputee legrests and Without legrests only)		0
LEGREST OPTIONS
BNF0930	Footplate Extender LH	(NC 0941)	£32
BNF0940	Footplate Extender RH	(NC 0941)	£32
BNF0941	Cover Footplate, Black Plush Fabric		£51
BNF0942	Calf Strap Padded		£69
BNF0945	Calf Strap (for One piece footrest)		0
CHASSIS COLOUR*
BNF0944	Silver Pearl		♦
BNF0946	Azurite (Dark Blue)		0
BNF0947	Sand (Beige)		0
BNF0948	Electric Green		0
BNF0949	Happy Red		0
CHASSIS SAFETY*
BNF0950	Chassis extender, castors extend 50mm forward for added stability		♦
CASTOR ATTACHMENT*
BNF0960	Fixed castor attachment		♦

FRONT CASTORS*
BNF1015	200×32 mm (8″ x 1 1/4″) Black Solid Tyre		£20
BNF1025	200×45 mm (8″ X 1 3/4″) Black Solid tyre		♦
REAR WHEEL SIZE*
BNF1062	24″ / 600 mm Self Propel rear wheel with QR attachment		♦
REAR WHEEL TYPE*
BNF1074	Standard self propel with colourless hub, clear anodized rim and Stainless steel spokes		♦
BNF1076	Hub Brake 22″ or 24″ Self Propel with colourless hub, clear anodized rim and Stainless steel spokes		0
REAR WHEEL TYRE*
BNF1082	Pneumatic Profile Black 1 3/8″ tyres		0
BNF1092	Solid Black tyres		♦
HANDRIM*
BNF1100	Aluminium handrim		♦
BNF1120	Plastic coated handrim		£46
SPOKEGUARD
BNF1160	Frost spokeguard		£158
BRAKE*
BNF1170	User manoeuvred tyre brakes		♦
BNF1180	One Arm Brake LH		£120
BNF1185	One Arm Brake RH		£120
PELVIC BELT*
BNF1200	Pelvic belt		♦
TRANSPORTATION BRACKETS*
BNF1225	Transportation Brackets, mounted to the front of the wheelchair		♦
OTHER OPTIONS
BNF1230	Fixed Table Tray without elbow pads includes mounting kit	(NC 1237, 1260)	£131
BNF1231	Fixed Table Tray with elbow Pads includes mounting kit	(NC 1237, 1260)	£131
BNF1232	Half table tray, clear plastic, flip up, depth adjustable, left side (armrest with straight narrow pad included)	(NC 1235, 1260)	£98
BNF1233	Half table tray, clear, plastic, flip up, depth adjustable, right side (armrest with straight narrow pad included)	(NC 1235, 1260)	£98
BNF1240	Swing away table without elbow pads	(NC 1237, 1250, 1260)	£144
BNF1245	Swing away table with elbow pads	(NC 1237, 1260)	£144
BNF1235	Table tray padded cushion (To be ordered in combination with the fixed & swingaway table tray)		£48
BNF1237	Half table tray padded cushion		£44
BNF1250	Locking device for table tray		£14
BNF1260	Mounting kit for table (if ordered separately)		£8
BNF1290	Handles Clinic Kit for backrest, armrest, legrest and seat frame (Levers which replace screws for easy adjustment)		£52
BNF1300	Harness attachment , must be selected in combination with Head/Neckrest		£81
BNF1310	Attachment for positioning belt		£30

BNF0201	Multi-stretch Black PU coated fabric
BNF0202	Black Spacer TR36
BNF1111	No upholstery, select with options 0167 Vicair Adjuster O2 or 0180 Without seat cushion
BNF0240	Cover for tension adjustable upholstery
BNF0250	Cushion, Laguna (Lateral Support)
BNF0260	Cushion, Mistral 2 (Waist Support)
BNF0270	Cushion, Passad 2 (Shoulder Support)
BNF0305	Extra large backrest cover or cushion. One size wider backrest cushion or tension cover fitted if selected
BNF0321	Multi-stretch Black PU coated fabric
BNF0322	Black Spacer TR36
BNF2222	No upholstery, select with Matrx, and Without backrest options
BNF0335	Push Handles connected
BNF0343	Push Handles connected,with Rea head/neckrest attachment
BNF0345	Push Bar, angle adjustable
BNF0360	Electrical operated seat tilt and backrest recline
BNF1263	Tilt Lock (locking of pre-set angle)
BNF5555	No Tilt Lock, Select with 0360 Electric operated seat and backrest
SWO0189	Standard position with 0-30° Legrest Abduction function
BNF0376	High position 50mm higher for leg length compensation
BNF0378	90° Hanger attachment to achieve a 90° legrest position on the Elevating Legrest
BNF0380	Elevating Legrest, angle adjustable 0 to 75° swing in/swing out with knee pad, calf support with locking clip LH
BNF0390	Legrest Hanger fixed 80 deg, swing in/swing out LH
BNF0410	Legrest Amputee LH
BNF0430	Elevating Legrest, angle adjustable 0 to 75°swing In/swing out with knee pad and calf support with locking clip RH
BNF0440	Legrest Hanger fixed 80 deg, swing in/swing out RH
BNF0460	Legrest Amputee RH
BNF0475	Footrest one piece, depth and angle adjustable short tube
BNF0476	Footrest one piece, depth and angle adjustable long tube
BNF0477	Footbox, angle adjustable, padded with short tube
BNF0480	Footrest lower part, fixed with short tube and heel strap, LH
BNF0490	Footrest lower part, depth and angle adjustable with short tube and heel strap, LH. Not compatible with Elevating legrest.
BNF0510	Footrest lower part, fixed with long tube and heel strap, LH.
BNF0520	Footrest lower part, depth and angle adjustable with long tube and heel strap, LH. All knee to heel ranges can be achieved when used with Elevating legrests.
BNF0540	Footrest lower part, fixed with short tube and heel strap, RH
BNF0550	Footrest lower part, depth and angle adjustable with short tube and heel strap, RH. Not compatible with Elevating legrest.
BNF0570	Footrest lower part, fixed with long tube and heel strap, RH
BNF0580	Footrest lower part, depth and angle adjustable with long tube and heel strap, RH. All knee to heel ranges can be achieved when used with Elevating legrests.
BNF0695	Pad for sideguard, removable with hook and loop fastening
BNF0720	Pommel Abduction Cushion
BNF0722	2 cm Increased seat height plate
BNF0750	Headrest with cheek support, sideway adjustable
BNF0740	Cover for headrest

BNF0770	Neckrest
BNF0900	Trunk Support Attachment to mount laterals later. If trunk supports are chosen, the attachment bracket is already included
BNF0920	Wedges (One Pair)
BNF0800	Trunk Support Multi Adjustable with standard arm LH
BNF0820	Trunk Support Multi Adjustable with extended height arm LH
BNF0880	Trunk Support Swingaway LH
BNF0895	Trunk Support Multi Adjustable Swingaway LH
BNF0810	Trunk Support Multi Adjustable with standard arm RH
BNF0830	Trunk Support Multi Adjustable with extended height arm RH
BNF0890	Trunk Support Swingaway RH
BNF0896	Trunk Support Multi Adjustable Swingaway RH
BNF0928	Calf pad, for LH elevating legrest
BNF0929	Knee pad for LH elevating legrest
BNF0931	Calf pad, for RH elevating legrest
BNF0932	Knee pad for RH elevating legrest
BNF6666	Without Elevating Legrest Options (Select with Fixed legrests, Amputee legrests and Without legrests only)
BNF0930	Footplate Extender LH
BNF0940	Footplate Extender RH
BNF0941	Cover Footplate, Black Plush Fabric
BNF0942	Calf Strap Padded
BNF0945	Calf Strap (for One piece footrest)
BNF1074	Standard self propel with colourless hub, clear anodized rim and Stainless steel spokes
BNF1076	Hub Brake 22″ or 24″ Self Propel with colourless hub, clear anodized rim and Stainless steel spokes
BNF1230	Fixed Table Tray without elbow pads includes mounting kit
BNF1231	Fixed Table Tray with elbow Pads includes mounting kit
BNF1232	Half table tray, clear plastic, flip up, depth adjustable, left side (armrest with straight narrow pad included)
BNF1233	Half table tray, clear, plastic, flip up, depth adjustable, right side (armrest with straight narrow pad included)
BNF1240	Swing away table without elbow pads
BNF1245	Swing away table with elbow pads
BNF1235	Table tray padded cushion (To be ordered in combination with the fixed & swingaway table tray)
BNF1237	Half table tray padded cushion
BNF1250	Locking device for table tray
BNF1260	Mounting kit for table (if ordered separately)
BNF1290	Handles Clinic Kit for backrest, armrest, legrest and seat frame (Levers which replace screws for easy adjustment)
