DSAL009391 Rea Azalea Base

Tel: 01656 776222 Fax: 01656 776220
Email: [email protected]
Online Spares are available at: www.invacare.co.uk
Customer Ref*
Contact No*
Delivery Address*

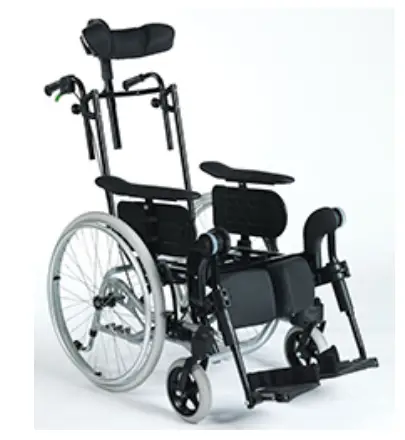

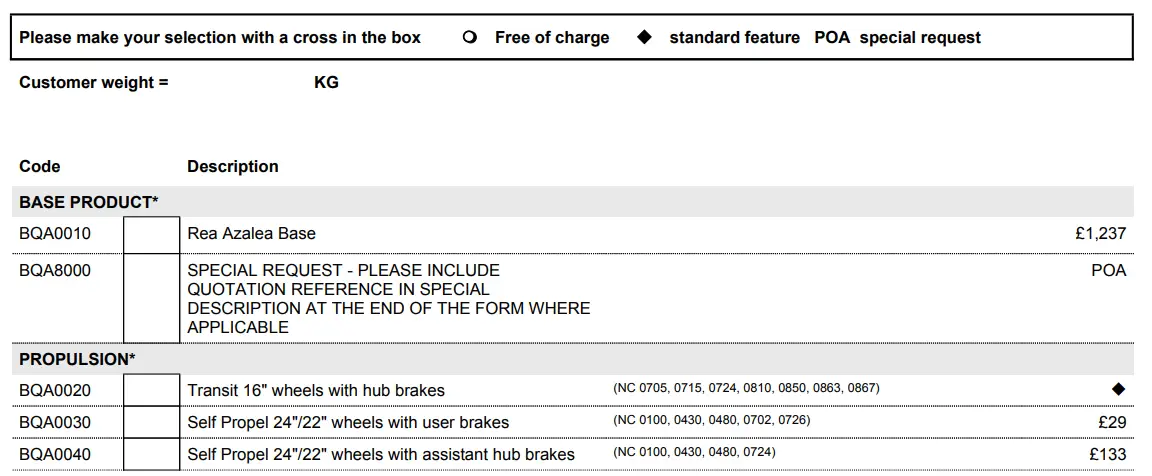

Rea Azalea Base

Standard Features

Max User Weight 135KG/21 Stone
Crash Tested ISO 7176-Part 19
Transit Propulsion, Attendant hub brakes and Solid black tyres
4 Seat Widths 340mm to 490mm (+50mm, +100mm with Transit)
2 Seat Heights 400mm or 450mm
2 seat depths 380-450mm (with 340mm width) or 430-500mm
Seat plate or Trapeze Interface (without Interface option)
Manually settable backrest recline
· Assistant operated gas piston -1° to +23° seat tilt
Tilt lock – Pre-settable angle
Fixed castor attachment
Pearl Silver frame
User manoeuvred tyre brakes
Anti Tippers, Front tiedown brackets

Standard Base price: £1,237

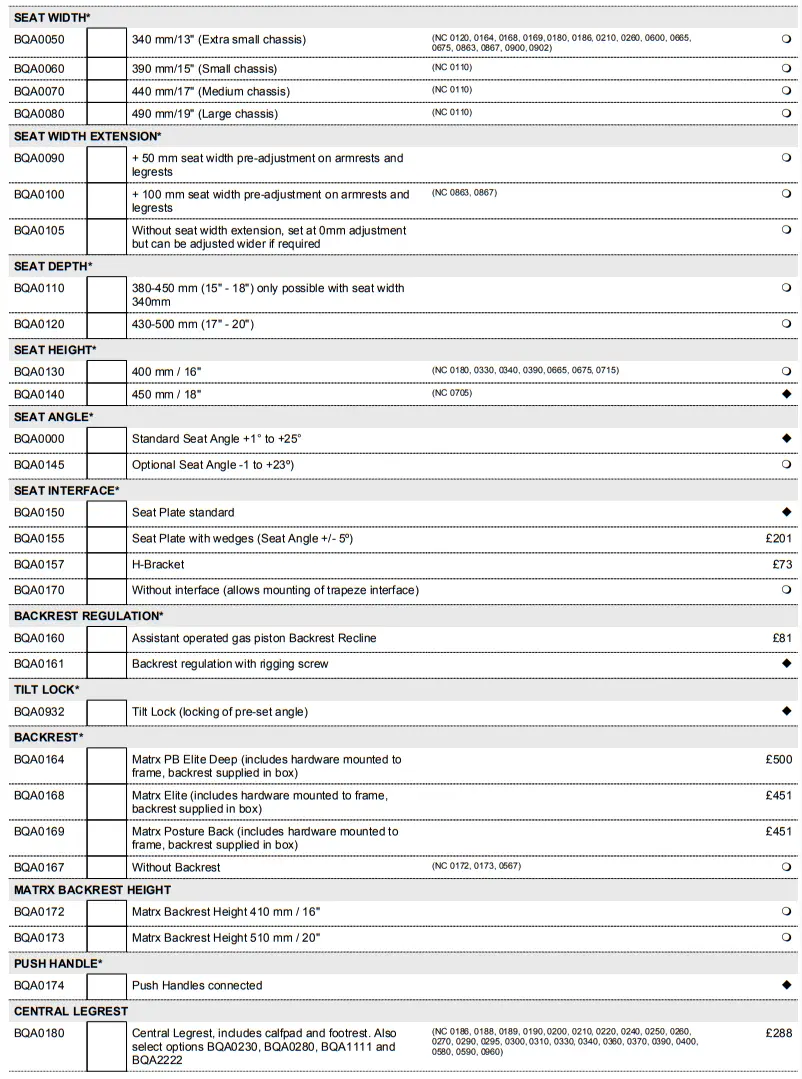

Non-Conforming Options:

BQA0100	+ 100 mm seat width pre-adjustment on armrests and leg rests
BQA0110	380-450 mm (15″ – 18″) only possible with seat width 340mm
BQA0120	430-500 mm (17″ – 20″)
BQA0164	Matrix PB Elite Deep (includes hardware mounted to the frame, backrest supplied in the box)
BQA0168	Matrx Elite (includes hardware mounted to the frame, backrest supplied in the box)
BQA0169	Matrix Posture Back (includes hardware mounted to the frame, backrest supplied in the box)
BQA0172	Matrix Backrest Height 410 mm / 16″
BQA0173	Matrix Backrest Height 510 mm / 20″
BQA0180	Central Legrest, includes calf pad and footrest. Also select options BQA0230, BQA0280, BQA1111 and BQA2222

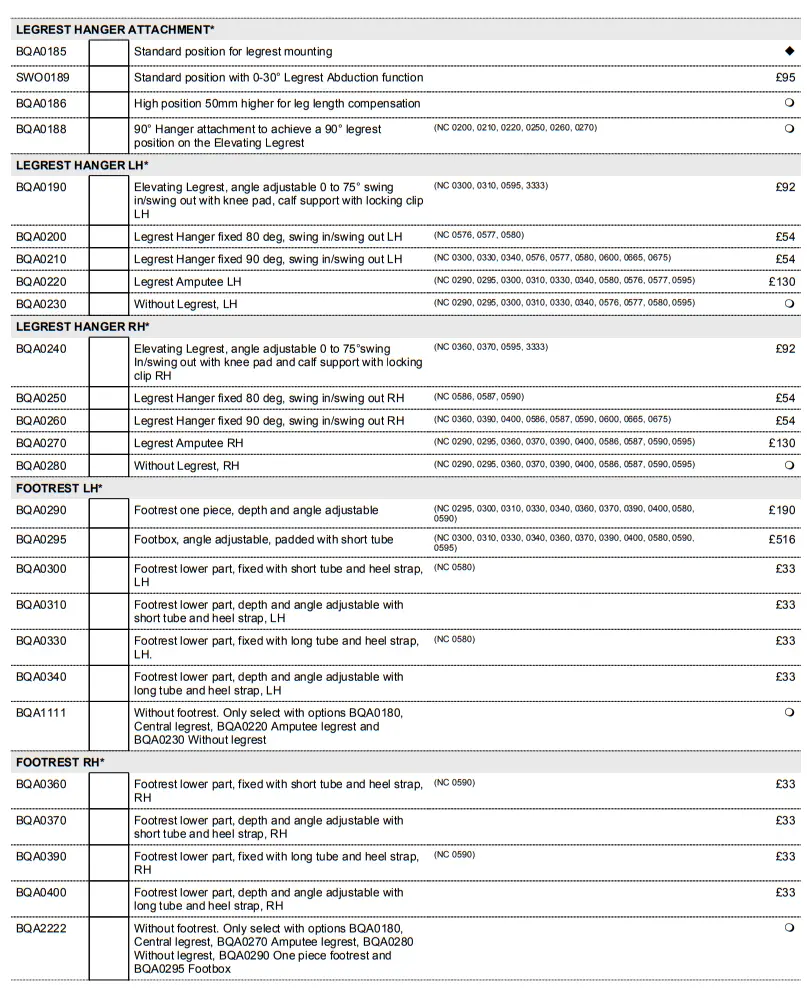

SWO0189	Standard position with 0-30° Legrest Abduction function
BQA0186	High position 50mm higher for leg length compensation
BQA0188	90° Hanger attachment to achieve a 90° legrest position on the Elevating Legrest
BQA0190	Elevating Legrest, angle adjustable 0 to 75° swing in/swing out with knee pad, calf support with locking clip LH
BQA0200	Legrest Hanger fixed 80 deg, swing in/swing out LH
BQA0210	Legrest Hanger fixed 90 deg, swing in/swing out LH
BQA0220	Legrest Amputee LH
BQA0240	Elevating Legrest, angle adjustable 0 to 75°swing In/swing out with knee pad and calf support with locking clip RH
BQA0250	Legrest Hanger fixed 80 deg, swing in/swing out RH
BQA0260	Legrest Hanger fixed 90 deg, swing in/swing out RH
BQA0270	Legrest Amputee RH
BQA0290	Footrest one piece, depth and angle adjustable
BQA0295	Footbox, angle adjustable, padded with short tube
BQA0300	Footrest lower part, fixed with short tube and heel strap, LH
BQA0310	Footrest lower part, depth and angle adjustable with short tube and heel strap, LH
BQA0330	Footrest lower part, fixed with long tube and heel strap, LH.
BQA0340	Footrest lower part, depth and angle adjustable with long tube and heel strap, LH
BQA0360	Footrest lower part, fixed with short tube and heel strap, RH
BQA0370	Footrest lower part, depth and angle adjustable with short tube and heel strap, RH
BQA0390	Footrest lower part, fixed with long tube and heel strap, RH
BQA0400	Footrest lower part, depth and angle adjustable with long tube and heel strap, RH

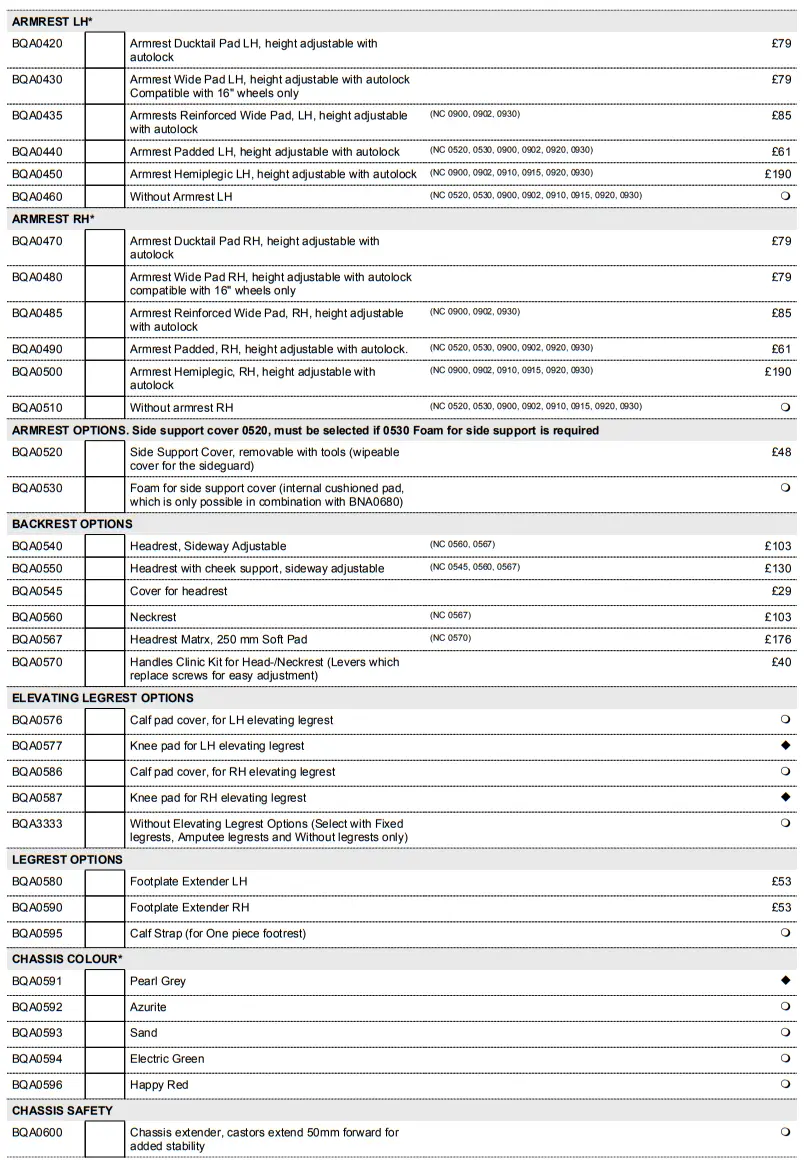

BQA0430	Armrest Wide Pad LH, height adjustable with auto lock Compatible with 16″ wheels only
BQA0480	Armrest Wide Pad RH, height adjustable with auto lock compatible with 16″ wheels only
BQA0520	Side Support Cover, removable with tools (wipeable cover for the side guard)
BQA0530	Foam for side support cover (internal cushioned pad, which is only possible in combination with BNA0680)
BQA0545	Cover for headrest
BQA0560	Neckrest
BQA0567	Headrest Matrix, 250 mm Soft Pad
BQA0570	Handles Clinic Kit for Head-/Neckrest (Levers which replace screws for easy adjustment)
BQA0576	Calf pad cover, for LH elevating legrest
BQA0577	Knee pad for LH elevating legrest
BQA0586	Calf pad cover, for RH elevating legrest
BQA0587	Knee pad for RH elevating legrest
BQA3333	Without Elevating Legrest Options (Select with Fixed leg rests, Amputee’s leg rests and Without legrests only)

BQA0580	Footplate Extender LH
BQA0590	Footplate Extender RH
BQA0595	Calf Strap (for One piece footrest)
BQA0600	Chassis extender, and castors extend 50mm forward for added stability

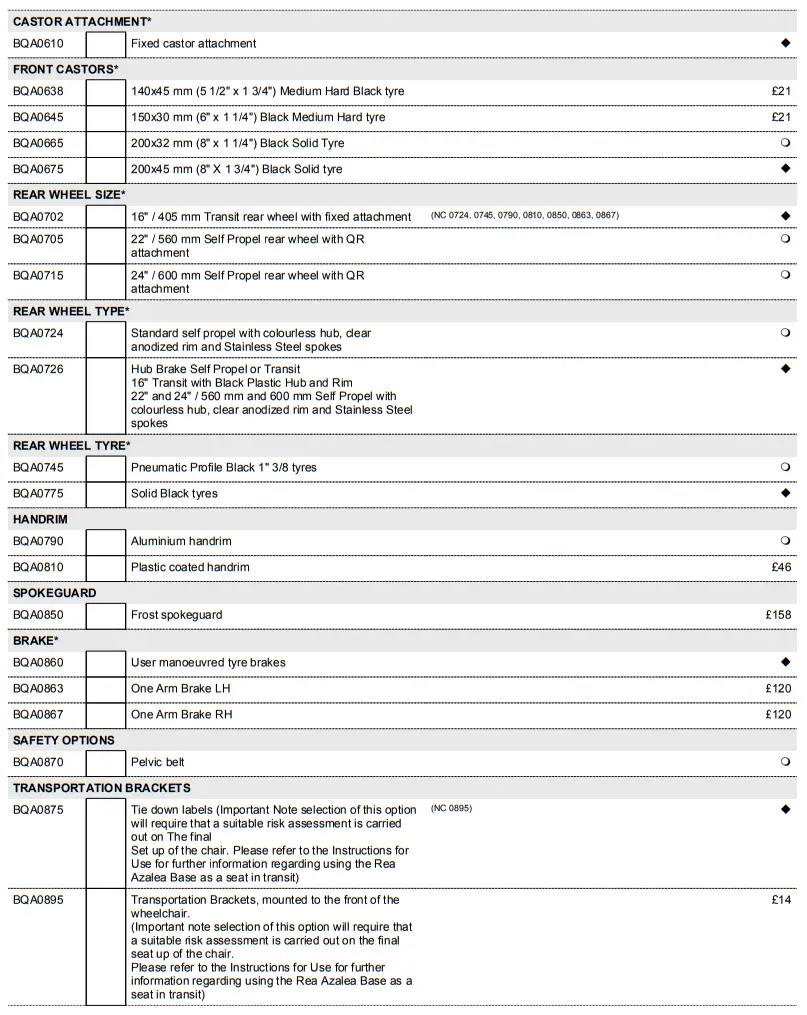

BQA0665	200×32 mm (8″ x 1 1/4″) Black Solid Tyre
BQA0675	200×45 mm (8″ X 1 3/4″) Black Solid tyre
BQA0702	16″ / 405 mm Transit rear wheel with fixed attachment
BQA0705	22″ / 560 mm Self Propel rear wheel with QR attachment
BQA0715	24″ / 600 mm Self Propel rear wheel with QR attachment
BQA0724	Standard self propel with the colourless hub, clear anodized rim and Stainless Steel spokes
BQA0726	Hub Brake Self Propel or Transit 16″ Transit with Black Plastic Hub and Rim 22″ and 24″ / 560 mm and 600 mm Self Propel with a colourless hub, clear anodized rim and Stainless Steel spokes
BQA0745	Pneumatic Profile Black 1″ 3/8 tyres
BQA0790	Aluminium handrail
BQA0810	Plastic coated handrail
BQA0850	Frost spoke guard
BQA0863	One Arm Brake LH
BQA0867	One Arm Brake RH
BQA0895	Transportation Brackets, are mounted to the front of the wheelchair. (Important note selection of this option will require that a suitable risk assessment is carried out on the final seat up of the chair.
	Please refer to the Instructions for Use for further information regarding using the Rea Azalea Base as a seat in transit)

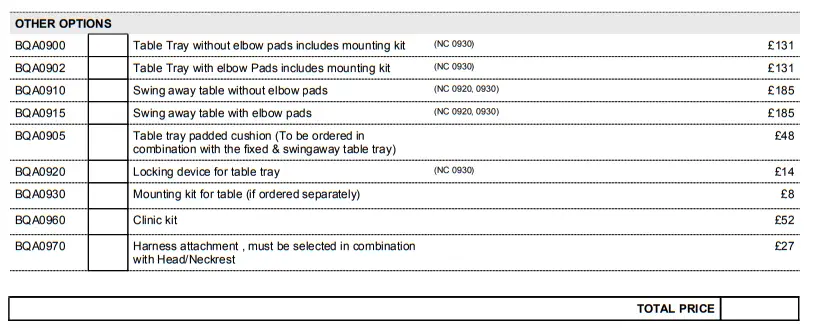

BQA0900	Table Tray without elbow pads includes a mounting kit
BQA0902	Table Tray with elbow Pads includes a mounting kit
BQA0910	Swing away table without elbow pads
BQA0915	Swing away table with elbow pads
BQA0920	Locking device for table tray
BQA0930	Mounting kit for a table (if ordered separately)
BQA0960	Clinic kit
