DSAL009392 Rea Azalea Max
User Manual
Manual Retail Prescription Form
DSAL009392 Rea Azalea Max
Tel: 01656 776222
Fax: 01656 776220
Email: [email protected]
Online Spares are available at: www.invacare.co.uk
Customer Ref*………………
Contact No*…………………….
Delivery Address*…………………………..
Account No*……………………………
Order No*………………………………….
Order Qty*……………………………………………
Order date* ………………………………….
Rea Azalea Max
Standard Features
- Max User Weight 180KG/28 Stone
- Crash Tested ISO 7176-Part 19
- Transit Propulsion with Attendant Hub Brakes and Black Solid Tyres
- Choice of 2 Seat Widths 550mm or 610mm (+50mm width adjustment, +100mm also with Transit)
- Choice of 2 Seat Heights 400mm or 450mm
- Depth Adjustable Seat 530mm-600mm
- Max Contour Seat, (Visco top, Wipeable), Laguna Backrest Contour Cushion (Wipeable)
- Tension and Height Adjustable Backrest (Set with space ‘upwards’), Sideways Adjustable Headrest
- Removable Height Adjustable and Reinforced Armrests ·
- Assistant Operated Gas Piston Seat Tilt -1° – +23° and Backrest Recline to 30° with Tilt Lock
- Angle Adjustable Swingaway Elevating and Removable Legrests with Reinforced Calf Support and 1 Piece Footboard Converter
- Width Adjustable Footplate
- Solid Front Castors
- Height Adjustable Push Handles
- Pearl Silver Frame
- Trunk (Thoracic Lateral) Supports Removable and Multi Adjustable
- User Manoeuvred Tyre Brakes, Pelvic Belt (adjustable on both sides)
- Anti Tippers/Tipping Lever

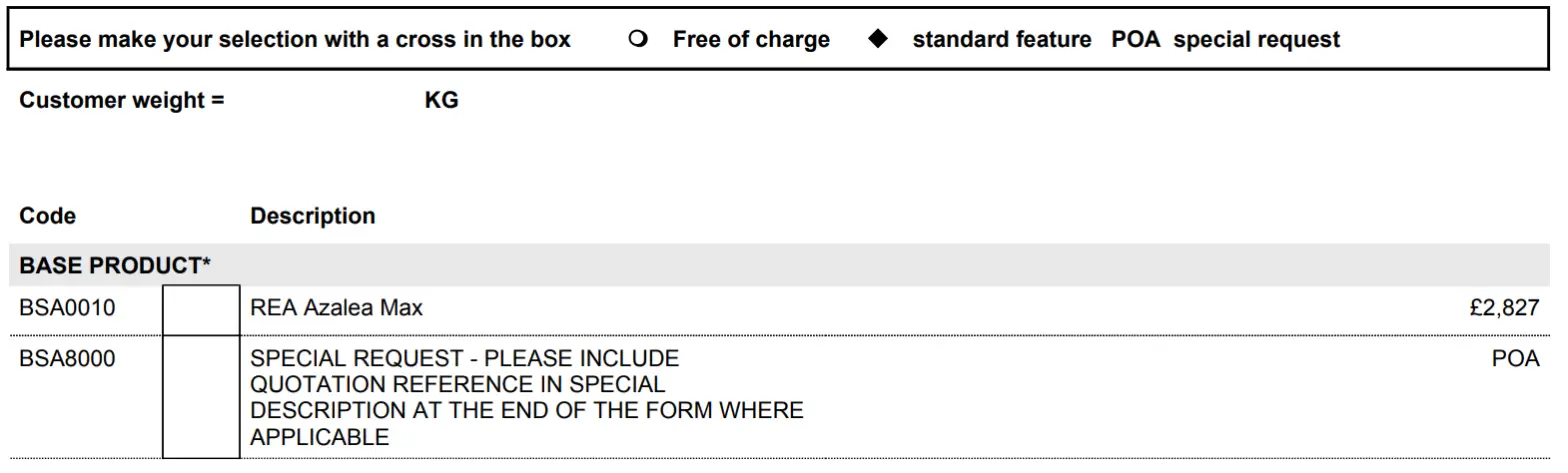

Standard Base price: £2,827
Non-Conforming Options:
| BSA0080 | + 100 mm seat width pre-adjustment on armrests and leg rests |
| BSA0100 | 400 mm / 16″ |
| BSA0145 | Black Plush TR35 |
| BSA0155 | Black Multi-stretch Black PU coated fabric |
| BSA1111 | No upholstery, select option 0135 Without seat cushion |
| BSA0217 | Black Spacer TR36 |
| BSA0605 | Tilt Lock (locking of pre-set angle) |
| BSA2222 | No Tilt Lock, Select with 0250 Electric operated seat and backrest |

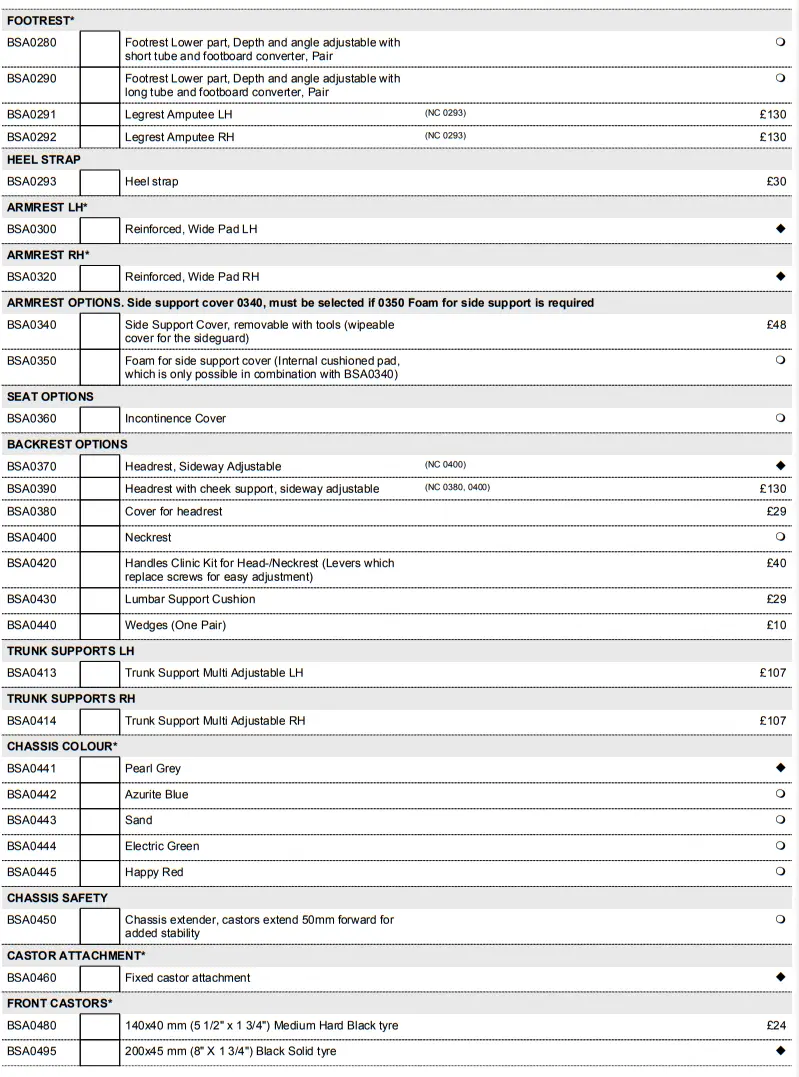

| BSA0290 | Footrest Lower part, Depth and angle adjustable with long tube and footboard converter, Pair |
| BSA0293 | Heel strap |
| BSA0380 | Cover for headrest |
| BSA0400 | Neckrest |
| BSA0450 | Chassis extender, and castors extend 50mm forward for added stability |

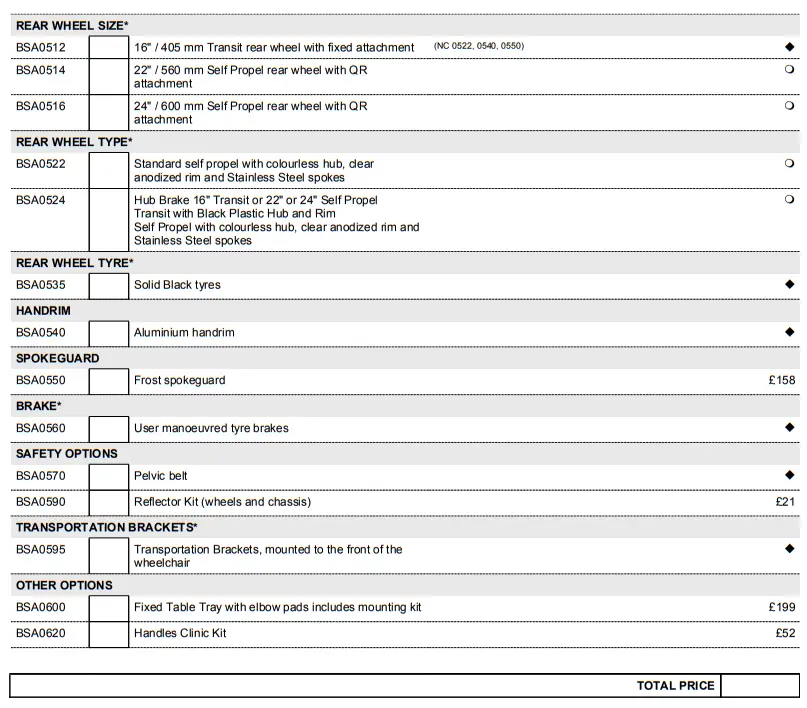

| BSA0495 | 200×45 mm (8″ X 1 3/4″) Black Solid tyre |
| BSA0512 | 16″ / 405 mm Transit rear wheel with fixed attachment |
| BSA0514 | 22″ / 560 mm Self Propel rear wheel with QR attachment |
| BSA0516 | 24″ / 600 mm Self Propel rear wheel with QR attachment |
| BSA0522 | Standard self propel with the colourless hub, clear anodized rim and Stainless Steel spokes |
| BSA0524 | Hub Brake 16″ Transit or 22″ or 24″ Self Propel Transit with Black Plastic Hub and Rim Self Propel with the colourless hub, clear anodized rim and Stainless Steel spokes |
| BSA0540 | Aluminium handrail |
| BSA0550 | Frost spoke guard |
Customer Ref:
Order Number:
Subject to Invacares standard terms and conditions. Invacare reserve the right to alter product specification without prior notice
Special Instructions
Please supply the following information:
Name:……………………
Email:…………………….
Phone:…………………………
Fax:………………………………..
Description of special request (please include relevant option code or part number):
For a more complex customer requirement please refer to our Invacare Unique special order form. email [email protected] or Fax: 01656 776220
Customer Ref:………………………
Order Number:……………………….
Subject to Invacares standard terms and conditions. Invacare reserve the right to alter product specification without prior notice
