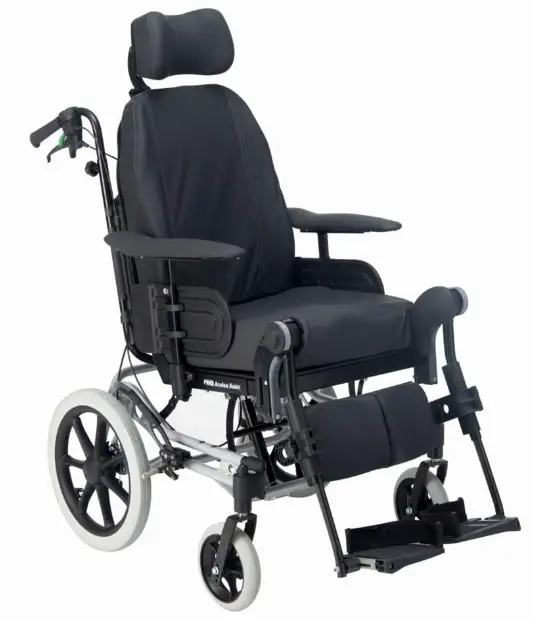

INVACARE Rea Azalea Transit Wheel Chair
Product Information
The product is a Manual Retail Prescription Form manufactured by Invacare.
The product is available in three different sizes:
| Customer Ref | Size | Width (W) | Depth (D) |
|---|---|---|---|
| 1587805 | Rea Azalea TR Stock | 39cm | 43-50cm |
| 1587806 | Rea Azalea TR Stock | 44cm | 43-50cm |
| 1587807 | Rea Azalea TR Stock | 49cm | 43-50cm |
Product Usage Instructions
- Make sure the user weight does not exceed the maximum weight limit of 135kg (21.5 stone).
- Ensure that the product is crash tested according to ISO 7176-Part 19 standards for safety.
- Use the product for transit propulsion purposes.
- Check that the product has a 16-inch black solid tire for durability and stability.
- Utilize the attendant hub brakes with a +50mm pre-width for easy maneuverability and control.
- Select the appropriate size of the product based on the user’s requirements:
| Size | Width (W) | Depth (D) |
|---|---|---|
| Rea Azalea TR Stock | 39cm | 43-50cm |
| Rea Azalea TR Stock | 44cm | 43-50cm |
| Rea Azalea TR Stock | 49cm | 43-50cm |
Please note that the product specifications are subject to change without prior notice. For further details and terms and conditions, refer to Invacare’s official website.
STANDARD FEATURES
- Max user weight: 135kg (21.5 stone)
- Crash tested ISO 7176-Part 19
- Transit Propulsion 16″ Black solid tyre, attendant hub brakes with +50mm pre-width adjustment (Without width adjustment on codes 1585074, 1585075 & 1585076)
- Small, medium or large chassis
- Seat height 450mm/18″
- Depth adjustable seat 430mm-500mm/17″-20″
- Flex 3 Backrest Plate
- Multi-stretch Black PU coated Laguna backrest cushion
- Multi-stretch Black PU coated Flo-shape seat cushion
- Connected push handles
- Assistant operated gas piston seat and backrest recline with tilt lock
- Removable, angle adjustable leg rests with calf pads and angle adjustable footplates
- Height adjustable wide pad armrest (including auto lock)
- Sideways adjustable headrest
- Trunk supports, multi-adjustable extended height
- 200 X 45mm Black medium hard front castors
- User manoeuvred tyre brakes
- Pelvic belt, seat belt attachment bracket
- Front transportation brackets
- Anti-tippers
- Silver grey frame
Please make your selection with a cross in the box
- Free of charge
- standard feature
- POA special request
- Customer weight: KG
