S200 INSTALLATION PREP GUIDE

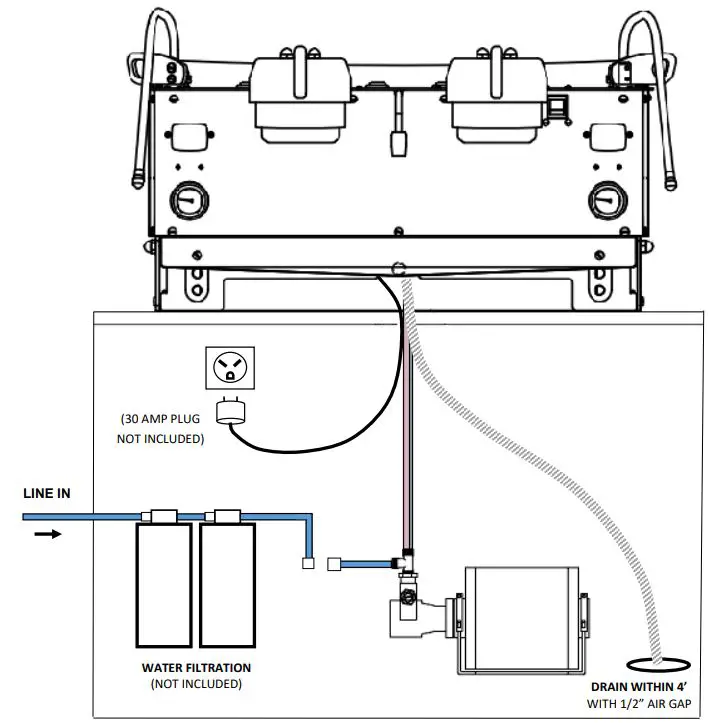

REMOVING LOWER BACK PANEL AND RIGHT SIDE PANEL WILL RE-VEAL ALL WATER LINE ORIGINS
QUICK REFERENCE SPECIFICATIONS

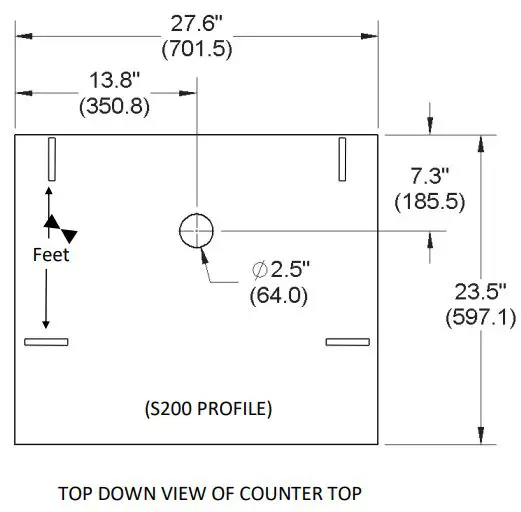

DIMENSIONS: 17”/428mm (H) 28”/702mm (W) 24”/597mm (D)
WEIGHT: 152 lbs/69 kgs
ELECTRICAL: 220V/28A
PLUMBING: Line pressure of 50psi (minimum)
FITTING: 3/8” compression w/ shut off
DRAINAGE: Within 4 feet of machine
FOR COMPLETE INSTALL INSTRUCTIONS, PLEASE REFER TO THE TECHNICAL MANUAL
