Barista T Coffee Machine
Installation Guide
U.S. Installation guideline
BARISTA T

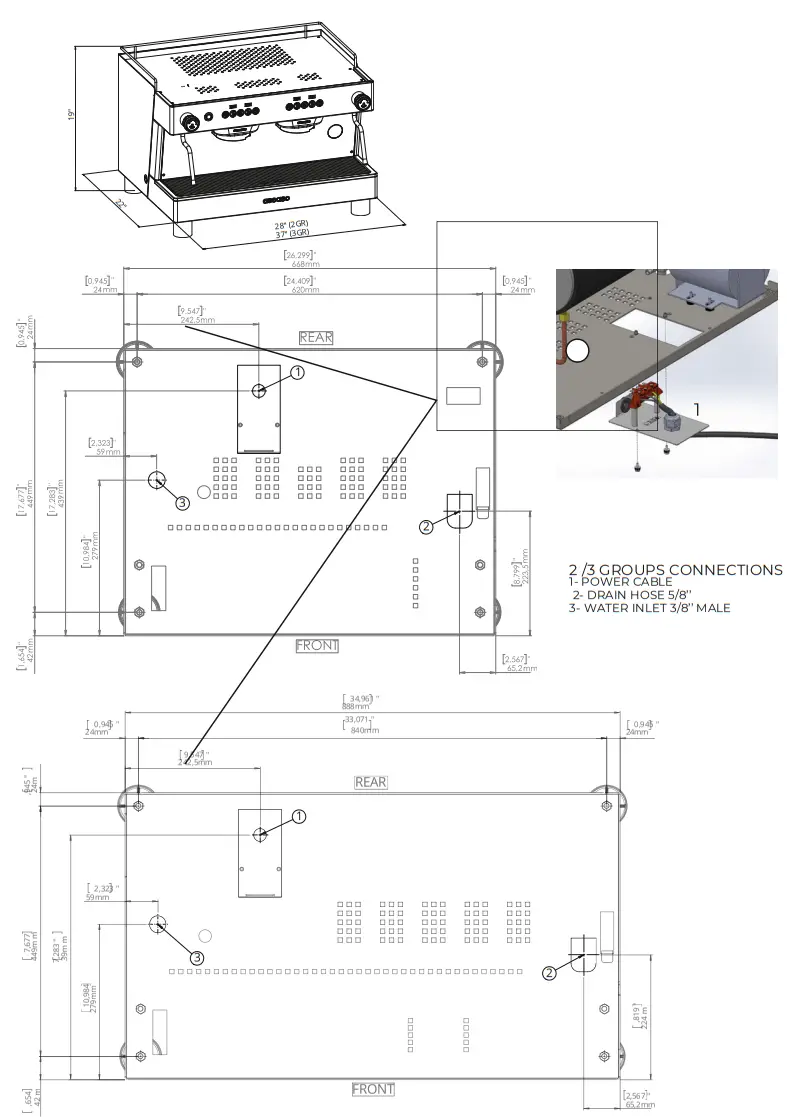

Barista T Coffee Machine
| Dimensions | 2 groups | 3 groups |
| Height | 19’’ | 19’’ |
| Width | 28’’ | 37’’ |
| Depth | 22’’ | 22’’ |
Weights
| Shipping Weight | 157 lbs | 205 lbs |
Power
| Voltage/Phase/Cycle | 208-240 VAC 1Ø 60Hz | 208-240 VAC 1Ø 60Hz |
| Wattage | 5500 | 6500 |
| Full Load Amp Draw | 23A | 28A |
| Suggested Receptacle | 6-30R or L6-30R | 6-30R or L6-30R |
Water Specifications
| T.D.S | 90-150 ppm | PH | 6.5-8 |
| Total Hardness | 50-70 ppm | Alkalinity | 40-80 ppm |
| Total Iron | 0-0.02 ppm | Chloride | 0-30 ppm |
| Free Chlorine | 0-0.05 ppm | Line Pressure | 40-80 PSI |
| Total Chlorine | 0-0.1 ppm | Flow Rate | 2 GPM or 8 LPM |
*This machine must be installed in accordance with the applicable federal, state and local plumbing codes
Ascaso Factory SLU
Coneixement 1 Pol. Ind.
GaváPark 08850 Gavá / Barcelona / Spain
Tel. (34) 93 475 02 58
[email protected]
www.ascaso.com
