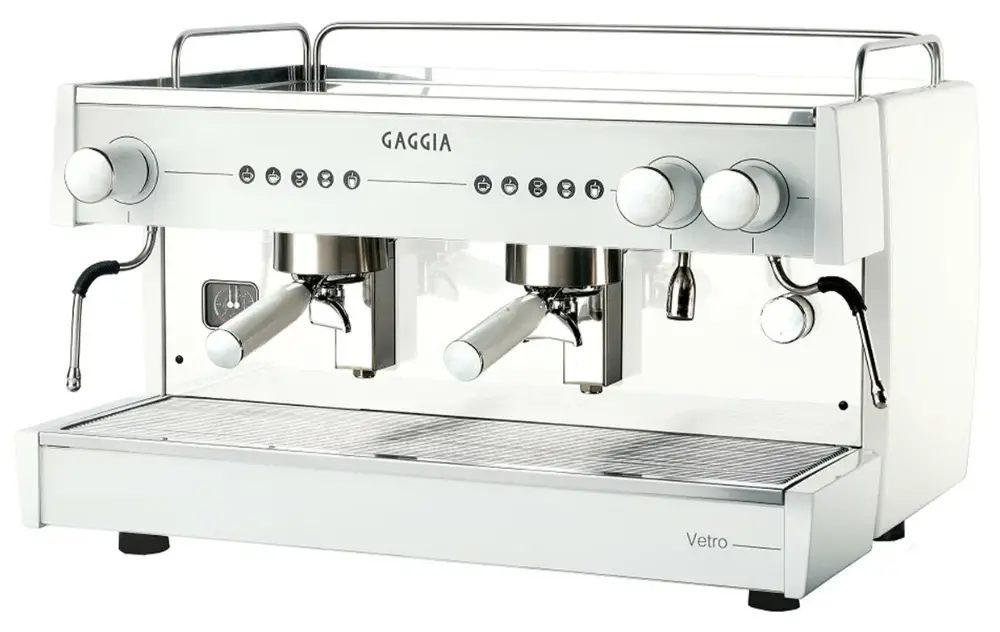

GAGGIA Vetro Espresso Machine
SPECIFICATION
| Model | STANDARD Version | TALL Version | ||
| 2 Groups | 3 Groups | 2 Groups | 3 Groups | |
| Dimensions (WxHxD) | 28.7” x 18.5” x 20.9’’ | 35.4” x 18.5” x 20.9’’ | 28.7” x 20.5” x 20.9’’ | 35.4” x 20.5” x 20.9’’ |
| Weight | 100 lb | 137 lb | 100 lb | 137 lb |
| Power Cord Plug | NEMA 6-20P | NEMA 6-30P | NEMA 6-20P | NEMA 6-30P |
| Max Absorbed Power | 3700 W | 4800 W | 3700 W | 4800 W |
| Voltage & Frequency | 220 V / 60 Hz | |||
GENERAL MACHINE ENVIRONMENT
- The installation area is clean and clear of dust and tools. It is not located in an active construction zone.
- The counter accommodates the machine size and weight (check selected model).
- An access hole has been pre-drilled in the counter for drainage and power in accordance with model installation template.
- Hole in counter is fitted with a collar to protect electrical cord, water line & drain tube.
- Machine can safely be installed with minimum clearances of 3” from the back wall, 4” on each side and 12” on top.
ELECTRICAL REQUIREMENTS
- Power outlet receptacle is NEMA 6-20R (2 groups models) or NEMA 6-30R (3 groups models).
- Dedicated electrical circuit meets the selected Vetro model power requirements.
- No extension cord or power strip on the circuit.
WATER SPECIFICATIONS
Pressure & Hardness
- Pressure is between 44 PSI & 116.03 PSI.
- pH range is between 6.5 & 7.5.
- Hardness (TDS) is between 89 PPM & 142 PPM.
- Machine water line is equipped with softness/filtration system and descaling device.
Water Network
- The water network provides cold, drinkable tap water.
- Dedicated 3/8” diameter water line.
- Shutoff valve with a 3/8” G male pipe fitting on machine’s end.
HIGHLY RECOMMENDED: Connection to a floor drain in accordance with local health code.
Vetro Installation Checklist | 2022-10
CUSTOMER SUPPORT
Evoca North America
2355, avenue Dalton, Québec (Québec) G1P 3S3 Canada
T: 800-561-6162 F: 800-463-2739
