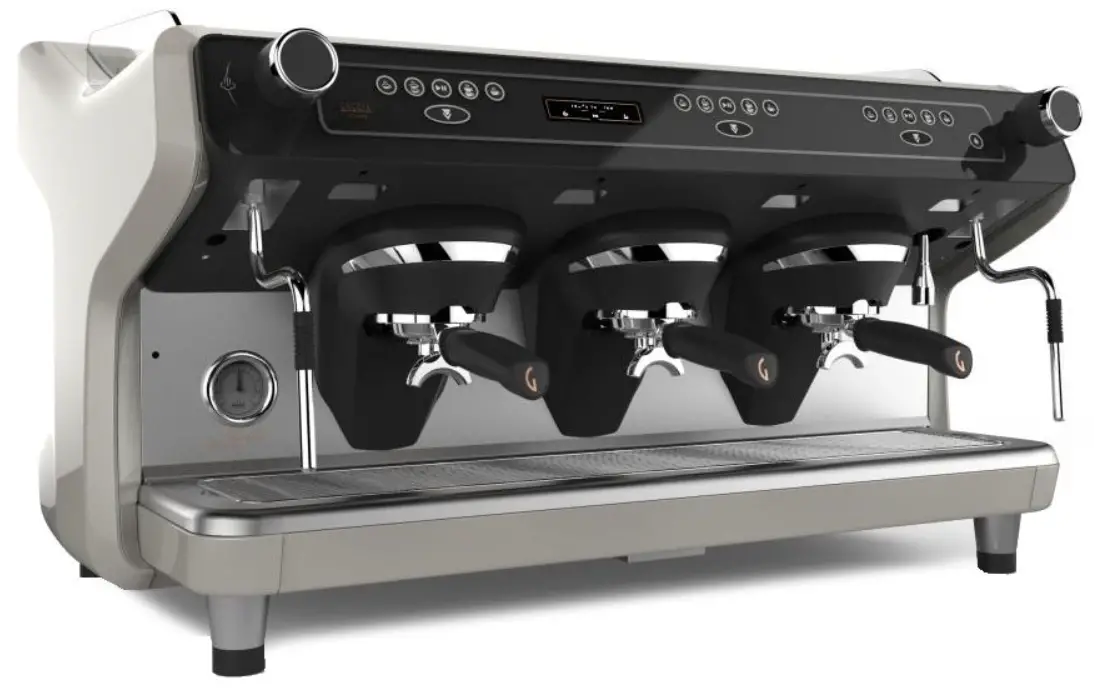

GAGGIA Giusta Coffee Machine
SPECIFICATION
| Model | Tall Version | |
| 2 Groups | 3 Groups | |
| Dimensions (WxHxD) | 29.9” x 21.5” x 25” | 38.9” x 21.5” x 25” |
| Weight | 172 lb | 207 lb |
| Power Cord Plug | NEMA 6-30P | NEMA 6-50P |
| Max Absorbed Power | 4000 W | 5400 W |
| Voltage & Frequency | 220 V / 60 Hz | |
GENERAL MACHINE ENVIRONMENT
- The installation area is clean and clear of dust and tools. It is not located in an active construction zone.
- The counter accommodates the machine size and weight (check selected model).
- An access hole has been pre-drilled in the counter for drainage and power in accordance with model installation template.
- Hole in counter is fitted with a collar to protect electrical cord, water line & drain tube.
- Machine can safely be installed with minimum clearances of 3” from the back wall, 4” on each side and 12” on top.
ELECTRICAL REQUIREMENTS
- Power outlet receptacle is NEMA 6-30P (2 groups models) or NEMA 6-50P (3 groups models).
- Dedicated electrical circuit meets the selected Giusta model power requirements.
- No extension cord or power strip on the circuit.
WATER SPECIFICATIONS
Pressure & Hardness
- Pressure is between 21.8 PSI & 116.0 PSI.
- pH range is between 6.5 & 7.5.
- Hardness (TDS) is between 89 PPM & 142 PPM.
- Machine water line is equipped with softness/filtration system and descaling device.
Water Network
- The water network provides cold, drinkable tap water.
- Dedicated 3/8” diameter water line.
- Shutoff valve with a 3/8” G male pipe fitting on machine’s end.
HIGHLY RECOMMENDED: Connection to a floor drain in accordance with local health code.
La Giusta Installation Checklist | 2022-10
