Encore
Parts List & Exploded View
MAIN ASSEMBLY

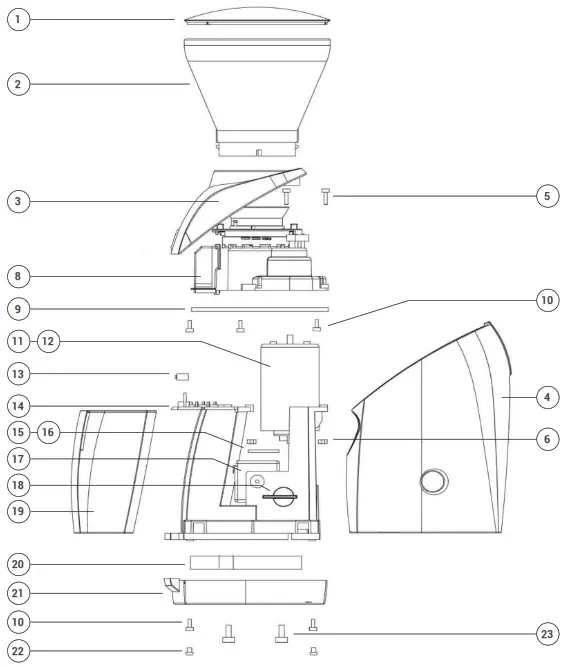

ENCORE MAIN ASSEMBLY
| Item Number | Part Number | Part Description | Total Used |
| 1 | 1010** | Hopper Lid Clear | 1 |
| 2 | 6111** | Hopper Clear | 1 |
| 3 | 6013 | Black Top Case (Encore) | 1 |
| 3 | 6013-W | White Top Case (Encore) | 1 |
| 4 | 6051 | Black Rear Case (Encore) | 1 |
| 4 | 6051-W | White Rear Case (Encore) | 1 |
| 5 | F6119* | M3x20 Machine Screw | 2 |
| 6 | F6120* | M3 Hex Nut | 2 |
| 8 | na | Conical Gearbox Sub-Assembly | 1 |
| 9 | 6094* | Conical Motor Plate (with bushing) | 1 |
| 10 | F6121* | M3.5×11 Plastic Thread Cutting Screw | 8 |
| 11 | 6026** | 120V Motor (Encore/Virt/Virt+/Preciso) | 1 |
| 12 | 6027** | 230V Motor (Encore/Virt/Virt+/Preciso) | 1 |
| 13 | 6032* | Micro Switch | 1 |
| 14 | 6035 | Conical Chassis | 1 |
| 15 | 6082* | 120v Printed Circuit Board | 1 |
| 16 | 6083* | 230v Printed Circuit Board | 1 |
| 17 | 6037 | On/Off Switch | 1 |
| 18 | 6038* | Black On/Off Knob (Encore) | 1 |
| 18 | 6038-W* | White On/Off Knob (Encore) | 1 |
| 19 | 6142 | Conical Grounds Bin Clear w/Fill Line | 1 |
| 20 | 6021 | Ballast for EncoreNirVVirt+/Preciso | 1 |
| 21 | 6045 | Black Plastic Base (Encore) | 1 |
| 21 | 6045-W | White Plastic Base (Encore) | 1 |
| 22 | 6049** | Rubber Foot | 4 |
| 23 | F6,122 | M6-1.25×8 machine screw | 2 |
** Frequently needed service parts
* Occasionally needed service parts NOTE: No need to stock parts without asterisks.

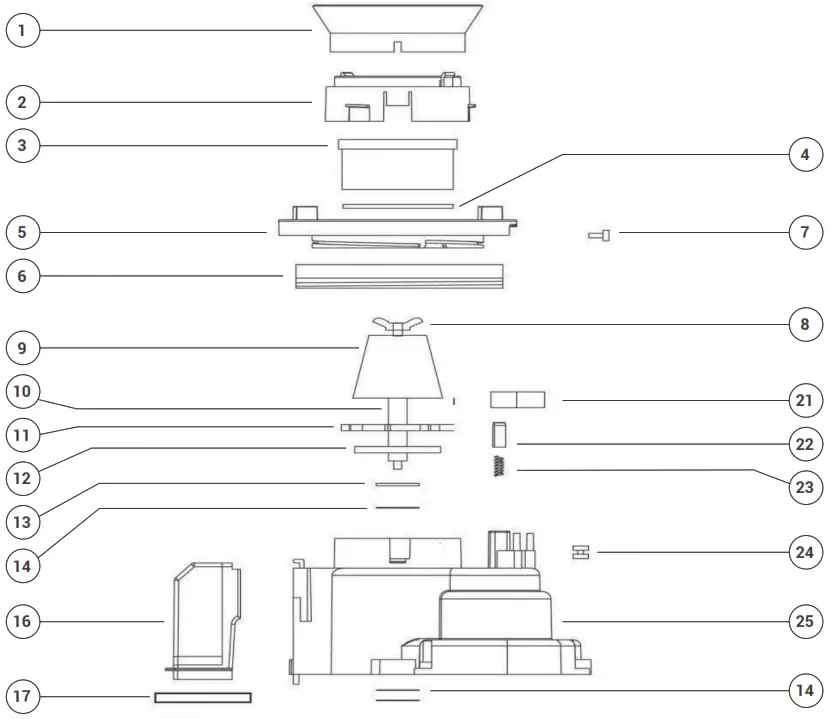

ENCORE GRIND/MOTOR ASSEMBLY

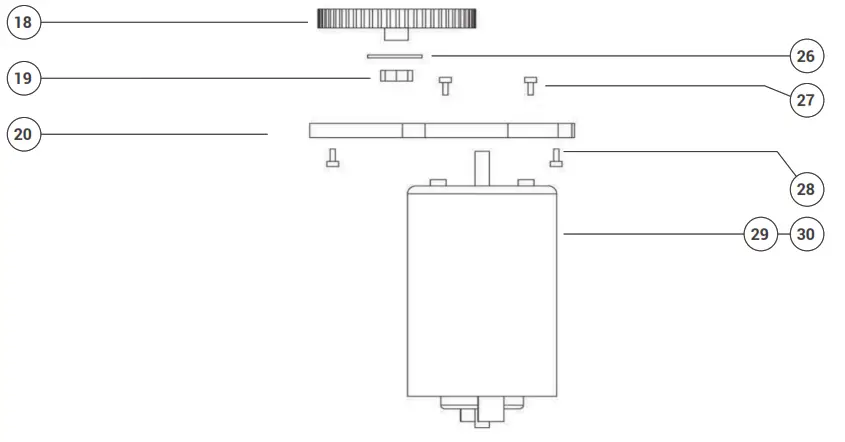

BARATZA Coffee Grinder – EENCORE GRIND -1
| Item number | Part Number | Part Description | Total Used |
| 1 | 6066** | Silicone Gasket | 1 |
| 2 | 6068** | Ring BUR Holder | 1 |
| 3 | 6170* | M2 Ring BUR | 1 |
| 4 | 6065* | Ring BUR 0-Ring | 1 |
| 5 | 6076** | Adjustment Ring | 1 |
| 6 | 6077** | Calibration Ring | 1 |
| 7 | F6177* | M2x6 Self Tapping Screw | 1 |
| 8 | F6,179 | M4 left-hand thread wing nut | 1 |
| 9 | 6173 | M3 Cone Burr | 1 |
| 10 | 6079* | Encore Shaft (Accepts Wing Nut) | 1 |
| 11 & 12 | 6380** | Paddle Wheel w/Feit | 1 |
| 13 | F6087* | M10-16mmOD, 2.5mm thick washer shim | 1 |
| 14 | F6085* | M10-16mmOD, 0.25mm thick washer shim | 3 |
| 16 | 6088 | Ground Chute | 1 |
| 17 | 6089 | Ground Chute Gasket | 1 |
| 18 | 6091** | Main Drive Gear | 1 |
| 19 | F6,192 | M8 hex nut | 1 |
| 20 | 6094* | Conical Motor Mounting Plate (with bushing) | 1 |
| 21 | 6032* | Micro Switch | 1 |
| 22 | 6196** | Detent | 1 |
| 23 | 6197* | Detent Spring | 1 |
| 24 | 6105* | Grommet Sleeve Assembly | 1 |
| 25 | 6000 | Conical Gearbox Housing (w/2 of 6105 Grmt Slv & detent spring) | 1 |
| 26 | F6,193 | M8 Internal tooth star lock washer | 1 |
| 27 | F6,189 | M5x12 Machine Screw | 2 |
| 28 | F6,121 | M3.5×11 Plastic Thread Cutting Screw | 4 |
| 29 | 6026** | 120V Motor (EncoreNirt/Virt+/Preciso) | 1 |
| 30 | 6027** | 230V Motor (EncoreNirt/Virt+/Preciso) | 1 |
** Frequently needed service parts
* Occasionally needed service parts NOTE: No need to stock parts without asterisks.
www.baratza.com
Rev 02/04/21 (v7)
