F18 Espresso Machine
User Guide
Sanremo F18 Installation
Disclaimer:
Installation must be performed by a professional technician. Improper installation can void a warranty, permanently damage equipment, and/or present burn & electrical hazards to the installer/user. Consult with local municipality for official electrical and plumbing codes/guidelines.
Consult user manual for expanded installation, operation, and safety guidelines.

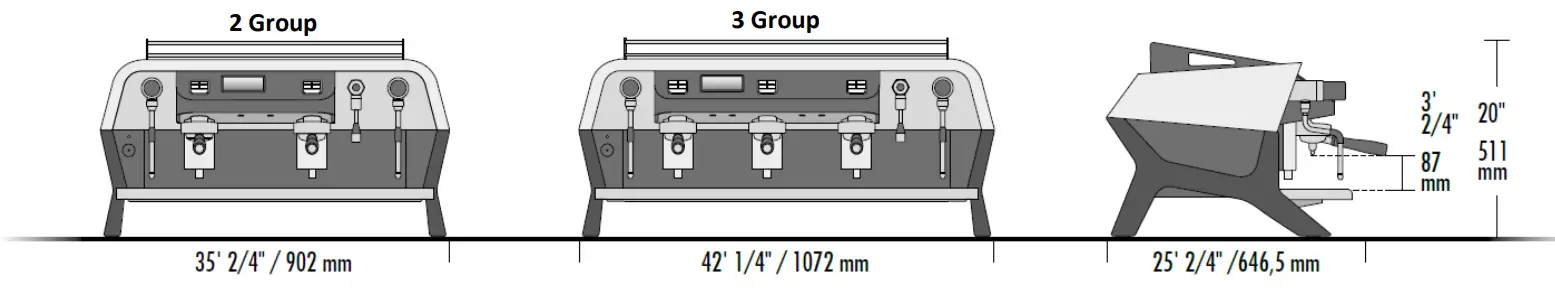

Dimensions
Water Requirements
| Dedicated cold water line with shut-off valve Minimum incoming line pressure of 29 PSI / 2 BAR and max line pressure of 65 PSI / 4.5 BAR | |
| Total Dissolved Solids (TDS): | 30-150 ppm |
| Total Hardness: | Below 85 ppm |
| pH: | 6.5-8 |
| Chlorides: | 5-15 ppm Any presence of Chlorides can cause corrosion’ |
| Total Alkalinity: | 35-75 ppm |
| Total Chlorine: | 0 ppm |
| Iron: | 0 ppm |
| Water levels outside of these parameters can void the warranty. Consult with a water filtration professional for water testing and recommended systems. | |
Electrical Requirements
2 Group | 3 Group | Receptacle & Plug Configuration | |
| • Volts: 220 (voltage range of 208-240) 60Hz • Single phase / 3 wire (2 hot + 1 ground) • Watts: 3500 – 5400 (Ships @ 5400W) • Amp draw: Min: 15A Max: 23A (Ships 0 23A) • Receptacle / plug: NEMA 6-50 • Plug included | • Volts: 220 (voltage range of 208-240) 60Hz • Single phase / 3 wire (2 hot + 1 ground) • Watts: 3500 – 6100 (Ships 0 6100W) • Amp draw: in: 15A Max: 7A (Ships 27A) • receptacle plug: EMA 6- 0 • Plug included |  6-50R |  6-50P |
Connection & Counter Hole Diagrams
3″ hole in counter recommended for passage of electrical cord & water/drain lines.
Counter hole placement is recommended being center of the machine and 12.5″ inward from the edge of the drip tray.
First start (boiler fill) procedure

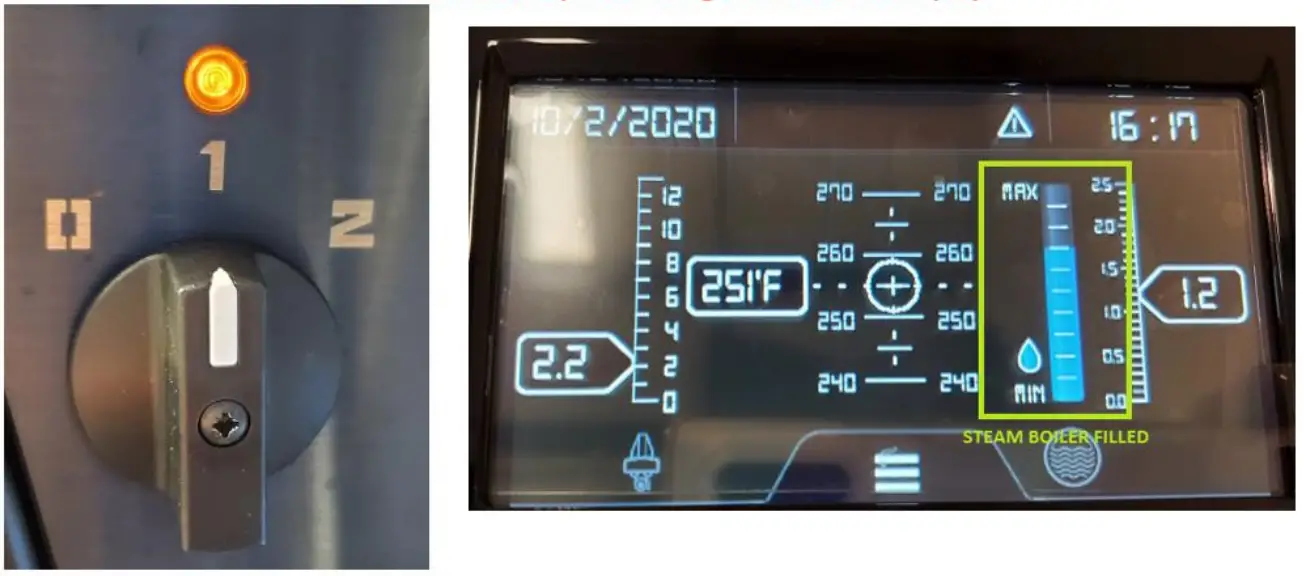

Turn the main switch to position “1”, allow the steam boiler to auto-fill, confirm boiler fill was successful and has not timed out by referencing the water level on display:
If the machine has timed out, cycle the machine off/on (position “1”) again and allow it to auto-fill. If the machine is still timing out, shut the machine down and re-check the inlet water line/ filtration system and confirm water flow to the machine.

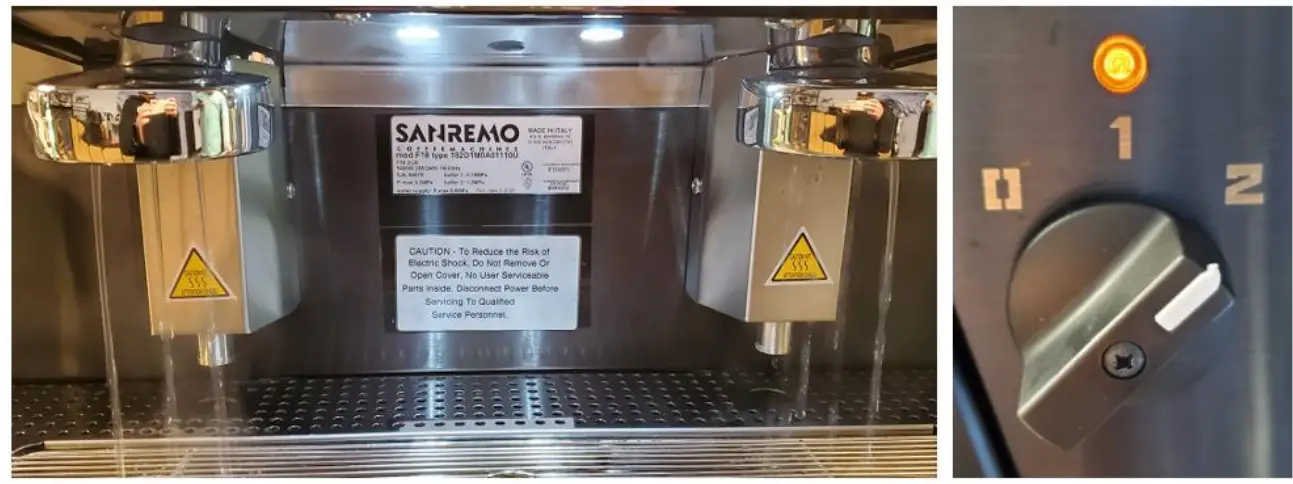

When the machine has successfully auto-filled the steam boiler, turn on all groups and confirm water flow. Once water is flowing from groups, turn them off and switch to position “2”.
The machine will began to heat

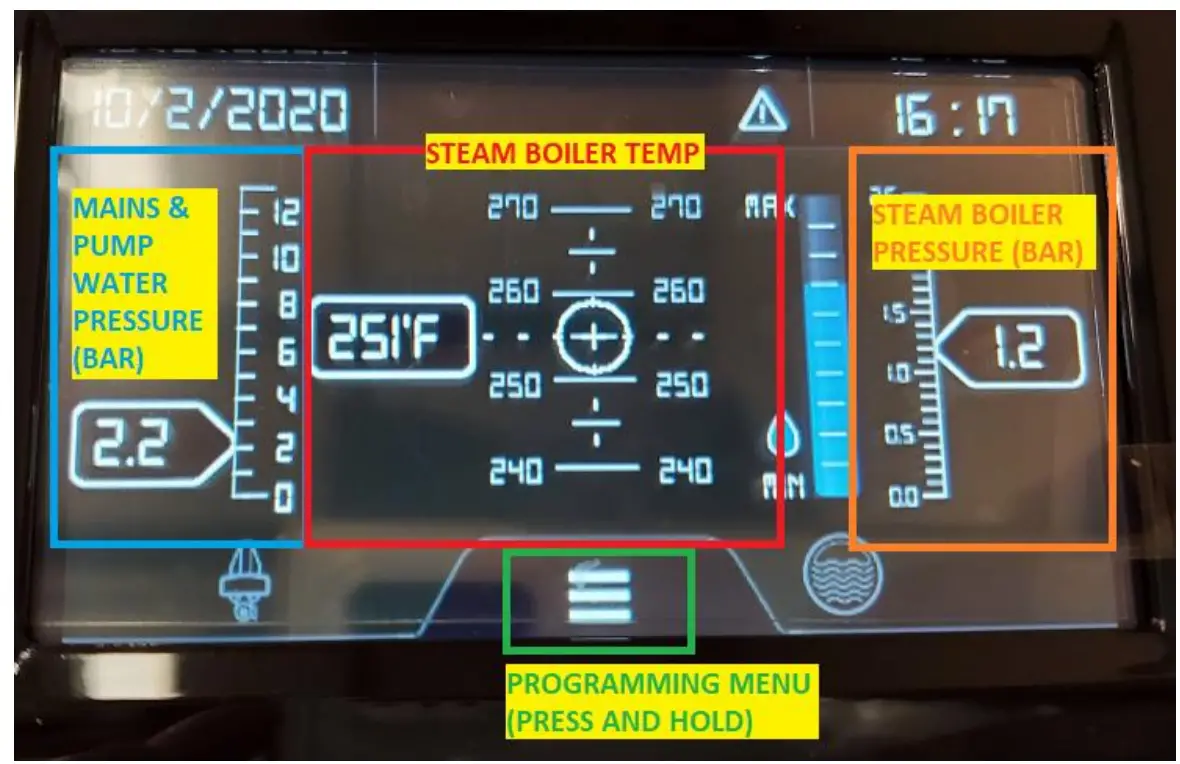

Display readout

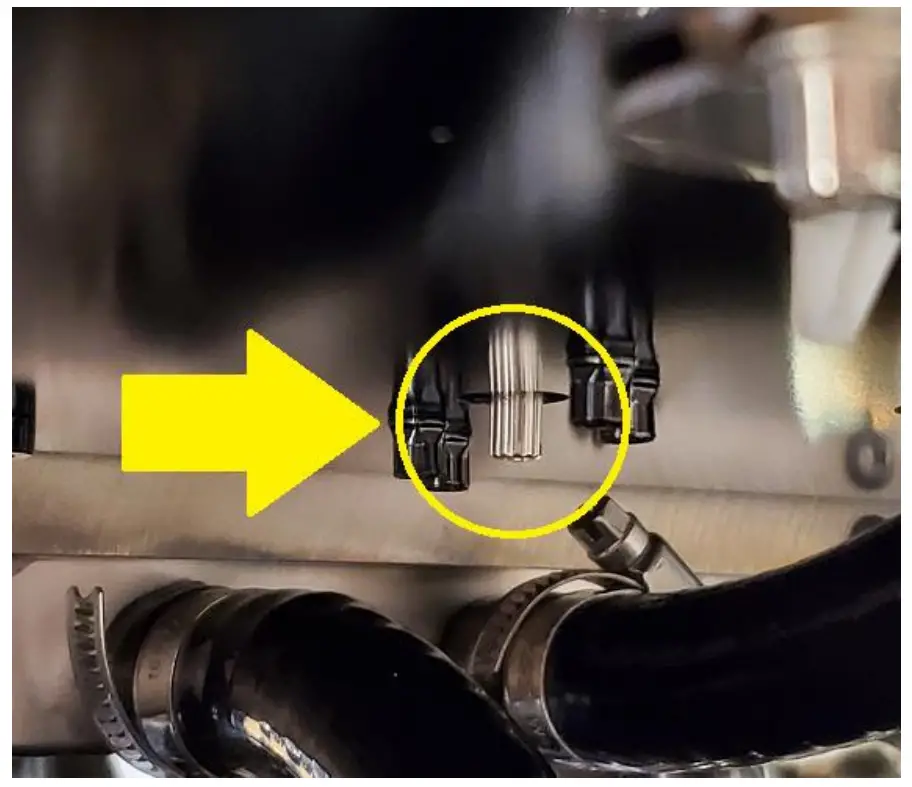

Pump adjustment
Prepare a portafilter with coffee at the desired dose/grind calibration and insert it into the group. Turn the group on by selecting the continuous (SR logo) button, locate the pump adjustment knob and set your desired pump pressure WHILST the group is extracting the coffee.
Adjusting water mix for hot water tap

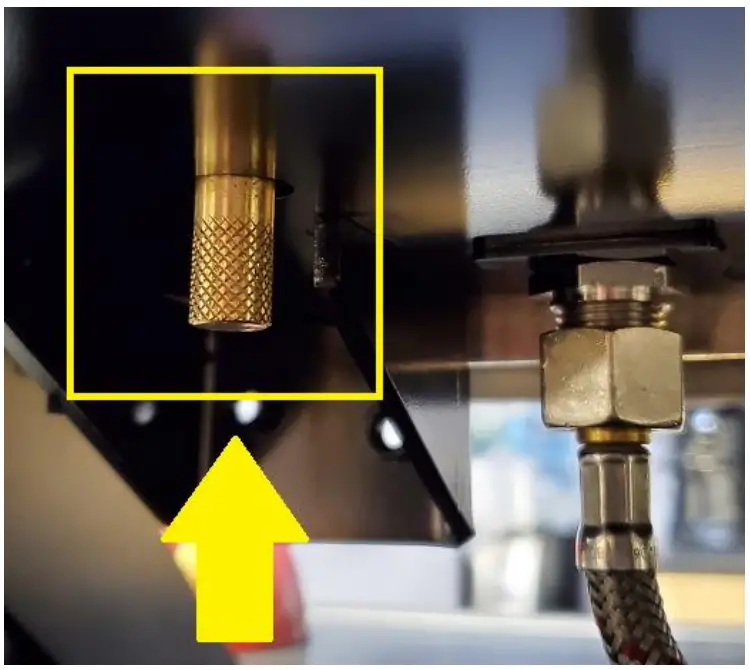

Water mix valve located above machine drain
Programming menu is accessed by pressing and holding the lower ‘3 lines’ on the display

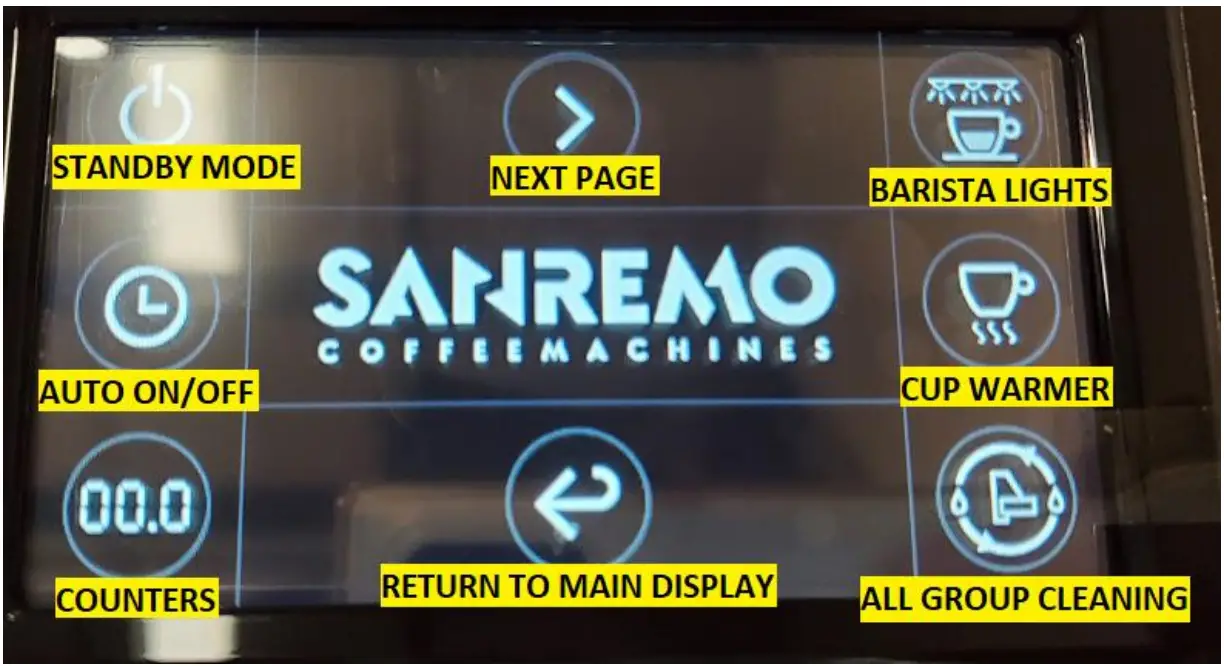

Programming page 1

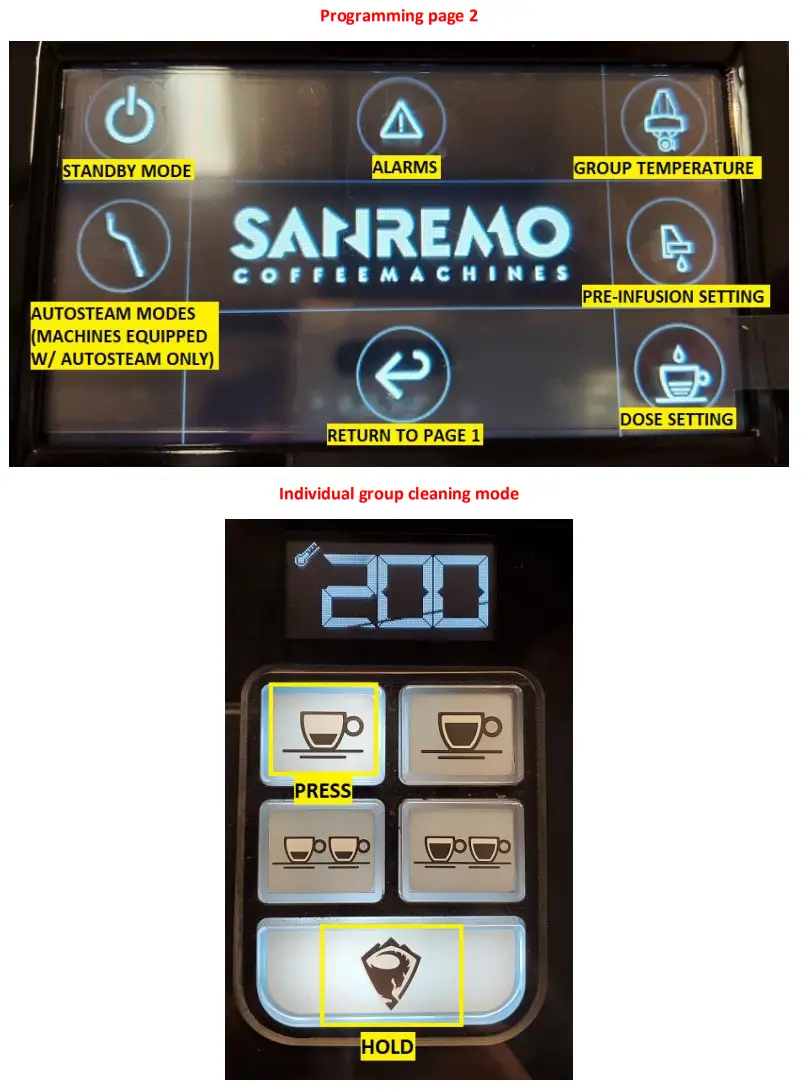

Programming page 2
