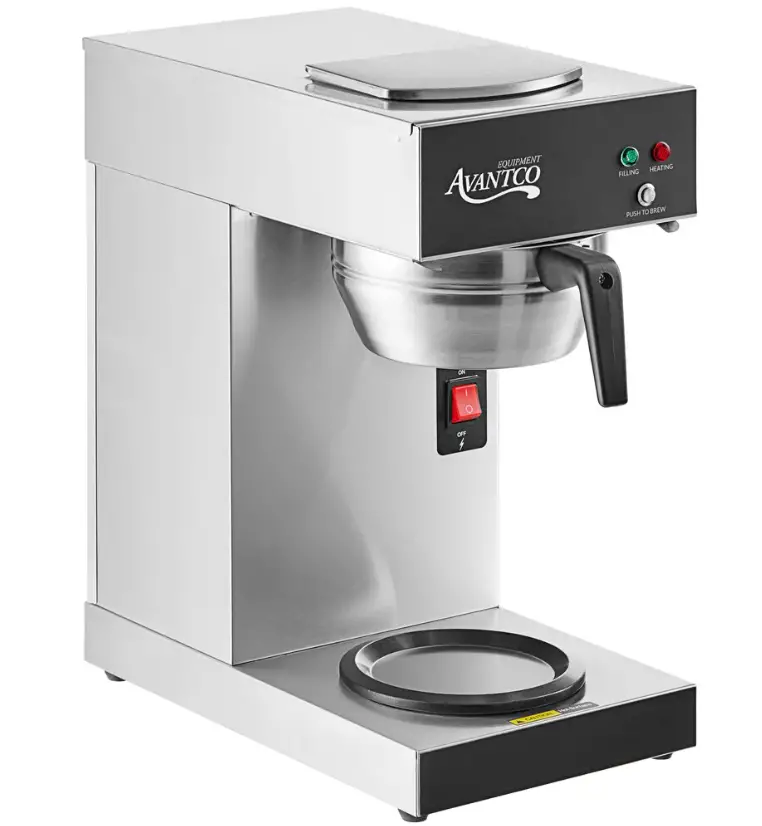

AVANTCO 177CMA1B Automatic Coffee Makers Machine

Important Safety Information

• This appliance is designed for commercial use only.
• This appliance must be placed on a level surface able to adequtely support its weight.
• Users should not leave the appliance unattended while it’s is in operation.
• Never immerse the appliance in water.
• Do not unplug the appliance if your hands are wet.
• Do not unplug the appliance by pulling the cord.
• Do not attempt to repair or replace the power cord if it becomes damaged. Contact a qualified service agent.
• While the appliance is in use, some parts will become very hot. Ensure that the cord does not come in contact with any hot parts.
• Be careful not to touch any hot surfaces.
• Do not allow empty decanters to sit on the hot plate.
• Do not plug in or energize this appliance until installation directions are read and followed.
• Be careful not to touch any hot surfaces. Hot surfaces include, but are not limited to, burners, appliance surfaces, brew chamber, and servers.
• Ensure all operators of the appliance are familiar with all instructions and warnings.
• Brewer must be properly grounded to avoid shock hazard.
• Use appliance only for intended purpose.
• Please keep this manual with appliance.

Installation

As stated in the warranty, poor water quality will void warranty. Whenever installing new plumbed in equipment, water should be tested and new water filtration catridge/system installed by a certified technician. Avantco recommends item 790OCLOKITL from C Pure

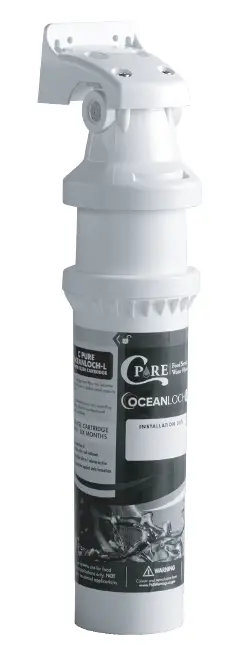

#790OCLOKITL
C Pure Oceanloch-L Water Filtration System – 1 Micron Rating and 1.67 GPM

1. Position the brewer on a sturdy, level surface.
2. Connect the brewer to a water source with a water pressure between 20 and 90 psi using a ½” connection
3. Plug the brewer into a power source with the correct voltage.
4. Place empty glass decanter or airpot under the funnel.
5. Turn the brewer on and press the brew button
6. The filling indicator will light up
7. Hot water should start to flow into the pot after approximately 30 sec
8. Repeat steps 4-7 twice to clean the internal parts of the brewer before brewing coffee for the first time.

Operation

Controls

1. Power Switch – Controls power to the entire brewer
2. Brew Button – Begins brew cycle with one push (177CMAPADJ offers two brew settings)
3. Filling indicator light – Shows that the tank is filling with water
4. Heating Indicator light – Shows the water is heating in preparation to begin brew cycle
5. Warmer Switches – Each switch controls 1 warmer. On/Off setting

Decanter Brewers

1. Remove the funnel, and insert a paper coffee filter.
2. Add the appropriate amount of coffee grounds and level across filter. Return the funnel to its correct position.
3. Make sure the empty decanter is positioned correctly under the funnel.
4. Turn the power switch on.
5. Press the Brew button.
6. Coffee will start to flow into the pot in approximately 30 seconds.
7. When the Heating indicator turns off, the brew cycle has completed
8. Do not remove the server until the coffee stops flowing.
9. Dispose of used coffee grounds and filter.
10. Rinse the funnel.
11. To brew a second batch wait until filling and heating lights are off and restart from step 1

Airpot Brewer – 177CMAPADJ

1. Remove the funnel, and insert a paper coffee filter.
2. Add the appropriate amount of coffee grounds and level across filter. Return the funnel to its correct position.
3. Make sure the empty airpot or server is positioned correctly under the funnel.
4. Turn the power switch on.
5. Press the brew switch to the desired batch size.
6. Coffee will start to flow into the pot in approximately 30 seconds.
7. When the Heating indicator turns off, the brew cycle has completed
8. Do not remove the server until the coffee stops flowing.
9. Dispose of used coffee grounds and filter.
10. Rinse the funnel.
11. To brew a second batch wait until filling and heating lights are off and restart from step 1

Using Pour-over Mode (All models)

1. Follow above steps 1-4 (Do not press the brew button or toggle the brew switch)
2. Fill pour-over with a completely full pot of coffee. Brewer can not do 1/2 or 3/4 pots. Full pots only.
3. Water from the basin will displace the same amount of water from the heated tank. The hot water will go into the brew head and spray over the grounds. Coffee will begin to brew into the below container.
4. When the flow and dripping stops, the coffee is ready to serve.
5. Follow steps 9-11

Cleaning

Regular cleaning ensures long life. For dirt or smudges on the brewer’s exterior, a damp cloth will suffice. If necessary, a non-corrosive, non-abrasive detergent or cleaner may be used. Be sure to unplug the appliance before cleaning. Check and clean the sprayhead ensuring the holes remain open to provide optimal brewing.

Directions for Cleaning Glass Decanters

Use daily for best results

1. Shake bottle. Apply 3-4 squirts (approx. 1/4 oz. Per 1 gal. of liquid) of Klearly Koffee into the decanters
   (not included). Add very hot water (not boiling).
2. Use a carafe brush for best results on tough stains.
3. Empty solution and rinse vessel thoroughly with clean, warm water. Air dry or wipe clean before next use.

The Importance of Deliming

To prolong your coffee brewer’s life and maintain a consistent, quality product, regular deliming is recommended. When hard water is heated, minerals are left behind which can inhibit optimum performance. You should perform the following deliming process at least every 6 months. If your water is extremely hard, monthly deliming is recommended.

Deliming Procedure

• Mix 10 oz. of fresh or condensed lemon juice with 32 oz. of water and pour it into the water reservoir.
• Make sure an empty decanter is underneath the funnel, and turn the unit “ON” as if you are brewing a pot of coffee.
• If the brewer has stopped working, the use of a deliming spring (sold separately) may be necessary to loosen lime deposits in the spray head.
• After the brewer has completed its cycle, turn it “OFF” and empty the decanter.
• Run two or three brewing cycles of plain water through the machine to rinse out all traces of the lemon water solution before brewing more coffee.

If the brewer suddenly stops working during a normal brewing cycle, deliming may be necessary.

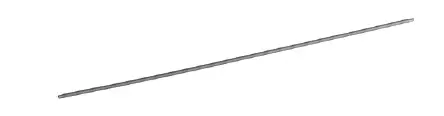

20” Deliming SpringThis deliming spring fits into the sprayhead opening of pour-over coffee makers to loosen lime deposits. Made of stainless steel. Sold Separately.

Coffee Maker Deliming Spring

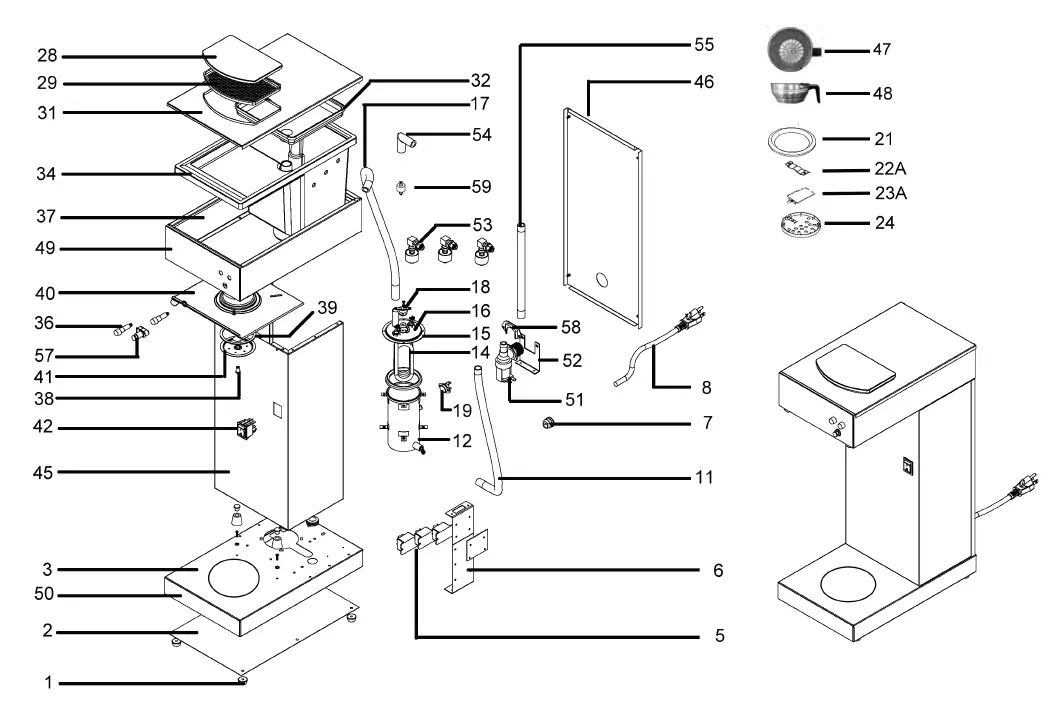

177CMA1B Parts Diagram

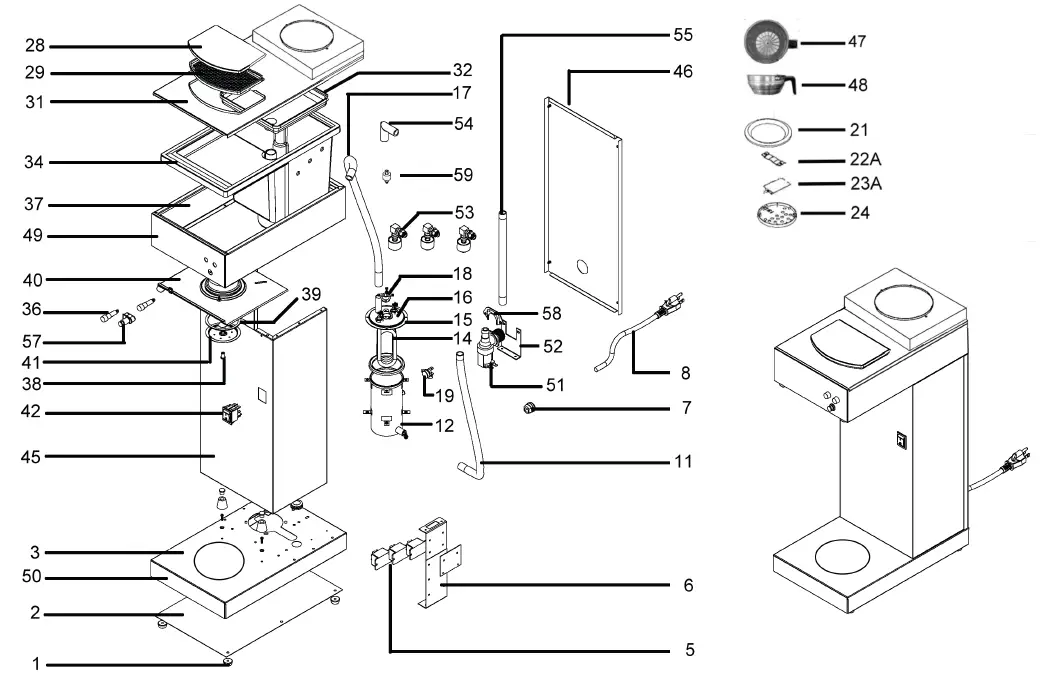

177CMA2B Parts Diagram

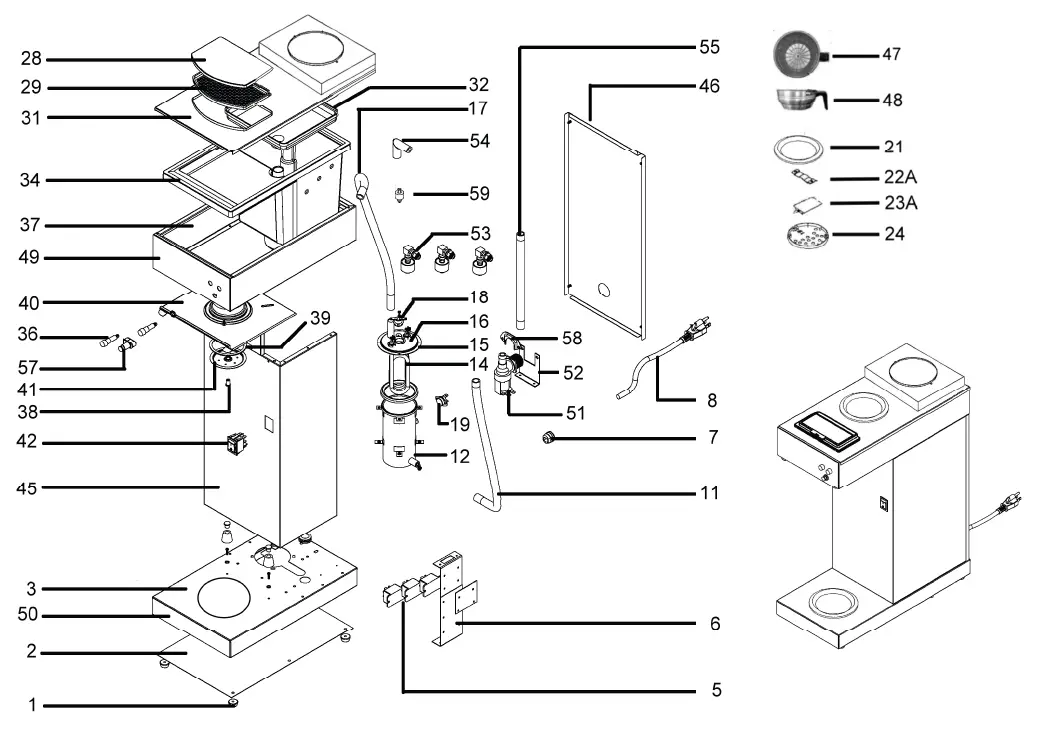

177CMA1L2U Parts Diagram

Decanter Brewers Spare Parts List

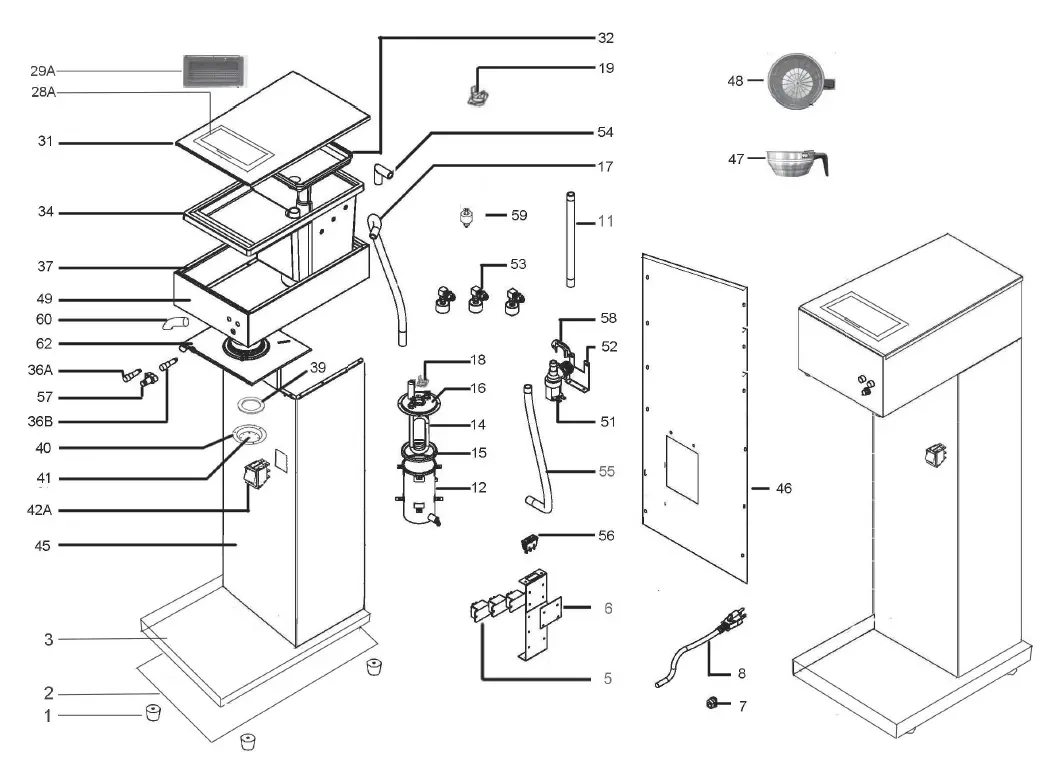

177CMAPADJ Parts Diagram

177CMAPADJ Spare Parts List
