aldes RESIDENTIAL HRV H150-TRG Heat Recovery Ventilator
PRODUCT DESCRIPTION
The H150-TRG has been thoughtfully engineered for simple installation in apartments, condos, and small houses. The removable collars are top-mounted, which makes the unit both narrow and shallow enough to fit inside standard closets and other tight spaces.
KEY FEATURES
- Electronically and independently adjustable supply and exhaust blowers (FLEXControl)
- Gauge ports on the door for fast and reliable airflow readings
- Non-dust-loading backward-inclined impellers on totally enclosed motors
- Twist-in collars for easy flex-duct attachment
- Easy access to core and filters for cleaning
- Extremely durable polypropylene core
- Recirculating defrost collar snaps into pre-punched area of cabinet for ducting flexibility
Recovery Core
- Material: Polypropylene
Casing
- Material: Pre-painted 24-gauge galvanized steel
- Drain Connection: 0 3/8″ (10 mm)
- Duct Connections: 5″ ( 127 mm)
- Insulation: Molded EPS
- Width: 23-1/8″ (587 mm)
- Height: 16-3/4″ (425 mm)
- Depth: 12-3/8″ (314 mm)
- Weight: 32 lbs (15 kg); Shipping Weight: 40 lbs (18 kg)
- Supply Damper: Motorized
Mounting
Suspended by chains with vibration-isolating springs Wall-mounting accessory available (P/N 608575)
Electrical requirement
120 VAC, 60Hz, 1.3A, 156W
- Cord Set: 48″ (1219 mm) with ground
Frost control
Automatic timed recirculation. Cycles controlled by a temperature sensor when the Outdoor temperature drops below 23°F (-5°C)
Filters
- Type: Two MERV6 flters (P/N 612409)
- Option: Two MERV13 filters (P/N 612410)
Blowers
Motorized impellers (backward-inclined)
Dimensions

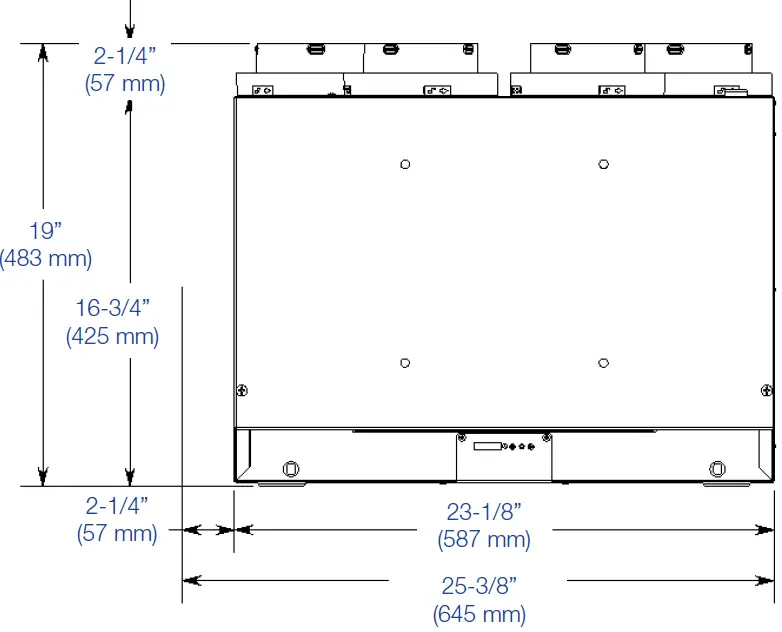

FRONT VIEW

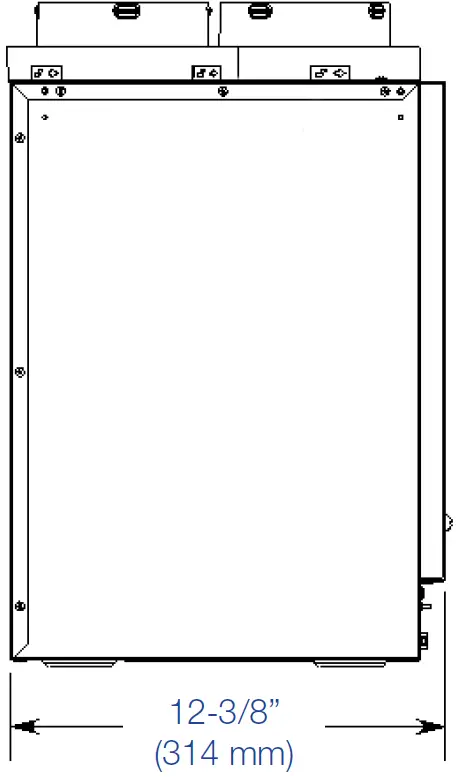

SIDE VIEW

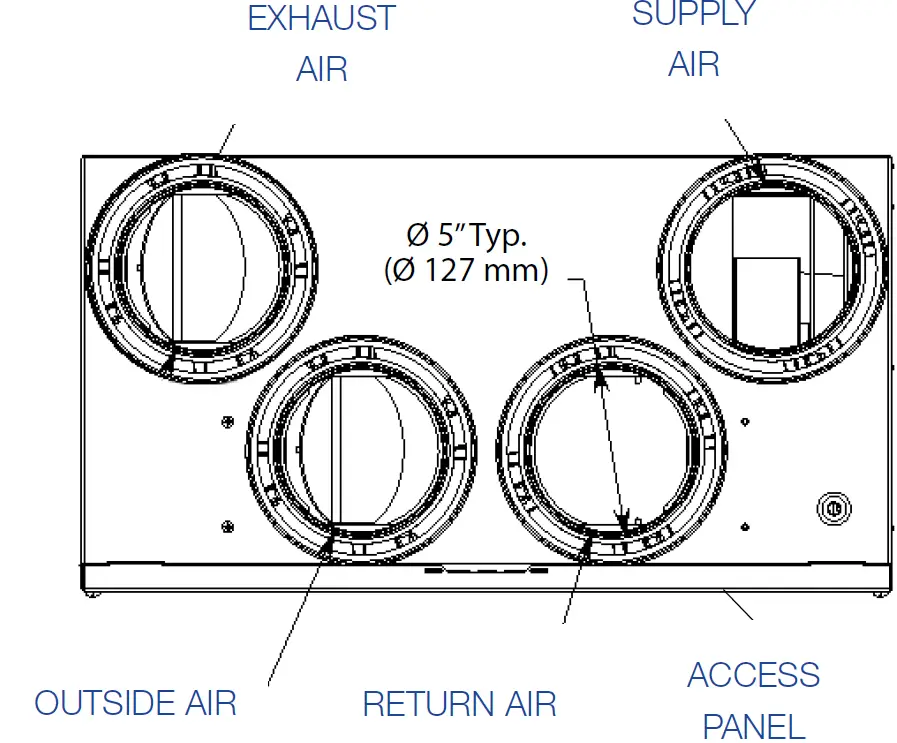

TOP VIEW
Controls
Low voltage dry contact (24VAC) for interlock with heating/cooling systems.

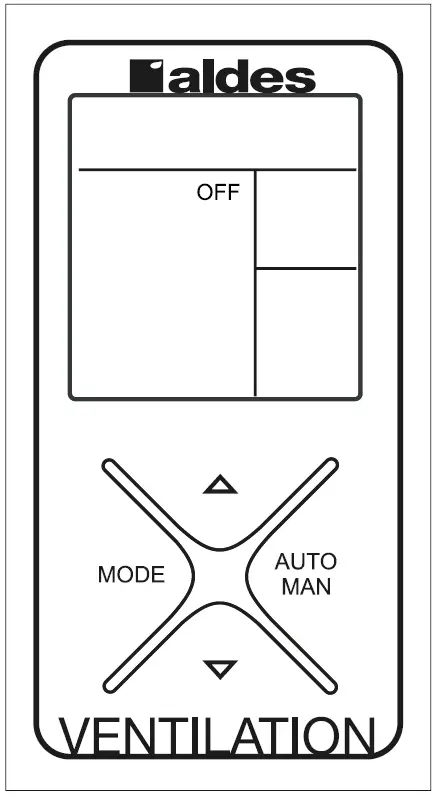

- Digital Multifunction Control (# 611242) and (#611242-FC)

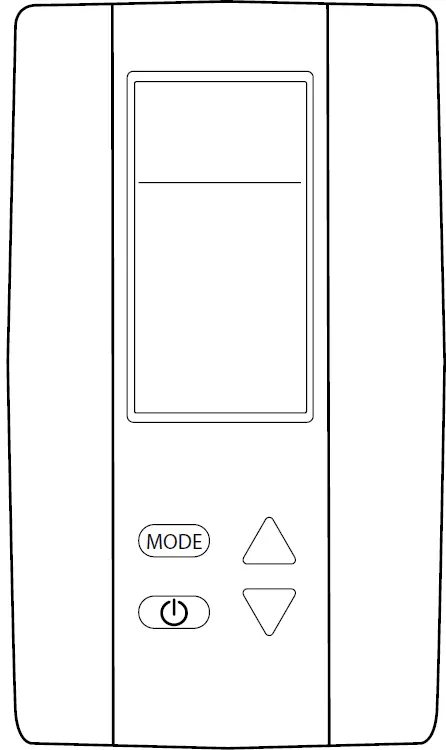

- LCD Electronic Multifunction Control (P/N 611227)

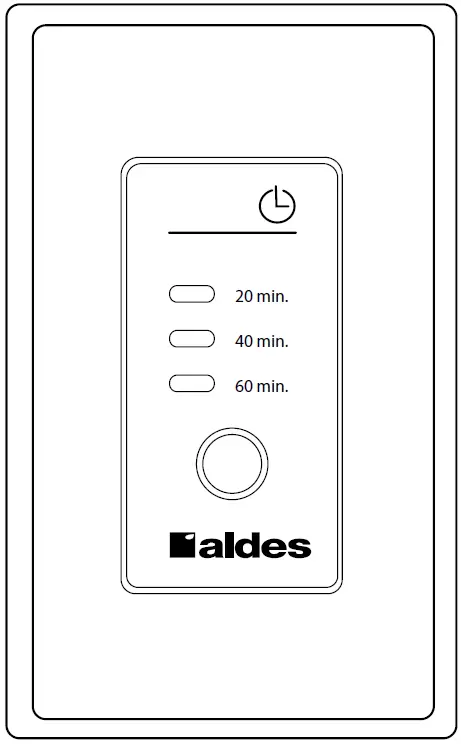

- 20/40/60 Minute Timer (P/N 611228)

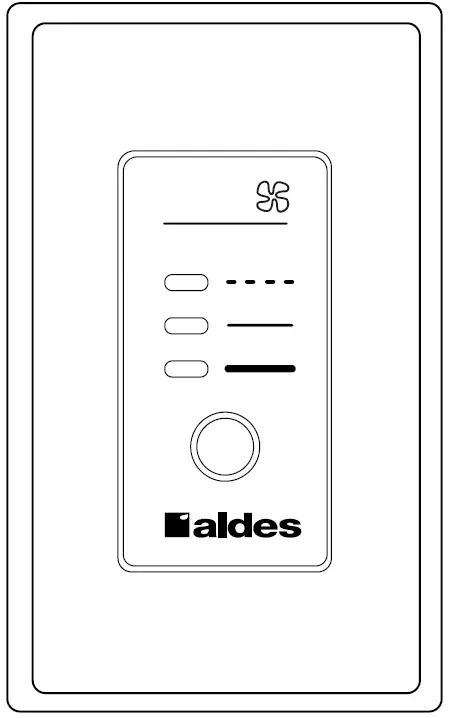

- Speed Control (Low/Intermittent/High) (P/N 611229)

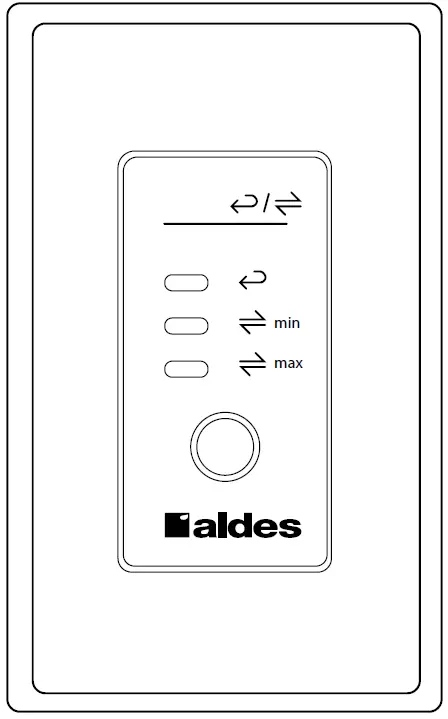

- Mode Control
(Recirculation) (P/N 611230)
Performance
| Supply Temperature | Net Airflow | Power Consumed (W) | Sensible Recovery Efficiency | Adjusted Sensible Recovery Efficiency | ||
°F | °C | CFM | L/s | |||
| 32 | 0 | 52 | 25 | 44 | 67% | 76% |
| 32 | 0 | 64 | 30 | 46 | 65% | 72% |
| 32 | 0 | 99 | 47 | 110 | 56% | 66% |
| -13 | -25 | 68 | 32 | 73 | 63% | 78% |
| Project: | Architect: | ||
| Location: | Engineer: | ||
| Model #: | Contractor: | ||
| Quantity: | Comments: | ||
| Submitted By: | |||
| Date: | |||
For more information, contact your Aldes sales advisor, visit aldes-na.com, call 1.800.255.7749, or find us on
©2022 American ALDES Ventilation Corporation and ©2022 ALDES Canada. H150-TRG_SPEC-0522. Aldes reserves the right to modify its products at any time to introduce new technologies.
