FFN-PLHLP

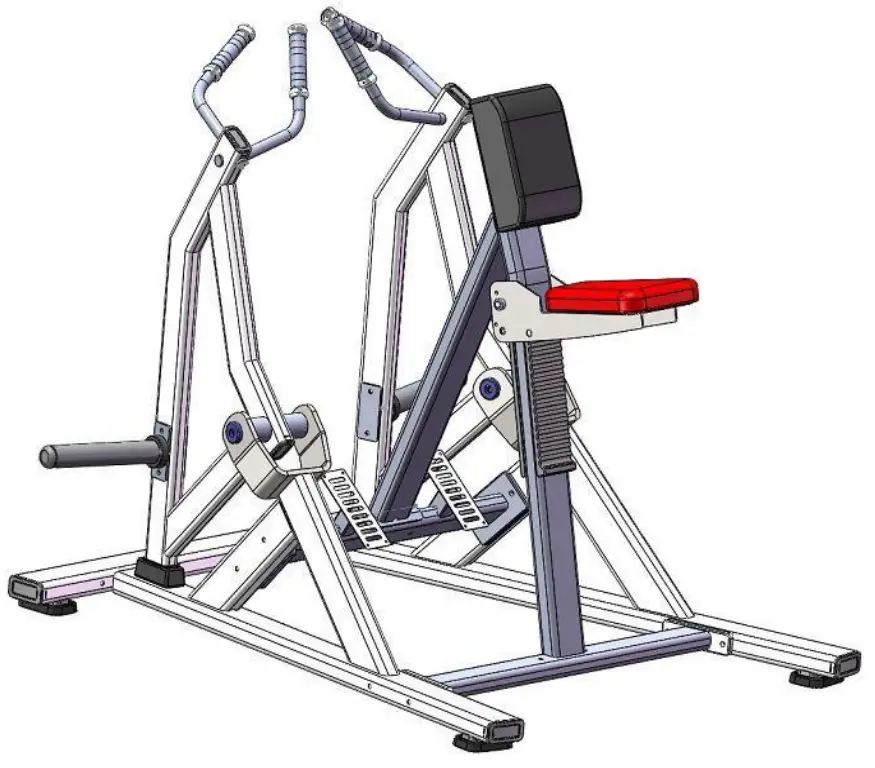

French Fitness Napa P/L Iso-Lateral Rowing
ASSEMBLY MANUAL
FEATURES
- Paint Color: Silver
- Vinyl Color: Black
- High quality steel tube Q235 with 50 x 80 x 3mm
- Tungsten Inert Gas (TIG) welding
- Quality PU leather
- Electrostatic powder coating
TECH SPECS
- Weight: 282 lb (128 kg)
- Dimensions: 591 x 50″W x 52″H (1500 mm x 1270 mm x 1300 mm)
WARRANTY
10 Years Parts, 1 Year Labor (Commercial)

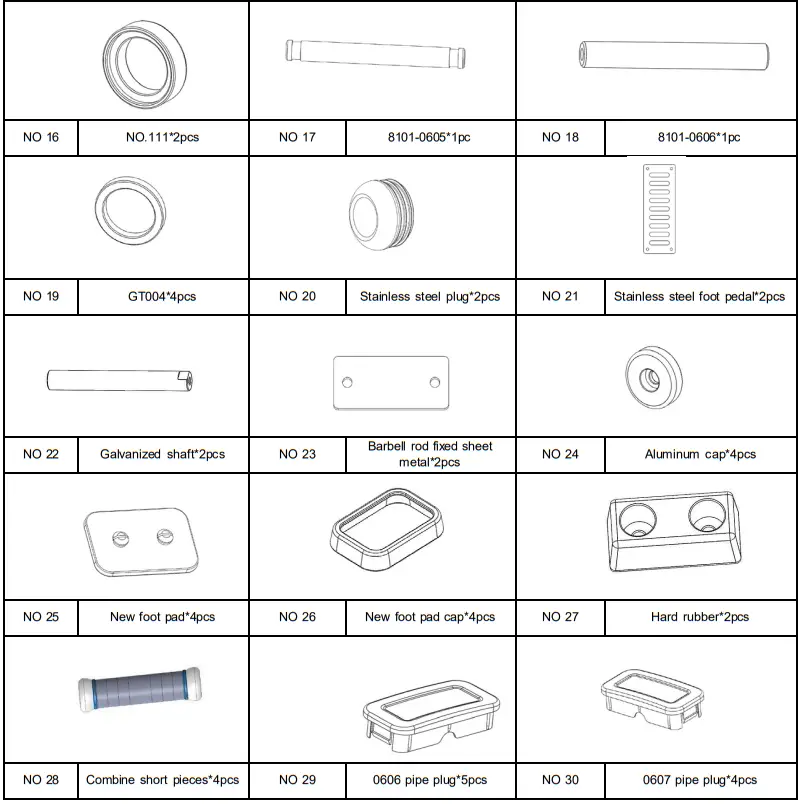

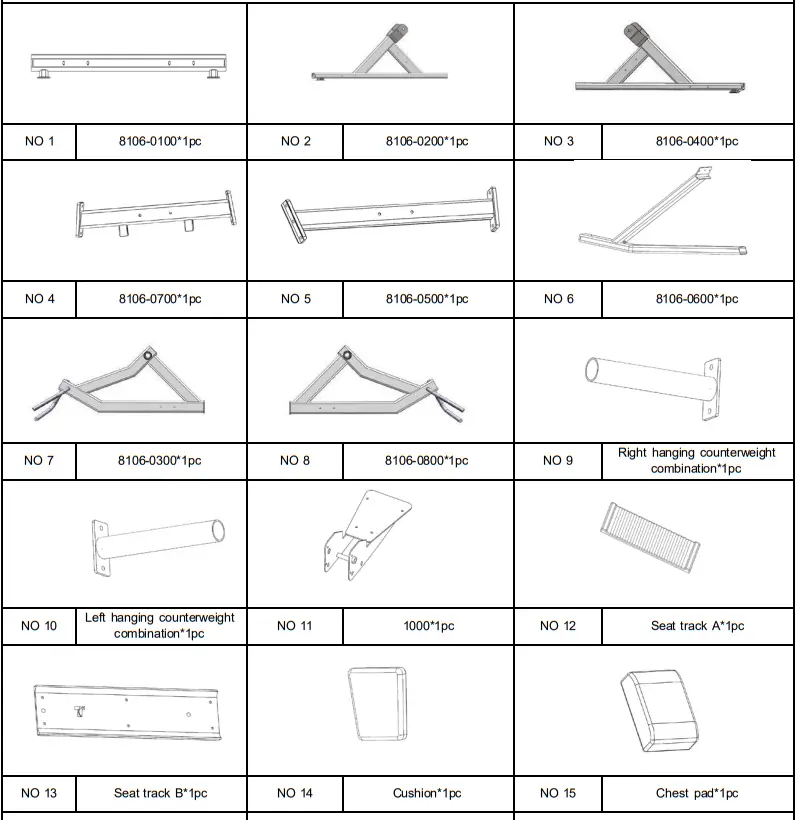

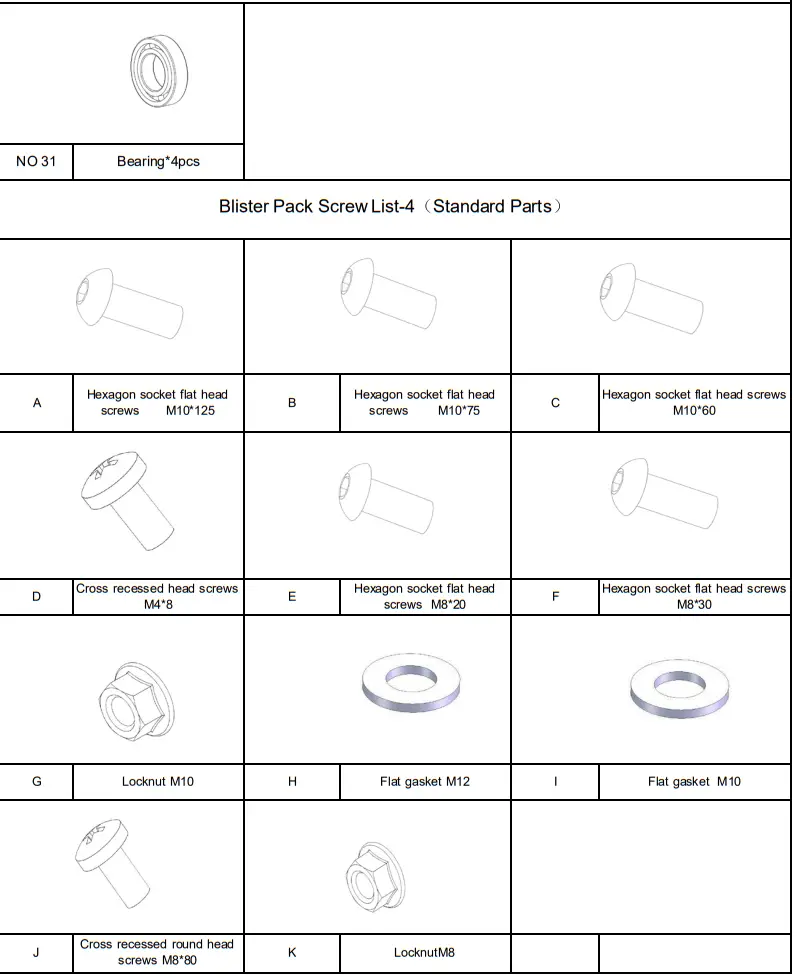

PARTS LIST
Individual packaging
MAINFRAME ASSEMBLY STEPS

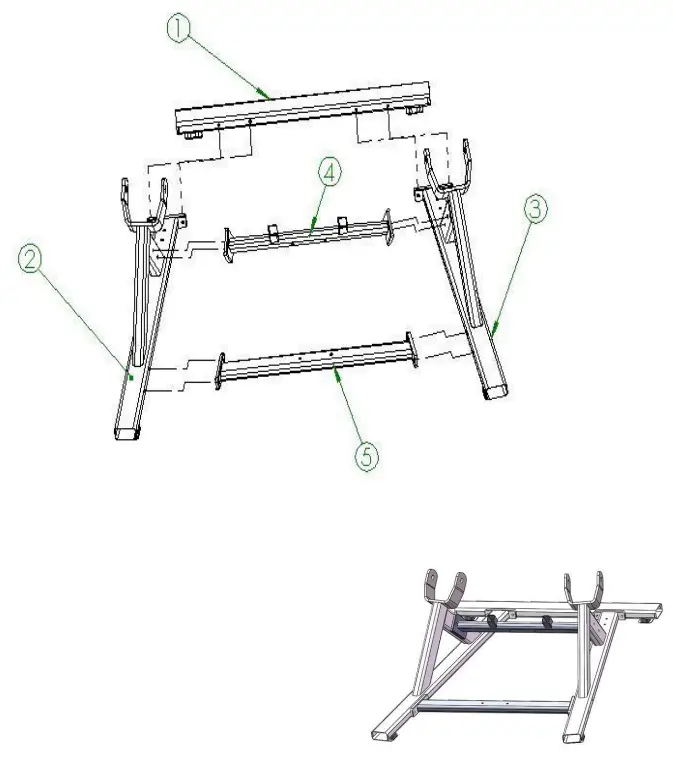

| Step NO | Item NO | Name | Qty | Item NO | Name | Qty |
| 1 | NO 1 | 8106-0100 | 1 | NO 5 | 8106-0500 | 2 |
| NO 2 | 8106-0200 | 1 | M10 hex socket screw | |||
| NO 3 | 8106-0400 | 1 | ||||
| NO 4 | 8106-0700 | 8 | ||||
| Tools | 6#Inner hexagon screwdriver, wrench | |||||

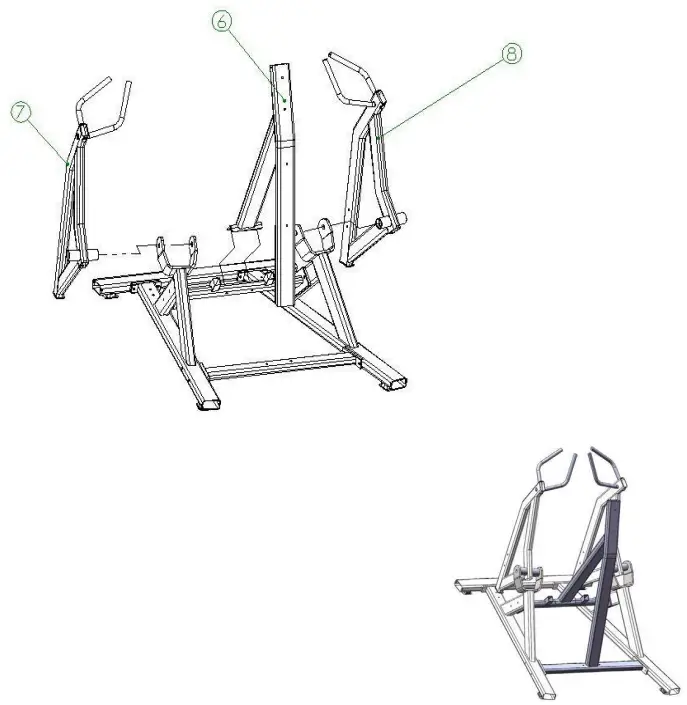

| Step NO | Item NO | Name | Qty | Item NO | Name | Qty |
| 2 | NO 6 | 8106-0600 | 2 | |||
| NO 7 | 8106-0300 | 1 | ||||
| NO 8 | 8106-0800 | 12 | ||||
| Tools | 6#Inner hexagon screwdriver, wrench | |||||

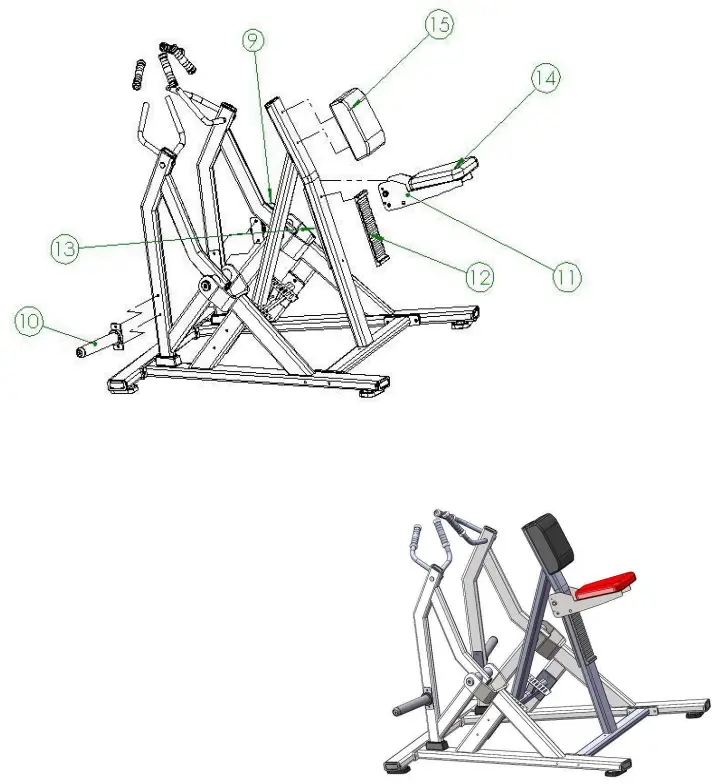

| Step NO | Item NO | Name | Qty | Item NO | Name | Qty |
| 3 | NO 9 | Right hanging counterweight combination | 1 | 13 | Seat track B | |
| NO 10 | Left hanging counterweight combination | 1 | 14 | Cushion | ||
| NO 11 | 1000 | 1 | 15 | Chest Pad | ||
| NO 12 | Seat track A | 1 | ||||
| Tools | ||||||
