Sunny Health Fitness Sf-rw520007 Air Rowing Machine User Manual

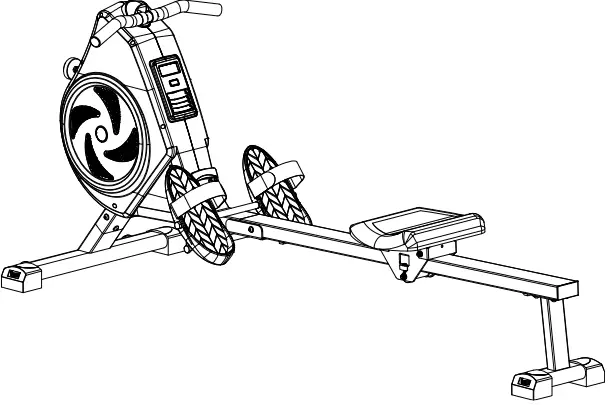

SUNNY Health Fitness SF-RW520007 Air Rowing Machine

IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: [email protected] or 1-877-90SUNNY (877-907-8669).

IMPORTANT SAFETY INFORMATION

We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

1. Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician’s advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these conditions, you should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during exercise, discontinue use of the equipment immediately and do not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.
    IMPORTANT NOTE: Please remove the plastic tab from the computer before use!

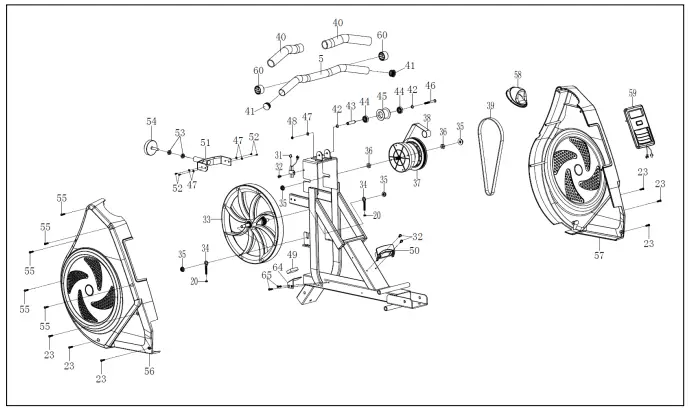

EXPLODED DIAGRAM 1

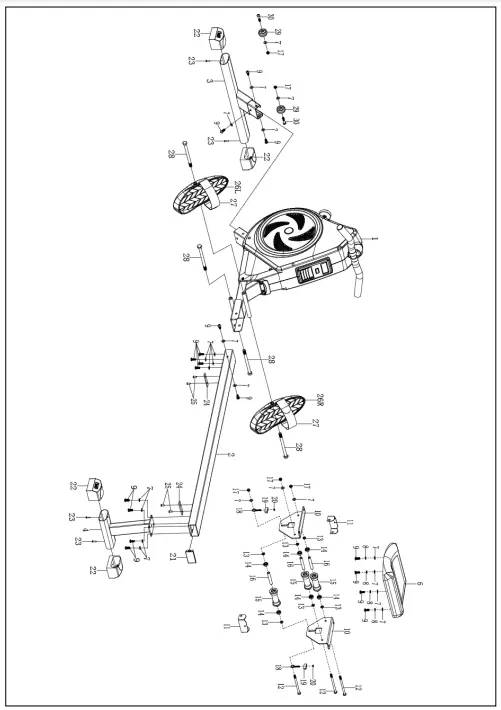

EXPLODED DIAGRAM 2

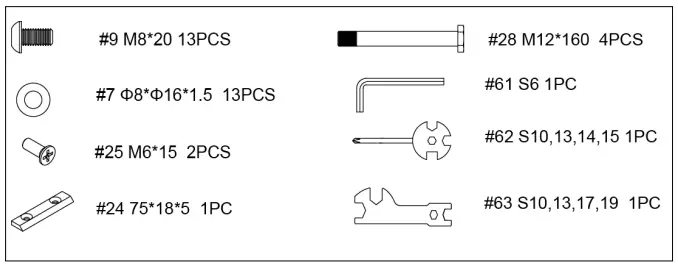

HARDWARE PACKAGE

PARTS LIST

Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:

• The model number (found on cover of manual)
• The product name (found on cover of manual)
• The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of the manual)
  Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

ASSEMBLY INSTRUCTIONS

We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

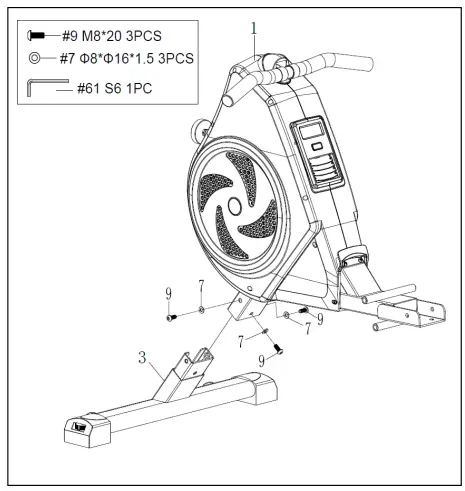

• STEP 1:
  Attach the Front Stabilizer (No. 3) to the Main Frame (No. 1) using 3 Bolts (No. 9) and 3 Washers (No. 7). Tighten and secure with Allen Wrench (No. 61).

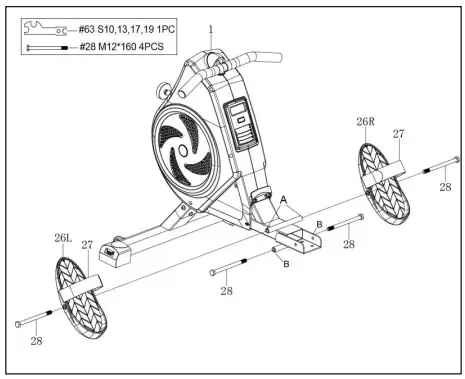

• STEP 2:
  • Insert 2 Bolts (No. 28) through the Left & Right Pedals (No. 26L/R) into the upper hole at position A of the Main Frame (No. 1). Tighten with Spanner (No. 63).
  • Insert 2 Bolts (No. 28) into the bottom hole at position B of the Main Frame (No. 1). Tighten with Spanner (No. 63).
    NOTE: The Left & Right Pedals (No. 26L/R) should rest on the bottom Bolts (No. 28) at position B.

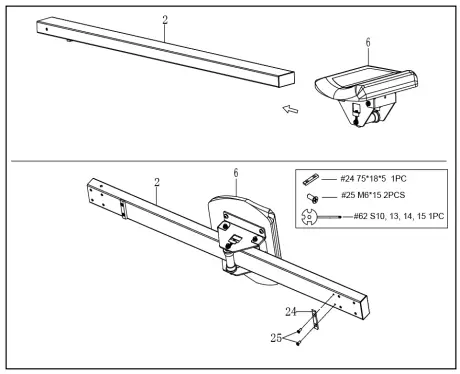

• STEP 3:
  • Slide the Seat (No. 6) into the Sliding Rail (No. 2).
  • Attach 1 Limit Pad (No. 24) onto the Sliding Rail (No. 2) using 2 Screws (No. 25), then tighten with Spanner (No. 62).
• STEP 4:
  Attach the Rear Stabilizer (No. 4) to the Sliding Rail (No. 2) using 4 Bolts (No. 9) and 4 Washers (No. 7). Tighten and secure with Allen Wrench (No. 61).

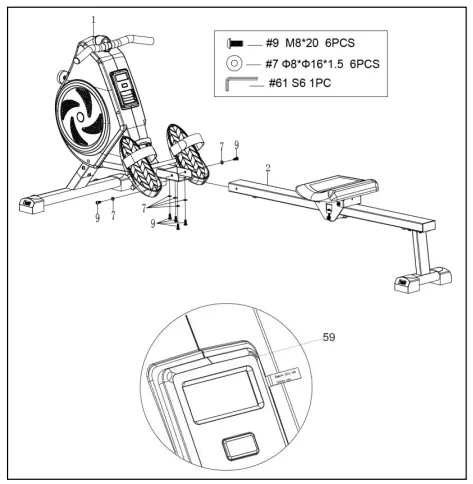

• STEP 5:
  • Attach the Sliding Rail (No. 2) to the Main Frame (No. 1) by securing 2 Bolts (No. 9) and 2 Washers (No. 7) onto the left and right sides of the Main Frame (No. 1). Don’t tighten the Bolts (No. 9) now.
  • Secure 4 Bolts (No. 9) and 4 Washers (No. 7) to the bottom of the Main Frame (No. 1). Tighten all the 6 Bolts (No. 9) with Allen Wrench (No. 61) now.
    IMPORTANT NOTE: Please remove the plastic tab from the computer before use! If computer doesn’t work after removing the plastic tab, please press the buckles on one side of the Computer (No. 59) to remove the Computer (No. 59) from Main Frame (No. 1) and check if the batteries are well installed.
    The assembly is complete!

ADJUSTMENTS & USAGE GUIDE

CAUTION! Moving parts, such as the seat, can cut and crush. Keep hands clear of the sliding rail during use!

• PEDAL STRAP ADJUSTMENT
  The pedal strap is adjustable and can be personalized to fit the user’s foot size.

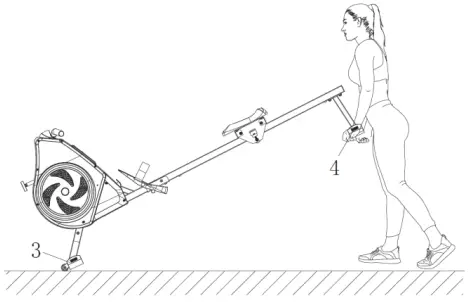

• MOVING THE ROWER
  To move the rower, lift the Rear Stabilizer (No. 4) up until the transportation wheels on the Front Stabilizer (No. 3) touch the ground. With the transportation wheels on the ground, you can transport the rower to the desired location with ease.

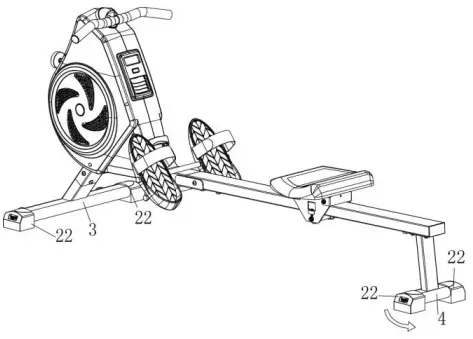

• ADJUSTING THE BALANCE
  Adjust the End Caps (No. 22) on the Rear Stabilizer (No. 4) and Front Stabilizer (No. 3) of the rower if the rower is unbalanced during use.

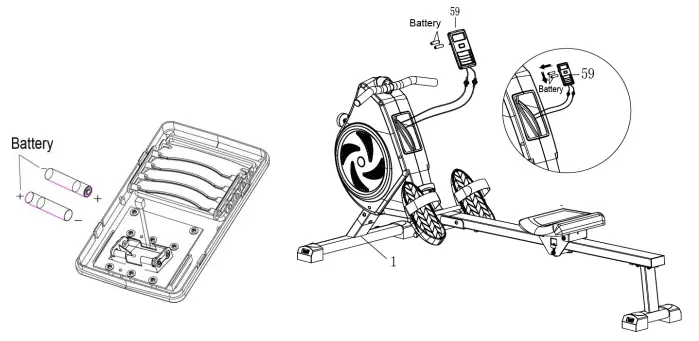

BATTERY REPLACEMENT

1. Press the buckles on one side of the Computer (No. 59) to remove the Computer (No. 59) from Main Frame (No. 1).
2. Take out the 2pcs old AAA batteries from the battery case and install 2pcs new AAA batteries into the battery case on the back of the Computer (No. 59). Pay attention to the battery + and –poles before installing.
3. Insert the buckles on one side of the Computer (No. 59) into the computer slot. Then insert the buckles on the other side of the Computer (No. 59), and press Computer (No. 59) down in the computer slot.
   The replacement is complete!
   NOTE: Always change both batteries at the same time. Do not mix battery types and do not mix old and new batteries. Dispose batteries according to your state and regional guidelines.

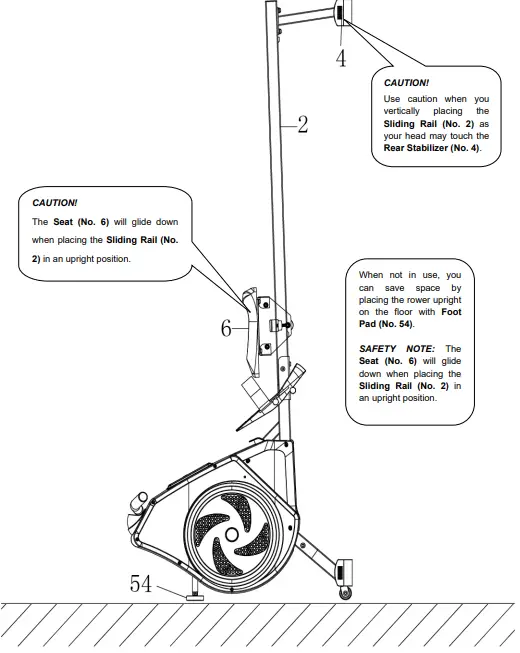

STORAGE GUIDE

EXERCISE COMPUTER

• FUNCTION KEYS:
  MODE: To select your specification and press for 2 seconds to restart.
• FUNCTIONS AND OPERATIONS:
  • AUTO ON/OFF: The power will turn off automatically once there is no signal for  4 minutes. The computer will reactivate once the machine is put into motion or  when a computer button is pressed.
  • SCAN: Press MODE button until SCAN appears. The computer will rotate  through the four functions in the following order: TIME, COUNT, TOTAL COUNT,  and CALORIES. Each function will be held for 6 seconds.
  • TIME (TMR): Counts the total time elapsed during your current workout.
  • COUNT (CNT): Counts the number of rowing strokes from your current workout.
  • TOTAL COUNT (TOTAL CNT): Counts the total amount of strokes from the first use.
  • CALORIES (CAL): Counts the total calories burned from current workout.
  • BATTERY: This computer uses two AAA batteries. If the display appears incorrectly or becomes difficult to read, please install new batteries. Always change both batteries at the same time. Do not mix battery types and do not mix old and new batteries. Dispose batteries according to your state and regional guidelines.
• APP CONNECTION
  1. Scan below QR code to enter the app store and download the Sunny Health & Fitness app to your mobile phone.
  2. Press the Bluetooth switch to connect. Then you can use the app through your mobile phone.

SPECIFICATIONS
