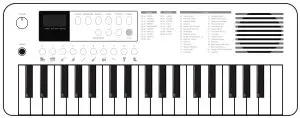

Medeli Mk1 37 Keys Mini Size Keyboard Owner's Manual

MINI KEYBOARD
Owner’s Manual

MINI KEYBOARD
OWNER’S MANUAL

THE FCC REGULATION WARNING (for the USA)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
If items such as cables are included with this equipment, you must use those included items.
Unauthorized changes or modifications to this system can void the user’s authority to operate this equipment.

CAUTION
The normal function of the product may be disturbed by Strong Electro
Magnetic Interference. If so, simply reset the product to resume normal operation by following the owner’s manual. In case the function could not resume, please use the product in another location.

Keep this manual
After reading this manual, please keep it for later reference.

PRECAUTIONS

Location
Using the unit in the following locations can result in a malfunction.
Indirect sunlight
Locations of extreme temperature or humidity
Excessively dusty or dirty locations
Locations of excessive vibration
Close to magnetic fields

Power Supply
Please connect the designated USB power adapter to an AC outlet of the correct voltage.
Do not connect it to an AC outlet of voltage other than that for which your unit is intended.

Interference with other electrical devices
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.

Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene or thinner, cleaning compounds, or flammable polishes.

Handling
To avoid breakage, do not apply excessive force to the switches or controls.

Keeping foreign matter out of your equipment
Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it could cause a breakdown, fire, or electrical shock.
Be careful not to let metal objects get into the equipment.

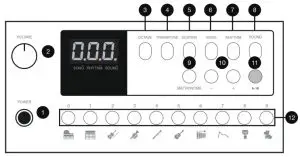

Operation

1. Press this button to turn the Power on or off.
   Note: In order to save energy, the instrument will automatically shut down after 30 minutes of not being used. You can turn off the power protection by using a keyboard command.
2. Turn this knob clockwise to increase or counter-clockwise to decrease the output volume.
3. Press this button and use the + or – ( 1 0 ) buttons to set the keyboard octave range.
   Note: 3 seconds of not pressing either of the + and – buttons will set the + and – buttons back to the Sound, Rhythm, or Song content selection mode.
4. Press this button and use the + or – ( 1 0 ) buttons to set the keyboard transpose amount.
   Note: 3 seconds of not pressing either of the + and – buttons will set the + and – buttons back to the Sound, Rhythm, or Song content selection mode.
5. Press this button to turn the sound Sustain on or off.
6. ~
7. Press any of these buttons to enter the labeled model.
8. Press this button to start or stop Metronome.
9. Press either of these buttons to select the next or previous Sound, Rhythm, or Song content, depending on the currently selected mode. Combined with other buttons, these buttons also change various parameters.
10. Press this button to start or stop the current selected Rhythm or Song.
    Note: Under the default Sound mode, Rhythm gets played back.
11. Under the default Sound mode, these buttons select the labeled instrument Sound. To press the same button repeatedly will select the next Sound slot in the labeled Sound category. Under Rhythm or Song mode, these buttons work as number input keys and let you access the desired Rhythm or Song content by entering the content number.
    Note: When inputting a 1-digit number or 2-digit, type the number and wait for a few seconds till it’s recognized by the keyboard.

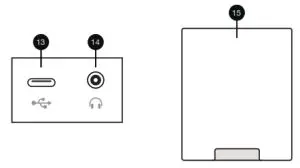

Back & Bottom Panels

USB Power Input: For connecting a USB-C cable to power the keyboard
Phones Output: For connecting headphones or earphones
Battery Compartment: For installing 4 x AA batteries to power the keyboard

Mode

There are 3 modes on this keyboard that you can enjoy: Sound, Rhythm, and Song SOUND mode
This is the default mode on booting up. The display shows the currently selected Sound number, and + & – buttons change the Sound to the next or previous ones.
RHYTHM mode
The display shows the currently selected Rhythm number, and + & – buttons change the Rhythm contents. Press Sound to go back to selecting Sound.
SONG mode
The display shows the currently selected Song number, and + & – buttons change the Song selection. Press Sound to go back to selecting Sound.

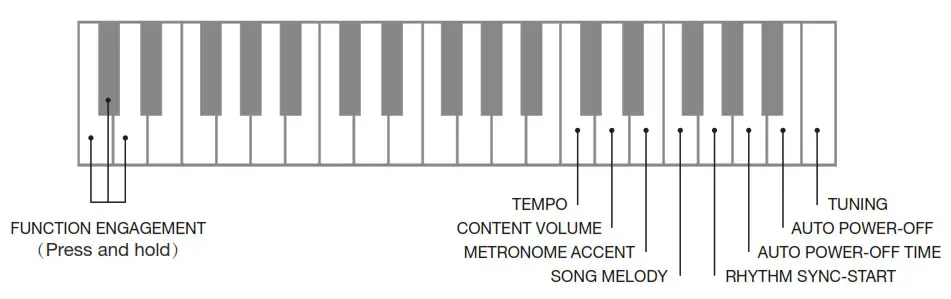

Function

* Note: When Sync-start is engaged, Rhythm automatically starts playing once you hit any key so your keyboard playing and Rhythm can start together at the same time.

Specifications

* All specifications and appearances are subject to change without notice.
