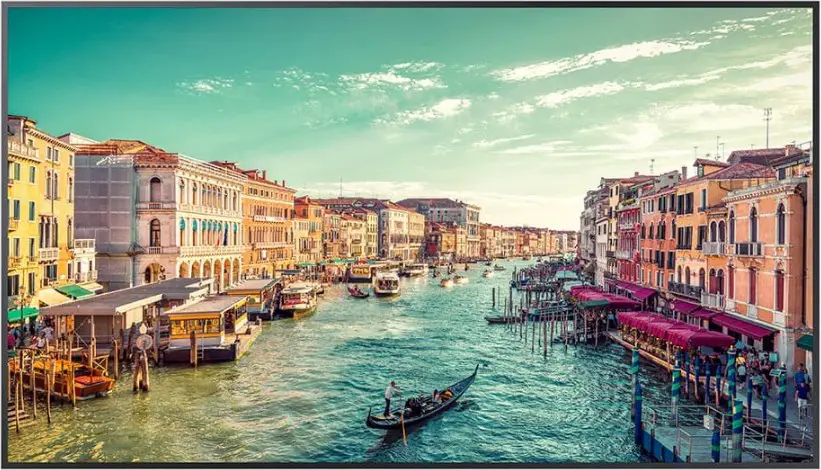

SAMSUNG QM98T-B 98 Inch 4K UHD Standalone Display User Guide
- The color and the appearance may differ depending on the product, and the content in the manual is subject to change without prior notice to improve the performance.
- Download the user manual from the following Samsung Website for further details. http://www.samsung.com/displaysolutions
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries
Checking the Components
Contact the vendor where you purchased the product if any components are missing. Components may differ in different locations.
- Quick Setup Guide
- Regulatory guide
- Batteries (AAA x 2) (Not available in some locations)
- RS232C adapter
- Warranty card (Not available in some locations)
- Power cord
- Remote Control

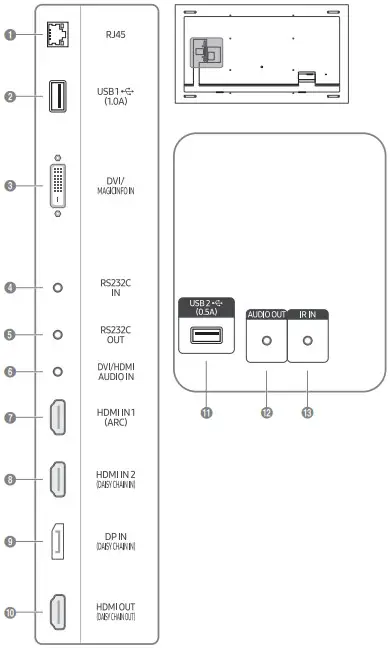

Parts
- Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)
- Connect to a USB memory device.
- The USB ports on the product accept a maximum constant current of 1.0A. If the maximum value is exceeded, USB ports may not work.
- DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable. MAGICINFO IN: Connects to a network box using DP-DVI cable to use Magicinfo.
- Connects to MDC using an RS232C adapter.
- Connects to MDC using an RS232C adapter.
- Receives sound from a source device via an audio cable.
- Connects to a source device using a HDMI cable or HDMI-DVI cable.
- Connects to a source device using a HDMI cable or HDMI-DVI cable. Connects to another product using a HDMI cable.
- Connects to a PC using a DP cable.
- Connects to another product using a HDMI cable.
- Connect to a USB memory device.
- The USB ports on the product accept a maximum constant current of 0.5A. If the maximum value is exceeded, USB ports may not work.
- Outputs sound to an audio device via an audio cable.
- Connects to an external IR cable that receives signals from the remote control.
Connecting and Using a Source Device
Connecting to a PC

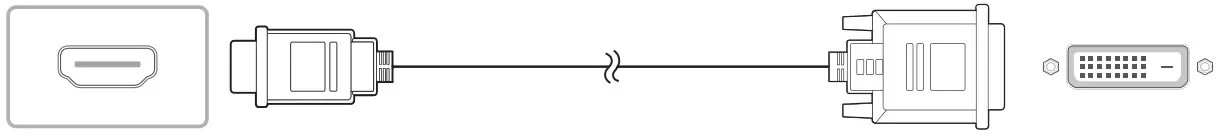

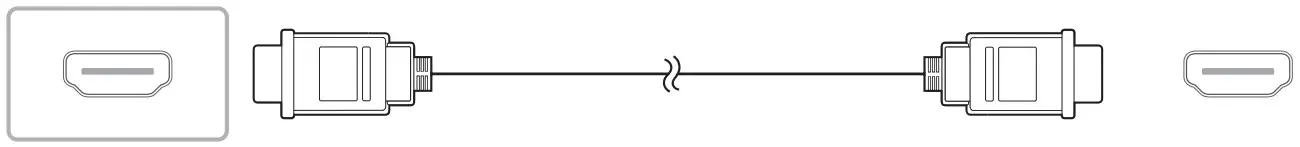

HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)

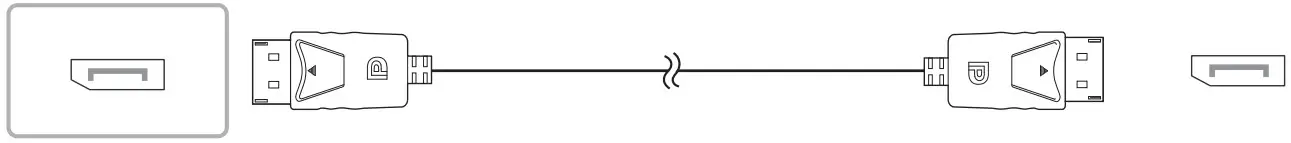

DP IN (DAISY CHAIN IN)

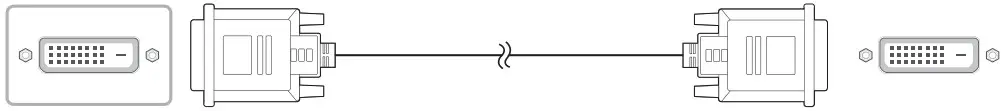

DVI/MAGICINFO IN

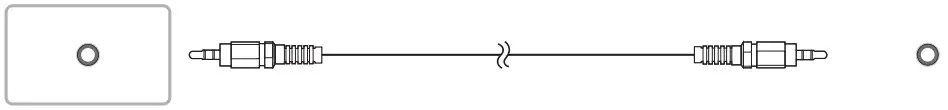

DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDM
Connecting to a Video Device

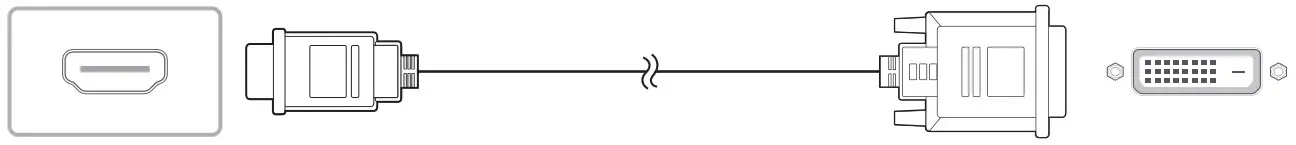

HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)

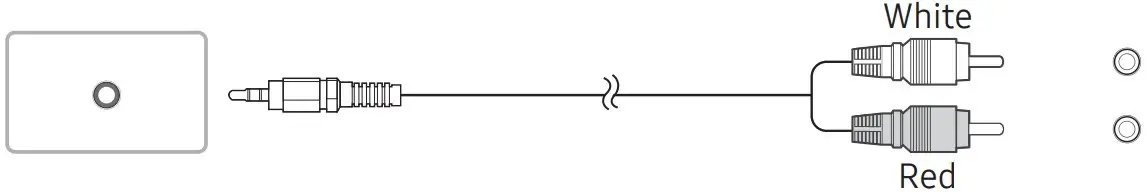

DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
Connecting to an Audio System
AUDIO OUT

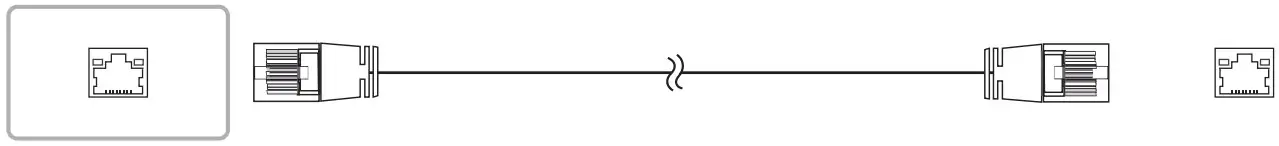

Connecting the LAN Cable
RJ45
Use Cat7(*STP Type) cable for the connection. (10/100 Mbps) *Shielded Twist Pair

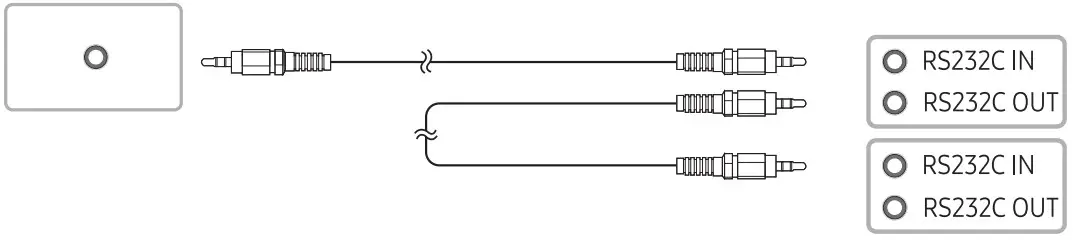

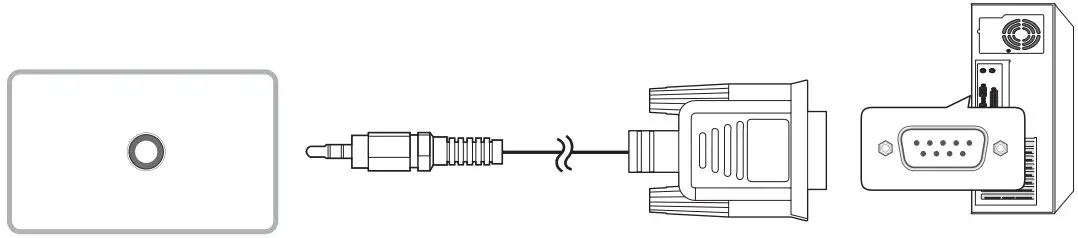

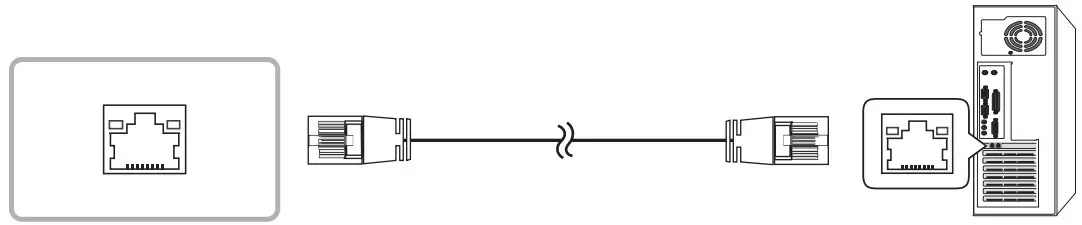

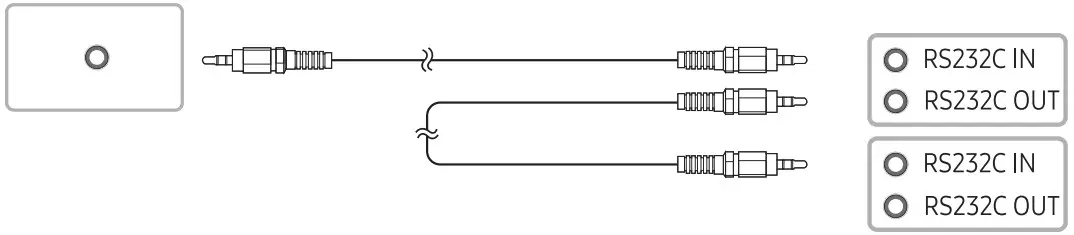

Connecting to MDC
RS232C IN
RS232C OUT
RJ45
RJ45
RS232C OUT
For details on how to use the MDC program, refer to Help after installing the program. The MDC program is available on the website. http://www.samsung.com/displaysolutions

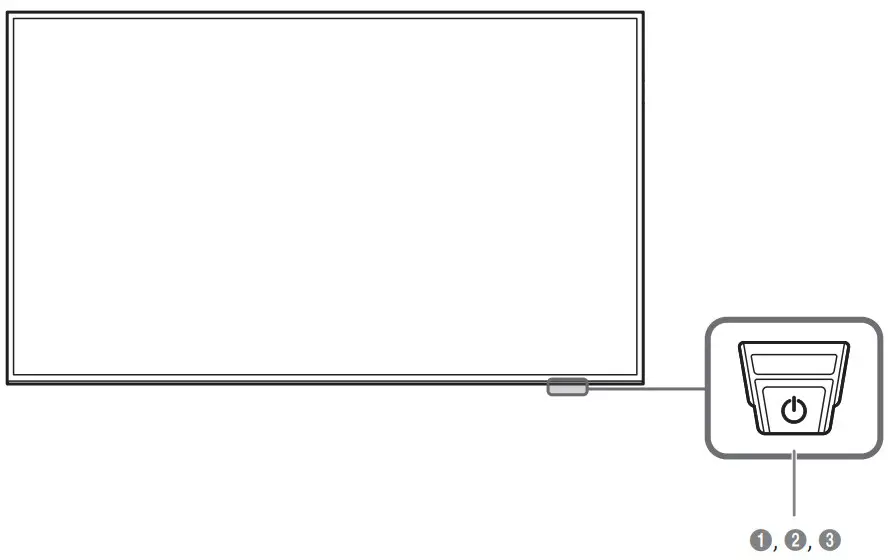

Parts
Speaker / Haut-parleur / Altavoz
- Remote sensor
Press a button on the remote control pointing at the bottom of the product face to perform the function. The remote control sensor is located on the bottom of the product.- Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.
- Power button
- Power indicator
Specifications
| Model Name | QM98T / QM98T-B | |
| Panel | Size | 98 CLASS (97.5 inches / 247.7 cm) |
| Display area | 2158.848 mm (H) x 1214.352 mm (V) | |
| Power Supply | AC100-240V~ 50/60HzRefer to the label at the back of the product as the standard voltage can vary in different countries. | |
| Environmental considerations | Operating | Temperature: 32 °F – 104 °F (0 °C – 40 °C)Humidity: 10% – 80%, non-condensing |
| Storage | Temperature: -4 °F – 113 °F (-20 °C – 45 °C)Humidity: 10% – 90%, non-condensing | |
- This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
- For detailed device specifications, visit the Samsung website.

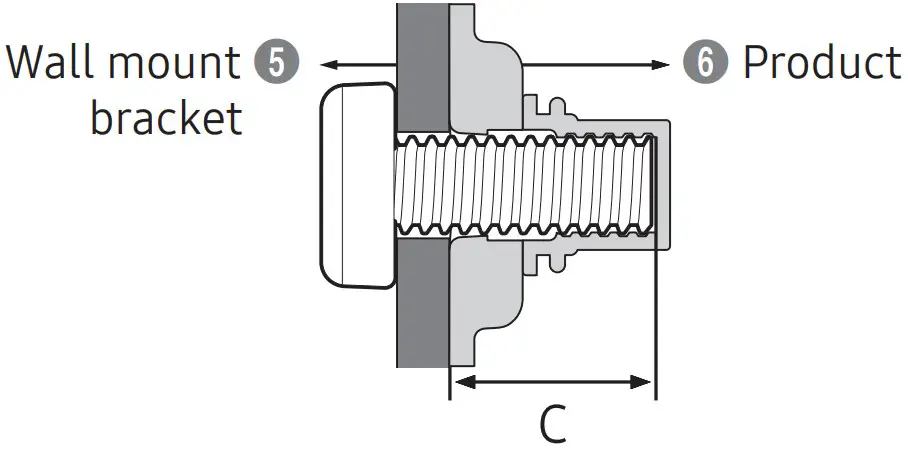

Wall Mount Kit Specifications
| Model Name | C | Standard Screw | Quantity |  |
| QM98T QM98T-B | 47 mm4.7 cm | M8 | 4 |
Contact SAMSUNG WORLD WIDE
Web site: http://www.samsung.com
| Country/Area | Customer Care Center |
| U.S.A | 1-800-SAMSUNG (726-7864) |
| CANADA | 1-800-SAMSUNG (726-7864) |
| ARGENTINA | 0800-555-SAMS (7267) |
| BOLIVIA | 800 107 260 |
| BRAZIL | 0800 555 0000 (Demais cidades e regiões) 4004-0000 (Capitais e grandes centros) |
| CHILE | 800 726 786 |
| COLOMBIA | Bogotá en el 600 12 72Sin costo en todo el pais 01 8000 112 112 Y desde tu celular #726 |
| COSTA RICA | 00-800-1-SAMSUNG (726-7864) |
| DOMINICAN REPUBLIC | 1-800-751-2676 |
| ECUADOR | 1-800-SAMSUN (72-6786) |
| EL SALVADOR | 8000-SAMSUNG (726-7864) |
| GUATEMALA | 1-800-299-0033 |
| HONDURAS | 800-2791-9111 |
| JAMAICA | 1-800-SAMSUNG (726-7864) |
| MEXICO | 800-SAMSUNG |
| NICARAGUA | 001-800-5077267 |
| PANAMA | 800-0101 |
| PARAGUAY | 0800-11-SAMS (7267) |
| PERU | 080077708 Desde teléfonos fijos, públicos o celulares |
| PUERTO RICO | 1-800-682-3180 |
| TRINIDAD & TOBAGO | 1-800-SAMSUNG (726-7864) |
| URUGUAY | 0800-SAMS (7267) |
| VENEZUELA | 0-800-100-5303 |
Troubleshooting Guide
| Issues | Solutions |
| The screen keeps switching on and off. | Check that the cable between the product and the PC is connected correctly. |
| No Signal is displayed on the screen. | Check that products (including source device) are connected correctly with a cable. |
| Check that the source device connected to the product is powered on. | |
| Depending on the type of external device, the screen may not display properly. In this case, connect it with the HDMI Hot Plug function turned On. | |
| Not Optimum Mode is displayed. | This message is displayed when a signal from the graphics card exceeds the product’s maximum resolution and frequency. |
| Refer to the Standard Signal Mode Table and set the maximum resolution and frequency according to the product specifications. |
