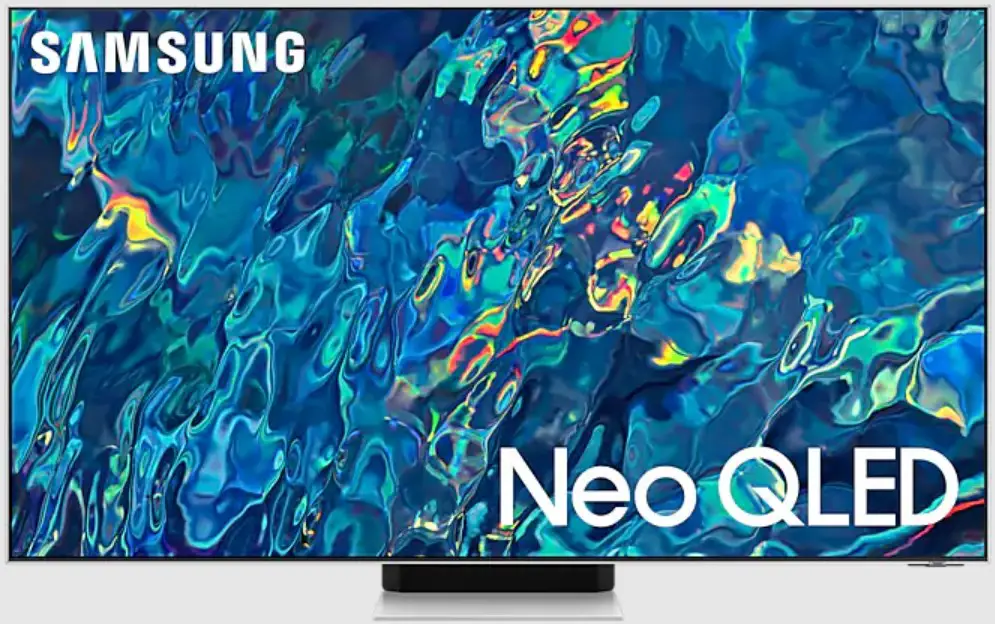

SAMSUNG 4K QN95B 55 Inch NEO QLED User Guide

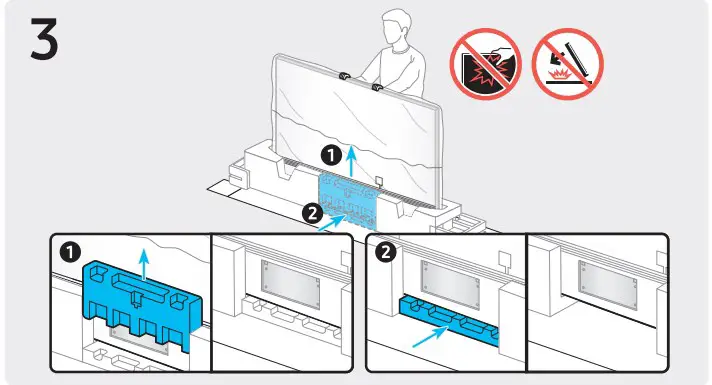

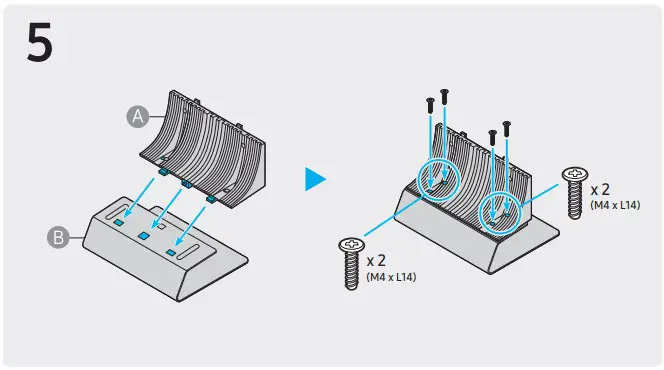

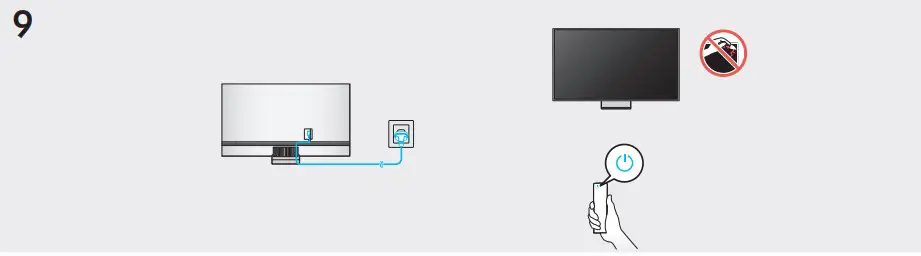

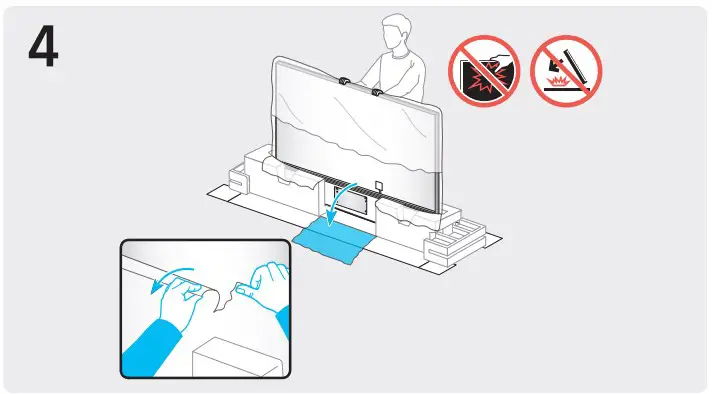

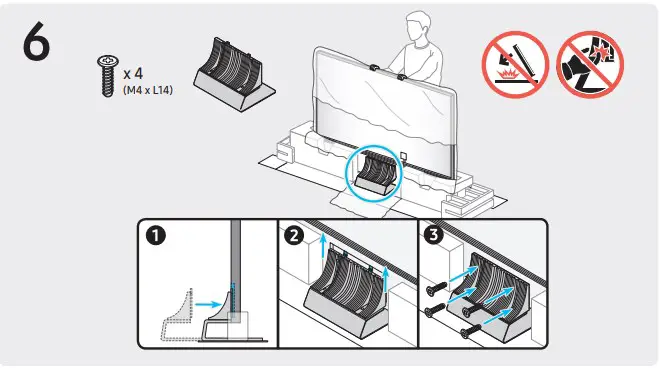

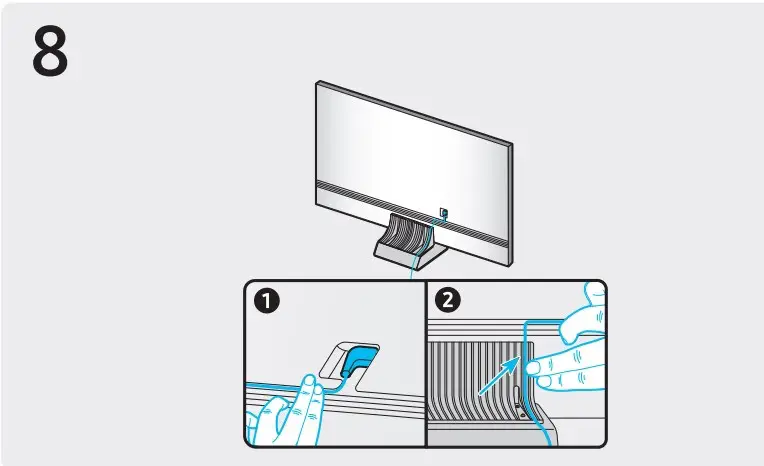

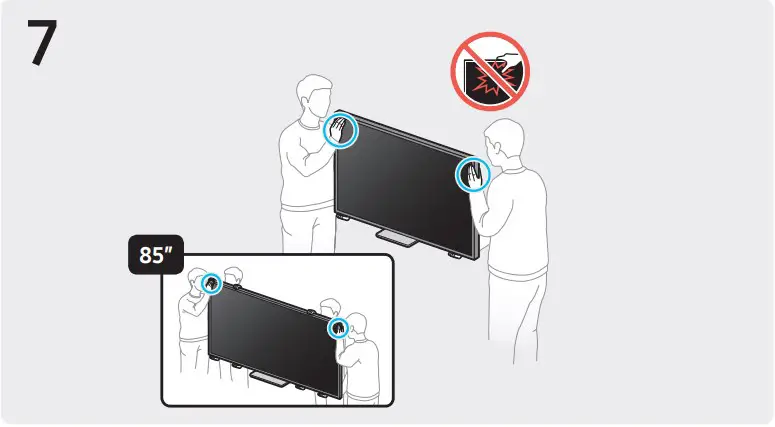

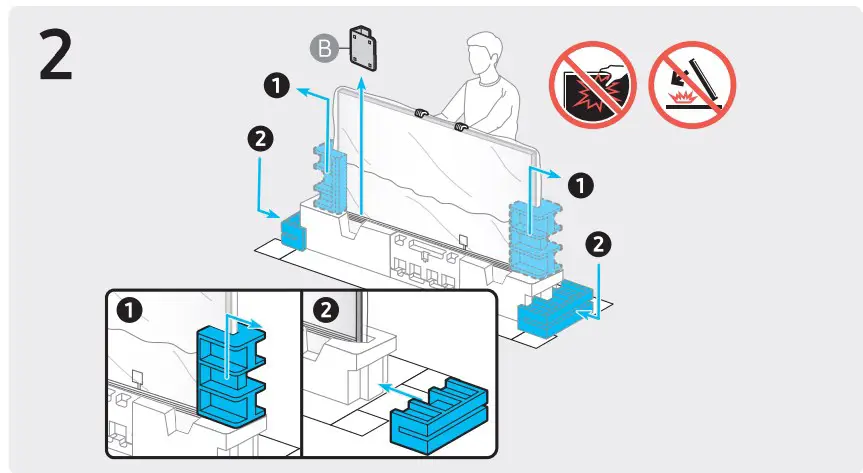

Assembly instruction

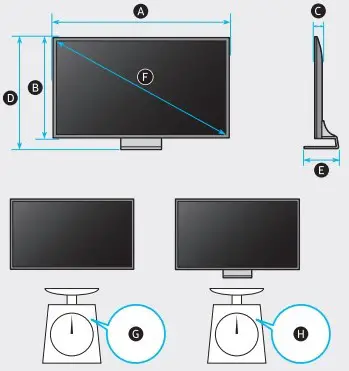

| A | B | C | D | E | F | G | H | |
| QN75QN9*B | 65.7 inches (1670.0 mm) | 37.7 inches (957.4 mm) | 1.1 inches (26.7 mm) | 40.2 inches (1020.0 mm) | 12.5 inches (317.9 mm) | 74.5 inches | 77.2 lbs (35.0 kg) | 98.8 lbs (44.8 kg) |
| QN85QN9*B | 74.5 inches (1892.2 mm) | 42.6 inches (1081.9 mm) | 1.1 inches (27.2 mm) | 45.1 inches (1144.3 mm) | 14.4 inches (365.5 mm) | 84.5 inches | 98.1 lbs (44.5 kg) | 125.0 lbs (56.7 kg) |
| * : 0~9, A~Z | ||||||||

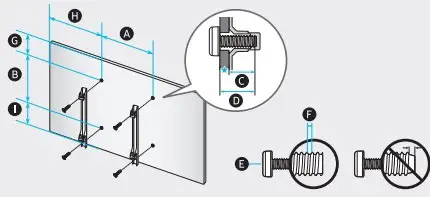

| VESA x (mm) | (mm) | x 4 | (mm) | (inches) | (inches) | (inches) | ||
| QN75QN9*B | 400 x 400 | 11-13 | + | M8 | 1.25 | 9.6 | 25.0 | 12.3 |
| QN85QN9*B | 600 x 400 | 8.7 | 25.4 | 18.2 |

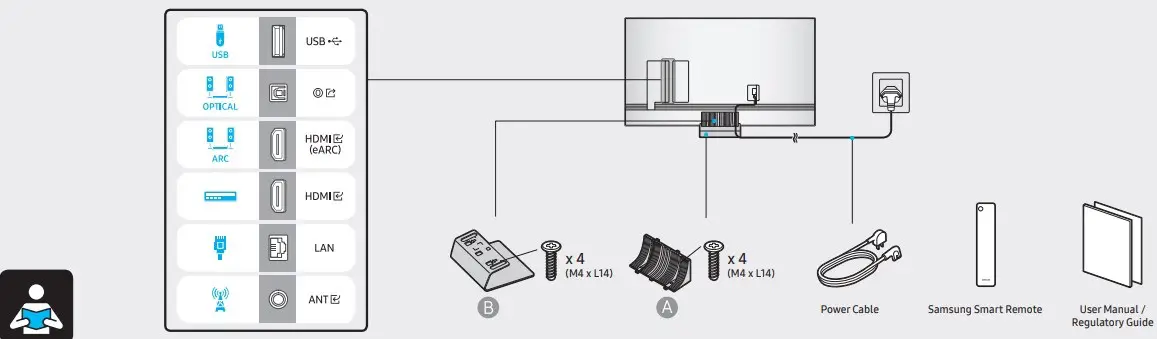

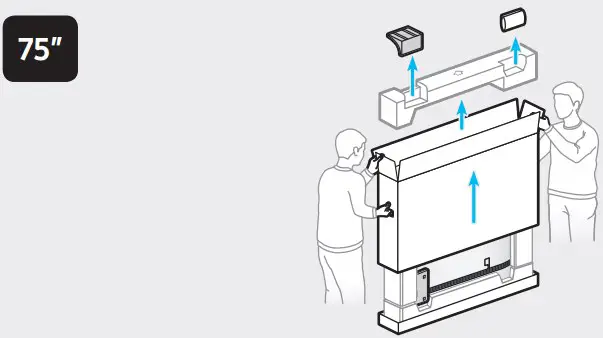

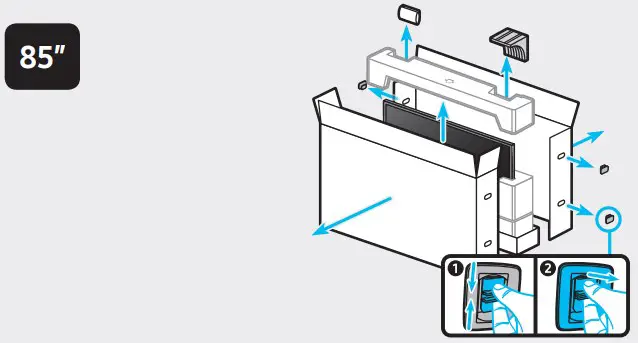

What Is In The Box
W Scan this QR codewith your smart phone to see helpful videos.
