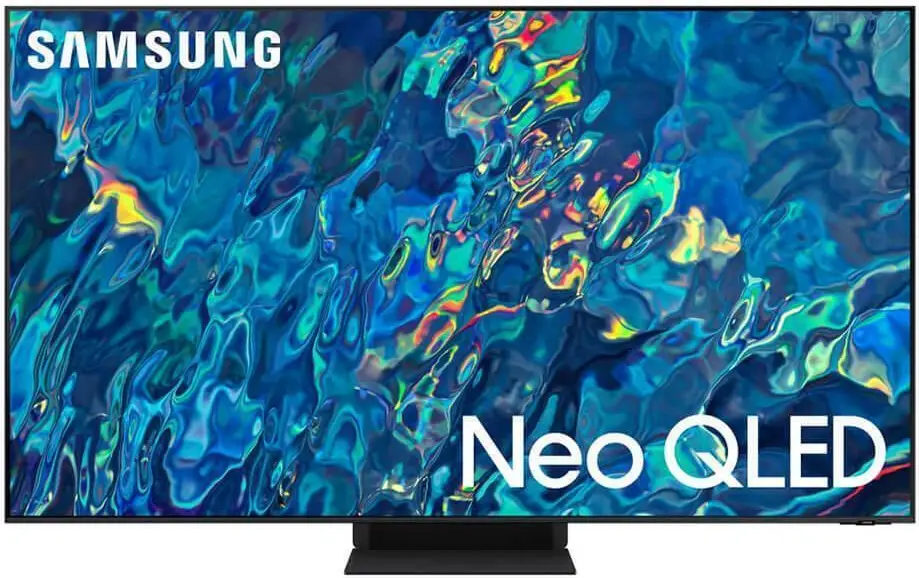

SAMSUNG QN75QN95B 75 Inch Neo QLED 4K Smart TV
Product Information
- Model: QN75QN95B, QN85QN95B
- Screen Size: 75 inches (QN75QN95B), 85 inches (QN85QN95B)
- Dimensions (with stand): 75 inches – 65.8 inches x 37.7 inches 12.5 inches, 85 inches – 74.6 inches x 42.7 inches x 13.4 inches
- Weight (with stand): 75 inches – 69.0 lbs, 85 inches – 95.7 lbs
- VESA Mounting Pattern: QN75QN95B – 400 x 400 mm, QN85QN95B – 600 x 400 mm
- One Connect Box and cable included
Product Usage Instructions

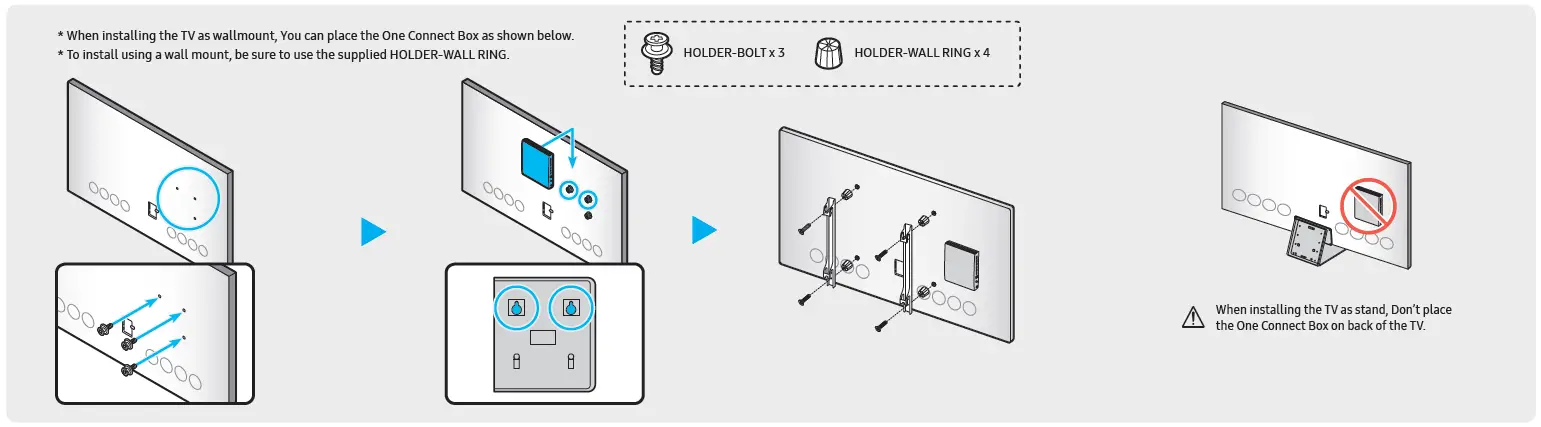

Wall Mount Installation:
- Use the supplied HOLDER-WALL RING to install the TV using a
wall mount. - Place the One Connect Box as shown in the manual.

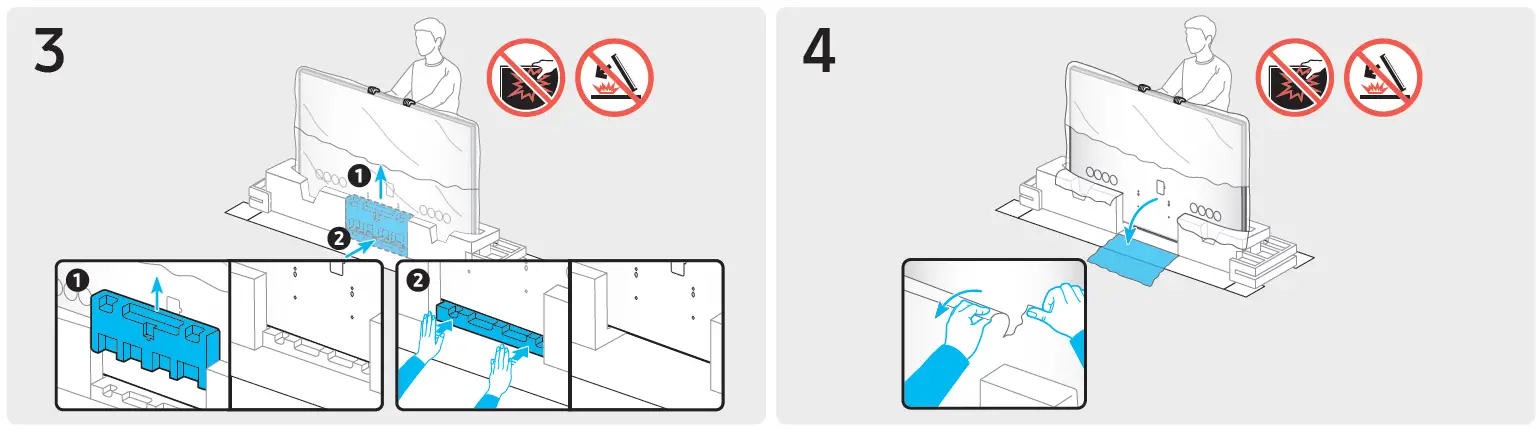

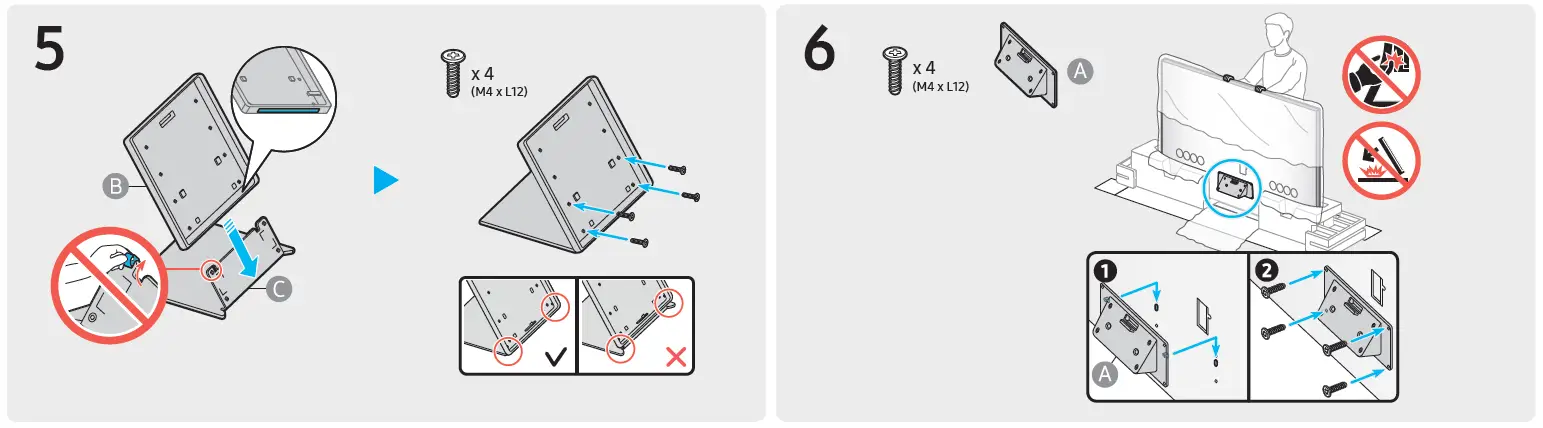

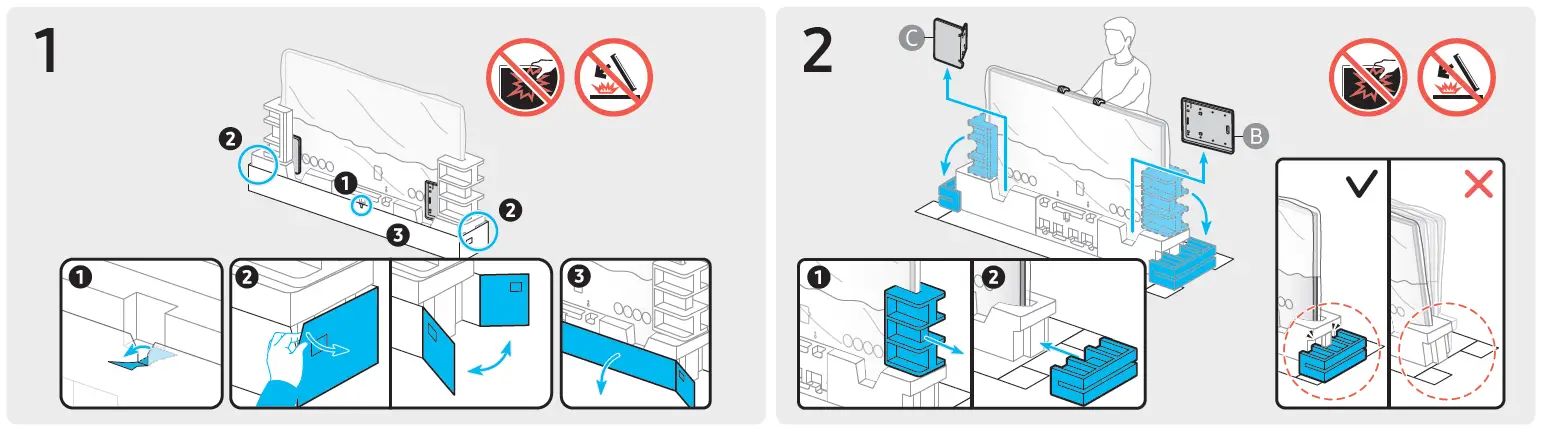

Stand Installation:
- Do not place the One Connect Box on the back of the TV when installing as a stand.
VESA Mounting:
- For QN75QN95B, use a wall mount bracket with a VESA pattern of 400 x 400 mm.
- For QN85QN95B, use a wall mount bracket with a VESA pattern of 600 x 400 mm.
- Use M8 screws with a length of 1.25 inches for mounting.

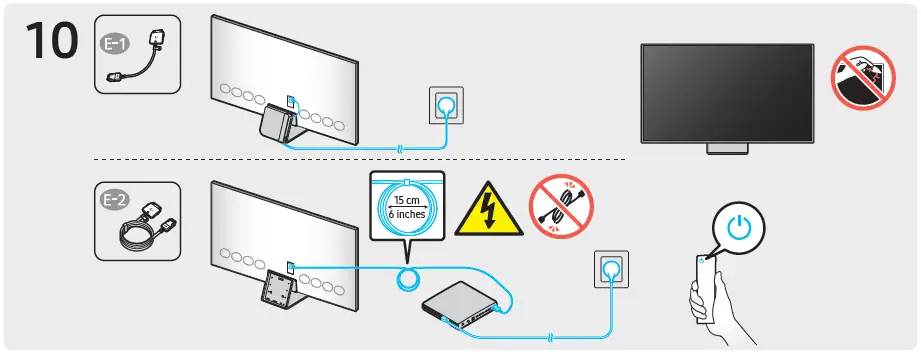

Power and Remote:
- Connect the One Connect Box to the TV using the supplied cable.
- Connect the power cable to the TV and a power outlet.
- Refer to the Samsung Smart Remote User Manual / Regulatory Guide for instructions on using the remote.
What in the box

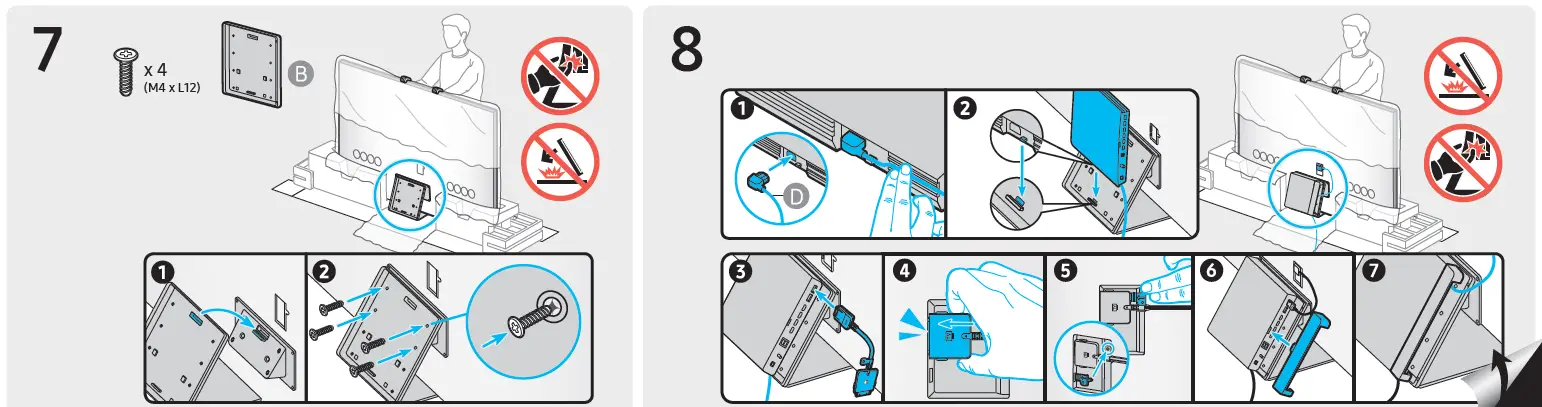

Installation Instructions
Connections

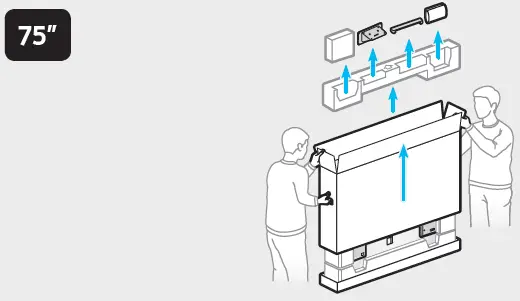

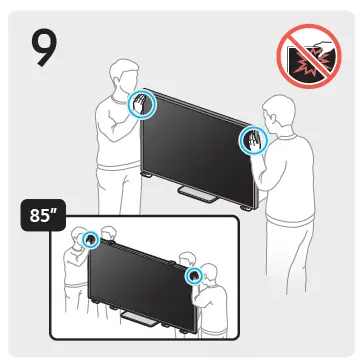

Handle with care
Power
Mounting

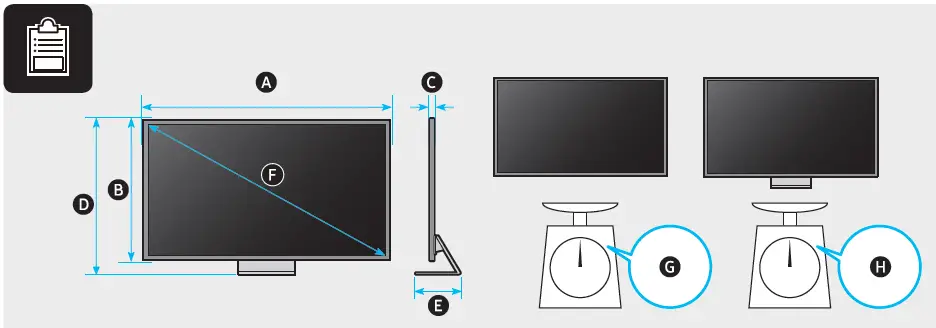

Dimension
| A | B | C | D | E | F | G | H | |
| QN75QN95B | 65.8 inches (1670.6 mm) | 37.7 inches (958.4 mm) | 0.7 inches (17.8 mm) | 40.3 inches (1024.5 mm) | 12.5 inches (318.3 mm) | 74.5 inches | 69.0 lbs (31.3 kg) | 91.1 lbs (41.3 kg) |
| QN85QN95B | 74.6 inches (1894.2 mm) | 42.7 inches (1084.4 mm) | 0.7 inches (17.8 mm) | 45.4 inches (1153.6 mm) | 13.4 inches (341.4 mm) | 84.5 inches | 95.7 lbs (43.4 kg) | 119.9 lbs (54.4 kg) |

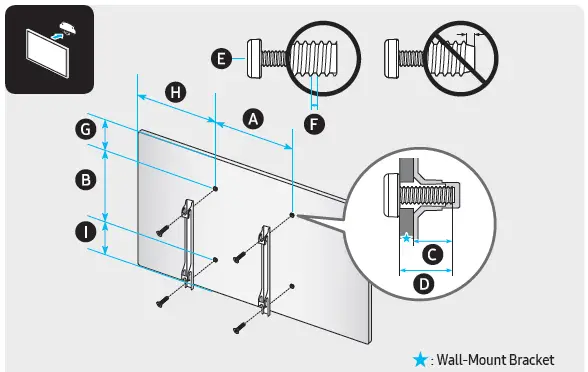

| QN75QN95B | QN85QN95B | |
| VESA A x B (mm) | 400 x 400 | 600 x 400 |
| C (mm) | 5-6 | |
| D |  | |
| E x 4 | M8 | |
| F (mm) | 1.25 | |
| G (inches) | 8.6 | 8.6 |
| H (inches) | 25.0 | 25.5 |
| I (inches) | 13.2 | 18.2 |
SCAN
Scan this QR code with your smart phone to see helpful videos
